1. Preliminaries of STT-MRAM and MTJ

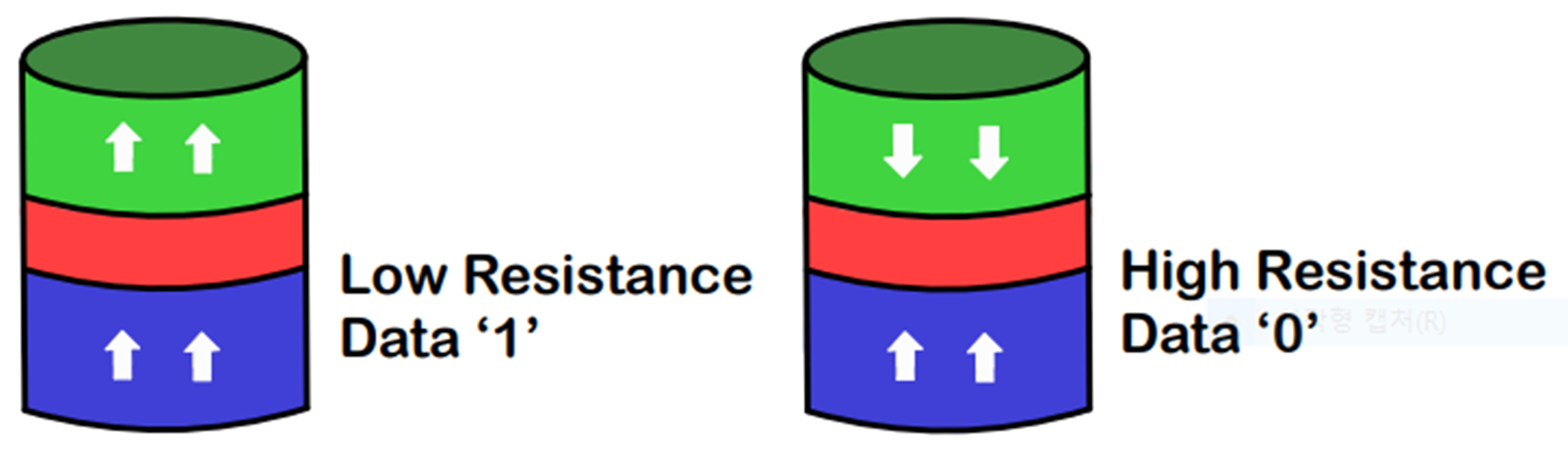

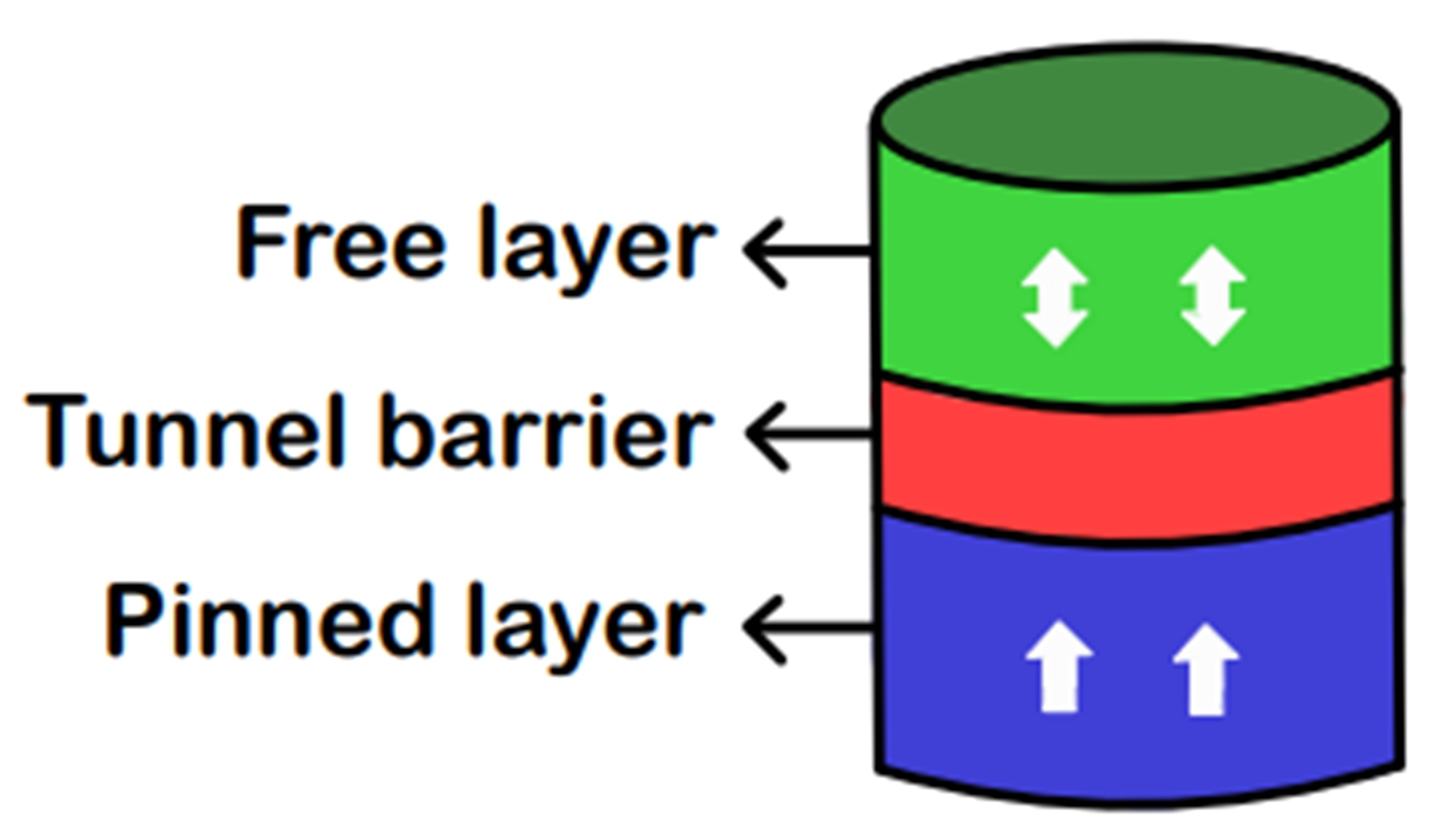

Fig. 1(a) shows a perpendicular magnetic anisotropy (PMA) magnetic tunnel junction (MTJ) of a general STT-MRAM cell. The MTJ comprises an oxide barrier layer, primarily between the free layer (FL) and pinned layer (PL), composed of a ferromagnetic material. The magnetization directions of FL and PL can be expressed in two states: parallel (P) and antiparallel (AP). Based on the magnetization direction of the FL, the MTJ can exhibit two resistance states owing to the tunnel magnetoresistance (TMR) effect. As shown in Fig. 1(b), the case in which FL is magnetized in the same direction as PL is denoted as $R_{\rm P}$, low resistance, and state 1. And the case where it is magnetized in the opposite direction is denoted as $R_{\rm AP}$, high resistance, and state 0. The difference in resistance between $R_{\rm P}$ and $R_{\rm AP}$ affects the reading performance measured by the TMR ratio and is calculated as ($R_{\rm AP}-R_{\rm P})/R_{\rm P}\times 100$ ^[15], ^[16].

2. BL and SL Characteristics

To write and read the desired data in the memory, it is necessary to select the corresponding bit line (BL), WL, and source line (SL). Voltage is applied to the desired BL, WL, and SL using the signals of the BL, WL, and SL decoders, making a path through which current can flow from ${\rm V}_{\rm DD}$ to GND through the desired data. Generally, unlike the WL, which consists of one NMOS, the BL and SL are composed of one NMOS, one PMOS, and one inverter in STT-MRAM, as depicted in Fig. 2. This is called a BL (SL) switch. The BL and SL switches have the above shapes because of the pull-down network nature of the NMOS. When only NMOS is used, only the value of ${\rm V}_{\rm DD}-{\rm V}_{\rm TH}$ can be used, even if ${\rm V}_{\rm DD}$ is applied to the memory. Therefore, the voltage is stably supplied using an additional PMOS with the pass strong 1 property and an inverter that converts the voltage applied to ${\rm V}_{\rm DD}$ into GND.

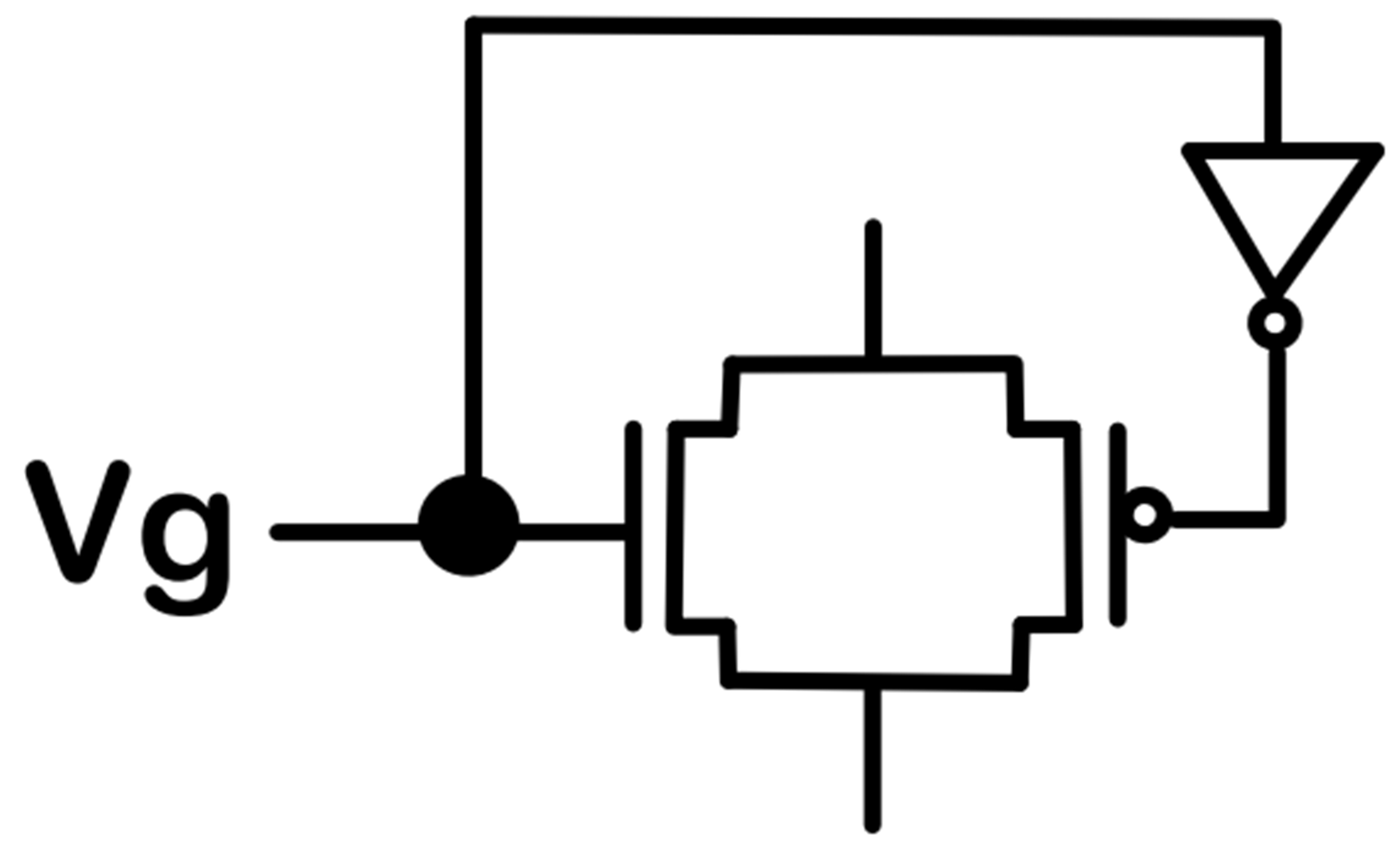

Fig. 2. BL, SL switch.

1. Reference Scheme

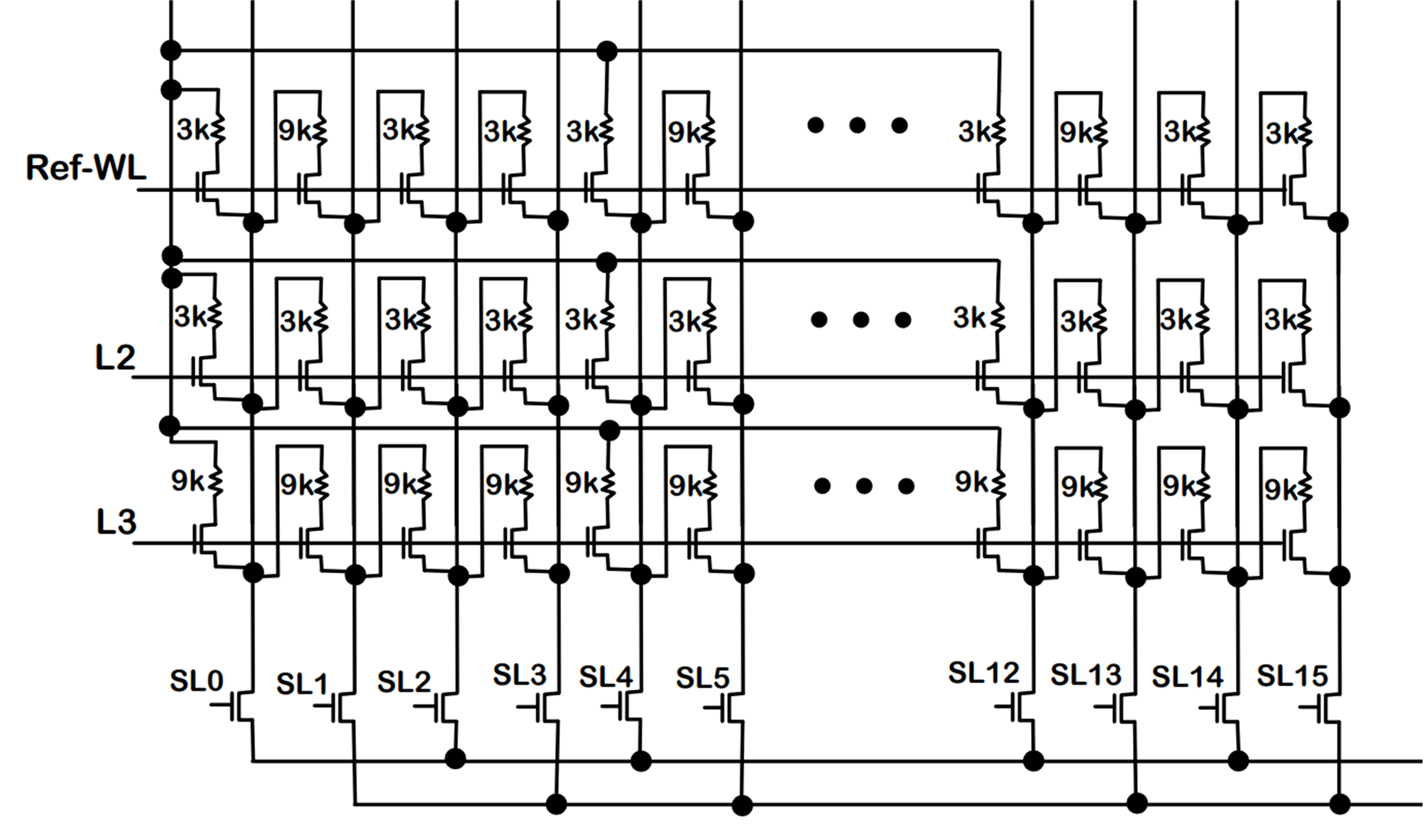

Fig. 4(a) shows the previous CIM reference cell for general memory and CIM (AND, OR) operations in the multiple-cell reference (MCR) scheme ^[17], which is the optimal reference scheme. $R_{\rm P}$ and $R_{\rm AP}$ are 3 k$\Omega$ and 9 k$\Omega$, respectively, with a TMR ratio of 200% ^[9]. The SL switch in Fig. 4 is in the form of a switch as shown in Fig. 2, but it is expressed in NMOS for convenience. When 16 cells are used in the MCR scheme, the conventional $R_{\rm REF}$ ($=2\times( R_{\rm P} $//$ R_{\rm AP})$) for the memory operation can be achieved at $R_{\rm P}:R_{\rm AP} = 12 : 4$. For the CIM AND and OR operations, two WLs ($L_{2}$ with $R_{\rm P}$ and $L_{3}$ with $R_{\rm AP}$) are used. The previous CIM performs normal memory operation when only Ref-WL is turned on. When Ref-WL and $L_{2}$ ($L_{3}$) are turned on simultaneously, the AND (OR) operation is performed with the value of $R_{\rm REF} $//$ R_{\rm P}$ ($R_{\rm REF} $//$ R_{\rm AP}$). The required resistance value for each operation is shown in Fig. 5. The required BL, WL, and SL values for each operation are determined by the decoder, as discussed in detail in Section III-2.

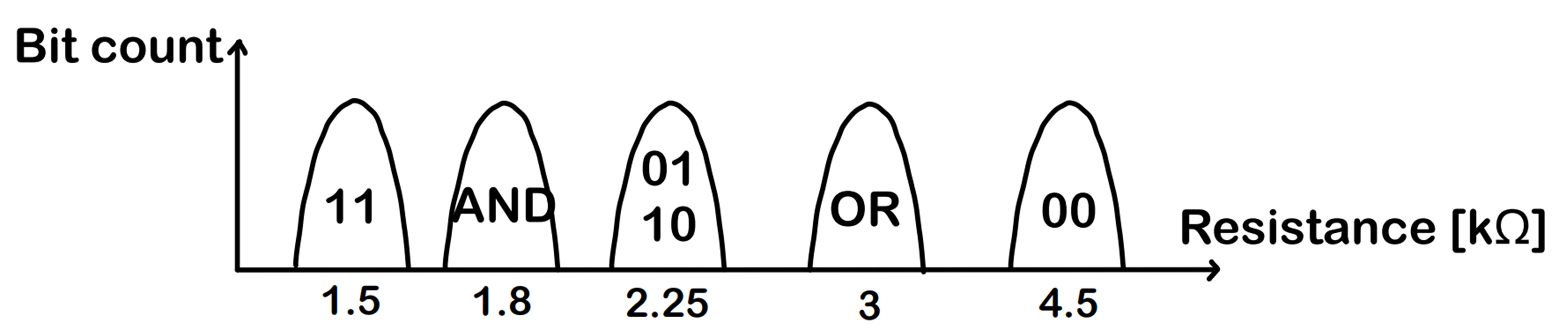

Fig. 5. Resistance during logic operations.

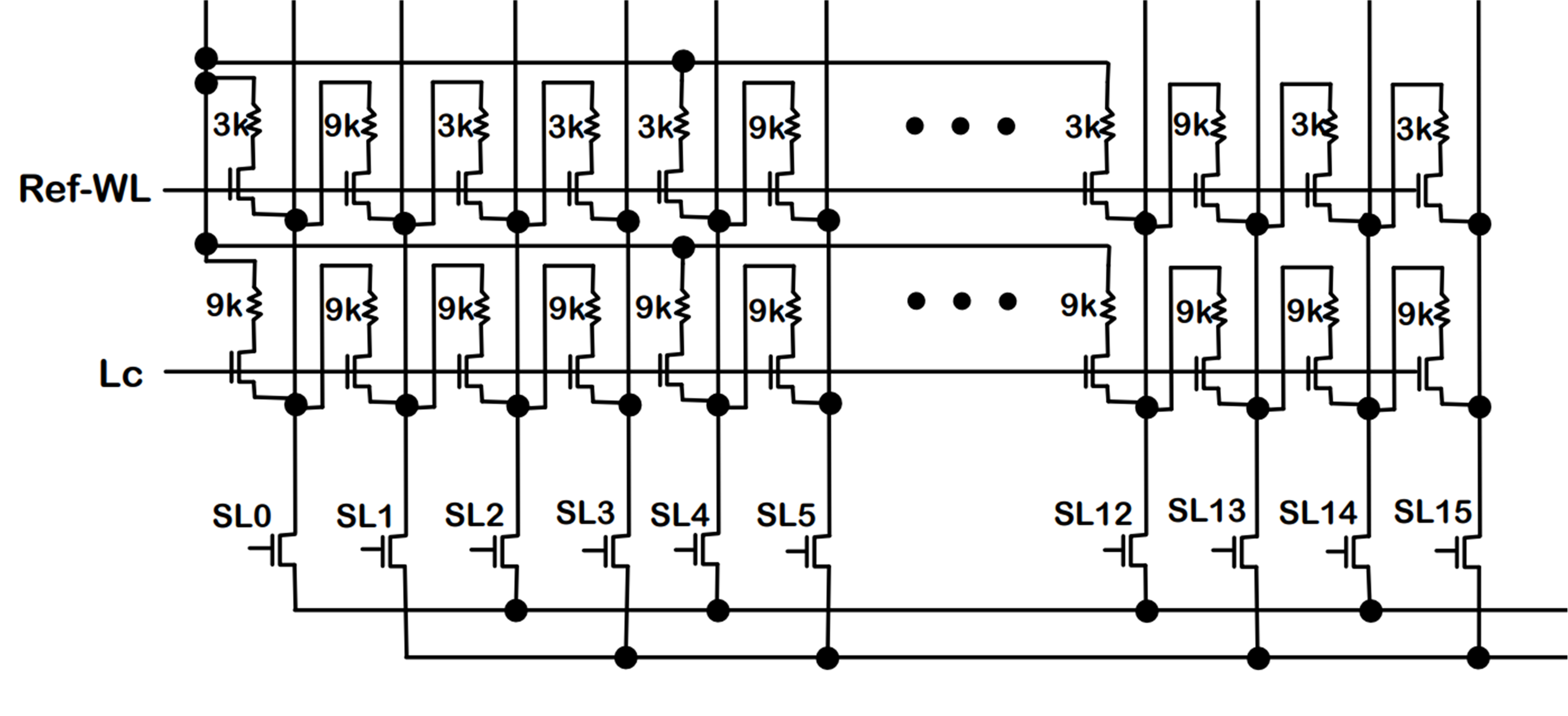

The proposed CIM uses only two WLs, unlike the previous CIM, which uses three WLs. Ref-WL uses the same MCR scheme with $R_{\rm P}:R_{\rm AP} = 12 : 4$ ratio as in the previous CIM. However, the proposed CIM only uses one WL ($L_{C}$) for CIM (AND, OR) operation. The resistor comprising $L_{C}$ is composed of $R_{\rm AP}$, as shown in Fig. 4(b). When only Ref-WL is turned on, a normal memory operation is performed. When Ref-WL and $L_{C}$ are turned on simultaneously, an AND or OR operation is performed. AND and OR are determined by the SL used, and the reference value required for each is created based on the SL used. When Ref-WL, $L_{C}$, SL1, SL5, SL9, and SL13 are selected, they generate $R_{\rm REF} $//$ R_{\rm P}$ values and operates as AND. If Ref-WL, $L_{C}$, SL3, SL7, SL11, and SL15 are selected, it generates $R_{\rm REF} $//$ R_{\rm AP}$ values and an OR operation is performed.

2. Design of the decoder

A decoder is used to select the desired BL, WL, and SL from the memory. The numbers of BLs, WLs, and SLs determine the number of signals required by the decoder, and this study covers the design of the decoder when the numbers of BLs, WLs, and SLs are 16, 128, and 16, respectively.

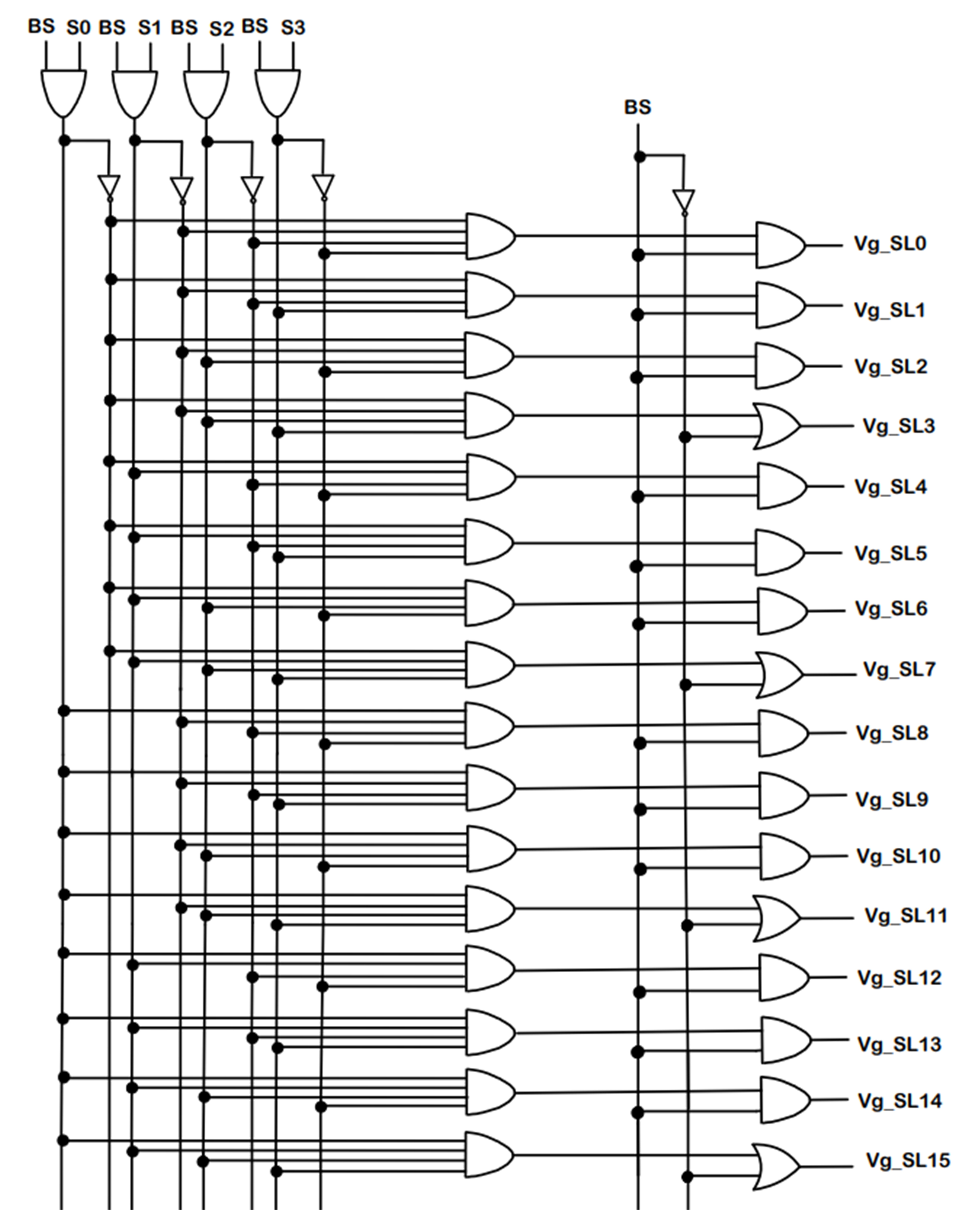

For typical memory, the same SL is used with the BL. Five signals (S0-S3, bank select (BS)) of the BL decoder, shown in Fig. 6, are used for the SL decoder. The MCR scheme has two banks connected to the SA. When data are selected, the bank to which the data cells belong is activated, and another bank, called the deactivated bank, selects reference cells for sensing. BL0 and Ref-WL must be used to create a reference voltage or current in the deactivated bank. The SL decoder uses five signals (S0-S3, BS), as shown in Fig. 7(a). In this case, the BS signal is 1 (0) in the activated (deactivated) bank. The WL decoder (shown in Fig. 8(a), ignoring the CIM_AND_EN and CIM_OR_EN signals) uses eight signals (W0-W6, BS). Thus, a total of 12 signals (S0-S3, W0-W6, BS) are available in a typical memory without CIM operations.

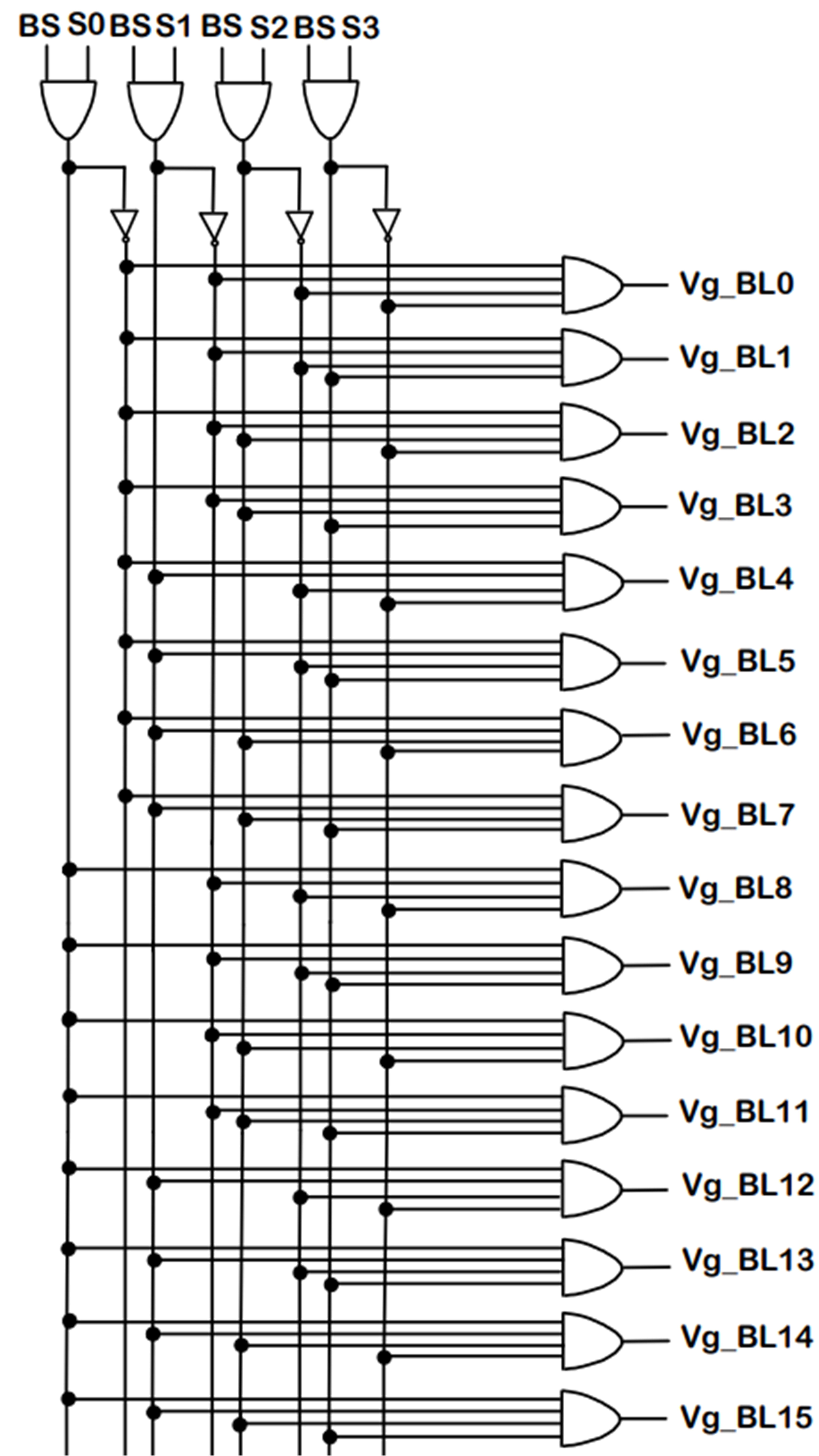

Fig. 6. BL decoder.

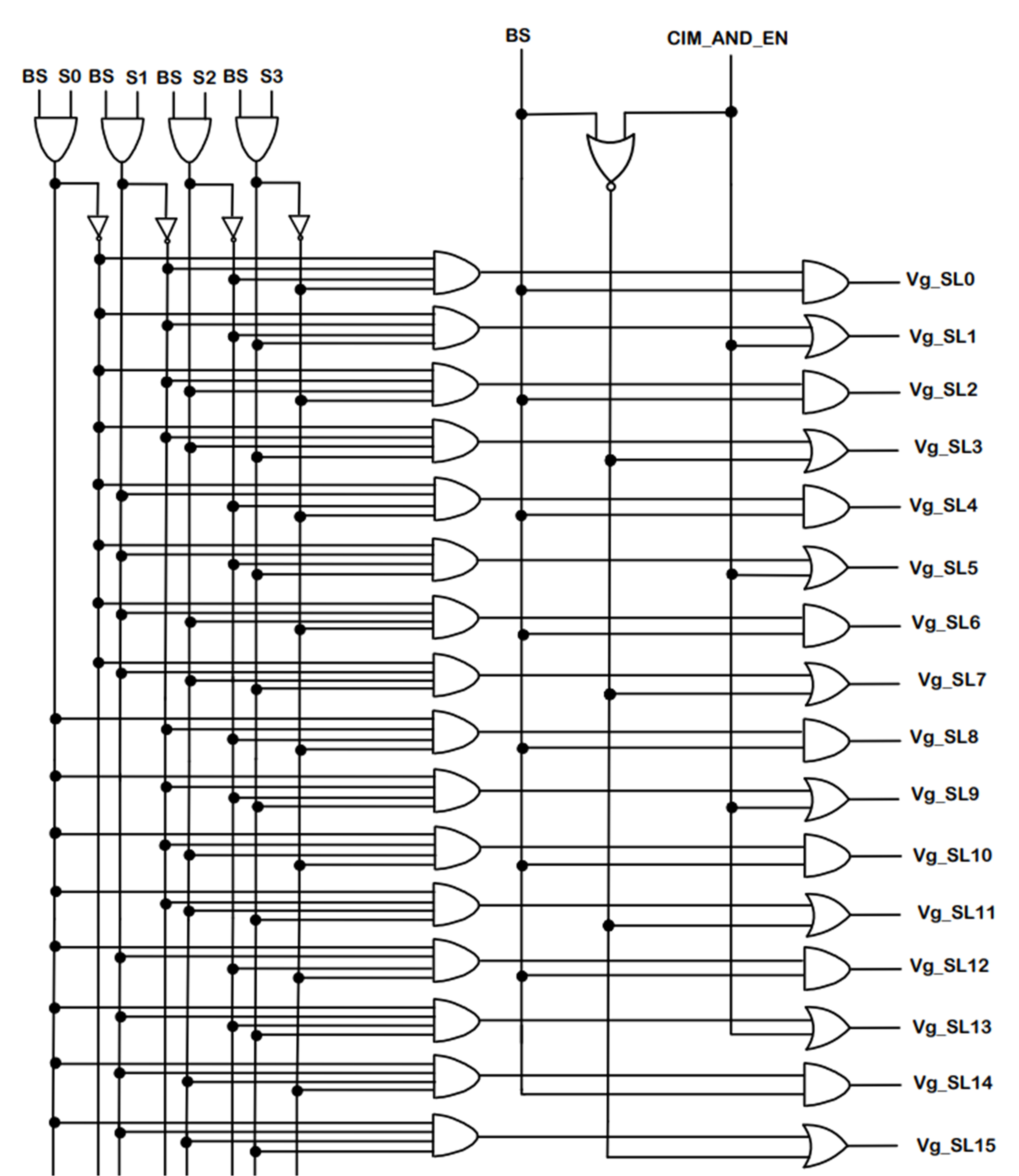

Additional signals are required for the memory to support the CIM operation. First, the BL decoder has the same structure as the previous and proposed CIMs, as depicted in Fig. 6. The previous CIM has the same SL decoder structure as the typical memory, as shown in Fig. 7(a), because SL3, SL7, SL11, and SL15 are used for Ref, AND, and OR operations, respectively. The SL decoder in the proposed CIM has a slightly different design, with an additional CIM_AND_EN signal, as shown in Fig. 7(b). The NOR signal of the BS and CIM_AND_EN is connected to $V_{g_SL3,\ }$$V_{g_SL7,\ }$$V_{g_SL11,\ }$and V${}_{g_SL15}$, and CIM_AND_EN is connected to $V_{g_SL1,\ }$$V_{g_SL5,\ }$$V_{g_SL9}$, and $V_{g_SL13}$ to obtain the proper resistance value required for each operation.

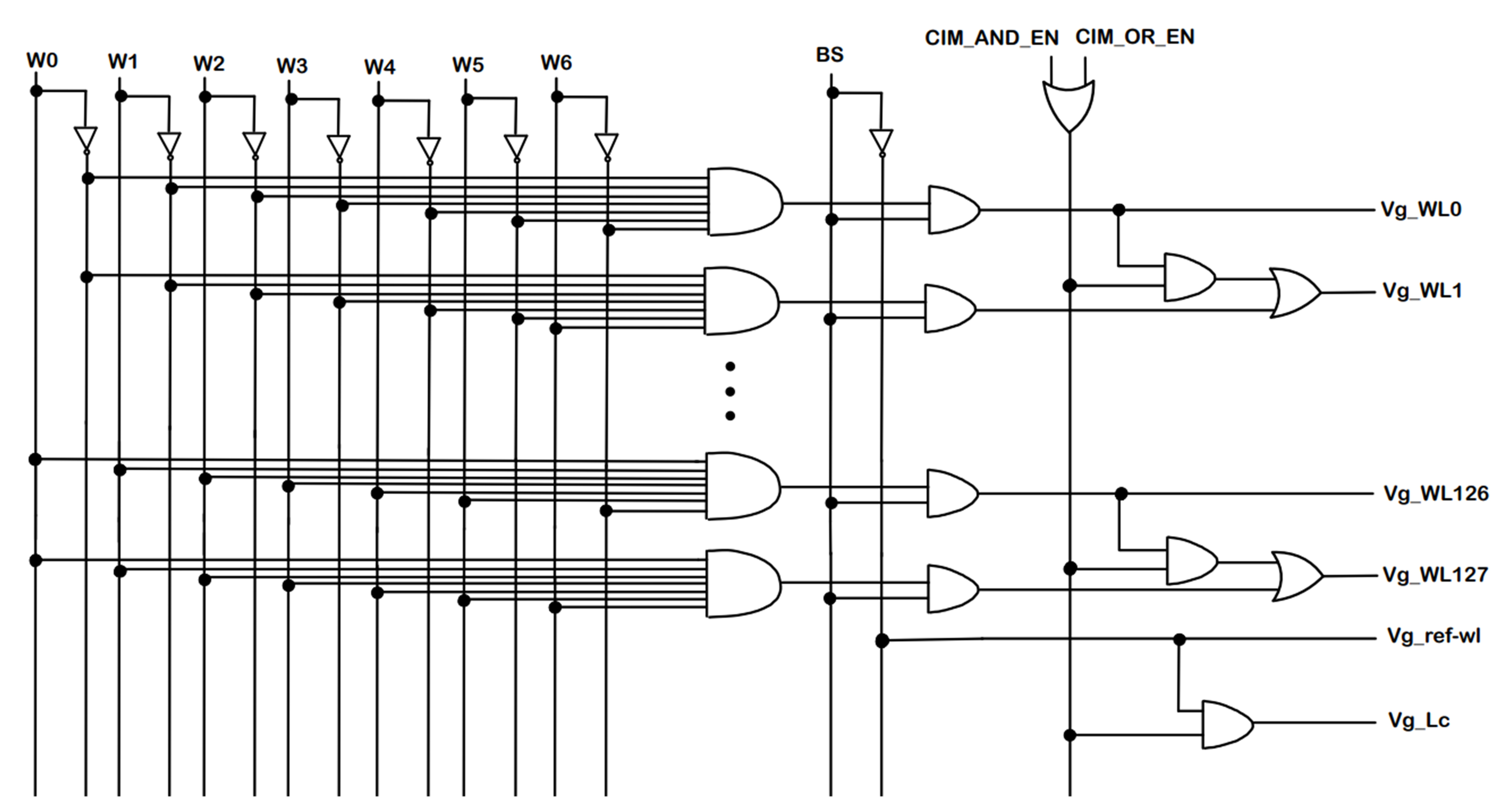

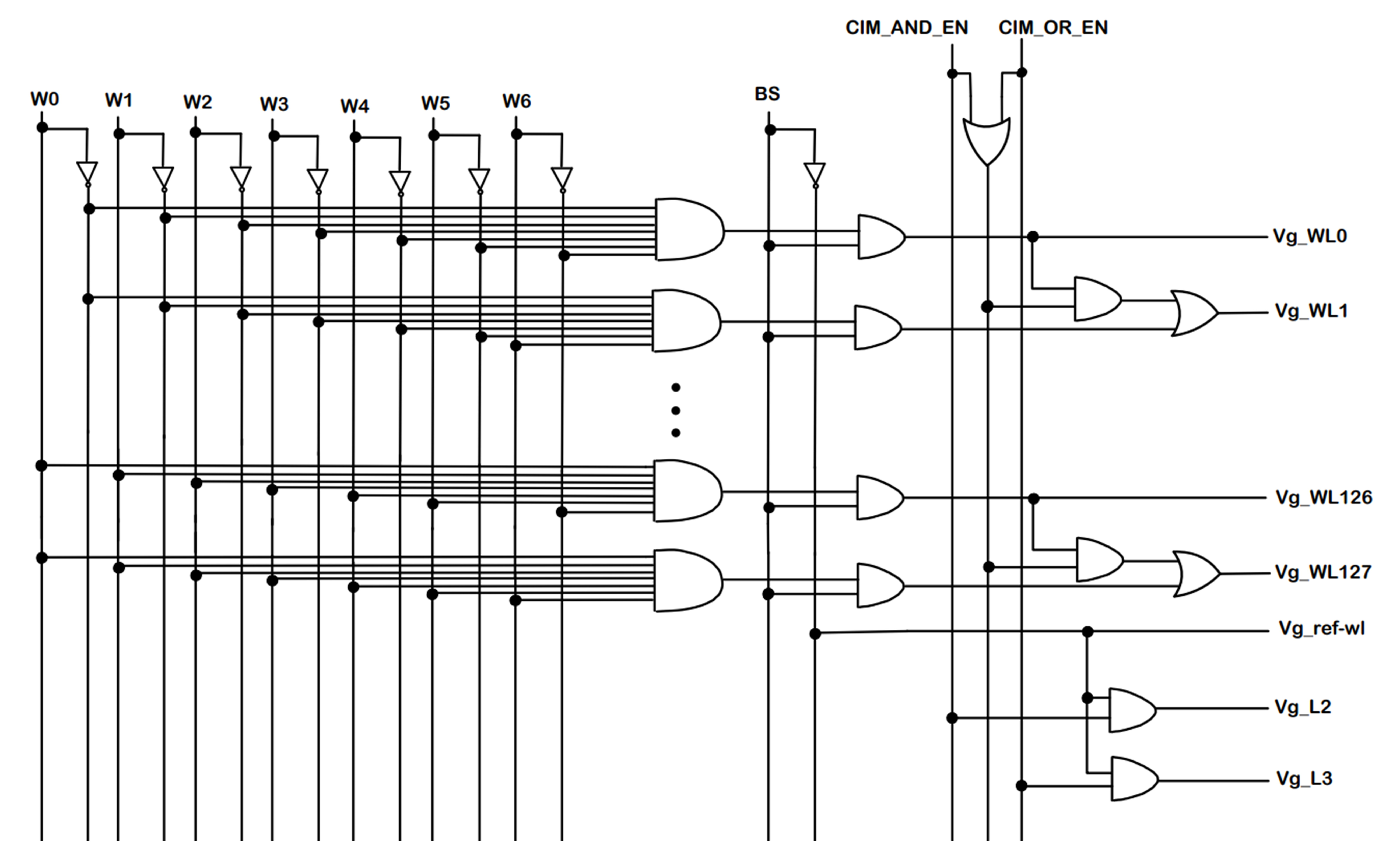

In a WL decoder design, the two operand data used in the CIM operation are set to the data located in the neighboring WLs. For example, WL0 and WL1 become a pair for the CIM operation. Compared with a typical memory, both CIMs use two additional signals (CIM_AND_EN and CIM_OR_EN) in the WL decoder. To perform both general memory and AND/OR operations, the WL decoder of the previous CIM generates not only Ref-WL ($= V_{g_ref-wl}$), but also $L_{2}$ ($= V_{g_L2}$) and $L_{3}$ ($= V_{g_L3}$) signals, as shown in Fig. 8(a). Since $L_{2}$ or $L_{3}$ must be turned on simultaneously as Ref-WL for AND/OR operation, each enabled signal and Ref-WL are connected using an AND logic gate. The proposed CIM can be designed as shown in Fig. 8(b) because it only requires Ref-WL and $L_{C}$ to be turned on simultaneously for both AND and OR operations.

The total number of signals required for the previous and proposed CIM decoders is 14 (S0-S3, W0-W6, BS, CIM_AND_EN, and CIM_OR_EN). It can be observed that two signals are additionally required for CIM operation. The WL decoder of both the previous and proposed CIMs is increased by one logic stage compared to common memory. The proposed CIM is similar to the previous CIM in terms of decoder design; however, it is more area-efficient because it can reduce the reference WL required for CIM operation by one. The designed decoder can prevent the toggling of internal nodes by blocking the unused BL, SL, and WL that are not in use because the BS signal is located at the beginning. This process is also energy-efficient.

3. SA

The PCSA, shown in Fig. 9, is a circuit that charges the OUT node connected to the reference cell and the OUTB node connected to the data cell with $V_{\rm DD}$ in the pre-charge stage. Then creates a difference in the discharge rate between OUT and OUTB with $I_{\rm data}$ and $I_{ref}$ in the discharge stage, and senses it through positive feedback. The PCSA is used in many logic circuits because it has the advantages of fast sensing speed, small sensing power, and reduced standby power.

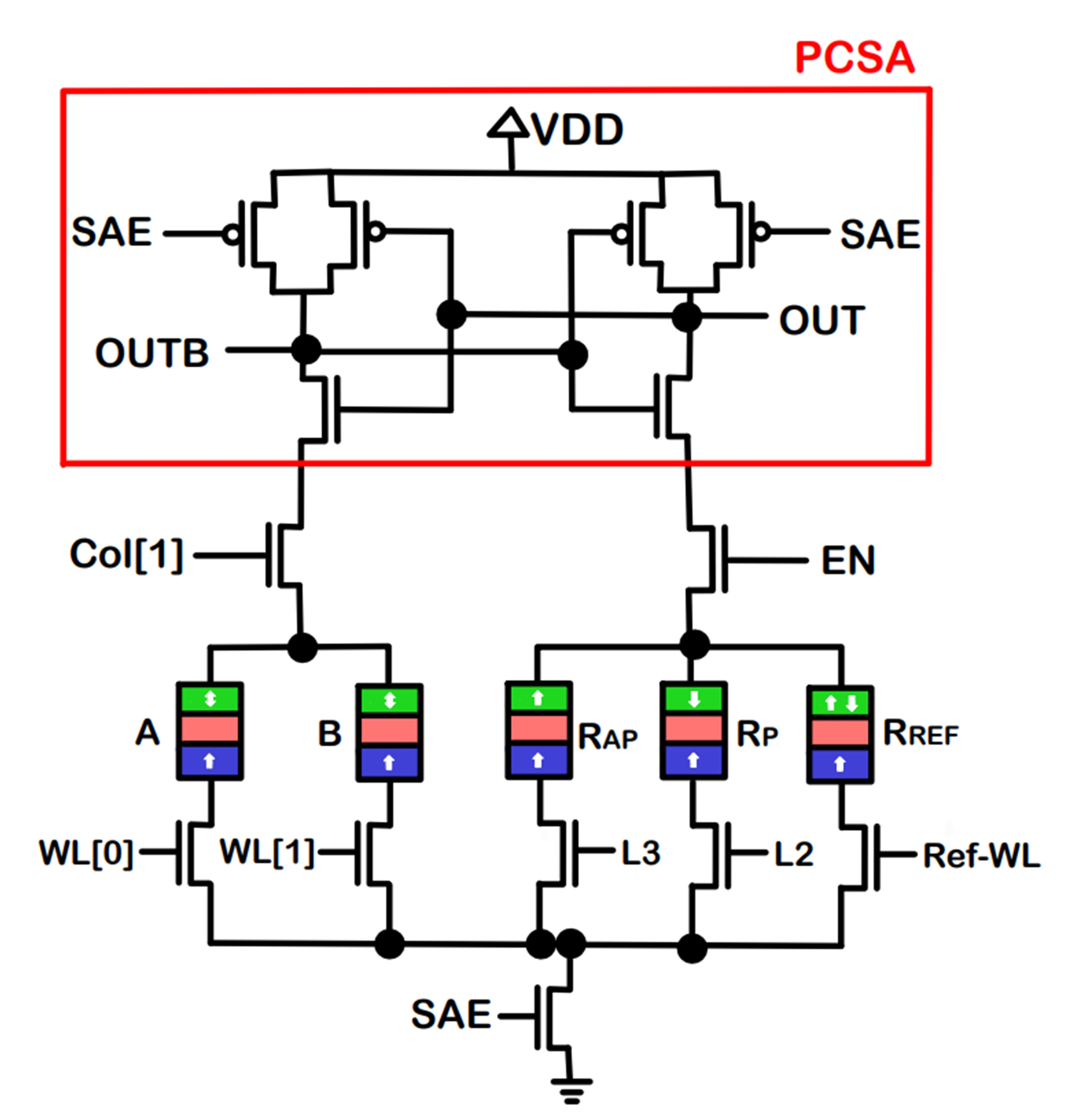

Fig. 9. Schematic of previous CIM.

However, for the proposed CIM with the MCR scheme, a serious sensing error occurs when PCSA is used. When the MCR scheme is used, the reference cells are located at the end of the memory array at WL127. When the sensed data cell is far from the reference cell located at WL127, that is, when the data cell is close to WL0, a serious read failure occurs. Unlike $R_{\rm P}$, which continues to have a read yield close to 100%, $R_{\rm AP}$ exhibits a sharp decrease in read yield to 50% from WL80 and 100% read failures from WL30, as depicted in Fig. 10. This is because the PCSA is sensed by the Elmore delay and not the resistance difference between the data and the reference.

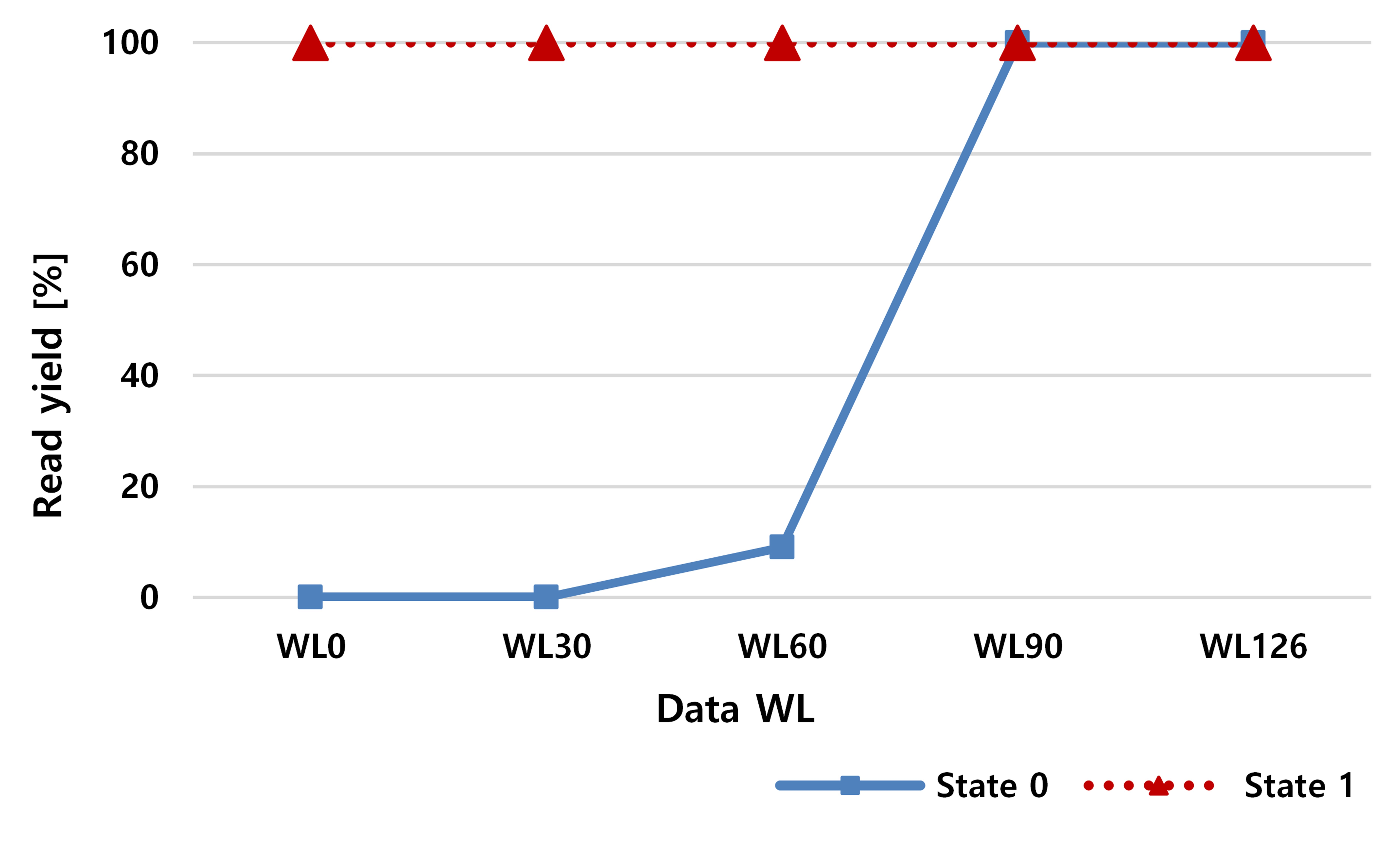

Fig. 10. . Memory read yield of the previous CIM when TMR is 200%.

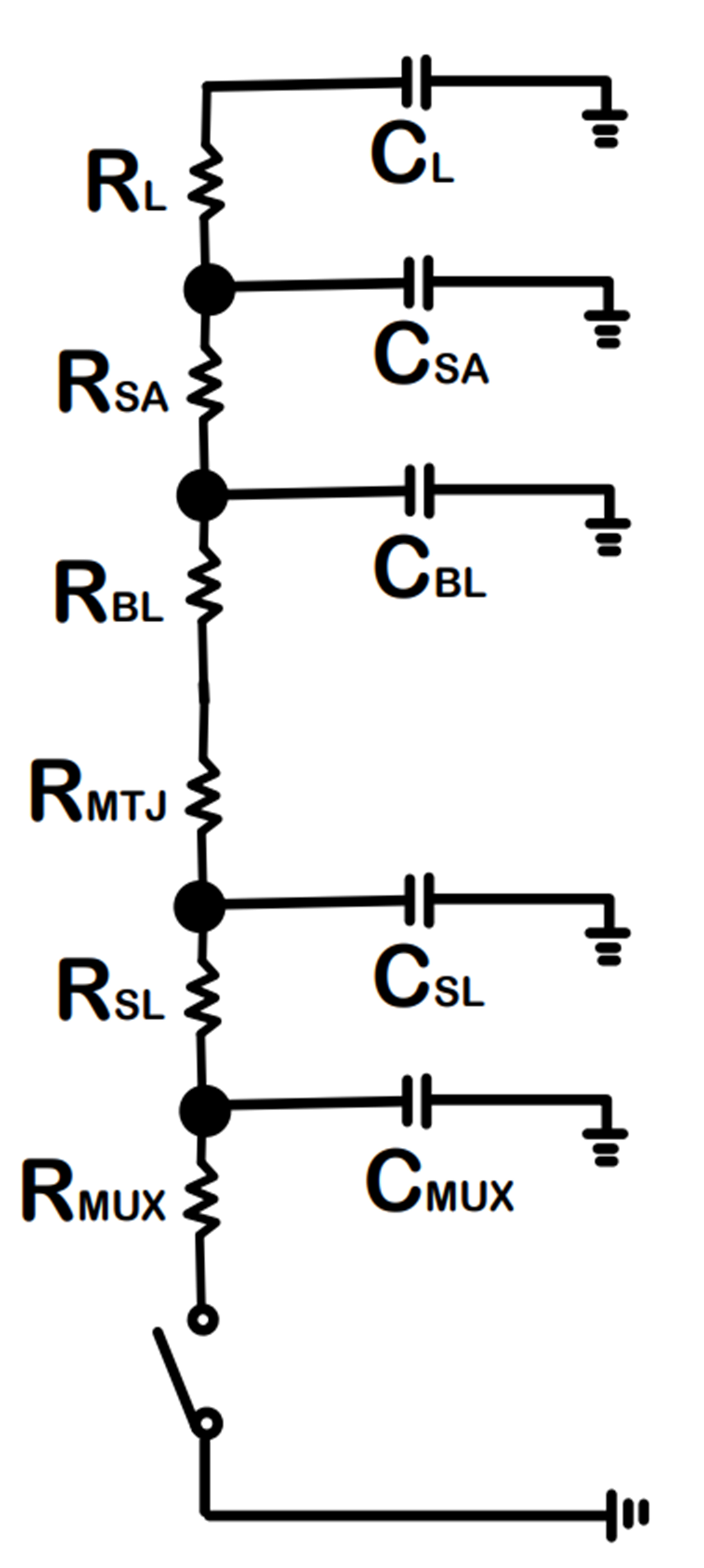

Fig. 11. Simplified previous CIM.

A simplified representation of the previous CIM is shown in Fig. 11. The Elmore delay at the OUT node can be expressed as

$R_{\rm BL} \approx C_{\rm BL} \approx 0$ for data cell located at WL0 and $R_{\rm SL} \approx C_{\rm SL} \approx 0$ for data cell located at WL127, which can be summarized as

If the same parasitic between BL and SL is assumed and $R_{\rm SL}=R_{\rm BL} = {R}$, $C_{\rm SL} = C_{\rm BL} = C$, and the identity terms in $d_{WL0}$ and $d_{WL127}$ are removed, then Elmore delays in WL0 and WL127 are expressed as

Even for the same data, the data cell located at WL0 discharges faster than the data cell located at WL127, because $d_{WL0}<d_{WL127}$. If the reference cell is located at WL127, OUT becomes unconditionally 1 ($V_{\rm DD}$) because the discharge rate of the OUTB node connected to the data cell increases as the data cell approaches WL0, regardless of the value of $R_{\rm data}$. Therefore, the closer to WL0, the yield of $R_{\rm P}$ (state 1), which should be faster than $R_{ref}$, increases, and the yield of $R_{\rm AP}$ (state 0), which should be slower, decreases.

Therefore, to use the PCSA, it is necessary to use the reference BL structure, in which the data and reference cells use the same WL ^[12]. However, because a large area overhead cannot be avoided owing to the reference BL structure, the proposed CIM uses the 1) MCR scheme ^[16], which is based on the reference WL structure, and 2) OCCS-SA ^[13], which makes the proposed CIM unaffected by Elmore delay.

The OCCS-SA in Fig. 13 charges the OUT (OUTB) node with the sampled current $I_{M1}$ ($I_{M2}$), while the M12 (M13) discharges the OUT (OUTB) node with the current $I_{\rm data}$ ($I_{ref}$). The OCCS-SA has a strong positive feedback by creating a current path to the GND through the M12 (M13). And it is a circuit in which $I_{\rm SA}$ ($= I_{\rm data} - I_{ref}$) is doubled by M12 (M13) as a data-dependent reference generator (DDRG). The OCCS-SA has relatively fast speed and high reliability due to the use of offset-cancellation, but it is slower than the PCSA. The PCSA is fast, but the result is not reliable because offset cancellation is not applied. However, the OCCS-SA used in the proposed CIM uses more transistors than the PCSA in the previous CIM. Since the number and size of transistors are directly related to the area overhead, it is not efficient if the area required to replace the SA is large compared to the WL of the reduced reference cell. Therefore, we compare the area of each SA required for a yield of 100%. In this case, the yield is based on the data $R_{\rm AP}$ located at WL0, which is the most difficult to read, and the area is estimated as the width and length of the transistor used.

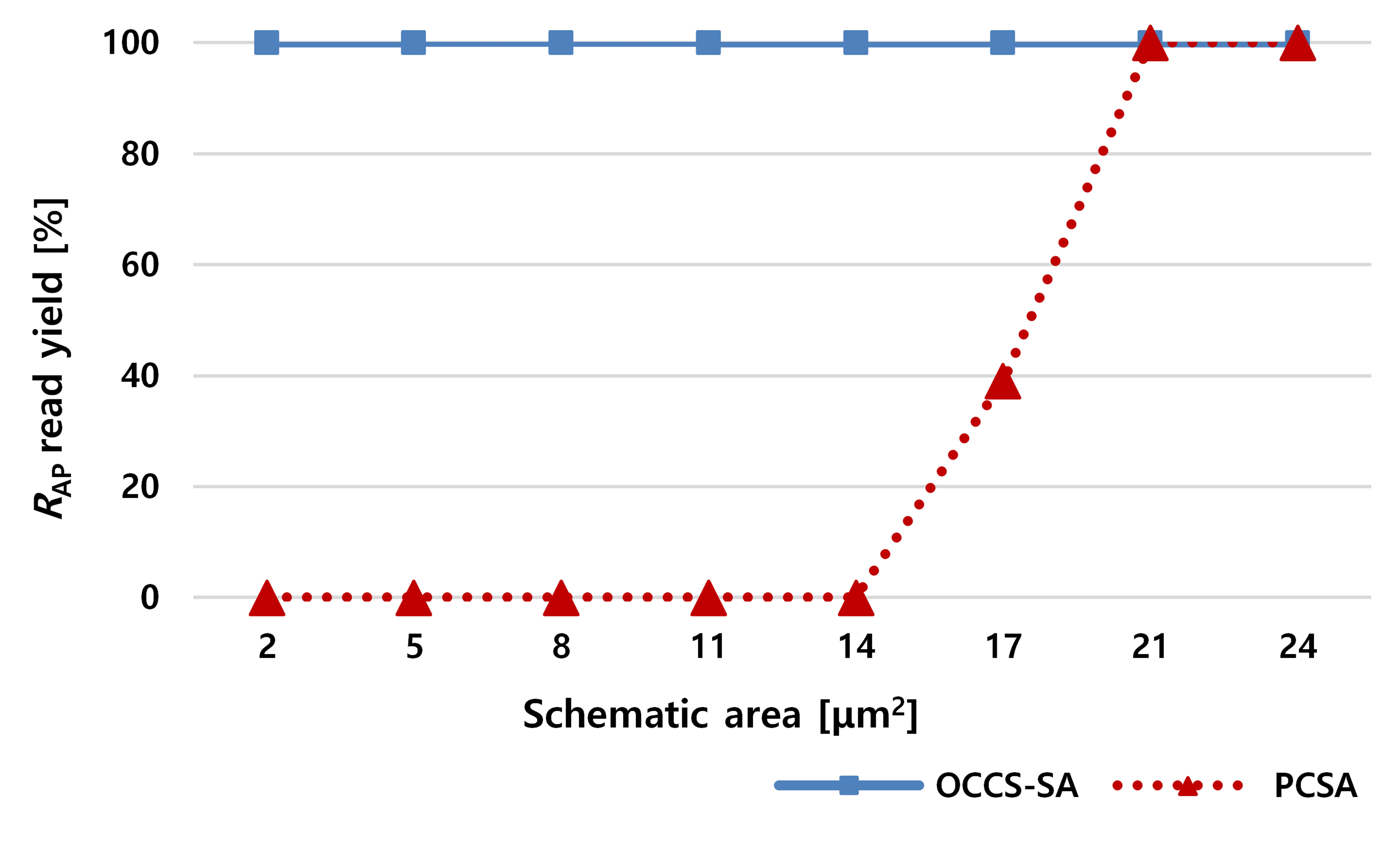

Fig. 12. $R_{\rm AP}$ read yield of OCCS-SA and PCSA according to SA area.

The OCCS-SA of the proposed CIM achieves a $R_{\rm AP}$ read yield of 100% in an area of 2 $\mu$m$^{2}$, as shown in Fig. 12. On the other hand, PCSA shows severe read failures with 0% yield even at 11 $\mu$m${}^{2}$, which is about 5.5 times the area of 2 $\mu$m${}^{2}$, and requires an area of 21 $\mu$m${}^{2}$, which is about 10.5 times the area of OCCS-SA, to achieve 100% yield. Because the PCSA uses Elmore delay as described above. The increase in the SA size means that $R_{\rm SA}$ becomes small and $C_{\rm SA}$ increases, and thus, the specific gravity of ${C}_{\rm SA}$ increases in Elmore delay. Thus, in the Elmore delay equation, ${C}_{\rm SA}$ ($R_{\rm SA} + R_{\rm BL} + R_{\rm MTJ} + R_{SL} + R_{\rm SLMUX}$) has a large specific gravity. The difference between d$_{\rm WL0}$ and d${}_{\rm WL127}$ is determined by R${}_{\rm MTJ}$. Therefore, PCSA should make SA large because PCSA should have the condition of $C_{\rm BL}$ ($C_{\rm SL}$) $\ll C_{\rm SA}$ for accurate sensing. Therefore, in order to satisfy 100% yield, the PCSA requires a large area overhead, which can lead to power consumption and delay problems, making it unsuitable for the proposed CIM. By using OCCS-SA instead of PCSA, the proposed CIM can increase reliability while having a small area overhead.

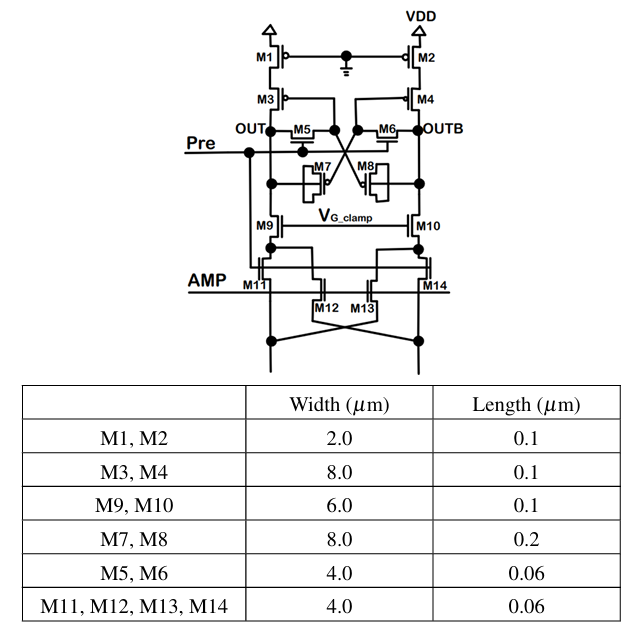

Fig. 13. Transistor-level schematic and transistor size of the OCCS-SA used.

1. Simulation Conditions

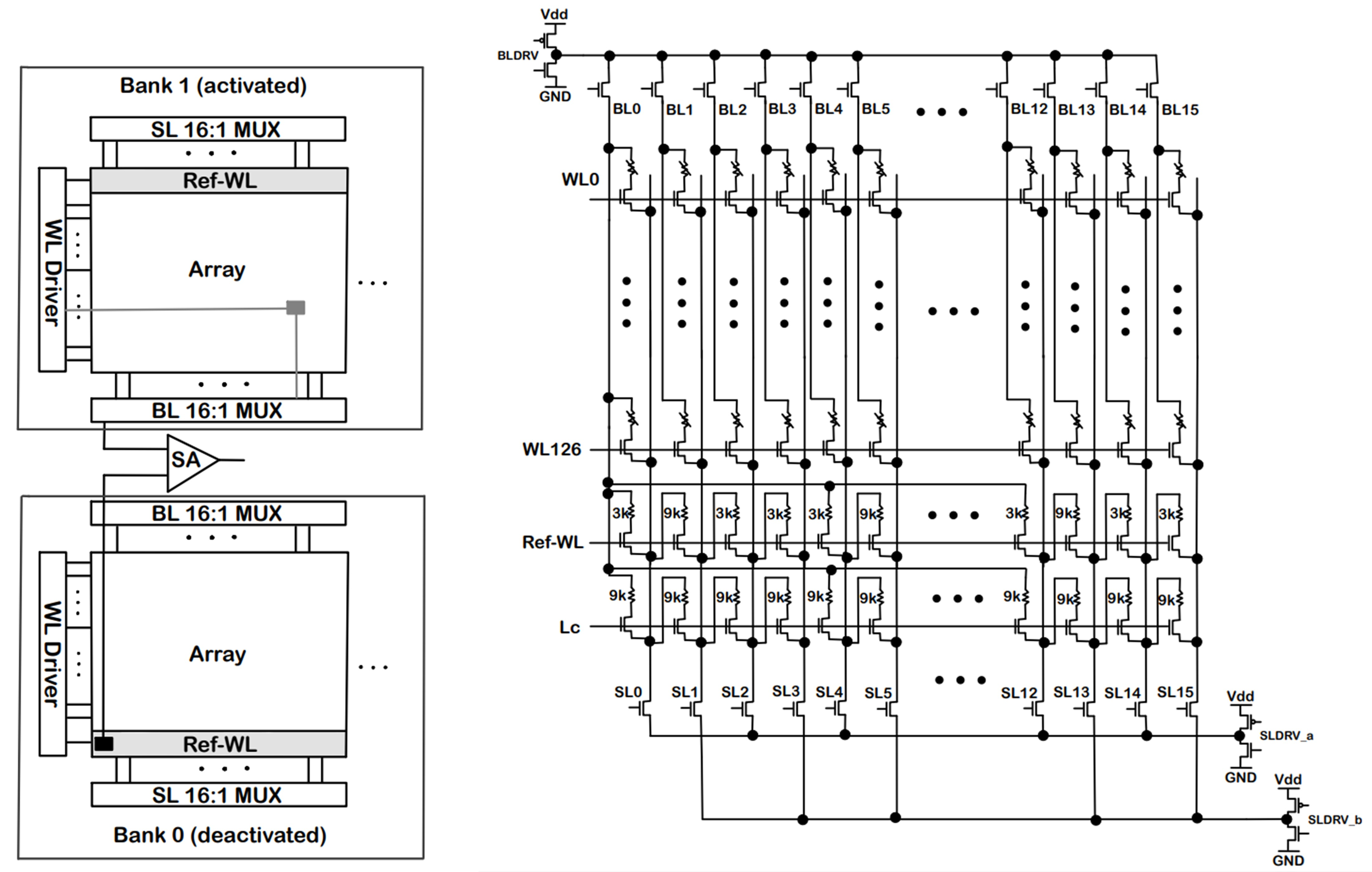

The proposed CIM simulations use 28 nm process technology and HSPICE. Fig. 3 shows a simplified array structure of the proposed CIM. A transistor-level schematic and transistor size of the SA are shown in Fig. 13. In other circuits, the NMOS has a width of 2 $\mu$m and length of 0.03 $\mu$m, and PMOS has a width of 4 $\mu$m and length of 0.03 $\mu$m. $R_{\rm P}$ is 3 k$\Omega$ and $R_{\rm AP}$ is 9 k$\Omega$ with a TMR of 200%. A 4% variation in the MTJ process was added for reliability verification. In this simulation, the PCSA for comparison was designed to be 8 $\mu$m${}^{2}$, similar to the OCCS-SA area used (7.84 $\mu$m${}^{2}$).

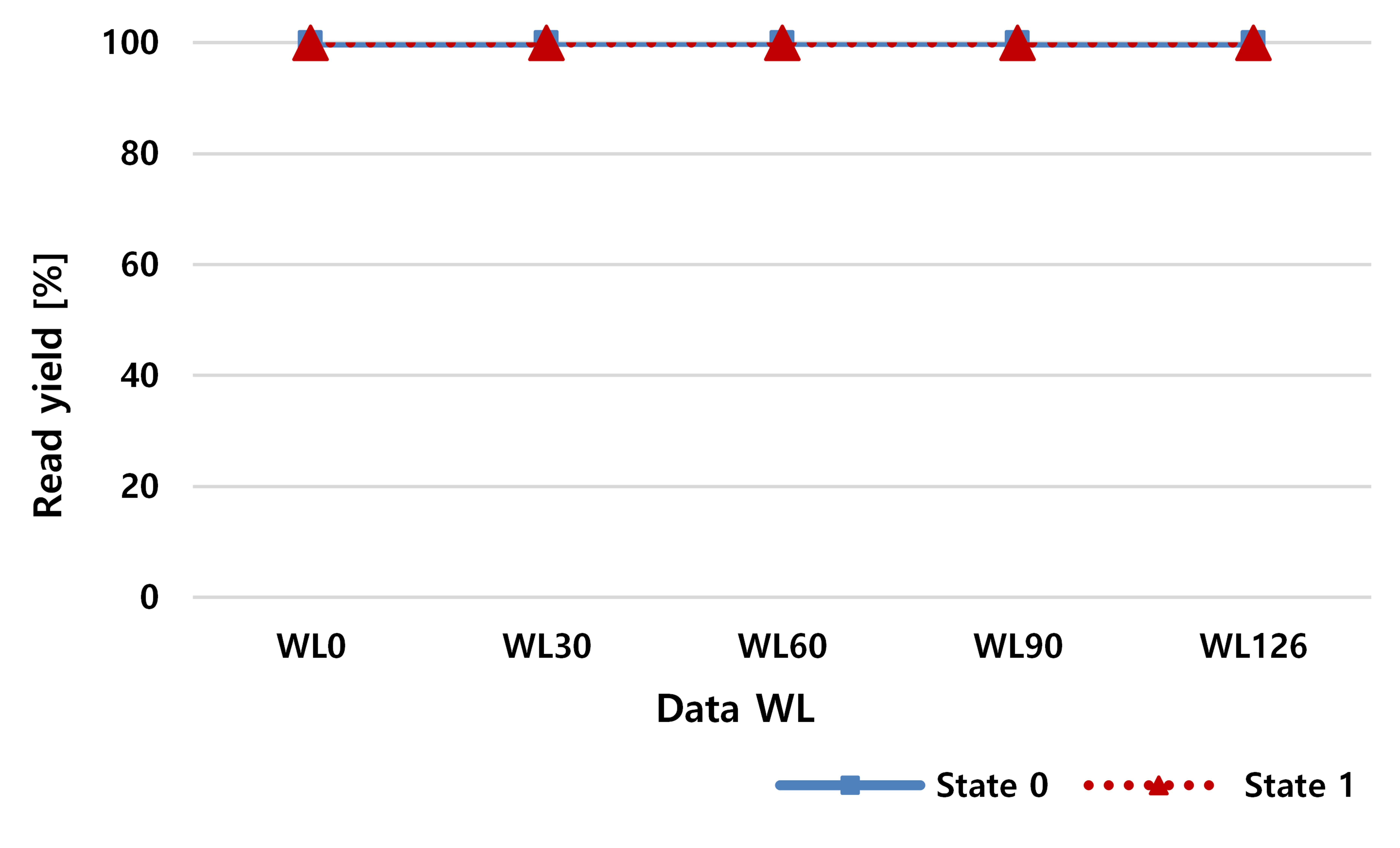

Fig. 14. Memory read yield of the proposed CIM when TMR is 200%.

2. Simulation Results

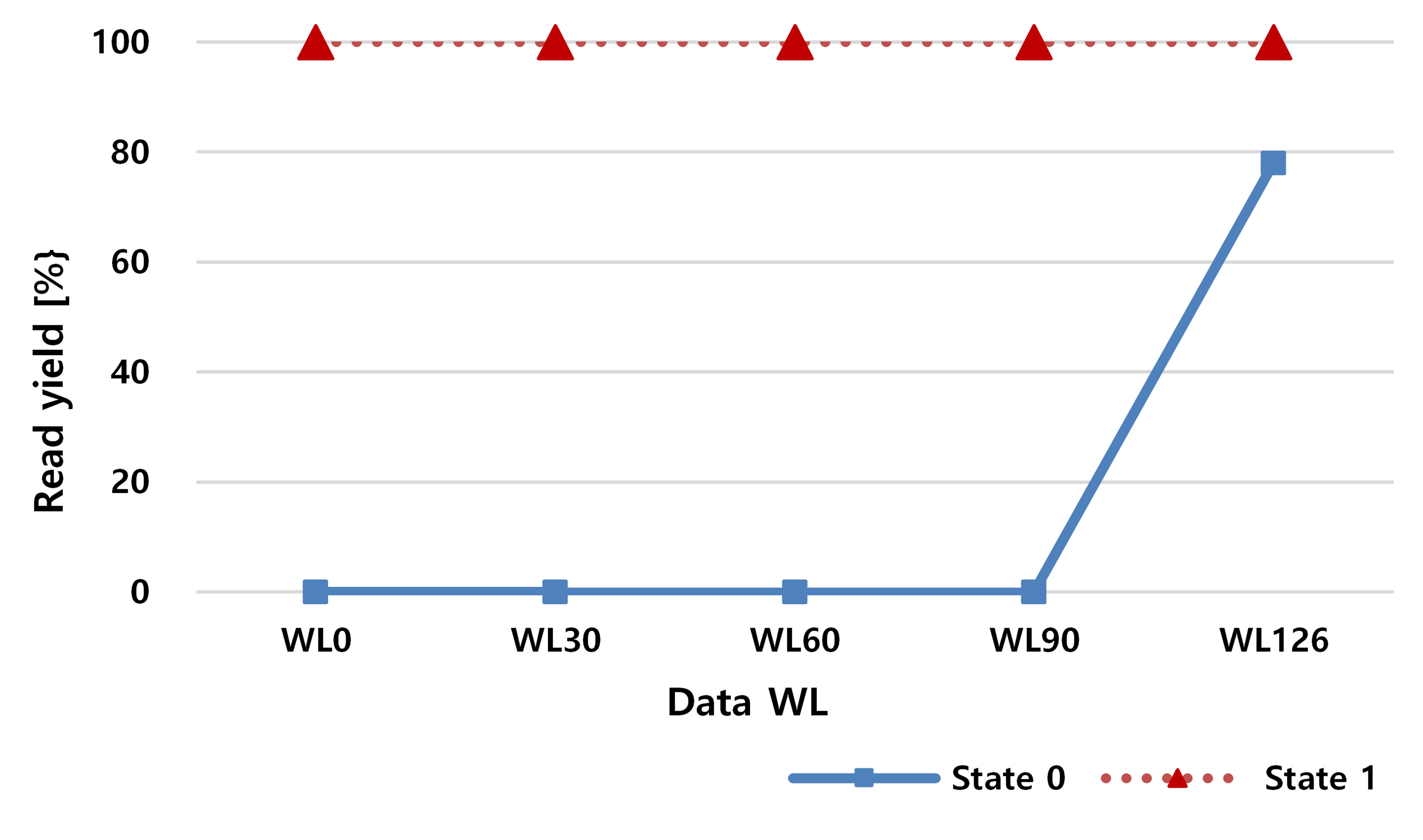

Fig. 14 shows the read yield of the proposed CIM based on the WL of the data when $V_{\rm DD} = 1$ V, gate voltage of the clamp NMOS ($V_{G_clamp}$) $= 0.8$ V, gate voltage of access transistor ($V_{access}$) $= 1.2$ V, and sensing time ($t_{sen}$) $= 10$ ns. Compared to the previous CIM (Fig. 10), where the yield rapidly decreases as the data approaches WL0, the proposed CIM shows 100% yield to WL0. Even when all conditions are set the same and only TMR is reduced to 100% ($R_{\rm P} = 3$ k$\Omega$, $R_{\rm AP} = 6$ k$\Omega$), the proposed CIM shows a yield of 100%, as shown in Fig. 15, while the previous CIM has a serious read failure with $R_{\rm AP}$ (state 0) yield of 0% from WL90.

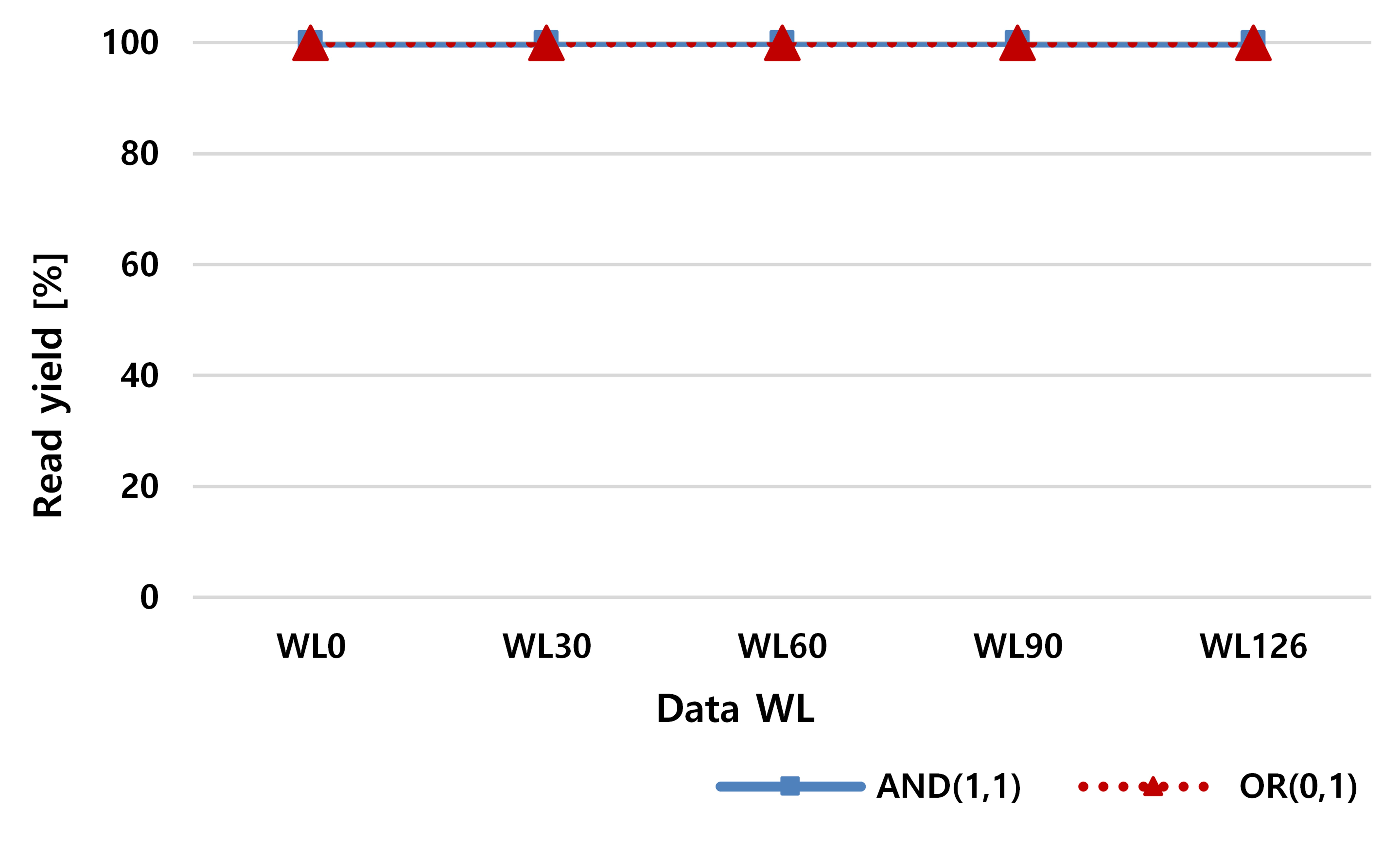

The worst cases for detecting the CIM AND and OR operations are AND(1,1) and OR(0,1), respectively. This is because the difference between $R_{ref}$ and $R_{\rm data}$ for each operation is small, as depicted in Fig. 5. Fig. 16 shows the worst case yield of the previous and proposed CIMs. The proposed CIM has 100% yield in all cases, including AND(1,1) and OR(0,1), which have the smallest $R_{ref}$ and $R_{\rm data}$ differences, as mentioned earlier. However, the previous CIM shows high failure rates in AND(1,0), AND(0,0), and OR(0,0), where the output should be zero, rather than in AND(1,1) and OR(1,0), where the resistance difference is small. This is because it is measured by the Elmore delay based on the WL of the data and not the difference between $R_{ref}$ and $R_{\rm data}$, as described in Section III-C. Therefore, the previous CIM outputs 1 unconditionally when the data approaches WL0 owing to the Elmore delay; thus, it is an unreliable result, even if it provides a 100% yield for AND(1,1), OR(1,0), and OR(1,1).
