Index Terms
3-D MOSFET, reconfigurable filedeffect transistor (RFET), vertically stacked gates
I. INTRODUCTION
During the last few decades, the scaling down of metal-oxide-semiconductor field-effect
transistors (MOSFETs) has been the main stream in electronics. However, scaling down,
based on Moore's Law, will end in the near future after the sub-10 nm node. In this
circumstance, several next-generation transistors have been investigated. Among them,
reconfigurable fieldeffect transistors (RFETs) can be dynamically configured as n
or p-type FET by changing electric signals during operation[1-5]. RFETs operated in the n-type mode or ptype modes can vary the Schottky barrier height
of the silicon channel by applying a voltage to the gate. Through this reconfiguration
concept, it is possible to implement various logic gates with fewer reconfigurable
transistors than conventional complementary metaloxide-semiconductor (CMOS) technology[6-8]. For example, RFETs require only half of the transistors to construct XOR logic gates,
when compared to CMOS implementation[8]. In addition, since the RFET does not require a doping process, it can reduce fabrication
steps and device variations due to the random dopant fluctuation. However, it is disadvantaged
in terms of device area because it requires two or more gates.
In this paper, to overcome the drawback of RFETs, we propose a novel RFET structure
with two vertical silicon nanowires connected to the bulk, and vertically stacked
gates. The characteristics of the proposed device were examined through a technology
computer-aided design (TCAD) simulation, using Atlas SilvacoTM V5.20.2.R.
II. DEVICE STRUCTURE AND PROCESS
1. Principles of RFET Operation
The conventional RFET has two types of gates: polarity gates (PG) and control gates
(CG). The CG controls the transistor $on$ and $off$ similar to the traditional gate
of a MOSFET. On the other hand, the PGs near the source/drain Schottky metal contacts
determine the type of the majority carrier for current conduction. A positive PG bias
causes electron injection at Schottky contacts and electron current flows for the
$n$-type operation, while a negative PG bias causes hole injection and hole current
flows for the p-type operation[1]. Fig. 1 shows the band energy diagram for RFET operation according to the biases of the PGs
and CG.
Fig. 1. Band diagrams for the working principle of the RFET.
This RFET device can provide an efficient circuit configuration by a fine grain reconfiguration
of simple as well as complex logic functions. However, the previous RFET devices have
a drawback: The unit cell size is large, due to the added gates, compared to a conventional
MOSFET with only one gate. To solve this problem, we proposed a U-shaped RFET.
2. U-shaped RFET Structure
Fig. 2(a) indicates the conventional RFET structure[1]. Although the two PGs are applied to the same operation voltage, they are physically
separated. To reduce the area burden due to the PGs, we revised the structure as shown
in Fig. 2(b). The two PGs are combined into one by folding the channel. Thus, the 3-D structure
of the Ushaped RFET was proposed as shown in Fig. 2(c). The proposed U-shaped RFET has several advantages over previous RFETs. First, the
device size can be reduced by combining two PGs together and by stacking the CG and
PG vertically as illustrated in Fig. 2(c). Second, it exhibits excellent scalability without any degradation of the subthreshold
swing (SS) or drain-induced barrier lowering (DIBL), since its main channel length
is defined vertically.

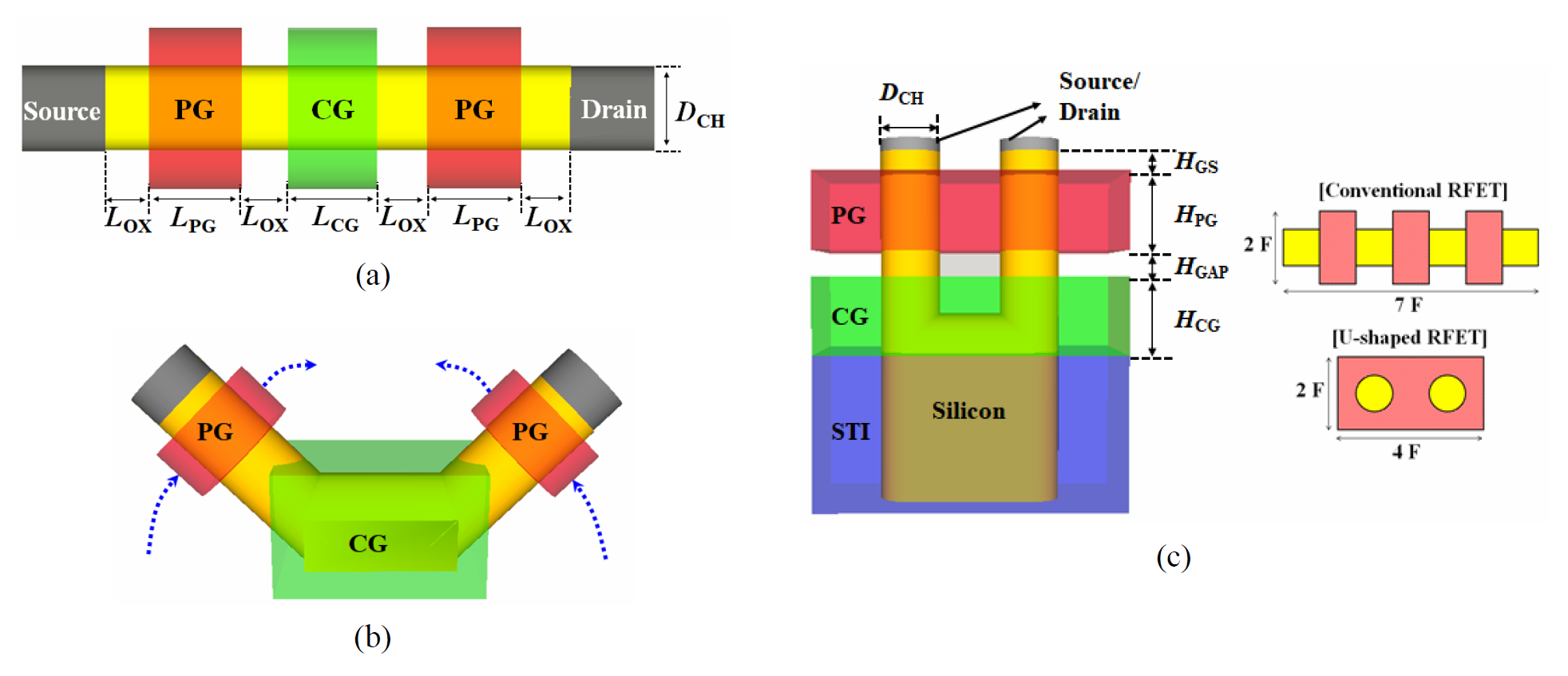

Fig. 2. (a) Conventional RFET structure, (b) Conceptual diagram of the proposed device,
(c) U-shaped RFET structure and cell size comparison.
To verify the characteristics of the proposed device, a TCAD simulation was conducted.
The device parameters used for simulation are summarized in Table 1. In addition, thermionic emission model, barrier lowering model, and barrier tunneling
models (Wentzel-Kramers- Brillouin approximation) are used for the carrier injection
through source/drain Schottky contacts. Electron and hole tunneling masses are chosen
as 0.19 and 0.16 $m_{0}$ (the electron rest mass), respectively, which is consistent
with the literature values[9].
Table 1. Parameters of the baseline of designed device
|
Gate metal work-function($W_{G}$)
|
4.5 eV
|
|
Source/Drain metal work-function ($W_{SD}$)
|
4.75 eV
|
|
CG height ($H_{CG}$)
|
15 nm
|
|
PG height ($H_{PG}$)
|
15 nm
|
|
Channel Diameter ($D_{CH}$)
|
10 nm
|
|
Gap between Source/Drain and PG ($H_{GS}$)
|
5 nm
|
|
CG to PG height ($H_{GAP}$)
|
5 nm
|
|
Equivalent gate oxide thickness
|
2 nm
|
|
Silicon doping concentration (Boron)
|
1 × 1015 cm-3
|
|
Conventional CG length ($L_{CG}$)
|
15 nm
|
|
Conventional PG length ($L_{PG}$)
|
15 nm
|
|
Conventional oxide length ($L_{OX}$)
|
5 nm
|
|
Source/Drain voltage
|
0.7 V
|
|
PG Voltage in N-type mode
|
2.0 V
|
|
PG Voltage in P-type mode
|
-2.0 V
|
Fig. 3 shows a comparison of transfer characteristics between conventional RFET and U-shaped
RFET. A turn-on voltage ($V_{turn-on}$) is defined as the CG voltage ($V_{CG}$) when
the drain current ($I_{d}$) is 10-12 A. An average SS ($SS_{avg}$) indicates a reciprocal of mean ratio of change in the
log($I_{D}$) -$V_{G}$ curve, when $I_{d}$ increases from 10-12 A to 10-7 A. Lastly, $I_{on}$ is extracted for $V_{CG}$ = $Vturn-on}$ + 0.7 V.

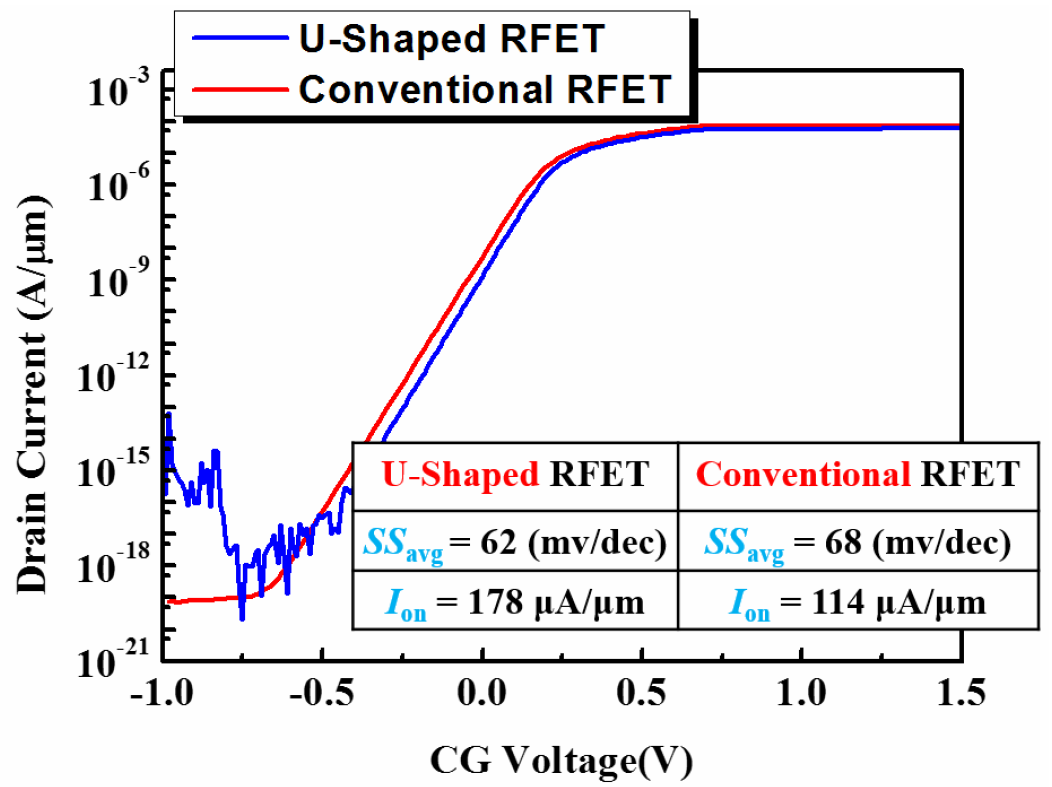

Fig. 3. Transfer characteristics of a conventional RFET and the
U-shaped RFET.
As indicated in Fig. 3, similar characteristics to the conventional RFET can be achieved. Both U-shaped
and conventional RFETs exhibit SS values below 70 mV/dec, which are attributed to
the good gate controllability of Gate-All-Around (GAA) structure.
3. Fabrication Process
Fig. 4 illustrates the critical fabrication steps of the designed U-shaped RFET. The specific
method of each step is summarized as follows. (a) First, active channel regions are
formed using the silicon nitride hard mask, which will be used as the chemical mechanical
polishing (CMP) stopper in the later planarization steps. (b) Oxide sidewall along
the vertical channel is formed by the sequential deposition and etching process. (c)
By using oxide sidewall as a hard mask, silicon etching is carried out. (d) Selective
silicon wet etching is carried out. Consequently, the U-shaped channel region is formed
on the substrate. (e) The oxide sidewall is removed by the selective wet etching.
In addition, a silicon corner rounding process is performed. (f) Oxide deposition,
CMP, and etch-back are carried out to form the shallow trench isolation (STI) region.
(g) Gate dielectric (under the CG region) and the CG are formed. The formation of
the CG is carried out by the deposition, CMP, and etchback steps. (h) Gate dielectric
(under the PG region) is deposited. At this time, this gate dielectric layer is also
used for the isolation between CG and PG. Then, the formation of PG occurs by the
deposition, CMP, and etch-back steps. (i) Finally, the source and drain contact process
is carried out. In the exposed silicon region, which is formed by the selective removal
of silicon nitride, the self-aligned silicide process can be used.

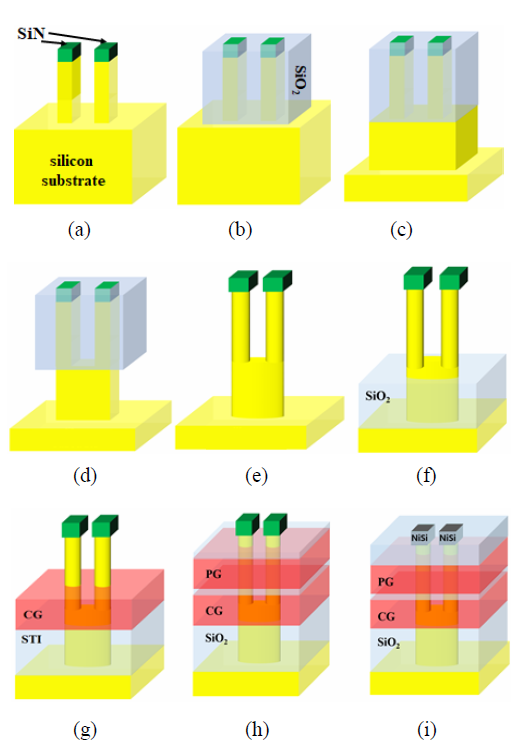

Fig. 4. Key process flow of the proposed U-shaped RFET.
III. DEVICE CHARACTERISTICS STUDY
In this chapter, the effects of various device parameters such as the gap between
source/drain and PG ($H_{GS}$), work-function of the source/drain materials ($W_{SD}$),
and channel diameter ($D_{CH}$). The default parameters used in this study are listed
in Table 1.
First, the dependency of device performance on the $H_{GS}$ was simulated. As illustrated
in Fig. 5, when $H_{GS}$ has a larger positive value (which means the underlap between source/drain
and $PG_{s}$), the degradation of $I_{on}$ occurs. As the gap between the source/drain
and PG increases, the electric field at the source/drain junction decreases, resulting
in Schottky tunneling decrease. As a result, the source/drain structure overlapped
with the PG is required to obtain high current drivability.

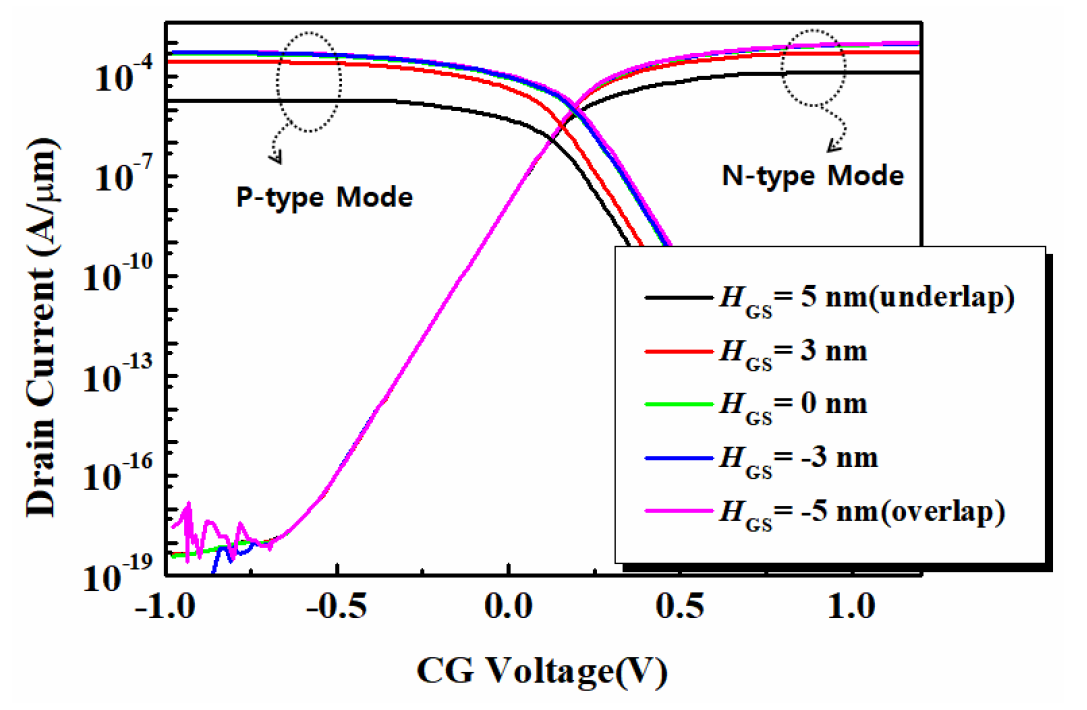

Fig. 5. Transfer characteristics with the variation of $H_{GS}$.
Second, the influence of source/drain metal work function ($W_{SD}$) was studied.
Fig. 6 shows the transfer characteristics of $n$-type and $p$-type operations depending
on $W_{SD}$. Since $I_{ON}$ of RFETs is dominated by Schottky contact resistance at
source/drain junction, which is generally much larger than channel resistance, as
is well known, the Schottky barrier height is a dominant factor for current drivability
of RFETs. When the Fermi level of the source/drain metal is close to the intrinsic
Fermi level of the silicon ($W_{\mathrm{SD}} \approx 4.71 \mathrm{eV}$), symmetrical
characteristics between the $n$-type and $p$-type modes can be obtained. The Fermi-level
modulation of the nickel silicide can be achieved by controlling the content of nickel
or aluminum ion implantation process[10]. If $W_{SD}$ is relatively small, the Schottky barrier height for electron injection
is smaller than that of hole injection, resulting in $I_{on,N}$ > $I_{on,P}$ and
vice versa.

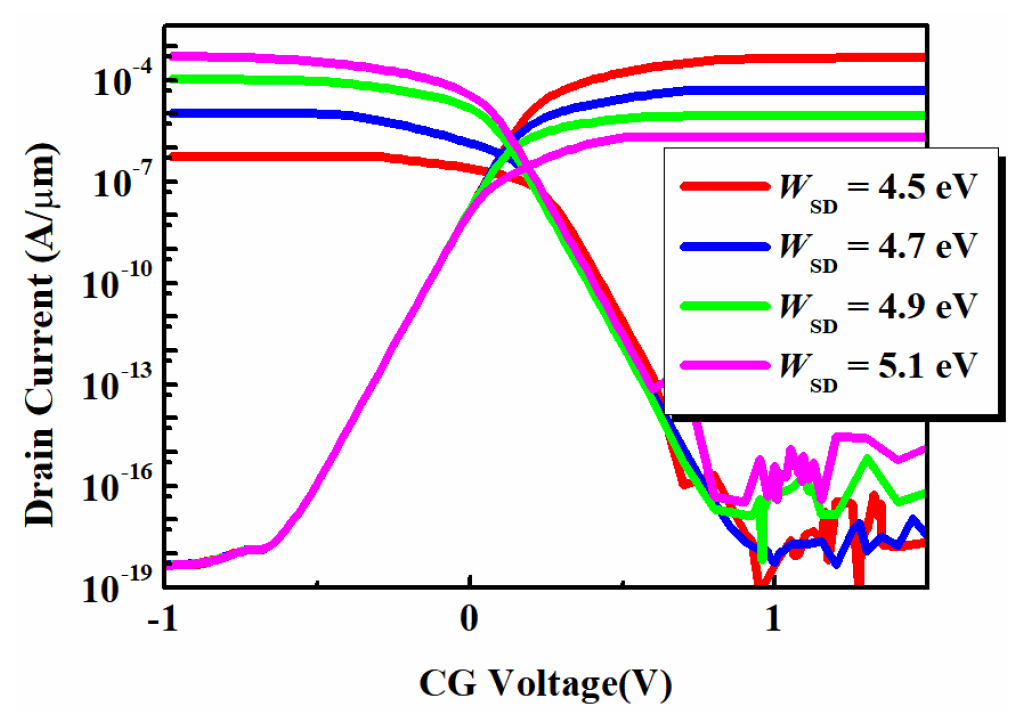

Fig. 6. Transfer curves with the variation of $W_{SD}$.
Third, the dependency of device characteristics on the channel diameter ($D_{CH}$)
was investigated as illustrated in Fig. 7. As the $D_{CH}$ decreases, the $SS_{avg}$ value becomes smaller due to the maximization
of the electric field concentration effect of the GAA geometry[11].

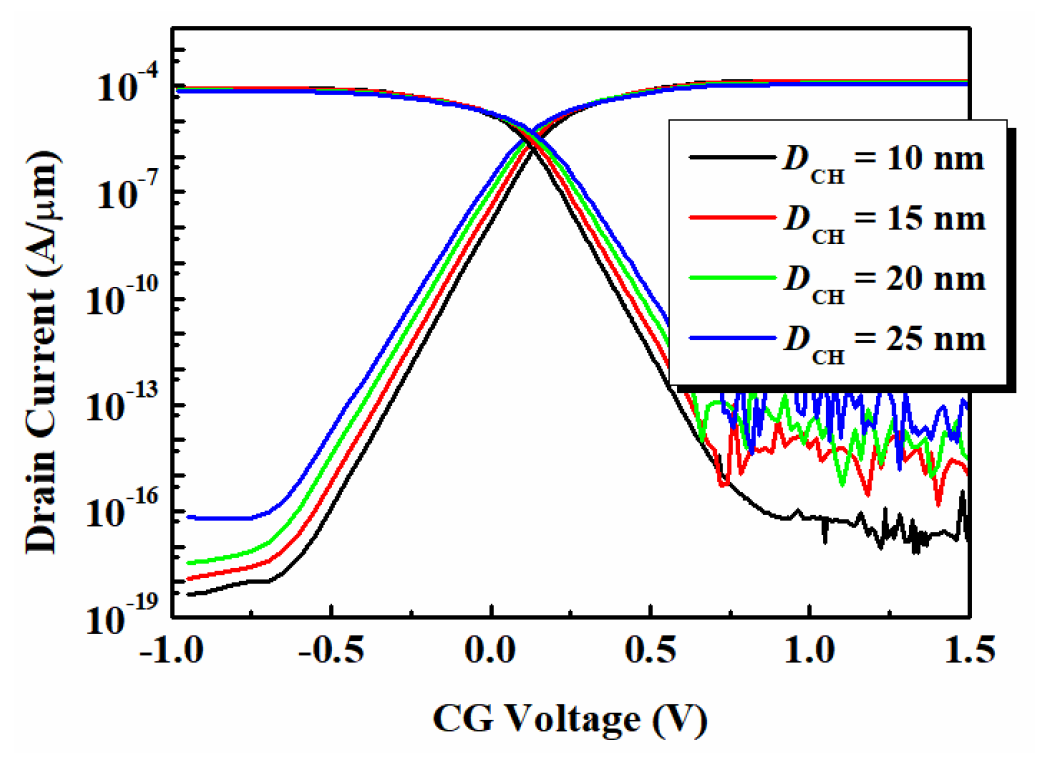

Fig. 7. Transfer characteristics with the variation of $D_{CH}$.
IV. SUMMARY
In this paper, we have proposed a novel U-shaped RFET which has vertically stacked
gates and a U-shaped nanowire channel. Through this unique device structure, the size
of the proposed U-shaped RFET device can be reduced by about 40% compared to conventional
RFETs. Using a TCAD simulation, we successfully demonstrated the reconfigurable operation
of the proposed device. For the device optimization, the effects of various device
parameters on the device performance were also investigated. To ensure good current
drivability, there must be an overlap between the source/drain region and the PG so
that sufficient amount of carrier injection can occur at the Schottky junction. Also,
the symmetry of n and p-modes can be obtained by adjusting the work function of the
source/drain material. It is expected that the proposed U-shaped RFET will be one
of the most promising candidate for a next-generation transistor.
