ChoiSoyeon^{1}
ShinYerin^{2}
LimKiho^{3}
YooHoyoung^{1*}

(Department of Electronics Engineering, Chungnam National University, Daejeon, 34134,
Korea)

(LX Semicon, Daejeon, 34027, Korea)

(William Paterson University of New Jersey, 07470, US)
Copyright © The Institute of Electronics and Information Engineers(IEIE)
Index Terms
Latticebased cryptography, number theoretic transform, polynomial multiplier, postquantum cryptoprocesser
I. INTRODUCTION
Encryption for reliable security is one of the most important elements in modern communication
systems ^{[1]}. However, the classic encryption techniques face a crisis of collapse due to the
rapidly developing quantum computing technology ^{[2]}. It has been proven that modern cryptographic algorithms such as Ribest, Shamir and
Adelman (RSA) and Elliptic Curve Cryptography (ECC) can be nullified within a short
time ^{[3]} by the Shor quantum algorithm ^{[4]}. Mathematic problems such as prime factorization, which take a long time to calculate
with current computing performance, are no longer valid as cryptographic algorithms
in quantum computers. Therefore, studies on postquantum cryptography (PQC) have been
actively conducted centered on the National Institute of Standards and Technology
(NIST), and standardization work has been carried out over three rounds since 2016
^{[5]}. The PQC standardization work is selecting the final candidate based on five basic
technologies: latticebased cryptography ^{[6]}, codebased cryptography ^{[7]}, multivariatepolynomialbased cryptography ^{[8]}, isogenybased cryptography ^{[9]}, and hashbased cryptography ^{[10]}. Among them, the latticebased cryptosystem is most frequently selected as the final
candidate ^{[11]} because of its high cryptographic efficiency, affordable complexity, and fully homomorphic
encryption (FHE) applicability ^{[12,}^{13]} and is perceived as the candidate with the most potential for the NIST standard.
In step with the PQC algorithm standardization work, studies on hardware development
have been actively conducted ^{[14}^{18]}. The operation that requires the longest computation time in latticebased cryptography
is polynomial multiplication ^{[19]}, so studies to improve performance such as processing speed and hardware utilization
efficiency have been intensively conducted centered on polynomial multiplication ^{[20,}^{21]}. Recently, many researchers have studied NTTbased polynomial multiplication algorithms
and hardware ^{[22,}^{23]}. Whereas Fast Fourier Transform (FFT) carries out operations on a complex plane,
Number Theoretic Transform (NTT) performs operations of values on a finite ring rather
than complex numbers based on roots of unity. Because the hardware architecture of
FFT has been studied for more than 50 years, a stably studied FFT architecture can
be applied to NTT ^{[24,}^{25]}. Similar to the fullyparallel architecture of FFT, the fullyparallel architecture
that maps the dataflow of NTT directly to hardware is intuitive and simple. However,
identically to the fullyparallel architecture of the FFT ^{[24]}, the fullyparallel architecture of the NTT also has a problem that hardware complexity
increases linearly as the length of the NTT increases ^{[26]}. To solve this problem, a design that provides the partially parallel architecture
of NTT through a feedback type and a feedforward type was proposed in a similar method
applied in FFT ^{[26}^{29]}. Since the partiallyparallel architecture of the NTT provides the desired timing
as a delay element of the feedback loop, singlepath delay feedback (SDF) ^{[26]} and multipath delay feedback (MDF) ^{[27]} have been proposed as structures to support the partiallyparallel architecture.
In addition, a singlepath delay commutator (SDC) ^{[28]} and multipath delay commutator (MDC) ^{[29]} that provide the desired timing through an additional reordering circuit have been
proposed. However, since SDF ^{[26]} and SDC ^{[28]} have low throughput due to serial operation, there are restrictions in real encryption
hardware implementation, and in the case of MDF ^{[27]} and MDC ^{[29]}, low hardware usage efficiency has been raised as a problem. In this paper, the data
reordering sequences between processing elements by step are analyzed to propose an
efficient partiallyparallel NTT processor structure that can be applied to various
parallel factors. The main contributions of this paper are summarized as follows:
1) The proposed design technique concentrates on the data rearrangement process, which
provides matrix representation and draws a reordering circuit to present a comprehensive
implementation method.
2) Since the proposed structure can be applied to any parallel factor, a hardware
structure optimized to fit the given design constraints can be provided.
3) The proposed structure is a partially parallel architecture that solves the problem
of parallelization restriction by the high radix of the MDC design ^{[29]} and the problem of huge hardware complexity of the MDF design ^{[27]}.
4) The proposed structure achieves 100% hardware utilization efficiency to provide
the best performance in terms of hardware complexity and throughput.
The rest of the paper is organized as follows. In the second chapter, the theoretical
background necessary for this study is identified. Contents regarding NTTbased polynomial
multiplication algorithms and general NTT processors are included. In the third chapter,
the previous partiallyparallel NTT processor architecture is examined, and its problems
are analyzed. In the fourth chapter, a design technique for a new partially parallel
architecture is proposed, and then in the fifth chapter, the performance of the NTT
processor designed by applying the relevant technique is evaluated. Finally, in the
last chapter, the conclusion of this study is presented.
II. BACKGROUND
1. NTT Polynomial Multiplication
Latticebased cryptosystems carry out the encryption and decryption of problems such
as RingLearning with Error (RingLWE) ^{[30,}^{31]} and Module Learning with Error (ModuleLWE) ^{[32]} by performing polynomial addition, multiplication, and modulo operations on a finite
ring. Because polynomial multiplication has higher complexity compared to other arithmetic
operations, it is essential to implement efficient polynomial multiplication for latticebased
cryptographic hardware. The finite ring is defined as $R_q=Z_q[x] / f(x)$, where $q
\equiv 1(\bmod 2 N)$ is a prime number and $f(x)=x^N+1$ is an irreducible polynomial
of degree $N$ [33]. Any two polynomials $a(x), b(x)$ on the finite ring $R_q$ can
be expressed as
A polynomial $c(x)$ of length $2 N1$ can be obtained by multiplying two polynomials
of length $N$, and the coefficient of $c(x)$ can be calculated with (2).
Since (2) representing polynomial multiplication is the same as the operation to obtain the
discrete convolution c(x)=a(x)*b(x), polynomial multiplication can be calculated with
discrete convolution. However, the convolution operation in (2) has a large operation quantity of O(N$^{2}$), so it is generally processed as multiplication
through domain transformation. The coefficient of the polynomial can be changed into
the frequency domain using Discrete Fourier Transform (DFT). Instead of the time domain
convolution operation, pointwise multiplications for coefficients of a(x) and b(x)
are carried out, in the frequency domain. Finally, inverse DFT (IDFT) of c(x) in the
frequency domain is performed to obtain the c(x) of the time domain.
In this case, the lengths of a(x) adn b(x) must be adjusted to 2N1, which is the
length of c(x), for DFT and IDFT, and zeropadding is necessary ^{[23]}.
However, the DFT and IDFT also have an operation quantity of O(N$^{2}$). The FFT algorithm,
well known as a method to transform the domain quickly by reducing the operation quantity,
is applied. The DFT of (4) can reduce the operation quantity to O(N log N) as shown in (5) through the divideandconquer method by using the periodic and conjugate properties
of $W_N^{i j}$.
Furthermore, a complex numberbased operation for FFT can be replaced with a integer
numberbased operation by employing NTT while maintaining the properties of FFT ^{[22,}^{23]}. As shown in Fig. 1(a), in FFT, $W_N=e^{j 2 \pi / N}$ is defined as a primitive root, and as shown in Fig. 1(b), in NTT, $W_{N}$modq=1 is defined as a primitive root ^{[34]}. NTT and inverse NTT (INTT) are expressed with the following (6) and (7).
Accordingly, (3) representing the DFTbased polynomial multiplication operation ^{[35]} can be expressed as (8) representing NTTbased polynomial multiplication.
Finally, a negative wrapped convolution that efficiently removes the zeropadding
that occurs in the NTT and INTT processes of (8) was proposed ^{[36]}. According to ^{[36]}, the zeropadding process that may occur during NTTbased polynomial multiplication
can be omitted by multiplying the coefficients of the two polynomials by ψ that satisfies
ψ ≡ W mod q. The two polynomial coefficients multiplied by ψ are expressed as $a'(x)=a_{0}+\psi
a_{1}x+\cdots +\psi ^{n1}a_{n1}x^{n1}$ and$b'(x)=b_{0}+$ $\psi b_{1}x+\cdots +\psi
^{n1}b_{n1}x^{n1}$. As a result, (8) can be expressed
In conclusion, polynomial multiplication using NTT can be performed reducing the computational
complexity from O(N$^{2}$) to O(N log N) through integer operation instead of complex
numbers.

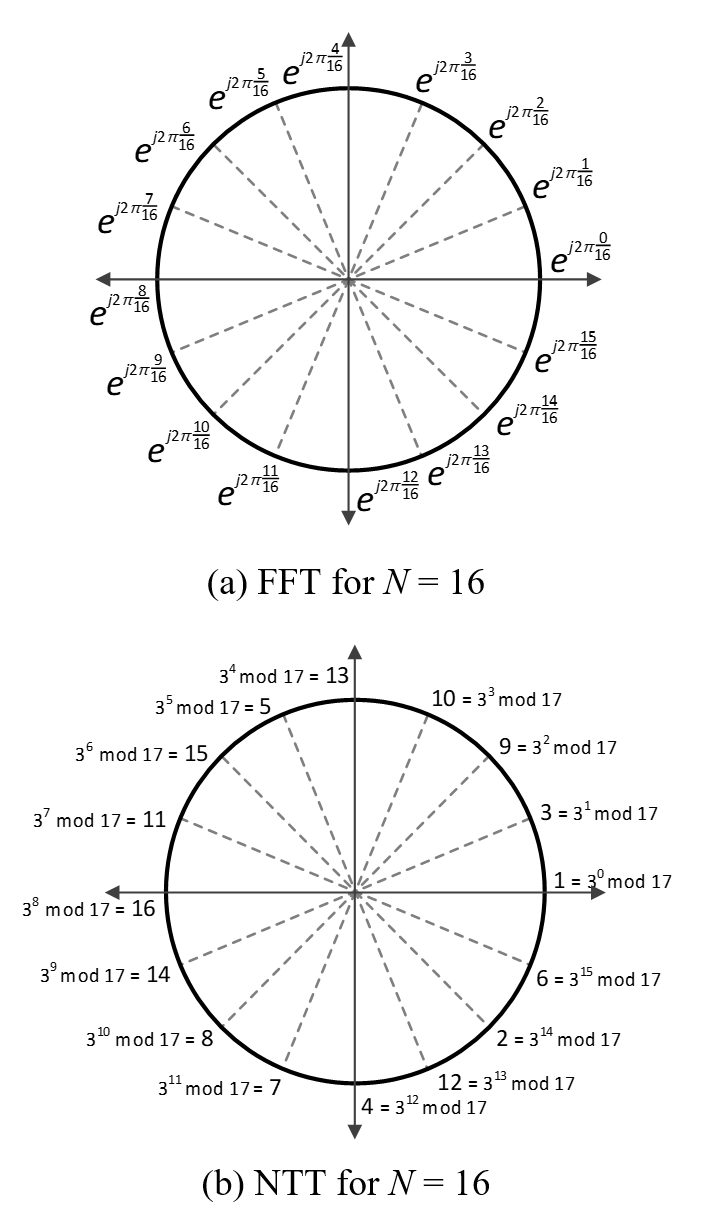

Fig. 1. Primitive root for N = 16.
2. General NTT Processor
Fig. 2 shows a typical polynomial multiplier architecture that implements (9), where DIF and DIT represent decimationinfrequency (DIF) and decimationintime
(DIT), respectively ^{[35]}. If the same decimation is used for all NTTs and INTTs, it is inevitable to add a
bitreversal circuit to every NTT or INTT ^{[35]}. In order to completely remove the added bitreversal circuit, the DIF structure,
in which the output is bitreversal converted when the inputs are sequential, is generally
applied to the front NTT, and the DIT structure, in which bitreversal inputs are
sequentially converted and output, is applied to the rear INTT as shown in Fig. 2. Since the DIT and DIF algorithms are structurally symmetric ^{[35]}, and one of the NTT and INTT structures can be easily derived by applying the other
structure, this paper will mainly explain the structure of the DIF NTT processor.
Fig. 2. Overall structure for NTT polynomial multiplication.
A. Fullyparallel Architecture
Fig. 3 shows the DIF NTT processor of a fullyparallel architecture with N=16, q=17, and
W$_{N}$=3. NTT for N=16 points is performed over n steps, and N/2 processing elements
(PEs) are required for each step, where n is log$_{2}$N. In order to perform the NTT
operation in (6), PE consists of one radix2 butterfly unit, three modular reduction units (MR), and
one multiplier. The basic PE is similar to the structure of the FFT, but in accordance
with the characteristics of the latticebased cryptoprocessor that must be operated
on R$_{q}$, modular reduction is additionally required in the transformation process
over n steps. In this paper, among various implementations including Barrett and Montgomery
modular reduction ^{[37}^{39]}, ^{[39]} is used to limit the result of each operation to log$_{2}$N=4bits.
Fig. 3. Fullyparallel architecture for N = 16.}
As shown in Fig. 3, PE operation is performed at every s stage (1 ${\leq}$ s ${\leq}$ n) and the PE
of the next stage is performed after rearranging the data. According to ^{[24]}, data reordering performs rearrangement while satisfying the following properties.
NTT pair property: pairs of data processed simultaneously in the PEs at stage s differ
in b$_{ns}$ for any Npoint NTT with n=log$_{2}$N stages.
For instance, the PEs begin by operating on pairs of data with indexes (0,8), (1,9),
(2,10), (3,11), and so forth after the first stage. By converting these indices to
binary, we obtain (0000,1000), (0001,1001), (0010,1010), and (0011,1011). Comparing
the indices in each pair reveals that they are identical except for the most significant
bit, b$_{3}$=b$_{41}$. This is true for all the pairs of indices at stage 1. By repeating
the analysis for stage 2 and 3, it is clear that the indices of pairs of data processed
by the PEs differ only in b$_{2}$ and b$_{1}$, respectively. As a result, we can conclude
that the NTT architecture is correct only when the data pairs input during the same
clock period in all PEs differ in the index bits b$_{ns}$. This will serve as the
foundation for the following explanations of the other structures.
B. Partiallyparallel Architecture
As can be observed in Fig. 3, since the fullyparallel architecture simultaneously computes N data through a total
of (N/2)log$_{2}$N PEs and reordering networks by stage, it has high throughput of
N points per clock cycle. However, in terms of hardware complexity, it has a severe
disadvantage that the required number of PEs increases linearly as N increases. To
alleviate the high hardware complexity of the fullyparallel architecture, a partially
parallel architecture that simultaneously processes P=2$^{p}$ data according to parallel
factor P has emerged. Fig. 4 shows the general structure of the partiallyparallel NTT. The partiallyparallel
structure is composed of n stages connected in series with data flowing from stage
1 to stage n. Since each stage contains P inputs and P outputs, N data points are
subdivided into N / P number of P points and thus the throughput becomes P data per
clock cycle. Note that each stage s of the architecture performs all calculations
associated with one stage of the NTT algorithm.
To convert the fullyparallel architecture shown in Fig. 3 to the partiallyparallel architecture shown in Fig. 4, data rearrangement must be considered. The output pair with the natural order of
s stage is rearranged while satisfying the pair property in the next s + 1 stage.
The partiallyparallel architecture is largely divided into a feedback type ^{[26,}^{27]} and a feedforward type ^{[28,}^{29]} according to the data rearrangement processing method. First, the feedback type shown

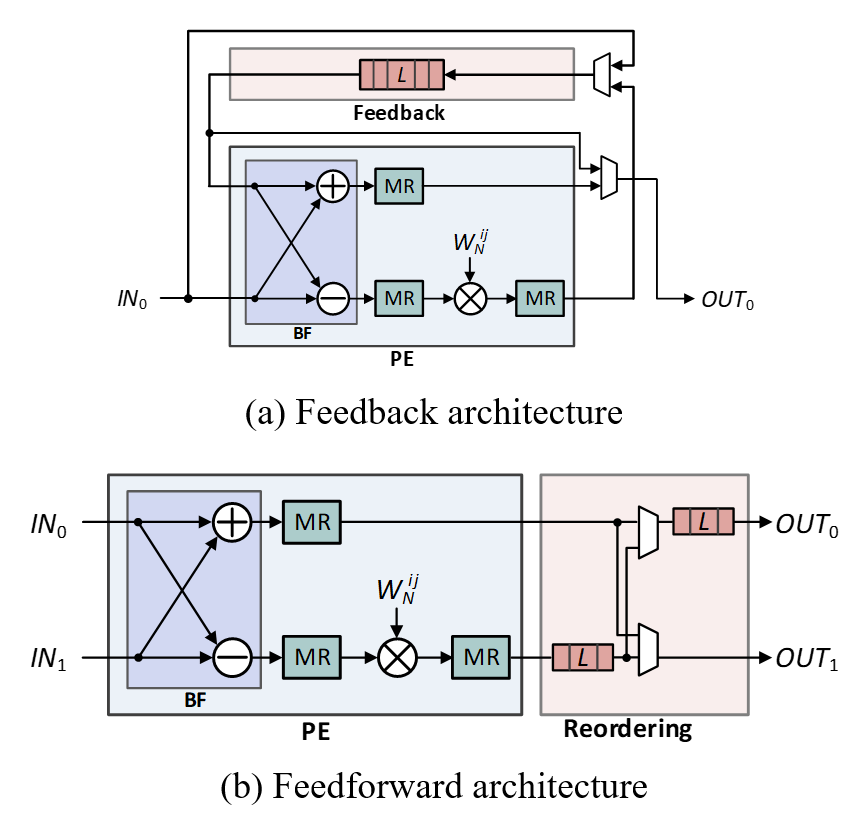

in Fig. 5(a) proceeds with data reordering using a feedback loop. In this case, some output of
butterfly unit (BF) is fed back as the delay element at the same stage through the
feedback loop, so the operation of the input pair where a difference of b$_{ns}$
occurs in the next stage. On the other hand, in the feedforward type shown in Fig. 5(b), the data processed from the PE of each stage uses a separate reordering circuit
to match the input pair with a difference of b$_{ns}$ in the next stage.
Fig. 4. General partiallyparallel architecture.}
Fig. 5. Feedback and feedforward architecture.
III. PREVIOUS WORKS
The previous NTT architectures are classified in Table 1. The table denotes feedback and feedforward types ^{[26}^{29]}. First, the feedback type satisfies the NTT pair property by providing the desired
timing with the delay elements via the feedback loop. They are classified as singlepath
delay feedback (SDF) ^{[26]} or multipath delay feedback (MDF) ^{[27]} based on their serial or parallel processing configurations. Second, the feedforward
type accomplishes the NTT pair property with an additional reordering circuit following
PE. They are classified as singlepath delay commutator (SDC) ^{[28]} or multipath delay commutator (MDC) ^{[29]}, based on their serial or parallel processing capabilities.
Table 1. The previous architectures.
Type

Architecture

Parallelism

Feedback

SDF

Serial

MDF

Partiallyparallel

Feedforward

SDC

Serial

MDC

Partiallyparallel

1. Singlepath Delay Feedback (SDF) Design
Fig. 6 shows the $N=16$ point SDF design, which is a representative design based on feedback.
The SDF design has serial data flow because it uses a single path and satisfies the
NTT pair property using the delay element of the feedback loop ^{[26]}. SDF receives data at each stage in the natural order of the index from 0 to 15.
For serial data flow, pairs of data that differ by b$_{ns}$ arrive with a difference
of 2$^{ns}$ clock cycles according to the natural order. At each stage, a buffer
of length L=2$^{ns}$ is used to store these pairs of data concurrently. Thus, the
buffer’s output is calculated simultaneously with the stage’s input in the PE. Following
that, one of the butterfly’s outputs is sent to the multiplier, while the other is
placed in the buffer. As illustrated in Fig. 6, each stage consists of one BF, one multiplier, three MRs, and a FIFO with a length
of L=2$^{ns}$. When all hardware resources are added for all stage s={1,···,n}, log$_{2}$N
BFs, log$_{2}$N multipliers, 3log$_{2}$N MRs, and log$_{2}$N FIFO are required in
total. Compared to the fullyparallel architecture shown in Fig. 3, the SDF design ^{[26]} can overwhelmingly improve the hardware complexity problem because it uses a single
path. However, it has the problem that the hardware throughput is processing one data
per clock due to serial data flow, and hardware utilization is reduced to 50% due
to the feedback loop.
Fig. 6. The SDF architecture for N = 16.}
2. Multipath Delay Feedback (MDF) Design
The MDF design ^{[27]} is the parallel version of the SDF design ^{[26]}. Fig. 7 shows a 16point 4parallel MDF design, which consists of the first independent serial
PEs and the second combining parallel PEs. Let us compare the SDF in Fig. 6 and MDF in Fig. 7. Whereas data in the SDF ^{[26]} is processed in series in natural order from stage 1 to n = 4, MDF processes P data
flow independently through the first serial PEs and combines P data flow through the
second parallel PEs ^{[27]}. The first serial PEs are the same as the original SDF ^{[26]} except for the fact that the length of the buffers in MDF ^{[27]} is divided by P with respect to those in the SDF ^{[26]}. Since each independent serial part provides parallel streams that differ in the
bit b$_{ns}$, the remaining parallel part simply combines those parallel streams
with shuffling circuits. The general Pparallel MDF ^{[27]} uses $P\log _{2}(N/P)$ $+(P/2)\log _{2}P\,\mathrm{BFs},$ $P\log _{2}(N/P)+(P/2)\log
_{2}P$ multipliers, $3(P\log _{2}(N/P)+(P/2)\log _{2}P)$ MRs, and $NP$ FIFO. Consequently,
the MDF design ^{[27]} can parallelize the SDF design ^{[26]} by P=2$^{p}$ to improve the throughput by P times. However, it uses approximately
P times more hardware than the SDF design ^{[26]}, and like the SDF design ^{[26]}, it fails to achieve full hardware utilization.

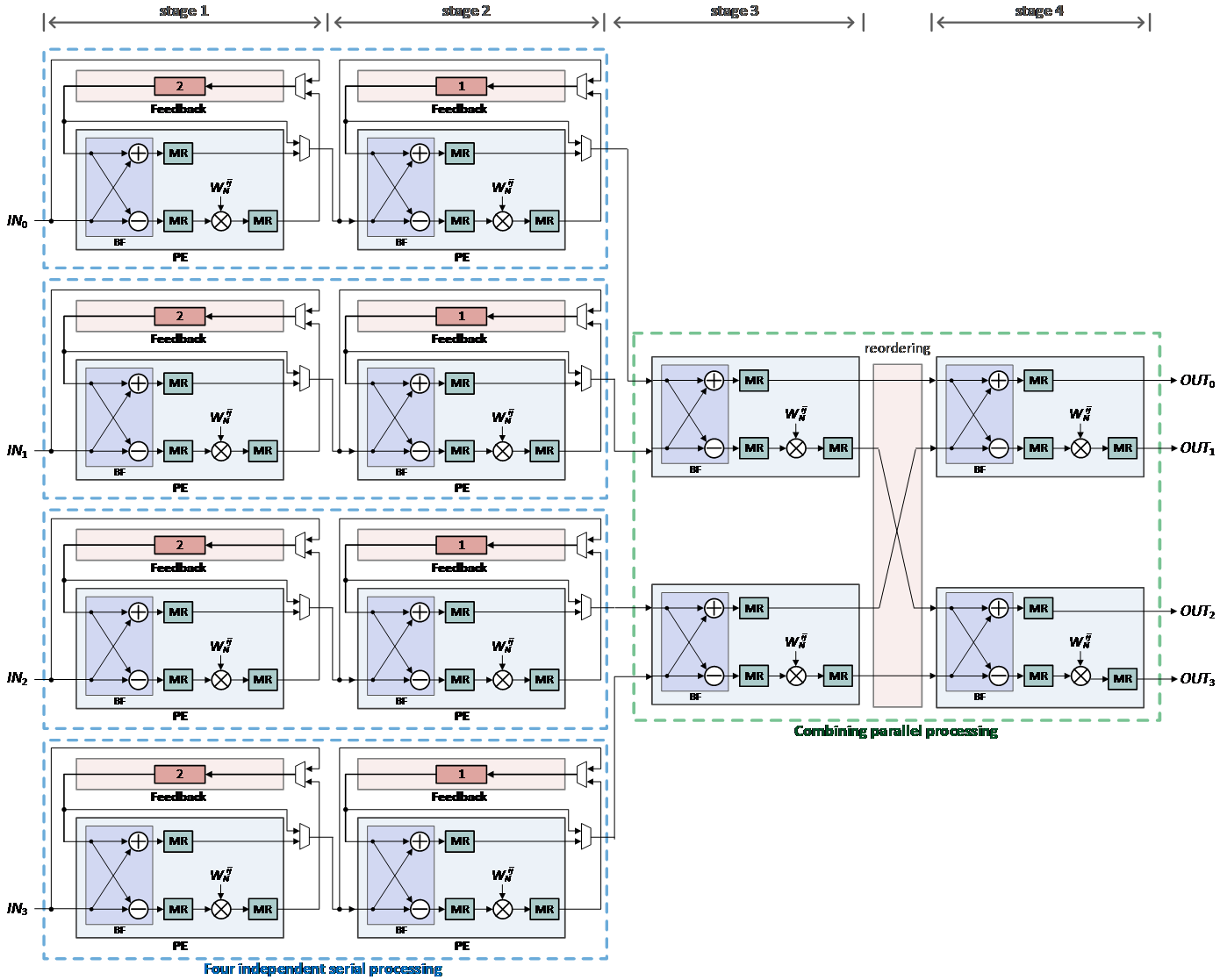

Fig. 7. The MDF architecture for N = 16 and P = 4.}
3. Singlepath Delay Commutator (SDC) Design
In comparison to feedback designs ^{[26,}^{27]}, feedforward designs ^{[28,}^{29]} incorporate additional reordering circuitry to ensure that the NTT pair property
is satisfied. Fig. 8 illustrates a 16point SDC for serial data processing. Despite the fact that the
SDC processes serial data ^{[28]}, it is based on the 2parallel MDC depicted in Fig. 9(a). Let us begin with the 2parallel MDC ^{[29]}. In 2parallel MDC ^{[29]}, it is assumed that input data differentiated in bit arrive, but the data order is
not consistent between stages, necessitating the participation of shuffling circuits
to reorder the data as shown in Fig. 9(a). The reordering circuits consist of upper and lower paths, each of which demands
buffers and multiplexers to satisfy the NTT pair property. First, the lower path is
delayed using the buffers, and then both upper and lower sets of data are swapped
using multiplexers. Lastly, the upper path is delayed using buffers, resulting in
an aligned data pair.
The SDC in Fig. 8 receives input data in series. The only difference between SDC ^{[28]} and 2parallel MDC ^{[29]} is in the data input and output. As shown in Fig. 8, the first half of the data is routed through the input buffer, while the second
half is connected to the SDC’s lower input ^{[28]}. Finally, the output is serialized once again. Due to data parallelization, SDC ^{[28]} is only operational 50% of the time, with the remaining 50% used to receive and produce
data. The general SDC employs a total of log$_{2}$N BFs, log$_{2}$N multipliers, 3log$_{2}$N
MRs, and 2(N1) FIFO in terms of hardware resources.
Fig. 8. The SDC architecture for N = 16.}

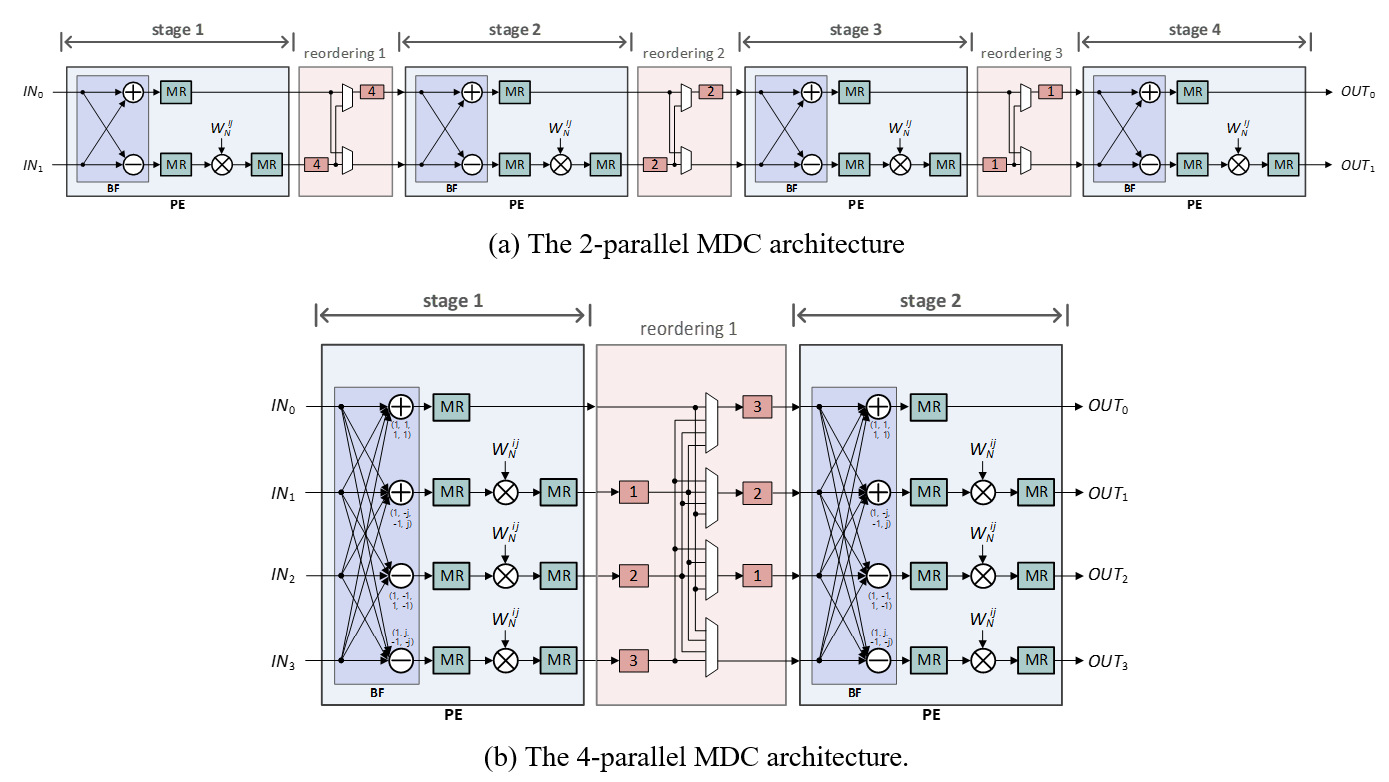

Fig. 9. The MDC architecture for N = 16 and P = 2 and 4.
4. Multipath Delay Commutator (MDC) Design
The MDC design has a parallel design with a higher parallel factor because it uses
highradix for radix2 based 2parallel MDC ^{[29]}. Fig. 9(a) and (b) show the 2parallel MDC and 4parallel MDC designs, respectively. The 2parallel
MDC ^{[29]} has the same structure as the SDC design ^{[28]} after removing additional input/output circuits required for serial processing. Fig. 9(a) processes two data per one PE and processes two data per clock based on radix2,
and one stage of the 2parallel MDC shown in Fig. 9(a) carries out the operation assigned to one stage of the fullyparallel architecture
^{[26]}. On the other hand, Fig. 9(b) processes four data per one PE and four data per clock based on radix4. One stage
of the 4parallel MDC in Fig. 9(b) performs the operations assigned to two successive stages of the 2parallel MDC.
A typical Pparallel MDC design ^{[29]} requires$P\log _{p}N$ BFs, $(P1)\log _{p}N$multipliers, $2(P1)\log _{p}N$ MRs,
and $NP$ FIFO.
In conclusion, the Pparallel MDC design ^{[29]} achieves a throughput improvement by P times by changing the 2radix structure of
the 2parallel MDC design to the Pradix structure. Due to the limit on the use of
the trivial multiplier, the high radix application of the NTT does not significantly
improve performance. In addition, it has the disadvantage that hardware utilization
is limited by P times due to the input/output delay circuit.
IV. PROPOSED PARTIALLYPARALLEL NTT DESIGN
Although the MDF design ^{[27]} and the MDC design ^{[29]} succeeded in achieving high throughput by converting the SDF design ^{[26]} and the SDC design ^{[28]} into a parallel architecture, respectively, the resultant increase in hardware complexity
and decrease in hardware utilization are among the problems that must be solved. Therefore,
we propose a new partiallyparallel NTT architecture that can improve hardware performance
by combining the advantages of MDF ^{[27]} and MDC design ^{[29]}. Similar to the overall structure of MDF ^{[27]}, the proposed partiallyparallel NTT architecture composes many independent serial
structures on the front, and a parallel structure combining them on the rear. For
the technique to design a partiallyparallel NTT, the reordering structure that satisfies
the NTT pair property is mainly analyzed and a partiallyparallel NTT structure is
presented based on the analysis. In this paper, the 4parallel structure for 16point
NTT is used as an example without loss of generality. The advantages of the proposed
partiallyparallel NTT design are emphasized through direct comparison with 4parallel
MDF and MDC. Finally, the structures of parallel factors 4, 8, and 16 are presented
for the 512point NTT structure to provide a practical example and show that it can
be easily applied to various parallel factors.
1. Proposed Partiallyparallel NTT Algorithm
The proposed new partiallyparallel NTT design begins with analyzing the data rearrangement
processes to transform them to fit the given parallel factors. Fig. 10 shows the rearrangement processes extracted from the 16point fullyparallel architecture
in Fig. 3. The input of the reordering circuit has a pair that differs only in b$_{ns}$ bits
at stage s and satisfies the pair property, and the output of the reordering circuit
are described in natural order. For example, in the fullyparallel architecture for
N = 16 points in Fig. 3, the NTT algorithm is performed from stage 1 to 4, in reordering 1 shown in Fig. 10(a), there is a difference in b$_{41}$=b$_{3}$ in each pair, and in reordering 2 shown
in Fig. 10(b), there is a difference in the b$_{42}$=b$_{2}$ bit of each pair. Similarly, in reordering
3 shown in Fig. 10(c), it can be seen that b$_{1}$ of the pair are different. In the previous NTT structure
including SDF ^{[26]}, MDF ^{[27]}, SDC ^{[28]}, and MDC ^{[29]}, it can be seen that the NTT pair property is satisfied for all data pairs in the
NTT processing process regardless of serial and parallel data flow, feedback and feedforward
types ^{[26}^{29]}.
In order to derive the proposed partiallyparallel architecture based on Fig. 10, a new scheduling task should be performed that transforms each of N×1 matrices into
P×(N/ P) matrices. Fig. 10 and 11 represent 16×1 matrices and 4×4 matrices for reordering, respectively. For
matrix representation, the column of the matrix means one clock cycle and the row
means the number of data processed per one clock cycle. Note that P row determines
the number of PEs as P/2 to process P data in parallel. The P×(N/P) matrix represents
P data in one clock for N/P clock cycles to process the entire N data. Whereas the
16×1 matrices shown in Fig. 10 rearranges sixteen data at a single clock in a fullyparallel manner, the 4×4 matrices
shown in Fig. 11 processes four data for four clock cycles in a partiallyparallel manner. As with
the transformed 16×1 matrix where the NTT pair property is maintained, the NTT pair
property is also maintained in all 4×4 matrices.
More importantly, through transformation into 4×4 matrices, the data pair that needs
swapping can be identified out of the entire 16 data. The pairs that require swapping
are highlighted in Fig. 11 and summarized as follows:
Stage 1: (1,8), (3,10), (5,12), (7,14)
Stage 2: (1,4), (3,6), (9,12), (11,14)
Stage 3: (1,2), (5,6), (9,10), (13,14)
As shown in Fig. 11, the swapping pairs in stages 1 and 2 require delay factors as much as 2 and 1, and
the swapping pairs in stage 3 does not require any delay.
In order to satisfy the NTT pair property by changing the 16×1 matrix of the fullyparallel
architecture to the 4×4 matrix of the partiallyparallel architecture, the design
of a reordering circuit that performs swapping to an appropriate clock is carefully
designed. In this case, the required hardware structure varies depending on whether
there is a delay between swapping data and inter/intraPE. To explain in more detail,
the reordering circuit used in SDC ^{[28]} and MDC ^{[29]} is suitable in cases where delay is required, as with stage 1 and stage 2, and swapping
occurs in intraPE. Upper and lower paths of reordering circuits can be exchanged
with the desired delay difference through the FIFO and multiplexers of each path.
Additionally, as with stage 3, when swapping occurs between interPEs without requiring
delay, it is easy to implement simple hardwiring similar to the last combining circuitry
of MDF ^{[27]}. Since the replacement data pair already occurs in the same clock, data rearrangement
can be completed with a simple interconnection without delay.

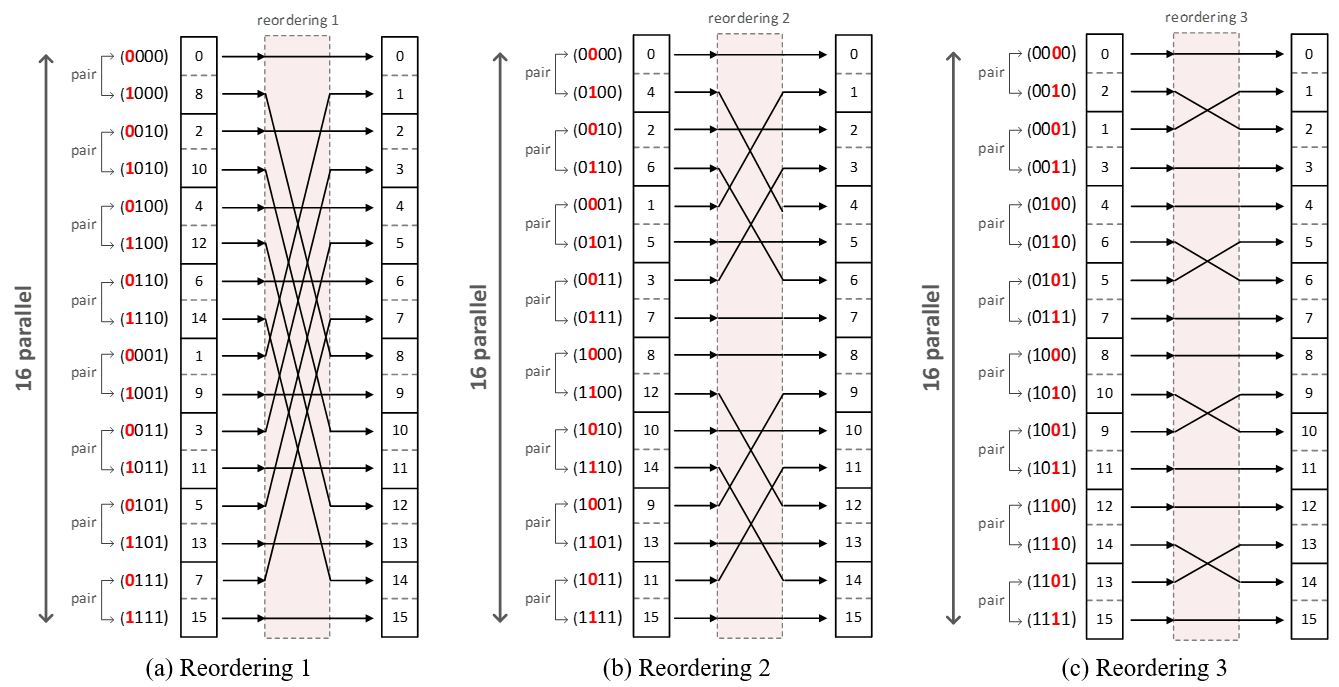

Fig. 10. Reordering analysis of (a) reordering 1; (b) reordering 2; (c) reordering 3.

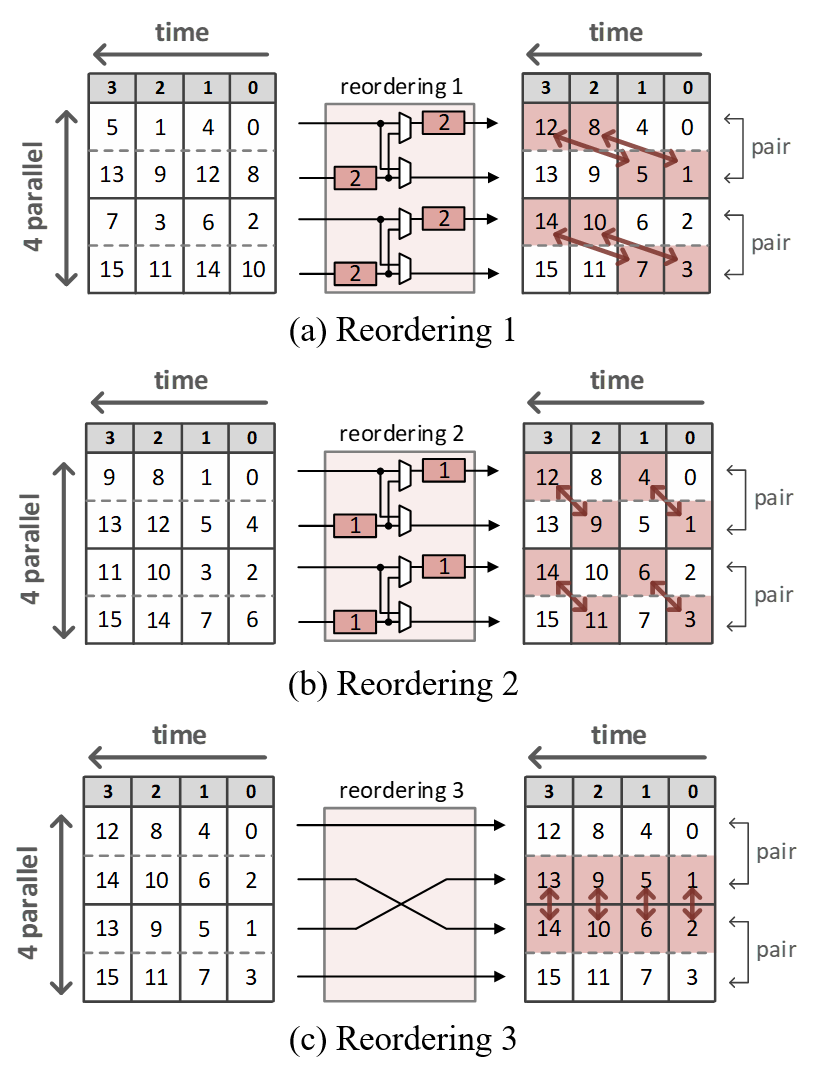

Fig. 11. 4${\times}$4 matrix representation for (a) reordering 1; (b) reordering 2; (c) reordering 3.
2. Proposed Partiallyparallel NTT Structure
With the matrix transformation, analysis, and derivation of a rearrangement circuit,
the finally proposed 4parallel structure for 16point NTT is as shown in Fig. 12. Basically, since P data are processed in parallel per clock cycle, each stage consists
of P/2 PEs, and a rearrangement circuit depicted in Fig. 11 was added between each stage to operate to fit the matrix operation. Between stage
1 and stage 2, a feedforward type reordering circuit was built with delay times 2
and 1, and in stage 3, they were interconnected with hardwiring. In conclusion, two
independent MDC designs ^{[29]} operate in 2parallel in the front part of the proposed partiallyparallel NTT architecture,
and parallel structures similar to MDF design ^{[27]} combine independent streams in the rear part. In other words, the overall structure
is similar to the MDF design in Fig. 7, but the internal structure is composed of the 2parallel MDC design in Fig. 9, not the feedbackbased SDF in Fig. 6. To sum up, the proposed NTT processor requires $(P/2)\log _{2}N\,\mathrm{BFs},$
$(P/2)\log _{2}N$ multipliers, $3(P/2)\log _{2}N$MRs, and NP FIFO for partiallyparallel
P. The proposed partiallyparallel architecture can achieve 100% hardware utilization
because it does not internally include the feedback loop that MDF ^{[27]} has and minimizes the waste of the delay element of the reordering circuit due to
the high radix of MDC ^{[29]}. In conclusion, it is possible to provide higher throughput compared to SDF ^{[26]} and SDC ^{[28]} while absorbing all the advantages of MDF ^{[27]} and MDC ^{[29]}. Consequently, the design method for the proposed partiallyparallel architecture
can be described as follows:
1) Create n1 pieces of N×1 matrices by reordering for a fullyparallel architecture
2) Transform the N×1 matrices into n−1 pieces of P×(N/P) matrices by stage for a partiallyparallel
architecture
3) Check swapping data by stage and configure the reordering circuit
4) Place P/2 PEs for each stage and interconnect them with the reordering circuit
Fig. 13 shows practical examples of N = 512, q = 12,289, W = 3 using the design method above.
While changing the parallel factor to 4, 8, and 16, it can be seen that the above
systematic design method is applied regardless of the NTT length and parallel factor.
Note that if the parallel factor P is 2, the proposed partiallyparallel structure
will become a 2parallel MDC ^{[29]}, and if the parallel factor P is equal to the NTT length N, the proposed partiallyparallel
architecture will become a fullyparallel architecture ^{[26]}. It is important to note that since the proposed partiallyparallel architecture
proposes a comprehensive structure and can be applied to any P, it is possible to
implement the most efficient NTT processor under the constraints by selecting a P
suitable for the design environment.
Fig. 12. The proposed partiallyparallel design for N = 16 and P = 4.}

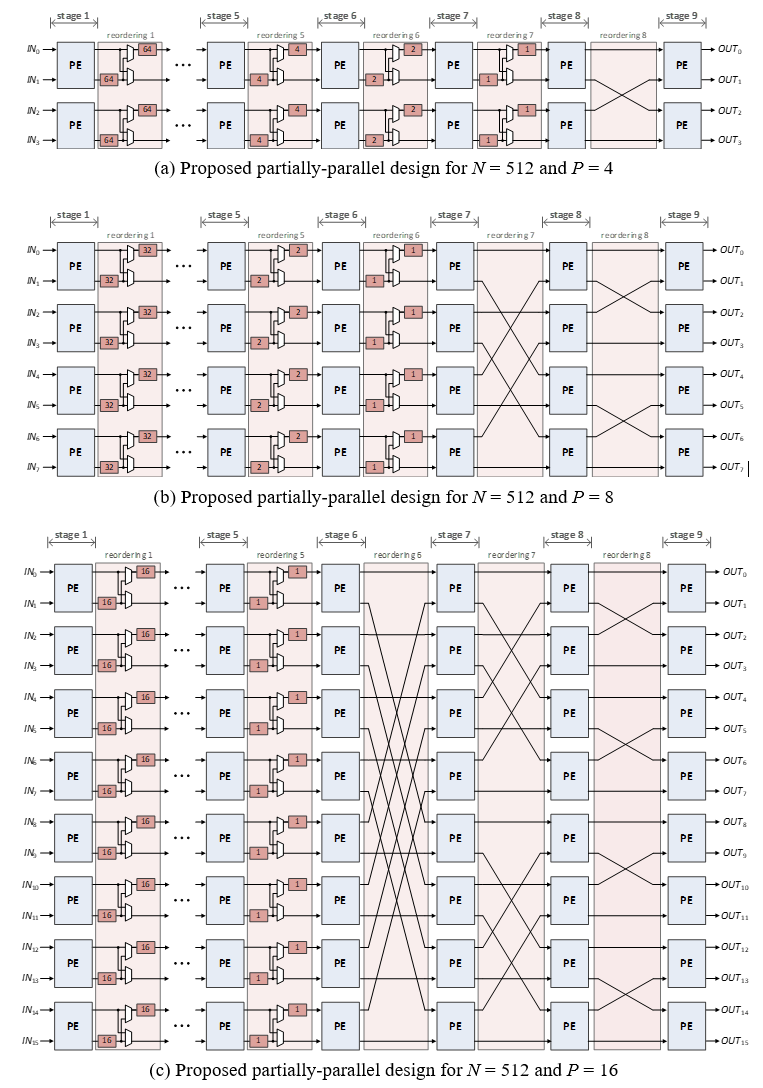

Fig. 13. The proposed partiallyparallel design for N = 512 and P = 4, 8, and 16.
V. EXPERIMENTAL RESULTS
Table 2 shows a quantitative comparison between the proposed partially parallel NTT processor
structure and the previous structures in terms of hardware resources, latency, throughput,
and utilization. Note that utilization is defined as the ratio of the number of clocks
during which PE conducts valid and effective operations to the total number of running
clocks in order to demonstrate the efficiency of the hardware in addition to the typical
hardware performance metrics. Representative hardware performance metrics were compared
for the proposed NTT processor and the previous fully parallel architecture, serial
architectures, and partially parallel architectures. In this case, N represents the
length of the NTT and P represents a parallel factor. As shown in Fig. 3, the fully parallel architecture is intuitive and can support high throughput by
processing N data per clock ^{[26]}. However, it has a problem that hardware complexity increases linearly along with
the increase in the NTT length, and in fact a high throughput of processing N data
per clock cycle is not required in a realistic system. Next, the SDF ^{[26]} in Fig. 6 and SDC ^{[28]} in Fig. 8, which are serial structures, satisfy the NTT pair property through the feedback
type and feedforward type, respectively, and can serialize a fullyparallel architecture.
Although they can reduce hardware including large amounts of butterflies, multipliers,
modular reductions, and memories compared to the fullyparallel architecture ^{[26]}, they provide a low throughput of processing one data per clock. Finally, the MDF
^{[27]} in Fig. 7 and MDC ^{[29]} in Fig. 9 designs can partially parallelize SDF ^{[26]} and SDC ^{[28]} to provide affordable hardware complexity while providing realistic throughput. However,
they waste delays due to the inefficient data rearrangement circuit or impose limitations
on the use of high radix structures, resulting in low level of hardware utilization.
The proposed partiallyparallel NTT design in Fig. 12 solves the problem by utilizing the advantages of both designs. Due to the efficient
reordering circuit, the proposed partiallyparallel design has the lowest hardware
complexity quantitatively among partiallyparallel structures regardless of NTT length
N and parallel factor P. Moreover, Table 3 provides a numerical comparison by substituting the length N for 512 and the parallel
factor P for 8. Through Table 2 and 3, the advantages of each architecture including fullyparallel, serial, and partiallyparallel
architectures can be clearly confirmed. Moreover, it can also be confirmed that the
proposed partiallyparallel design always has low hardware complexity, short latency,
and high hardware utilization among partiallyparallel architectures.
Finally, to bring a practical comparison, Table 4 compares the synthesis results for all NTT designs in Verilog HDL with 200 MHz operating
frequency using a CMOS 180 nm process. Without loss of generality, all NTT processors
were maintained at N = 512, q = 12,289, W = 3, and P = 8. The hardware complexity,
latency, throughput, and hardware efficiency information representing the performance
of the entire structure were indicated. The hardware complexity was defined as the
number of 2input NAND gates, and the efficiency obtained by dividing the throughput
by the complexity was additionally used to make it easier to understand the results
of performance improvement of the proposed structure. Consequently, it can be seen
in the synthesis results in Table 4 that the proposed structure shows the best efficiency by efficiently implementing
the rearrangement circuit. In more detail, the proposed partiallyparallel architecture
achieved 15% efficiency improvement thanks to the smaller hardware usage compared
to the fullyparallel architecture ^{[26]}, and achieved efficiency improvements of 66% and 74% thanks to the higher throughput
compared to the serial architectures of SDF ^{[26]} and SDC ^{[28]}, respectively. With the improvement of the rearrangement structure compared to MDF
^{[27]} and MDC ^{[29]}, which are partially parallel architectures, efficiency improvements of 43% and 76%,
respectively, were achieved. Although Table 4 presents the synthesis results only for P = 8, it can be inferred that it has the
highest efficiency for any P according to Table 2. Therefore, the proposed NTT design can respond flexibly to the latticebased postquantum
cryptosystem that has various design requirements.
Table 2. Comparison on hardware complexity.
Architecture

Fully parallel

Serial

Partially Parallel (P)

Design

Fully parallel ^{[26]}

SDF ^{[26]}

SDC ^{[28]}

MDF ^{[27]}

MDC ^{[29]}

Proposed

Butterflies

$\left(N/2\right)\left(\log _{2}N\right)$

$\log _{2}N$

$\log _{2}N$

$P\log _{2}\left(N/P\right)\\
+\left(P/2\right)\left(\log _{2}P\right)$

$P^{2}\log _{p}N$

$\left(P/2\right)\left(\log _{2}N\right)$

Multipliers

$\left(N/2\right)\left(\log _{2}N\right)$

$\log _{2}N$

$\log _{2}N$

$\begin{array}{l}
P\log _{2}\left(N/P\right)\\
+\left(P/2\right)\left(\log _{2}P\right)
\end{array}$

$\left(P1\right)\log _{p}N$

$\left(P/2\right)\left(\log _{2}N\right)$

Modular
reduction

$3\left(N/2\right)\left(\log _{2}N\right)$

$3\left(\log _{2}N\right)$

$3\left(\log _{2}N\right)$

$\begin{array}{l}
3P\log _{2}\left(N/P\right)\\
+3\left(P/2\right)\left(\log _{2}P\right)
\end{array}$

$2\left(P1\right)\log _{p}N+1$

$3\left(P/2\right)\left(\log _{2}N\right)$

Delays



N  1

2(N  1)

N  P

N  P

N  P

Latency

1

N  1

N  1

(N/P)1

2N/P1

(N/P)1

Throughput

N

1

1

P

P

P

Utilization

100 %

50 %

50 %

$50(1+\log _{N}P)$%

100 %

100 %

Table 3. Comparison on hardware complexity for N = 512
Architecture

Fully parallel

Serial

Partially Parallel (P = 8)

Design

Fully parallel ^{[26]}

SDF ^{[26]}

SDC ^{[28]}

MDF ^{[27]}

MDC ^{[29]}

Proposed

Butterflies

2,304

9

9

60

192

36

Multipliers

2,304

9

9

60

27

36

Modular
reduction

6,912

27

27

180

55

108

Delays



511

1,022

504

504

504

Latency

1

511

511

63

127

63

Throughput

512

1

1

8

8

8

Utilization

100 %

50 %

50 %

66 %

100 %

100 %

Table 4. Synthesis result for N = 512
Architecture

Fully parallel

Serial

Partially Parallel (P = 8)

Design

Fully parallel ^{[26]}

SDF ^{[26]}

SDC ^{[28]}

MDF ^{[27]}

MDC ^{[29]}

Proposed

Gate count
[#NAND]

39,789K

196K

257K

966K

955K

553K

Latency
[ns]

5

2,555

2,555

315

635

315

Throughput
[Gbps]

102.4

0.23

0.23

1.62

0.81

1.62

Efficiency
[Kbps/#NAND]

2.57

1.02

0.78

1.68

0.84

2.94

VI. CONCLUSION
In this paper, a new partially parallel NTT processor architecture applicable to polynomial
multiplication was proposed to improve the cryptographic processor efficiency of latticebased
postquantum cryptography. The proposed structure analyzes the data rearrangement
processes as matrices derives and a data rearrangement circuit and the entire structure
using the generalized data rearrangement scheduling process. As a result, the problems
of the high complexity of the previous fullyparallel architecture ^{[26]} and low throughput of the serial architecture SDF ^{[26]} and SDC ^{[28]} designs were solved. It provides improved performance in terms of hardware complexity
and utilization through efficient data rearrangement compared to partially parallel
MDF ^{[27]} and MDC ^{[29]}. Consequently, the proposed structure enables the design of a partially parallel
Npoint NTT processor that is easily optimized even with changes in NTT length N and
parallel factor P. It can be applied to a latticebased postquantum cryptoprocessor
for a wider variety of devices with a limited use environment.
ACKNOWLEDGMENTS
This work was supported by research fund of Chungnam National University.
References
Tan T. N., Lee H., 2018, HighSecure LowLatency RingLWE Cryptography Scheme for
Biomedical Images Storing and Transmitting, in Proc. 2018 IEEE International Symposium
on Circuits and Systems (ISCAS), pp. 14
Kundi D. e. S., Khalid A., Bian S., Wang C., O’Neill M., Liu W., AxRLWE: A Multilevel
Approximate RingLWE Coprocessor for Lightweight IoT Applications, in IEEE Internet
of Things Journal, Vol. 9, No. 13, pp. 1049210501
Shimada T., Ikeda M., 2021, HighThroughput Polynomial Multiplier Architecture for
LatticeBased Cryptography, in Proc. 2021 IEEE International Symposium on Circuits
and Systems (ISCAS), pp. 15
Shor P. W., 1994, Algorithms for quantum computation: discrete logarithms and factoring,
in Proceedings 35th Annual Symposium on Foundations of Computer Science, pp. 124134
Alagic G., AlperinSheriff J., Apon D., Cooper D., Dang Q., Kelsey J., Liu Y.K.,
Miller C., Moody D., Peralta R., et al. , 2020, Status report on the second round
of the nist postquantum cryptography standardization process, US Department of Commerce,
National Institute of Standards and Technology
Micciancio D., 2009, Latticebased cryptography, in Postquantum cryptography. Springer,
Berlin, Heidelberg, pp. 147191
Overbeck R., 2009, Codebased cryptography, in Postquantum cryptography. Springer,
Berlin, Heidelberg, pp. 95145
Ding J., Yang B.Y., 2009, Multivariate public key cryptography, in Postquantum cryptography.
Springer, Berlin, Heidelberg, pp. 193241
FazHernández A., López J., OchoaJiménez E., RodríguezHenríquez F., 1 Nov. 2018,
A Faster Software Implementation of the Supersingular Isogeny DiffieHellman Key Exchange
Protocol, in IEEE Transactions on Computers, Vol. 67, No. 11, pp. 16221636
MozaffariKermani M., Azarderakhsh R., 2015, Reliable hash trees for postquantum
stateless cryptographic hashbased signatures, in Proc. 2015 IEEE International Symposium
on Defect and Fault Tolerance in VLSI and Nanotechnology Systems (DFTS), pp. 103108
Zhu Y., et al. , March 2021, LWRpro: An EnergyEfficient Configurable CryptoProcessor
for ModuleLWR, in IEEE Transactions on Circuits and Systems I: Regular Papers, Vol.
68, No. 3, pp. 11461159
Zhang N., et al. , 1 April 2020, NTTU: An AreaEfficient LowPower NTTUncoupled Architecture
for NTTBased Multiplication, in IEEE Transactions on Computers, Vol. 69, No. 4, pp.
520533
Martins P., Sousa L., Nov. 2018, A Survey on Fully Homomorphic Encryption: An Engineering
Perspective, ACM Comput. Surv., Vol. 50, No. 6, pp. 133
Koziel B., Azarderakhsh R., Kermani M. M., 1 Nov. 2018, A HighPerformance and Scalable
Hardware Architecture for IsogenyBased Cryptography, in IEEE Transactions on Computers,
Vol. 67, No. 11, pp. 15941609
S.Heyse , 2012, Towards one cycle per bit asymmetric encryption: Codebased cryptography
on reconfigurable hardware, in Proc. International Workshop on Cryptographic Hardware
and Embedded Systems. Springer, Berlin, Heidelberg
Oder T., Güneysu T., Valencia F., Khalid A., O'Neill M., Regazzoni F., 2016, Latticebased
cryptography: From reconfigurable hardware to ASIC, in Proc. 2016 International Symposium
on Integrated Circuits (ISIC), pp. 14
Xie J., Basu K., Gaj K., Guin U., 2020, Special Session: The Recent Advance in Hardware
Implementation of PostQuantum Cryptography, in Proc. 2020 IEEE 38th VLSI Test Symposium
(VTS), pp. 110
DuongNgoc P., Lee H., 2022, Configurable MixedRadix Number Theoretic Transform Architecture
for LatticeBased Cryptography, in IEEE Access, Vol. 10, pp. 1273212741
Ducas L., Durmus A., 2012, RingLWE in polynomial rings, in Proc. International Workshop
on Public Key Cryptography. Springer, Berlin, Heidelberg
Yao K., Kundi D. E. S., Wang C., O’Neill M., Liu W., 2021, Towards CRYSTALSKyber:
A MLWE Cryptoprocessor with AreaTime TradeOff, in Proc. 2021 IEEE International
Symposium on Circuits and Systems (ISCAS), pp. 15
Tan T. N., Hyun Y., Kim J., Choi D., Lee H., 2019, RingLWE Based Face Encryption
and Decryption System on a GPU, in Proc. 2019 International SoC Design Conference
(ISOCC), pp. 1516
Du C., Bai G., 2016, Towards efficient polynomial multiplication for latticebased
cryptography, in Proc. 2016 IEEE International Symposium on Circuits and Systems (ISCAS),
pp. 11781181
Roy S. S., et al. , 2014, Compact ringLWE cryptoprocessor, in Proc. International
workshop on cryptographic hardware and embedded systems. Springer, Berlin, Heidelberg
Garrido M., 2021, A survey on pipelined FFT hardware architectures, Journal of Signal
Processing Systems, pp. 120
Harvey D., 2014, Faster arithmetic for numbertheoretic transforms, Journal of Symbolic
Computation, Vol. 60, pp. 113119
RenteríaMejía C. P., VelascoMedina J., 2014, Hardware design of an NTTbased polynomial
multiplier, in Proc. 2014 IX Southern Conference on Programmable Logic (SPL), pp.
15
Nguyen Tan T., Thi Bao Nguyen T., Lee H., 2020, High Efficiency RingLWE Cryptoprocessor
Using Shared Arithmetic Components, MDPI Electronics, Vol. 9, No. 7, pp. 112
RenteríaMejía C. P., VelascoMedina J., Aug. 2017, HighThroughput RingLWE Cryptoprocessors,
in IEEE Transactions on Very Large Scale Integration (VLSI) Systems, Vol. 25, No.
8, pp. 23322345
Jumde S., Mandavgane R. N., Khatri D. M., 2015, Review of parallel polynomial multiplier
based on FFT using Indian Vedic mathematics, International Journal of Computer Applications,
Vol. 111, No. 17, pp. 1013
Lyubashevsky V., Peikert C., Regev O., 2010, On ideal lattices and learning with errors
over rings, in Proc. Annual international conference on the theory and applications
of cryptographic techniques. Springer, Berlin, Heidelberg
Bos J. W., Costello C., Naehrig M., Stebila D., 2015, PostQuantum Key Exchange for
the TLS Protocol from the Ring Learning with Errors Problem, in Proc. 2015 IEEE Symposium
on Security and Privacy, pp. 553570
Langlois A., Stehlé D., 2015, Worstcase to averagecase reductions for module lattices,
Designs, Codes and Cryptography, Vol. 75, No. 3, pp. 565599
Abdalla M., Benhamouda F., Pointcheval D., 2016, Publickey encryption indistinguishable
under plaintextcheckable attacks, IET Information Security, Vol. 10, No. 6, pp. 288303
Longa P., 2016, Speeding up the number theoretic transform for faster ideal latticebased
cryptography, In Proc. International Conference on Cryptology and Network Security.
Springer, Cham
Garrido M., 2019, Hardware architectures for the fast Fourier transform, Handbook
of signal processing systems. Springer, Cham, pp. 613647
Winkler F., 1996, Polynomial algorithms in computer algebra, Springer Science & Business
Media
Chen D. D., et al. , Jan. 2015, HighSpeed Polynomial Multiplication Architecture
for RingLWE and SHE Cryptosystems, in IEEE Transactions on Circuits and Systems I:
Regular Papers, Vol. 62, No. 1, pp. 157166
Cao Z., Wu X., 2014, An improvement of the Barrett modular reduction algorithm, International
Journal of Computer Mathematics, Vol. 91, No. 9, pp. 18741879.
Liu Z., et al. , 2015, Efficient RingLWE encryption on 8bit AVR processors, In Proc.
International Workshop on Cryptographic Hardware and Embedded Systems. Springer, Berlin,
Heidelberg
Soyeon Choi received B.S. degree in electronics engineering from Chungnam National
University, Daejeon, South Korea, in 2018, where she is currently working toward the
Unified Master and Ph.D. degree. Her main interests are VLSI for error correction
codes, embedded system, and FPGA reverse engineering.
Yerin Shin received the B.S., and M.S. degrees in electronics engineering from
Chungnam National University, Daejeon, South Korea, in 2016 and 2022, respectively.
Her research interests include VLSI for error correction codes, and SoC for embedded
system. Since 2022, she has been with the Department of TV/Commercial, LX Semicon,
Daejeon, where she is currently a Researcher.
Kiho Lim received his M.S. and Ph.D. degrees in Computer Science from the University
of Kentucky in 2012 and 2016, respectively. Currently, he is an Assistant Professor
in the Department of Computer Science at William Paterson University of New Jersey,
USA. Prior to joining WPU, he as an assistant professor with the Department of Computer
Science at the University of South Dakota from 2016 to 2019. His research interests
include cybersecurity, network security, vehicular networks, wireless communications,
fog/edge computing, and IoT. He is currently the director of Cybersecurity Lab at
WPU.
Hoyoung Yoo received the B.S. degree in electrical and electronics engineering
from Yonsei University, Seoul, South Korea, in 2010, and the M.S., and Ph.D. degrees
in electrical engineering from Korea Advanced Institute of Science and Technology
(KAIST), Daejeon, South Korea, in 2012 and 2016, respectively. Since 2016, he has
been with the Department of Electronics Engineering, Chungnam National University
(CNU), Daejeon, where he is currently an Associate Professor. Prior to joining CNU,
in 2016, he was with Samsung Electronics, Hwasung, South Korea, where he was involved
in the research of nonbinary LDPC decoders for NAND flash memories. His current research
interests include algorithms and architectures for errorcorrecting codes, FPGA reverse
engineering, GNSS communication, and 5G communication systems.
