  1. (Department of Electronics and Engineering Hanyang Univ, Seoul, Korea)

Ovonic threshold switch, OTS, phase change random access memory, PRAM, different electrode bottom size, switch characteristics


Phase-change Random Access Memory (PRAM) is a one of the most promising candidates for next generation memory with non-volatility, high cycling endurance, low read/write latency and high scalability. Phase-change Random Access Memory (PRAM) is expected to replace the next generation of non-volatile memory and is under study. PRAM utilizes a change in resistance value according to a phase change of a chalcogenide material. Recently, existing memories devices are severely suffering due to scaling limits. Industries are researching and developing to technology to overcome scaling issues. Cross point array is structure developed to overcome scaling issues and effectively increase high memory density. Fig. 1 shows cross point array structure. But, this structure suffers leakage issue which is generated through unselected cell adjacent to selected cell. Therefore, the leakage current should be reduced by using the selector device with the switching characteristic, such as transistors, diodes, Ovonic threshold switching devices (OTS), metal insulator-transition (MIT) devices, and mixed ionic electronic conductors (MIECs) (2). OTS can be applied more efficiently than other selectors, since OTS uses chalcogenide materials, which is similar with PRAM. OTS utilizes a change in resistance value. OTS on state (switch on) is low resistance value and OTS off state (switch off) is high resistance value (1-3). It has various advantages such as high speed, process, and scaling size($<4\mathrm{F}^{2})$ (1). OTS is a one of the most promising selector. In this research, We fabricated SiTe OTS with different width bottom electrode contact sizes and studied the differences in the bottom electrode size I-V characteristics (4-6).

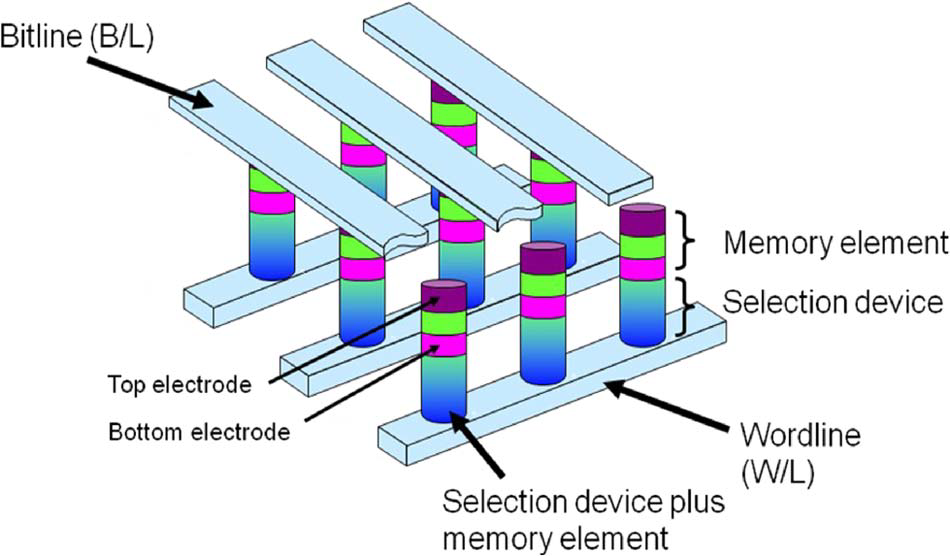

Fig. 1. Cross point array structure. (1)



Fig. 2 shows device structure sectional view picture. As shown in Fig. 2, We fabricated SiTe-based OTS device for different bottom electrode contact size structure. 18 Different bottom sizes are from 34 nm to 1921 nm and thickness is 300-nm. Top W thickness and width are 200 nm and 60 um. Fig. 3 shows fabricated device structure bird view picture. As shown in Fig. 3, It is actually the fabricated device. The end of the device is a bottom electrode consisting of W, consisting of 18 different sized devices and 40 identical patterns. We measured I-V characteristics. First, read voltage (-0.2 to + 0.2 V) measured OTS to verify uniformity of the resistance. After showing uniformity of the resistance, 18 patterns were measured with voltage (0 to 1.5 V step 0.05~V).

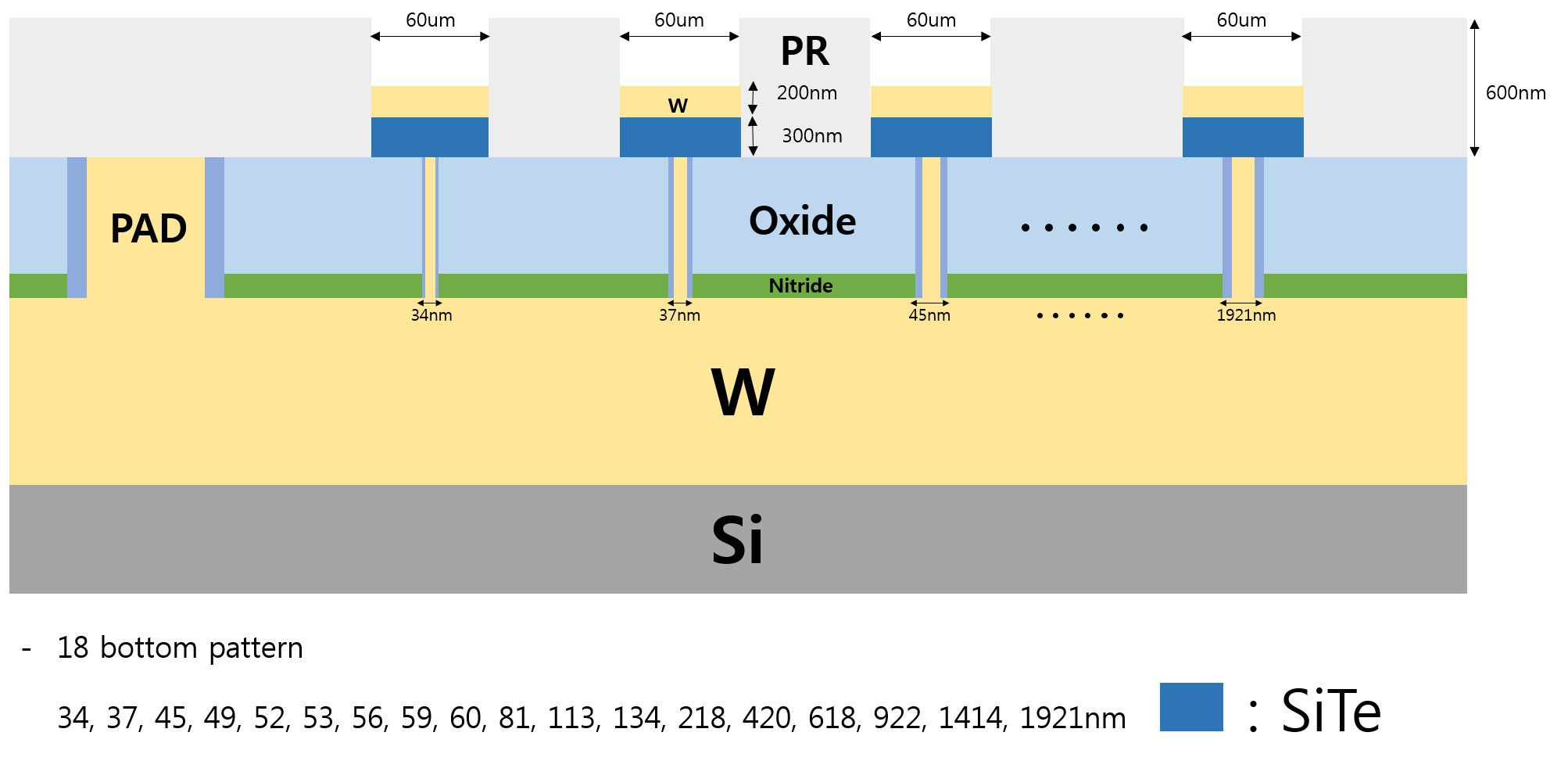

Fig. 2. Device Structure sectional view picture.

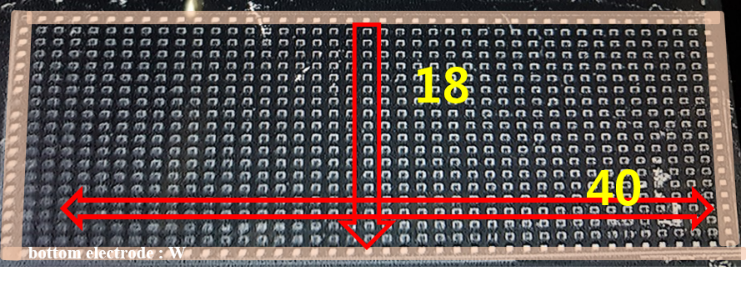

Fig. 3. Fabricated device Structure bird view picture.



From the result, we verified uniformity of the resistance, result showed constant resistance value($10^{6}$$Ω$) at 218, 420, 618, 992, 1414(nm) bottom electrode contact size. Fig. 4 shows OTS switch characteristics. As shown in Fig. 4, OTS switch I-V characteristics is observed from 218 nm to 1414 nm size. High resistance(OTS off) is $10^{6}$$Ω$ and Low resistance(OTS on) is $10^{3}$$Ω$, and OTS shows on/off ratio of >$10^{3}.$ $\mathrm{V}_{\mathrm{t}}$ shows decrement with increasing size. $\mathrm{V}_{\mathrm{t}}$ showed different values from 0.7 V to 1.4 V with different contact size of bottom electrode, where $\mathrm{V}_{\mathrm{t}}$ decreases 0.1 V when bottom electrode contact size increase 200 nm Table 1 is value of resistance (high/low),$\mathrm{~ V}_{\mathrm{t}}$, on/off ratio according to OTS bottom contact size. As result, we verified OTS switch characteristics that bottom electrode size higher between 218 nm and 1414 nm. Whenever bottom electrode size increase by approximately 200 nm, $\mathrm{V}_{\mathrm{t}}$ decrease by approximately 0.1 V. also we verified that OTS did not show switch characteristics bottom electrode size lower than 218 nm and higher than 1414 nm. When bottom electrode size lower than 218 nm. We thought that this phenomenon is to occur due to insufficient current flow for OTS switch characteristics. And when bottom electrode size higher than 1414 nm, OTS device lead to breakdown. this phenomenon is to occur due to large amount of current to flow for OTS switch characteristics. Based on this result, it can be helpful to manufacture the next OTS considering the thickness of OTS according to the bottom electrode size.

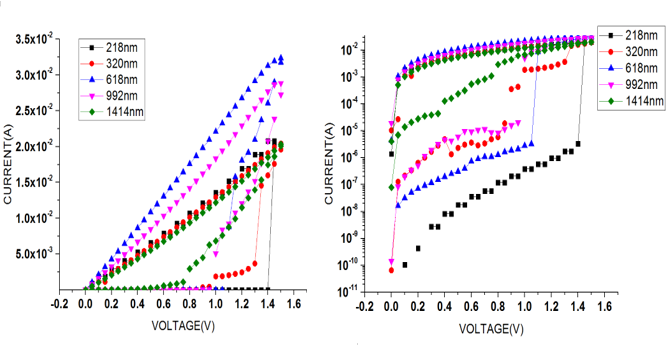

Fig. 4. OTS switch characteristics (linear and log).

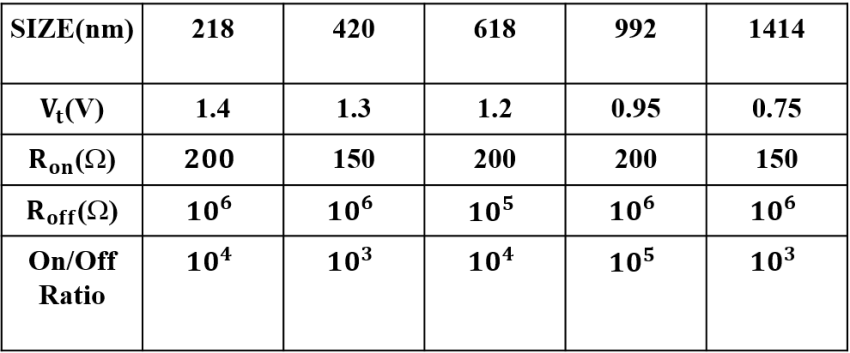

Table 1. Performance of OTS at bottom contact size



In this paper, we fabricated SiTe OTS different bottom electrode contact size to study effect of bottom electrode size on OTS. We measured OTS I-V characteristic at contact size. Experimental results with fabricated OTS samples showed High off resistance$(10^{6}$$Ω$), Low on resistance($10^{3}$$Ω$) and on/off ratio (>$10^{3}$). $\mathrm{V}_{\mathrm{t}}$ showed different values with different contact sizes. $\mathrm{V}_{\mathrm{t}}$ decreased 0.1 V. When bottom contact size increased 200~nm, As a result, among 18 difference bottom contact sizes between 34 nm and 1921 nm, OTS showed switching characteristic and $\mathrm{V}_{\mathrm{t}}$ variation with between 218 nm and 1414 nm. Sized bottom electrode samples. Based on this result, we found that the size of the bottom electrode size greatly influences the turn on / off of the OTS during the fabrication of the OTS and changes in the $\mathrm{V}_{\mathrm{t}}$ values by size. This results show that the OTS is a promising selector device application for cross point array structure. This research could will help researchers as a reference for manufacturing OTS.


This research was suported by the Ministry of Trade, Industry & Energy (MOTIE (project number 20003808) and Korea Semiconductor Research Consortium (KSRC) support program for the development of the future semiconductor device.


Wong H-S. Philip, et al. , Dec 2010, Phase change memory, Proceedings of the IEEE, Vol. 98, No. 12, pp. 2201-2227DOI
Aluguri Rakesh, Tseng Tseung-Yuen, Sep 2016, Overview of selector devices for 3-D stackable cross point RRAM arrays, IEEE Journal of the Electron Devices Society, Vol. 4, No. 5, pp. 294-306DOI
Ovshinsky Stanford R., Fritzsche Hellmut, Feb 1973, Amorphous semiconductors for switching, memory, and imaging applications, IEEE Transactions on Electron Devices, Vol. 20, No. 2, pp. 91-105DOI
Govoreanu Bogdan, et al. , June 2017, Thermally stable integrated Se-based OTS selectors with> 20 MA/cm 2 current drive,> 3.10 3 half-bias nonlinearity, tunable threshold voltage and excellent endurance, 2017 Symposium on VLSI Technology, IEEE, pp. T92-T93DOI
Koo Yunmo, et al. , May 2017, Simple binary Ovonic threshold switching material SiTe and its excellent selector performance for high-density memory array application, IEEE Electron Device Letters, Vol. 38, No. 5, pp. 568-571DOI
Manivannan Anbarasu, et al. , Dec 2014, Low power ovonic threshold switching characteristics of thin GeTe6 films using conductive atomic force microscopy, Applied Physics Letters, Vol. 105, No. 24, pp. 243501DOI
