  1. (Department of Electric Engineering, Gangneung-Wonju National University, Gangneung, 25457, Korea)

Feedback field effect transistor (FBFET), processing in memory (PIM), reconfigurable logic, charge trap layer


The existing computing system follows a von Neumann structure, where memory and CPU are separated, resulting in slow data transfer [1-4]. This leads to high energy consumption and the occurrence of a memory wall. To address these challenges, the development of Process in Memory (PIM) technology has been underway [5-8]. PIM technology is being explored in three ways. The first is near memory PIM technology (Fig. 1(a)), which reduces the distance between memory and CPU [9,10]. The advantage of this approach is that shorter distances enable faster data transfer. Near-memory technology is also relatively easy to implement, making it accessible. The second approach is With-memory PIM technology (Fig. 1(b)). It involves reducing the distance between memory and CPU further by incorporating some CPU functions into memory. Both approaches alleviate the memory wall problem by reducing the distance between the CPU and memory. However, these methods have limitations in fully addressing the bottleneck of the von Neumann structure. Therefore, a third technology is required, namely In-memory PIM technology (Fig. 1(c)). Since operations are performed within the memory, data transfer to memory is unnecessary, resulting in significantly reduced power consumption.

Various PIM technologies have been announced. (Table 1) First IBM developed embedded MRAM technology to replace SRAM in Last Level Cache (LLC). A large-capacity SRAM or embedded DRAM (eDRAM) is used for the L4 cache of a large-capacity microprocessor. At Tsinghua Univ, China announced LerGAN, a PIM-based GAN accelerator with low data movement and zero computation utilizing ReRAM PIM. [11,12] Samsung announced HBM-PIM technology, a structure in which High Bandwidth Memory (HBM) and DRAM are bundled into one package with TSV and connected to CPU/GPU through an interposer. Panasonic announced the MN101L 8-bit Microcontrollers, the first microcontroller with internal resistance RAM (ReRAM). Resistant RAM is a new non-volatile built-in memory that writes five times faster than flash or EEPROM memory without erasing cycles. [13] UPMEM proposed an 8GB DDR4-2400 module, each with 128 DPUs occupying 64 MB of memory and running at 500MHz. [14,15] Although PIM technology has been implemented in various countries, it closely aligns with near memory technology and is not the ultimate solution. Therefore, to achieve the ultimate PIM technology, a new memory structure needs to be designed rather than relying on existing structures.

In this paper, we propose a new structure to implement PIM technology. We propose a charge trap flash memory Positive Feedback Field Effect Transistor (CTF-FBFET). FBFET is devices that can use their structural characteristics to implement PIM. The CTF-FBFET we propose combines two inputs with an oxide/nitride/oxide (ONO) structure. We have verified that the operations of AND and OR can be reconfigured in an FBFET using two inputs. The logic operations are selected by the control gate voltage (V$_{C.G}$). Additionally, data is stored in the charge trap layer to enable memory operations, and logic operations are performed by reading the data values stored in each cell. As a result, the device performs memory read and computation operations simultaneously. The proposed structure has been validated through TCAD simulation.

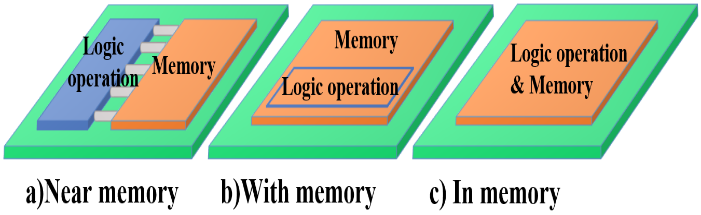

Fig. 1. (a) Techniques that reduce the distance between processor and memory; (b) Techniques that assign some of the processor's functions to memory; (c) Techniques for performing memory and operations in the cell itself.

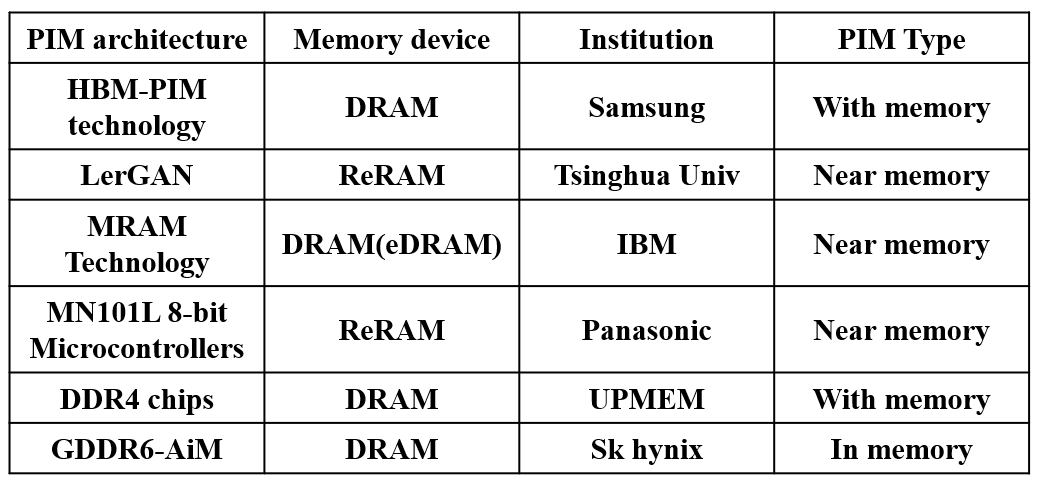

Table 1. PIM technology trends. It is a technology that puts an operator in memory or brings the distance between the operator and the memory close, not the technology that memory calculates


The FBFET we have developed consists of a pnpn-doped body, two inputs, and a control gate. The voltages applied to input 1 and input 2 regulate the energy barrier and the depth of the potential well. The process method for fabricating the FBFET is illustrated in Fig. 2(a) [16]. Due to its compatibility with CMOS, the FBFET is seamlessly integrated with CMOS circuits. Initially, active patterning is executed on a silicon-on-insulator (SOI) wafer, followed by p-type body implantation using BF$_{2}$$^{+}$ ions at a dosage of 1${\times}$10$^{13}$cm$^{-2}$ to finely adjust the threshold voltage. Subsequently, a layer of n$^{+}$ doped poly-Si is deposited after dry oxidation of a 10 nm thick SiO$_{2}$ input at 950 $^{\circ}$C. Following the patterning of the input, n-type implantation is carried out within the potential well at a dosage of 2${\times}$10$^{13}$cm$^{-2}$, and the buffer oxide is eliminated through HF wet etching. To separate input and control gate, the control gate oxide is grown to a thickness of 10 nm using dry oxidation. The next step involves depositing n+ doped polysilicon, followed by the second gate patterning. After the injection of n$^{+}$ source/p$^{+}$ drain, a rapid thermal annealing (RTA) process is performed at 900$^{\circ}$C for 10 seconds in an oxygen atmosphere to facilitate reoxidation. Finally, the interlayer dielectric (ILD) is deposited, and contact hole etching and metal sputtering (Ti/TiN/Al/TiN) are conducted. The SEM image of the device after gate patterning is shown in Fig. 2(b). The following are measurement results. Fig. 3 shows the drain current that varies with different V$_{C.G}$. The V$_{C.G}$ adjusts the depth of the potential well in the n$^{-}$ type doped body. Consequently, the threshold voltage (VT) can be controlled by varying the V$_{C.G}$, and as it increases, the threshold voltage increases linearly. Fig. 4 shows that the longer the time to raise the gate voltage, the more electrons accumulate in the body, resulting in a smaller subthreshold swing (SS). When the voltage of input1 is below the threshold voltage, electrons accumulate in the body. As the number of electrons increases and surpasses the threshold, the FBFET is turned on through the feedback interaction between the electron and the potential barrier, as shown in Fig. 5. The following are the mechanisms of the FBFET [17].

1. As the V$_{C.G}$ increases, the potential well depth below the control gate becomes deeper.

2. Applying a positive bias to input1 lowers the potential barrier. And source electrons are crossed the potential barrier and accumulated in the potential well under the control gate.

3. The accumulated electrons lower the barrier height of the valence band on the drain, and then holes are accumulated in the p-type body below the input1.

4. Likewise, the accumulated holes drop the potential barrier on the source, and the potential barriers become very low. Therefore, the current increases rapidly and the FBFET turns on steeply.

In other words, the VT is controlled by the control gate bias. As the V$_{C.G}$ increases, the potential well deepens, causing the VT to increase (Fig. 6). Thus, the VT can be precisely modulated (Fig. 7). Reconfigurable logic operations have been performed using the VT controllability of the FBFET. We performed AND and OR computing operations using two input FBFET. When a high voltage is applied to the control gate, the potential well deepens, requiring more charges to turn on. Therefore, if there is no input bias or only one input bias is applied, the FBFET remains in a tuned-off state. The FBFET is turned on only when a voltage is applied to both input1 and input2, representing the AND function, as shown in Fig. 8(a). When operating with OR logic, a low voltage is applied to the control gate. By impressing a low voltage on the control gate, the potential well becomes shallow, allowing the FBFET to operate even if a voltage is applied to only one input, as shown in Fig. 8(b). In this configuration, when a voltage is applied to either input 1 or input 2, the FBFET operates normally. Our proposed FBFET operates as an AND logic when the control gate is set to 2 V and as an OR logic gate when a voltage of 0.4 V is applied (Table 2). Thus, we have successfully verified the reconfigurable AND/OR function within a single device.

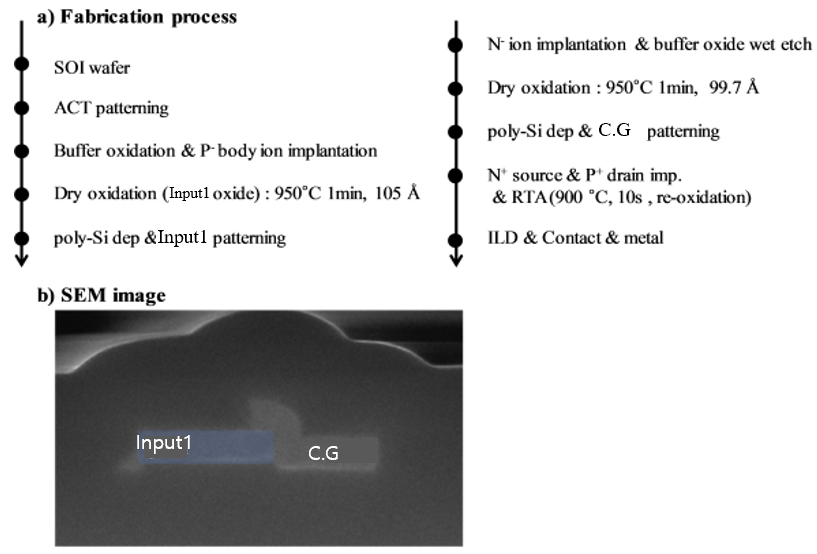

Fig. 2. (a) FBFET production process; (b) SEM image (C.G = Control Gate).
Fig. 3. Transfer curves measurement results for various control gate voltages. (V$_{drain}$=0.7 V).
Fig. 4. I-V measurement result according to voltage increase time of Input 1 at 10$^{-7}$ A current.

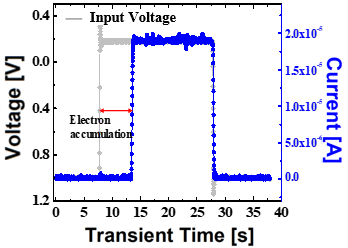

Fig. 5. Time FBFET turned on by sub-threshold gate 1 voltage (V$_{drain}$=1 V V$_{C.G}$=2 V).
Fig. 6. Energy band diagram of the FBFET according to control gate bias. As increasing control gate bias, potential well below control gate is deeper.

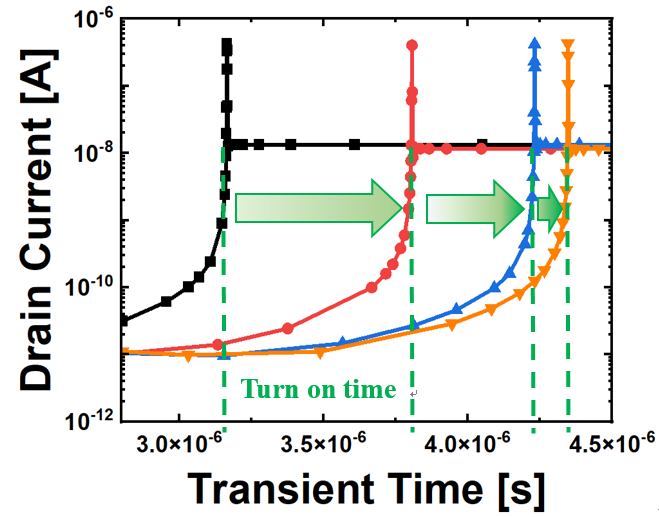

Fig. 7. Simulation result of transfer curve for various control gate voltage. As the control gate voltage increases, the turn-on time increases.
Fig. 8. Operational Graph of reconfigurable logic with FBFET: (a) AND operation = the control gate voltage is high; (b) OR operation =the V$_{C.G}$ is low.

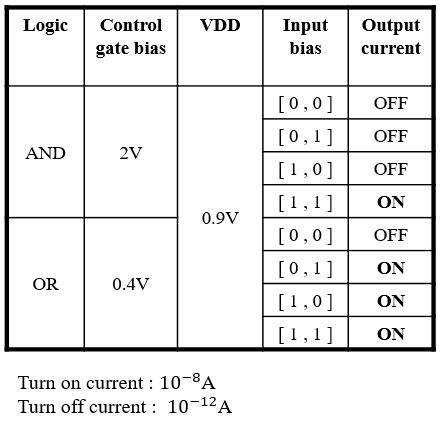

Table 2. Logic simulation values. We set AND when 2V was applied to the control gate and OR when 0.4V was applied


We designed the CTF-FBFET structure for implementing PIM technology. The structure incorporates a charge trap layer and a multi-input FBFET to enable memory operations. It performs logic operations through the control gate and stores charges in the charge trap layer for memory functions. When a program voltage is applied to input, charges are stored in the CTF layer. Each data cell stores a charge based on the input voltage. The device can store data while simultaneously performing AND or OR logic operations when reading the data.

The proposed device structure is depicted in Fig. 9. In the proposed structure, the VT increases when a program voltage is applied to the input (programming). This occurs because when a program voltage is applied to the input, charges are injected into the charge trap layer through Fowler-Nordheim (FN) tunneling, resulting in an increase in VT. The operation is illustrated in Fig. 10. In Fig. 10, the VT increases after applying the program voltage (11V) for 2 ${\mathrm{\mu}}$s in the initial state, and then it decreases after applying the erase voltage (-8 V) for 1.8~${\mathrm{\mu}}$s. As the program voltage increases, the VT also increases. When a read bias is applied to an input of a device functioning as memory, the output of the AND or OR logic operation is determined by the V$_{C.G}$. The device performs AND logic when the control gate bias is high and OR logic when the voltage is low. In the initial state [1 1], if a read voltage is biased, the FBFET is turned on because electrons are injected into the n$^{-}$ type floating body. As only one cell is programmed, the programmed cell (0) has a high VT. Therefore, when the same read voltage is applied, electrons are injected only through the erased cell (1). Consequently, in this case, if the potential well is deep due to a high voltage applied to the control gate, the FBFET cannot be turned on. Similarly, if both cells are programmed, the FBFET cannot be turned on regardless of the control gate bias. Fig. 11 presents the results after applying the read bias. The initial states of input1 and input2 are logic [1 1]. Fig. 11(a) shows the AND operation simulation, Fig. 11(b) shows the OR operation simulation result, and Fig. 11(c) is the logical flow time diagram.

1. In the logical [1 1] state, the AND and OR outputs are 1, indicating they are turned on.

2. Afterwards, a program voltage is applied to input 1.

3. If a read voltage is then applied, the AND output is 0, and the OR output is 1, resulting in a logical [1 0] state.

4. Following that, a program voltage is applied to input2. If a read voltage is applied, both the AND and OR outputs are 0, resulting in a logical [0 0] state.

Fig. 12 provides a detailed description of the logical operation, illustrating the result of the processing in memory.

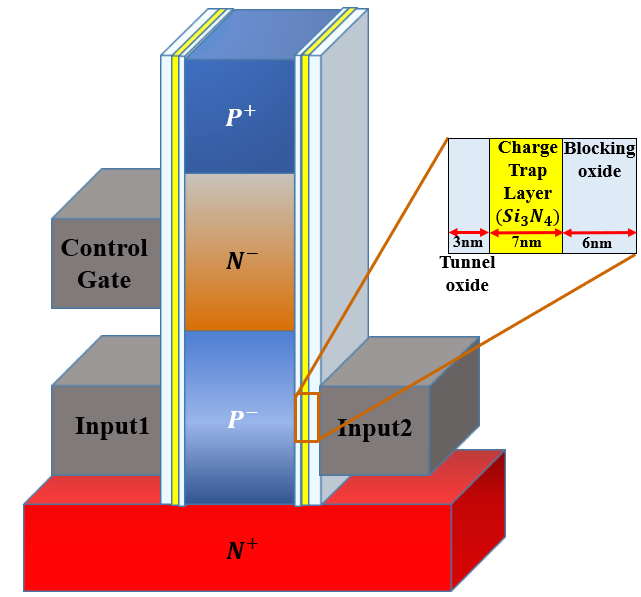

Fig. 9. CTF-FBFET simulation structure. A memory operation is performed by storing charges in the charge trap layer.

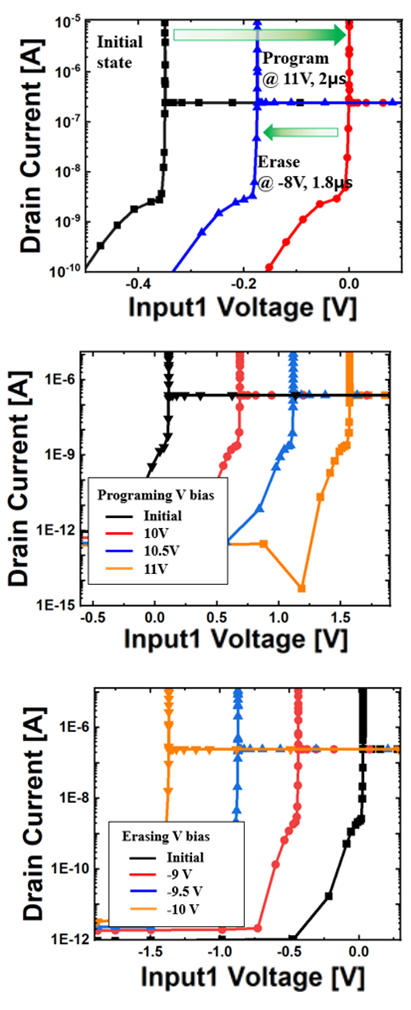

Fig. 10. Program and erase operation graph of CTF-FBFET. The threshold voltage increased after the program operation, and the threshold voltage decreased again after the erase operation.

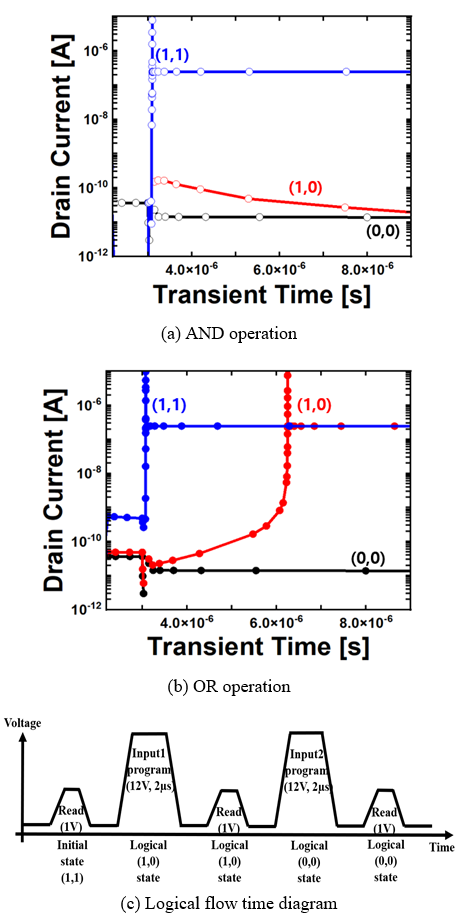

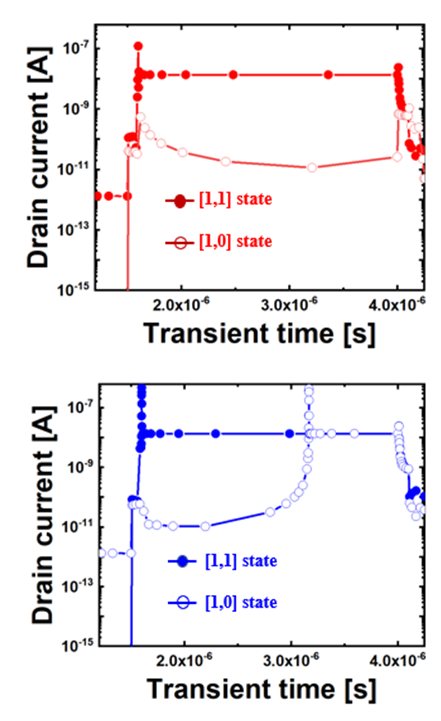

Fig. 11. The simulation result after applying the read bias: (a) the same as the 2-bit operation of AND; (b) the same as the 2-bit operation of OR; (c) flow chart.

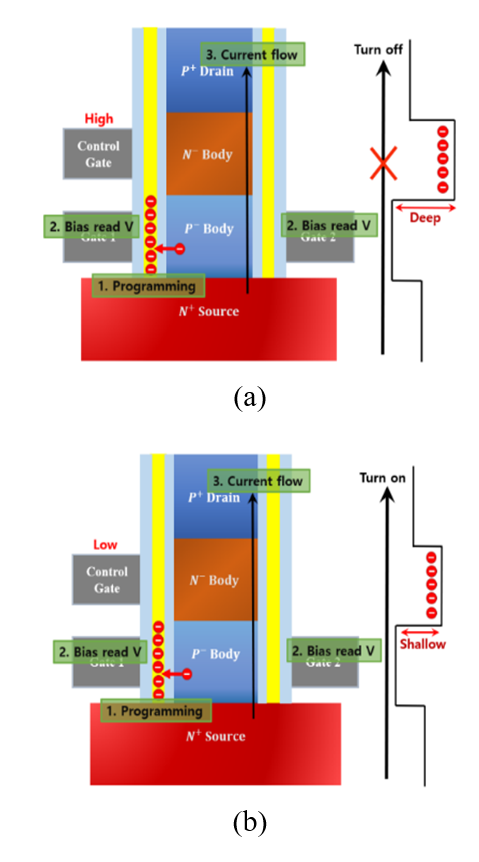

Fig. 12. Flow chart with structure: (a) AND operation: 1. Data programming 2. Read bias 3. Current flow to input2 4. FBFET is turn off because of high threshold V; (b) OR operation: 1,2,3. The sequence is the same as AND operation 4. FBFET is turn on because of low threshold V.


We have developed a novel structure of CTF-FBFET for the implementation of PIM. The key innovation of our design is that each gate of the device functions as a memory cell, enabling not only data reading but also the calculation of results based on the stored data. Furthermore, the logic operation can be selected based on the voltage applied to the control gate. We have conducted extensive TCAD simulations to demonstrate the ability of the CTF-FBFET to reconfigure logic and perform logic operations within the memory. Our findings pave the way for a new direction in PIM research and implementation.
