HgCdTe, detector, unstable pixels, surface passivation, dark current

I. INTRODUCTION

At present, MCT infrared detector has played an essential role in many application fields, such as night imaging, intelligent appliances, space, and biological detection [1-7]. Many important physical parameters are presented to evaluate the performance of infrared FPA, such as detection efficiency, noise, resolution, effective pixels rate, etc. In a space between effective and non-effective pixels, the unstable pixels usually appear as effective, turning into non-effective pixels when the conditions change. With the improvements of system imaging resolution and stability requirements, it is necessary to explore the characteristics of unstable pixels [8]. This paper describes unstable pixels in HgCdTe linear arrays of LWIR based on an n-on-p structure. According to the different fluctuation characteristics, unstable pixels are classified into four types: trend-clear type (including the rising and declining pixels), fluctuating type, comb type, and telegraph type. The types and numbers of unstable pixels under different bias voltages are counted, and their low-frequency characteristics are illuminated. In addition, the dark currents of unstable pixels and normal pixels are also compared.

II. EXPERIMENTS

The HgCdTe materials were grown on CdZnTe substrate by LPE (Liquid Phase Epitaxy) technology. The P-type layers of the devices are all doped with Hg vacancies. The n-type layers were formed using B+ ion implantation, generating abundant Hg interstitials [9]. The schematic diagrams of pixel structures are shown in Fig. 1. Sample 1 used ZnS/CdTe double-layer as passivation (without annealing process). The cutoff wavelength (${\lambda}$c) was 10.2 $\mu m$ at the temperature of 77~K. Sample 2 was processed with interdiffusion annealing to form a graded CdTe/HgCdTe heterojunction at CdTe/HgCdTe interface [10]. The cutoff wavelength of Sample 2 was 9.5 $\mu m$ at 77 K. Each linear array had 512 pixels. The length and width of the pixels studied in this paper were 20*56 $\mu m^{2}$. The chips were mounted into a liquid nitrogen Dewar. The focal plane test setup was composed of a host computer and a Field-Programmable Gate Array (FPGA) acquisition circuit [11,12]. The schematic diagram of the test setup is shown in Fig. 2. The pixel test should be based on a low background, so a filter should be added to control the number of photons passed. The test conditions are displayed in μTable 1.

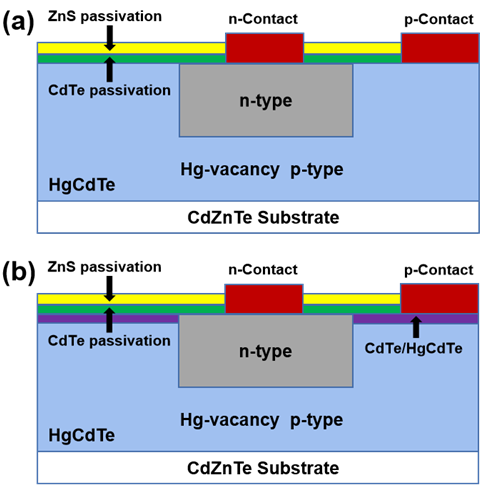

Fig. 1. Schematic diagram of the n-on-p MCT infrared detector pixels with different passivation (a) ZnS/CdTe double-layer passivation, (b) processed with interdiffusion annealing.
../../Resources/ieie/JSTS.2022.22.2.93/fig1.png

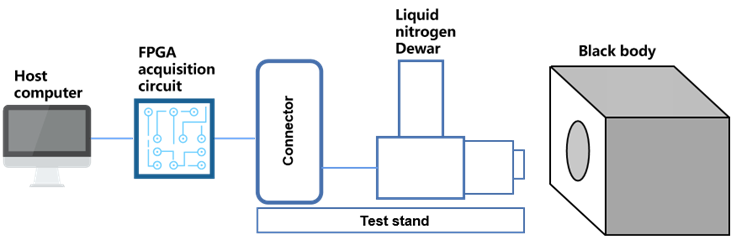

Fig. 2. Schematic diagram of the test setup used in this study.
../../Resources/ieie/JSTS.2022.22.2.93/fig2.png
Table 1 Test conditions

Test conditions

Sample 1

Sample 2

Integration

capacitance

2 pF

1 pF

Integration time

100 μs

100 μs

Bias voltages

2 mV-10 mV

(Division value: 2 )

10 mV-100 mV

(Division value: 10)

Blackbody temperature

293 K

Filter band

8925-9275 nm

Flux

$4.35 \cdot 10^{16}\left(\text { photon } \cdot \mathrm{s}^{-1} \cdot \mathrm{cm}^{-2}\right)$

Acquisition frame number

50000

III. RESULTS AND DISCUSSION

1. Unstable Pixels Classification

For an MCT infrared FPA, the MCT detector array is coupled with a read-out integrated circuit (ROIC) by indium bumps. The photocurrents of MCT photodiodes are injected into the integration capacitors of the ROIC. By recording the voltage across the capacitors within a specific integration time, the photo-response of each pixel can be obtained. The voltage across the capacitor recording integration time is stable under the specific luminous flux for a normal pixel, as shown in Fig. 3(a). However, the voltage will fluctuate when it comes to the unstable pixels, as shown in Fig. 3(b)-(f), where the fluctuation characteristics of five unstable representative pixels are displayed. It can be seen that the fluctuation characteristics of these unstable pixels are different. According to the different characteristics, the unstable pixels are classified into four types: the trend-clear type (including the rising and declining pixels), the fluctuating type, the comb type, and the telegraph type. The voltage of the trend-clear type pixel shows an increasing or a decreasing trend shown in Fig. 3(b) and (c). The voltage of the fluctuating type pixel displays slow volatility, as shown in Fig. 3(d). The voltage of the comb type pixel shows rapid, irregular jitters, see Fig. 3(e). The voltage of the telegraph type pixel exhibits a random telegraph noise, as shown in Fig. 3(f).

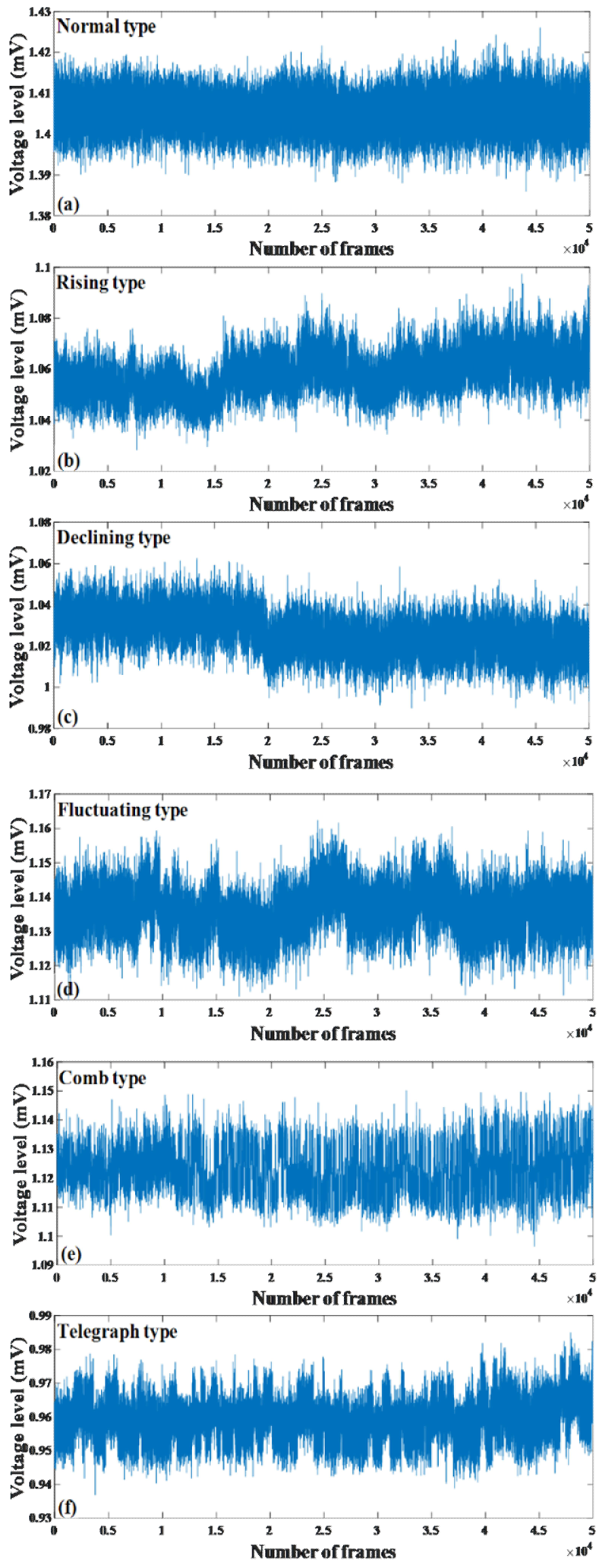

Fig. 3. Four types of unstable pixels (a) normal pixel, (b) rising type, (c) declining type, (d) fluctuating type, (e) comb type, (f) telegraph type.
../../Resources/ieie/JSTS.2022.22.2.93/fig3.png

2. Spectrum Characteristics

A very effective mathematical algorithm performs Fast Fourier transform on various unstable pixels in the data processing stage. A given signal can determine the relationship between its frequency and energy, i.e., noise power spectrum. The noise power spectrum can be calculated by converting the (voltage-number of frames) via fast Fourier transform. It can exhibit the relationship between the size and frequency of each sinusoidal signal. The following formula can define the fast Fourier transform:

(1)
$ X\left(f\right)=F\left\{x\left(t\right)\right\}=\int _{-\infty }^{\infty }x\left(t\right)e^{-j2\pi ft}dt $

The noise power spectrum curves of the above four types of unstable pixels are shown in Fig. 4 [13]. It can be found that the low-frequency noise of the unstable pixels is higher than that of standard pixels, especially in the noise part of low frequency [14-17]. Thus, it is crucial to understand the nature of low-frequency noise to optimize the performance of MCT infrared detectors at low frequencies and reduce the number of unstable pixels.

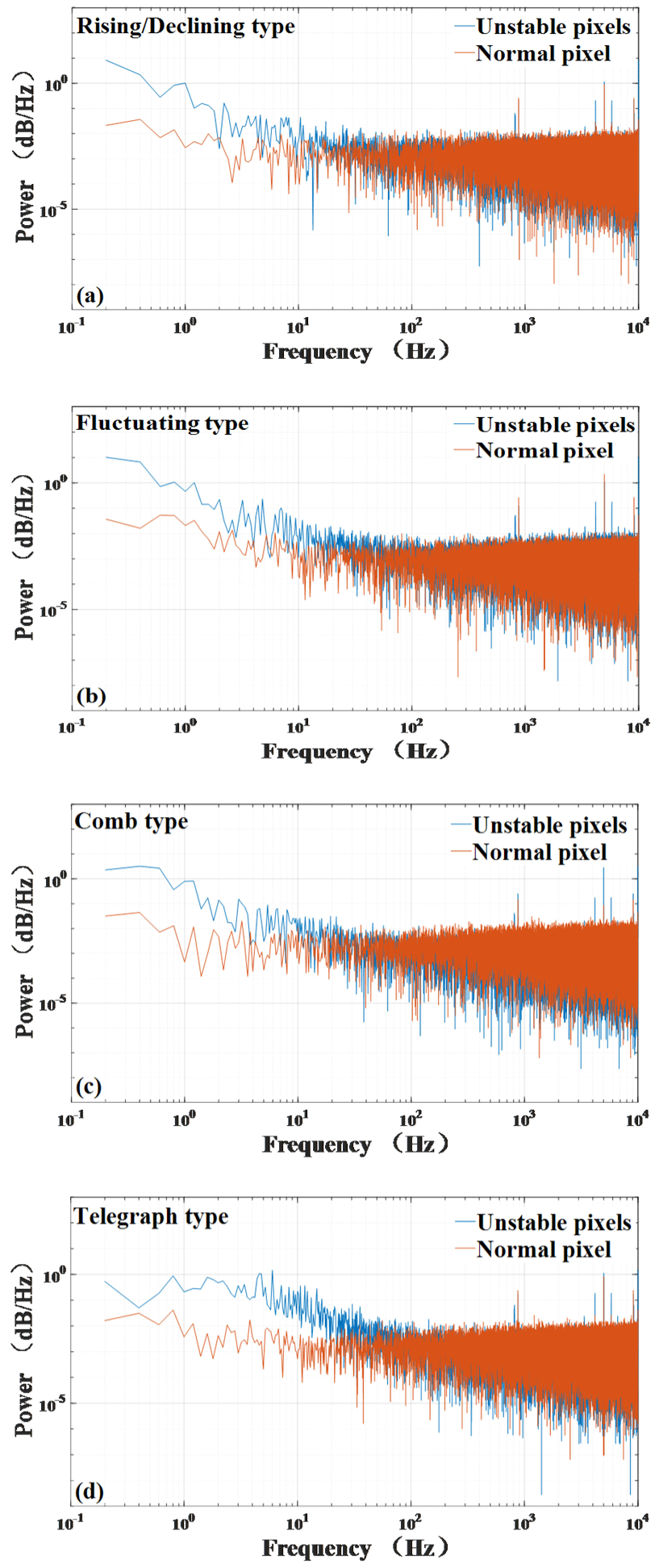

Fig. 4. Power spectrum of different types of unstable pixels (a) rising type/declining type, (b) fluctuating type, (c) comb type, (d) telegraph type.
../../Resources/ieie/JSTS.2022.22.2.93/fig4.png

3. Influence of Passivation

3.1 Number and Types of Unstable Pixels

The two different passivated samples’ unstable pixels were counted under different bias voltages. Each sample was tested twice to ensure accuracy. The numbers of unstable pixels for the two samples under different bias voltages are shown in Fig. 5. Comparing the number of unstable pixels of the samples, it can be found that the interdiffusion annealing effectively reduces unstable pixels, which indicates that the unstable pixels in the MCT infrared detector are related to the device’s passivation.

The number of unstable pixels of each type under different bias voltages is counted for Sample 1 and 2, as shown in Fig. 6. It can be found that there are various types of unstable pixels in sample 1, and the number of fluctuating type unstable pixels increases steadily with the bias voltage increasing. As a comparison, there is only one type of unstable pixels in sample 2, namely, fluctuating type. Comparing the unstable pixels type of the two samples, it can be found that the unstable pixels of rising/declining type, comb type, and telegraph type are sensitive to surface passivation. The interdiffusion annealing of the CdTe/HgCdTe structure can effectively reduce defects and the interface traps. Therefore, the number of unstable pixels is reduced, and the device can operate at a higher bias voltage [18].

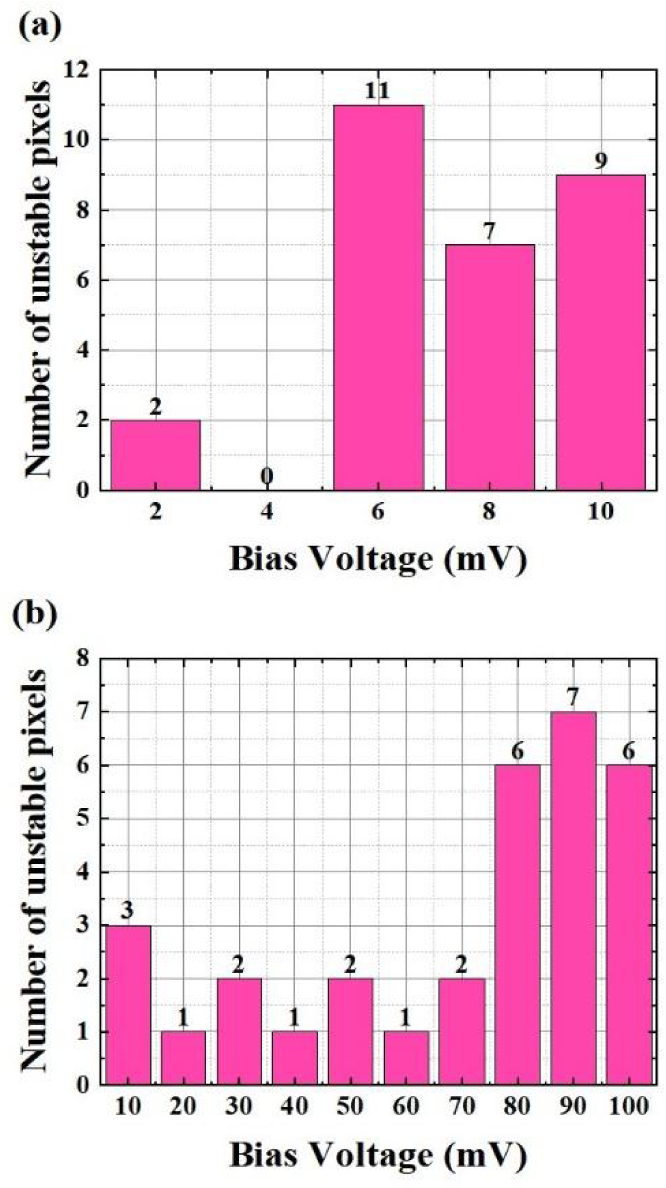

Fig. 5. The number of unstable pixels under different biases of the two samples (a) sample 1, (b) sample 2.
../../Resources/ieie/JSTS.2022.22.2.93/fig5.png

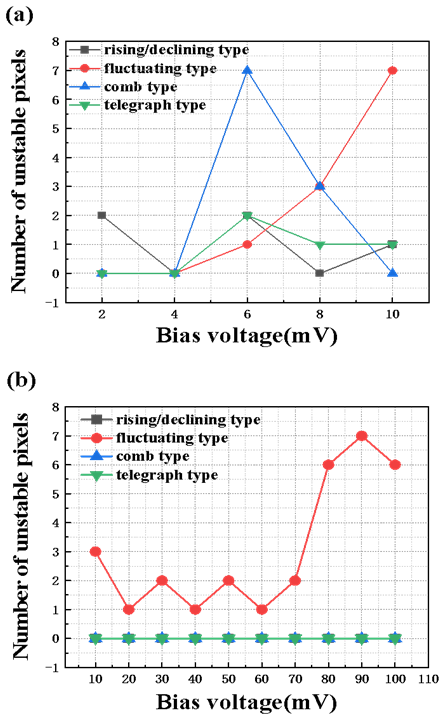

Fig. 6. The number of unstable pixels of each type under different bias voltage (a) sample 1, (b) sample 2.
../../Resources/ieie/JSTS.2022.22.2.93/fig6.png

3.2 Bias Characteristics

It can be easily seen in Fig. 5 that the number of unstable pixels increases drastically under a large bias voltage. For Sample 1 that was passivated using ZnS/CdTe double-layer film, the number of unstable pixels suddenly increased from 0 to ~10 suddenly when the bias voltage increased from 4 to 6 mV. As a comparison, the number of unstable pixels of Sample 2 increased from 2 to ~6, with the bias voltage increasing from 70 to 80 mV.

In both Sample 1 and 2, a steep increase of unstable pixels can be observed when the bias voltage is large enough. It can be inferred that the cause of unstable pixels may be related to the defects in the depletion region of the PN junction [19]. As the bias voltage increases, the width of the depletion region gradually increases, and more defects are contained in the depletion layer, which leads to the instability of pixels. Fig. 7(a) and (c) show the width of the depletion region of the two samples under different bias voltages, and the number of unstable pixels under different depletion region widths is shown in Fig. 7(b) and (d). It can be seen that the number of unstable pixels shows an upward trend as the width of the depletion region increases.

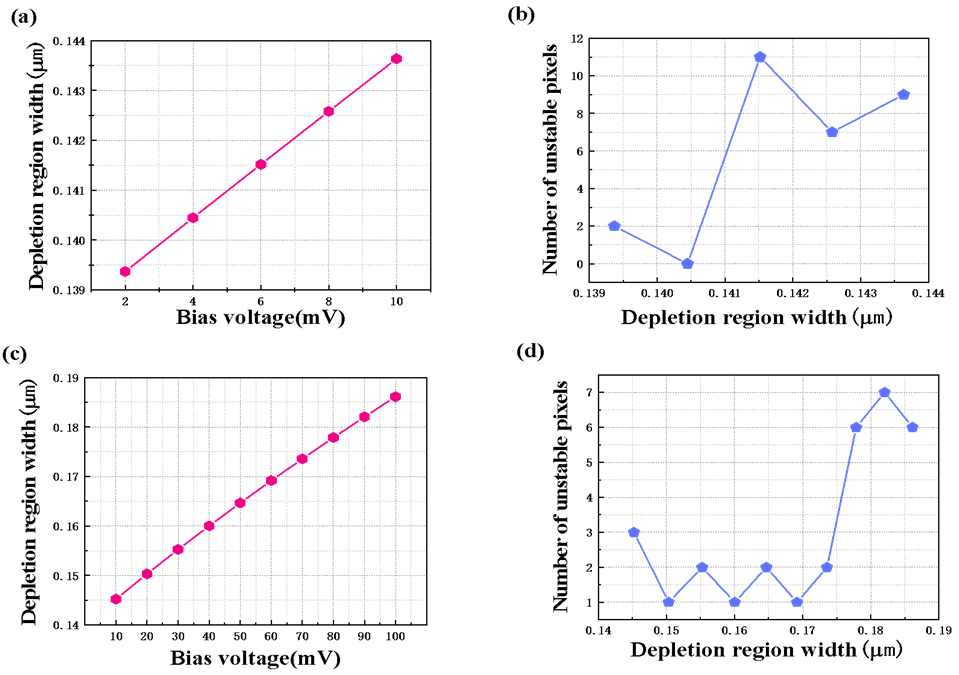

Fig. 7. The width of depletion region versus bias voltage and the number of unstable pixels varies with the depletion region width of (a)-(b) sample 1, (c)-(d) sample 2.
../../Resources/ieie/JSTS.2022.22.2.93/fig7.png

Because the test bias voltage range in sample 2 is more comprehensive (the test conditions are shown in μTable 1). It is easier to observe the characteristics, so the unstable pixels that appear often are extracted, as shown in Fig. 8. Fig. 8 shows the voltage level of the integration capacitor of an unstable pixel records at different bias voltages. It can be clearly seen in Fig. 8(b) that the voltage level of the pixel under high bias voltage is unstable, but it is very stable under low bias voltages. It is again confirmed that the unstable characteristics of the pixels are easier to appear under a large bias. The charge fluctuation theory proposed by McWhorter points out that 1/f noise originates from the change of carrier concentration caused by the exchange of trap electrons and bulk electrons [20]. From the experimental results, it can be inferred that the increase of the applied bias voltage will affect the number of traps in the depletion region, thereby affecting the 1/f noise and finally manifesting in unstable pixels.

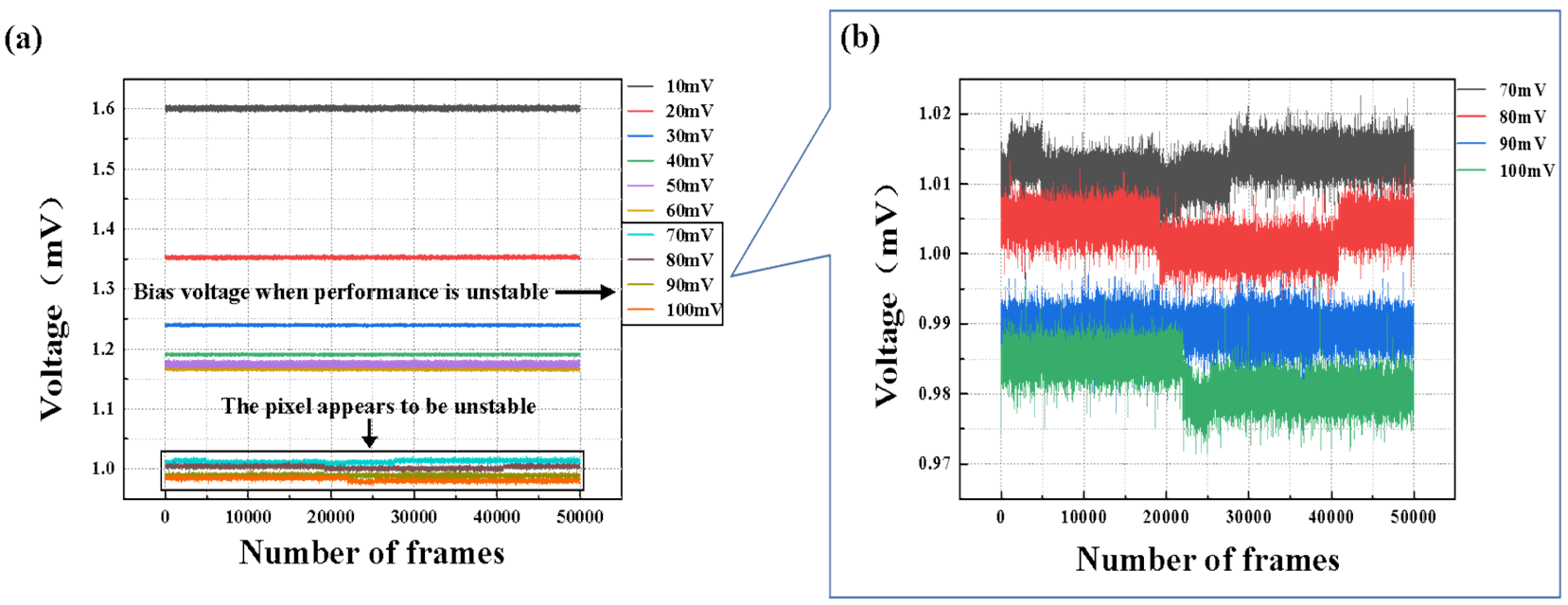

Fig. 8. (a) The relationship between the voltage across the integration capacitor and the number of frames of an unstable pixel under different biases, (b) The detailed curves under large bias (the test conditions are shown in μTable 1).
../../Resources/ieie/JSTS.2022.22.2.93/fig8.png

4. Dark Current

Dark current is an essential parameter for infrared detectors. A dark current can be measured using an integration capacitor for an infrared detector array coupled with a readout circuit [11,12]. Eq. (2) displays the relationship between capacitor charge, voltage, and capacitance. Eq. (3) is the definition of the current. According to the principle of infrared FPA imaging, the pixel's current is collected by the integration capacitor within the integration time. Thus, the dark current can be obtained by using Eq. (4).

(2)
$ \Delta Q=\Delta U\times C=\left(U_{2}-U_{1}\right)\times C \\ $
(3)
$ \Delta Q=\Delta T\times I=\left(T_{2}-T_{1}\right)\times I \\ $
(4)
$ I=\frac{\Delta U}{\Delta T}\times C=\frac{U_{2}-U_{1}}{T_{2}-T_{1}}\times C $

The two samples' dark currents are calculated using Eqs. (2)-(4) [21,22], and the results are shown in Fig. 9. For each sample, four unstable pixels are selected as representative. As a comparison, the average value of the FPA, which is the mean value of all pixels except the dead ones and the unstable ones, is also shown in Fig. 9. By comparing the dark current of the unstable pixels and the standard pixels, it can be found that the dark current of the unstable pixels are not significantly different from that of the standard pixels. Therefore, we can infer that pixel instability factors do not directly affect dark current.

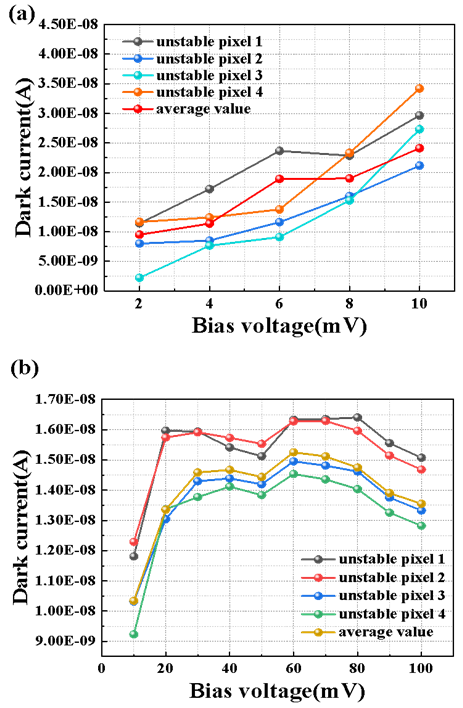

Fig. 9. Dark current of the device with (a) ZnS/CdTe double-layer passivation, (b) interdiffusion annealing process.
../../Resources/ieie/JSTS.2022.22.2.93/fig9.png

IV. CONCLUSION

This article studies the unstable pixels of LWIR MCT linear arrays with different passivation. Although the manifestations of the unstable pixels are various, it can be found that they are all derived from low-frequency noise according to their power spectral density. The instability characteristics are more likely to appear under large bias voltage than the small ones, which indicates that the instability of the unstable pixels may be related to the defect in the depletion region of the PN junction. By comparing the characteristics of the unstable pixels of two linear arrays with different passivation, it is found that the linear array passivated by ZnS/CdTe double-layer has larger numbers of unstable pixels and more types-various unstable pixels, indicating that the unstable pixels are sensitive to the surface passivation. Besides, there is no apparent difference between the dark current of the unstable pixels and the standard pixels, which means the origin of the unstable pixels is different from that of the dark current.
