I. INTRODUCTION
Finite field multiplication is being used in many applications like cryptography,
signal processing, etc. as they compose the key components in arithmetic operations.
In the case of ECC, scalar multiplication is the most important operation which is
done using finite field multiplication. For the elliptic curve implementation, The
National Institute of Standards and Technology (NIST) has recommended five binary
extension fields, i.e., m = 163, 233, 283, 409, and 571. Point multiplication (scalar
multiplication) kP, where k is an integer and P is a point on the curve, is done using
point addition and point doubling operation, both of which can be realized by affine
or projective coordinates.
Many researchers have implemented the optimized ECC algorithm in hardware. Their main
focus for optimization is generally on the efficient utilization of arithmetic operations,
registers, or the multiplier that is used for the scalar multiplication operation.
The authors in ^{[2]} have presented the implementation of ECC using the Nikhilam, Karatsuba, and Urdhva
tirakbhyam algorithms for repeated multiplication operations. They have developed
a hybrid multiplier algorithm by combining the OverlapFree Karatsuba Algorithm (OFKA)
with a block recombination approach (OFKABR) to improve the complexity of the original
OFKA. The hybrid multiplier algorithms were compared in terms of time delay, resources
utilized, and power consumption and were found to be efficient over a finite field
GF(2$^{m}$). In ^{[3]}, an areaefficient and highspeed FPGA implementation of scalar multiplication employing
a Vedic multiplier which showed efficient results compared to the Karatsuba multiplication
algorithm is presented. In 2007, Chester Rebeiro et al. ^{[1]} proposed an indepth study on the implementation of the hybrid Karatsuba multiplier
for GF (2$^{m}$). They have indeed shown a completely unique masking technique to
avert the multiplier from powerbased sidechannel attacks and their work is found
to be area efficient. In ^{[4]}, a core multiplier to construct an efficient sequential polynomial multiplier based
on the known iterative Karatsuba method is used. The authors in ^{[5]} have proposed three methods like a novel KAbased approach, an efficient register
minimization, and an efficient FPGAspecific digitparallel implementation strategy.
In the case of ThreeOperation Multiplication (TOM) over binary extension field, a
novel approach is followed in ^{[6]} by mapping an efficient KAbased algorithm into a novel digitserial multiplier and
obtaining a new TOM structure through the novel derivation of the TOM algorithm which
is found to have lower areatimecomplexities when compared with the existing TOMs.
The authors in ^{[7]} developed a highperformance ECC encryption system by proposing a Vedic multiplier
architecture. The proposed multiplier is encoded and has only shift registers and
adder circuits thus reducing the complexity, cost, power consumption, and delay. In
^{[8]} the authors have used Vedic mathematics to minimize the calculation of the addition,
doubling, and for improving processing speed in the cryptographic operations, such
as point addition, point doubling which occurs in the ECC over projective coordinate
systems. All these works are found to be fixated on the multiplication method that
is being used in an ECC processor. Hence by modifying the multiplication methods,
we can achieve an areaefficient processing algorithm.
We have specifically chosen ECC over GF (2$^{m}$) because it allows computations in
an acceptable timeframe without the use of a crypto processor and also leads to lower
production cost and cheaper design and with an equivalent level of security. Moreover,
it is lightweight and consumes lesser resources. Though ECC over prime field is being
focused nowadays for research based on security, our work is mainly for lightweight
purposes. Also, we find that binary curves are smaller and faster in hardware than
primefield curves. This is because they need shorter formulas and since binary operations
have no carries, and binary squaring is linear. ECC over GF (2$^{m}$) satisfies our
requirement based on the application point of view and hence can be used in vehicle
OnBoard Units (OBU) because of their lightweight properties. From the literature
study ^{[1}^{8]}, the Karatsuba multiplier is found to be area efficient for higher order bits since
it performs in a divide and conquer manner. The Vedic multiplier is efficient for
lower order bits since delay is more when higher order Vedic multiplication is used.
Hence by combining both multipliers a hybrid multiplier is developed and its efficiency
is studied.
$\textbf{Our Contribution:}$ In this paper, we propose a hybrid multiplier that utilizes
Karatsuba and Vedic (KS_V) multipliers. The first stage uses a simple Karatsuba multiplier,
which is combined with a specially designed Vedic multiplier at the second stage for
optimization. This structure is better than the hybrid Karatsuba multiplier proposed
in ^{[1]} which occupies comparatively more slices than our proposed work. We then used this
novel architecture to realize ECC in GF(2$^{m}$). The ECC implementation occupies
10760 slices on Zynq7000 SoC and Virtex7 (VC707) and on Virtex4 (XC4VFX12) it
required only 9317 slices. This is the compact implementation of FPGA to the best
of our knowledge.
The paper is organized as follows. First, we provide the mathematical background of
ECC in Section 2. Section 3 provides a few of the multiplication methods used for
scalar multiplication. In Section 4 and Section 5, we provide the details about our
proposed KS_V multiplier and its implementation results and performance analysis respectively.
We finally conclude the paper in Section 6.
II. MATHEMATICAL BACKGROUND
An elliptic curve, E over the binary field GF (2$^{m}$) can be defined as a set of
solutions to the equation as below,
where $\textit{a,b$\in $GF}$(2$^{m}$)$\textit{, b${\neq}$}$0, and at the same time
the point at infinity is Ø. Thus, if P$_{1}$ is a point on the ECC curve then $P_{1}+\varnothing
=P_{1}.$ Twopoint operations in ECC are called point addition and point doubling.
The core operation of ECC is scalar point multiplication (PM) over GF (2$^{m}$) on
the elliptic curve. If P is the base point on the elliptic curve, E, we can calculate
point multiplication, $\textit{Q = kP = P+P+P+${\ldots}$+P,}$ where k is an integer
or k, is the discrete logarithm of Q and P ^{[3]}. The scalar point multiplication (kP) can be achieved through repeated point addition
and point doubling operations ^{[9]}. For GF (2$^{m}$), point addition requires one inversion, two multiplications, one
squaring, and eight additions. The doubling operation requires five additions, two
squaring, two multiplications, and one inversion ^{[10]}. Many point multiplication algorithms have been used in recently published hardware
accelerators such as binary point multiplication and Montgomery point multiplication.
One method of scalar multiplication is double and add scalar multiplication ^{[11]} as explained in Algorithm 1. This algorithm requires log$_{2}$(d) iterations of point
doubling and addition to computing the full point multiplication ^{[12]}.
$\textbf{Algorithm 1: Add and Double Scalar Multiplication}$
$\textbf{Input:}$ Binary number k $=(k_{t1},k_{t2},.....,k_{1},k_{0})_{2}$, EC point
on P
$\textbf{Output:}$ $Q=k\,\mathrm{x}\,P$
[1] $Q=O$
[2] $\textbf{for}$ i from $\textit{n1}$ to $\textit{0}$ $\textbf{do}$
[3] $~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ Q~ \leftarrow 2Q$
[4] $~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~\textbf{if}$ $k_{i}$ $\textbf{then}$
[5] $~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ Q~ \leftarrow Q+P$
[6] $~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~\textbf{end if}$
[7] $\textbf{end for}$
[8] $\textbf{return}$ $Q$
$\textbf{end}$
III. MULTIPLICATION METHODS
Few multiplication methods are explained in this section to provide a brief understanding
of the multipliers that are used for the scalar multiplication operation.
3.1 Karatsuba Algorithm
Karatsuba is used for scalar multiplication since it has many advantages like increased
speed, less computation, and less power consumption. Since it has fewer number computations,
it occupies a lesser area when compared to the shift and add method. In the Karatsuba
algorithm ^{[13]}, a larger multiplier and multiplicand are broken into two halves and then multiplied.
This follows the divide and conquer method. In this way, the area can be minimized
and speed can be increased since the number of partial products is reduced.
3.2 Vedic Multiplication
Jagdguru Shakarachraya Bharti Krishna Teerthaji Maharaj ^{[2]} proposed simple methods to perform all mathematical calculations. Any mathematical
calculations that are performed using Vedic mathematics are faster and simple to implement.
The Vedic multiplier is more area efficient and delay efficient compared to other
multipliers. There are two main algorithms used in Vedic mathematics for the multiplication
of two numbers.
a. UrdhvaTiryagbhyam sutra.
b. Nikhilam Navatascaramam sutra
Among these, the UrdhavTriyagbhyam algorithm is more efficient and can be applied
to scalar multiplication since it can be applied directly for decimal and binary numbers.
The Urdhva tirakbhyam algorithm ^{[2]} is a general technique that can be directly applied to a decimal, binary, small,
or large number. Using the same algorithm for both decimal and binary numbers is an
advantage in this method. This is also called a vertically and cross wise algorithm
since it involves the multiplication of each bit of the multiplier with the bits of
the multiplicand diagonally and vertically. The resulting partial products are obtained
by appending zeros based on the weight and then the partial products are added to
give the final product. This process is done simultaneously as they are independent
of each other and hence this algorithm is said to be faster than the Karatsuba algorithm.
A major constraint of this algorithm is that it is efficient only for a smaller bit
size.
IV. OUR PROPOSED WORK
4.1 KS_V Multiplier
We use Karatsuba and Vedic multiplication methods and propose a hybrid method that
is more efficient in terms of the area when compared to the previous related works.
We designate our proposed design as the KS_V multiplier. The performance of Karatsuba
multiplication can be further enhanced by using the Vedic multiplication method for
scalar multiplication. Vedic mathematics is so simple and uses lesser computations
leading to the usage of lesser memory space. Among the two Vedic multiplication methods,
the UrdhvaTiryagbhyam algorithm is found to be more efficient since the multiplication
can be processed in parallel. In general, the Vedic multiplier consists of AND and
XOR gates. This is because half adder is used in a general Vedic multiplier. The proposed
Vedic multiplier is designed using AND and OR gates with few additional circuits.
This is more beneficial for lowerorder bit multiplication. Using these two gates,
a multiplier for any higherorder bit can be designed. Fig. 1 explains the multiplication mechanism of the 4 ${\times}$ 4 Vedic multiplier more
simply. The 4 ${\times}$ 4 Vedic multiplier design is presented in Algorithm 2.

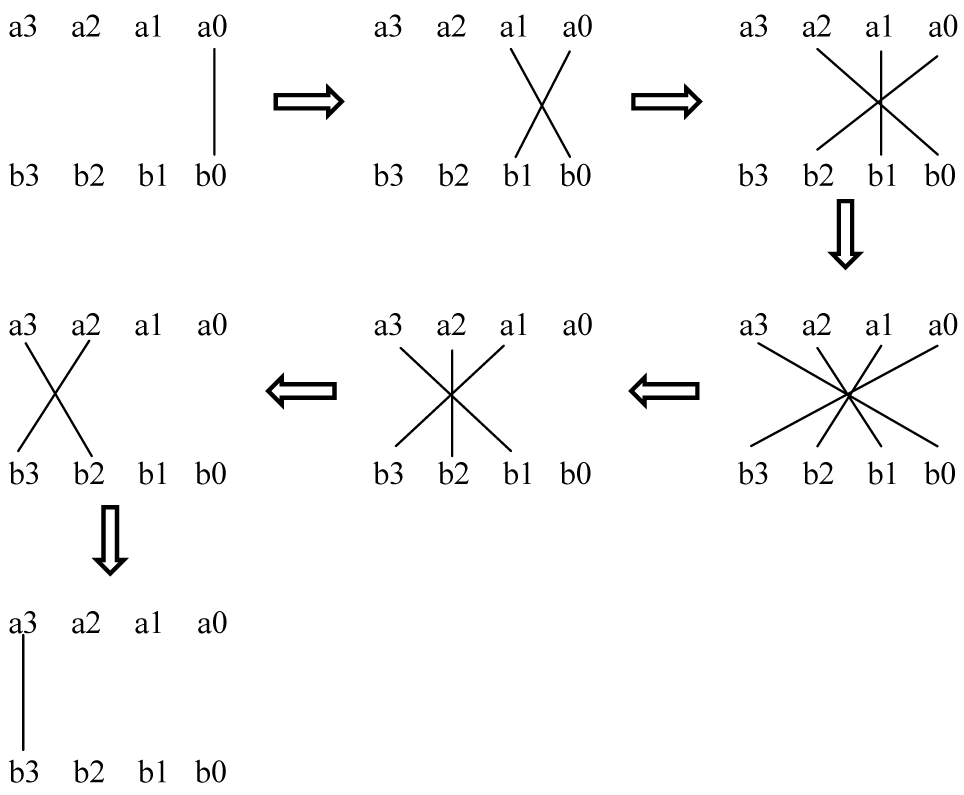

Fig. 1. Multiplication technique used in 4 $\textit{${\times}$}$ 4 Vedic multiplier.

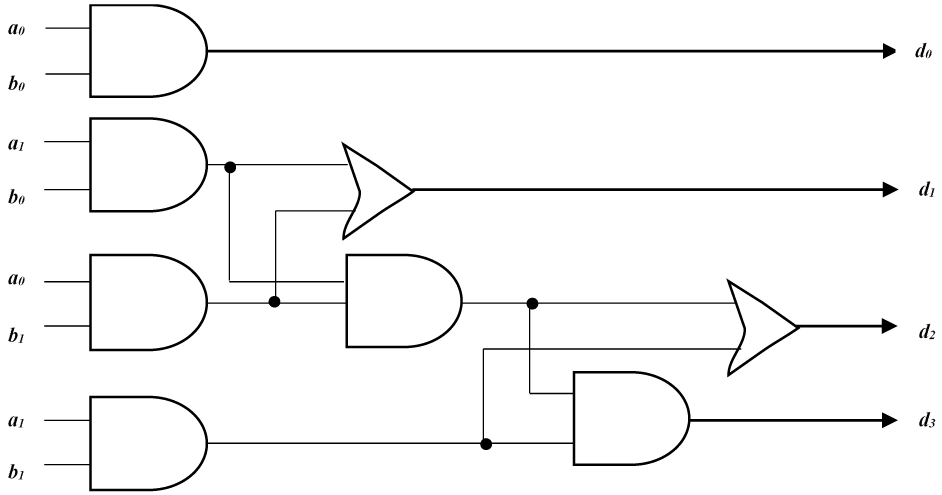

Fig. 2. Hardware architecture of the proposed Vedic multiplier (2 $\textit{${\times}$}$ 2) using AND and $\textit{OR.}$
$\textbf{Algorithm 2}$ Vedic Multiplier
$\textbf{Inputs:}$ A = a$_{3}$a$_{2}$a$_{1}$a$_{0}$
B = b$_{3}$b$_{2}$b$_{1}$b$_{0}$
$\textbf{Output:}$ P
[1] $\textbf{begin}$
[2] d$_{0}$$\textit{= a}$$_{0}$$\textit{${\times}$b}$$_{0}$
[3] c$_{1}$d$_{1}$$\textit{= a}$$_{0}$$\textit{${\times}$b}$$_{1}$$\textit{+a}$$_{1}$$\textit{${\times}$b}$$_{0}$
[4] c$_{2}$d$_{2}$$\textit{= a}$$_{0}$$\textit{${\times}$b}$$_{2}$$\textit{+a}$$_{1}$$\textit{${\times}$b}$$_{1}$$\textit{+a}$$_{2}$$\textit{${\times}$b}$$_{0}$\textit{+c}$_{1}$
[5] c$_{3}$d$_{3}$$\textit{= a}$$_{0}$$\textit{${\times}$b}$$_{3}$$\textit{+a}$$_{1}$$\textit{${\times}$b}$$_{2}$$\textit{+a}$$_{2}$$\textit{${\times}$b}$$_{1}$\textit{+
a}$_{3}$$\textit{${\times}$b}$$_{0}$\textit{+c}$_{2}$
[6] c$_{4}$d$_{4}$$\textit{= a}$$_{1}$$\textit{${\times}$b}$$_{3}$$\textit{+a}$$_{2}$$\textit{${\times}$b}$$_{2}$$\textit{+a}$$_{3}$$\textit{${\times}$b}$$_{1}$\textit{+c}$_{3}$
[7] c$_{5}$d$_{5}$$\textit{= a}$$_{2}$$\textit{${\times}$b}$$_{3}$$\textit{+a}$$_{3}$$\textit{${\times}$b}$$_{2}$\textit{+c}$_{4}$
[8] c$_{6}$d$_{6}$$\textit{= a}$$_{3}$$\textit{${\times}$b}$$_{3}$ \textit{+ c}$_{5}$
[9] $\textbf{end}$
[10] $\textbf{return}$ P = c$_{6}$d$_{6}$d$_{5}$d$_{4}$d$_{3}$d$_{2}$d$_{1}$d$_{0}$
$\textbf{end}$
Here, the Least Significant Bit (LSB), d$_{0}$ is obtained by multiplying the LSB
of the multiplicand and the multiplier. In the following step, the bits on both sides
of the line (refer to Fig. 1) are multiplied. By this mechanism, we get one of the bits of the result (d$_{n}$)
and a carry (c$_{n}$). This carry is added in the next step and hence the process
is perpetuated. If more than one line is present in one step, all the results are
added to the previous carry. In each step, the least significant bit acts as the result
bit and all the other bits act as carry. This process continues until every individual
bit is multiplied according to Fig. 1. Finally, all the obtained bit values produce the required product P.
The order to be followed in a Vedic multiplication method is random. Using this 4
$\textit{${\times}$}$ 4 multiplier mechanism recursively, 8 $\textit{${\times}$}$
8, 16 $\textit{${\times}$}$ 16, and 32 $\textit{${\times}$}$ 32, and other higher
bit multipliers can be designed. Fig. 2 shows the proposed hardware architecture of a 2 $\textit{${\times}$}$ 2 Vedic multiplier.

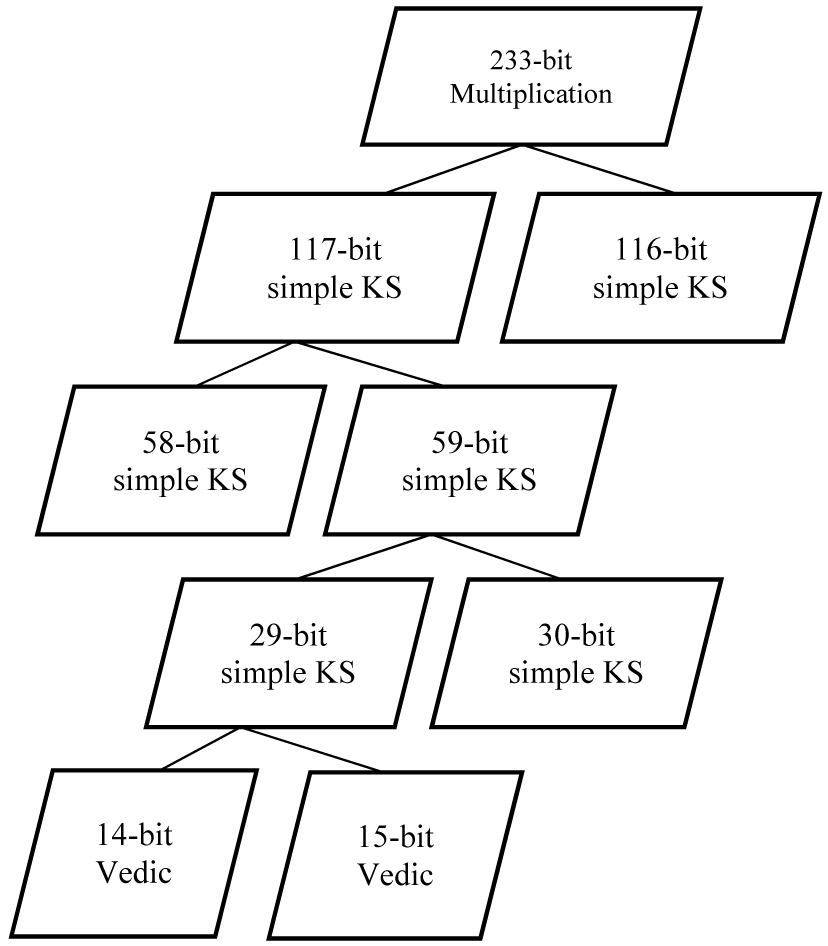

The proposed multiplier requires 14 ${\times}$ 14 and 15 ${\times}$ 15 Vedic multipliers.
The hardware architecture consists of AND gates and OR gates for efficient computation
and makes the multiplication mechanisms easier for lowerorder bits. In our proposed
method we have used only OR gates and AND gates instead of XOR gates. This is because
OR gates require lesser slices than XOR gates. This can be proven using their corresponding
NAND equivalent. OR gate equals 3 NAND gates and XOR takes 4 NAND gates thus making
the usage of lesser resources for our processor. Hence, we say that our method uses
lesser gates thus making our processor occupy a lesser area.
For a 233bit scalar multiplication, the bits are divided into two halves and given
to the Karatsuba algorithm. This in turn is divided into two halves and given to simple
Karatsuba multiplication. This is followed until the bits are reduced to lower degrees.
This method is used for the higherorder bits as it uses a lesser number of AND and
XOR gates. The initial multiplication for higherorder is done using the Karatsuba
multiplier and the final multiplication for 14 ${\times}$14 and 15 ${\times}$ 15 bits
are done using the designed Vedic multiplier.
Table 1 Slices occupied by the proposed ECC processor and comparison of multipliers

ECC PROCESSOR

PLATFORM

SLICES

Slices occupied by our ECC Processor

KS_V

Virtex4

17505


Virtex7

19489


Zynq 7000

19489

Slices occupied by Hybrid KS ^{[11]} and KS_V multiplier

Hybrid KS

Virtex4

10434


Virtex7

15530


Zynq 7000

15054

KS_V

Virtex4

9317


Virtex7

10760


Zynq 7000

10760

Fig. 3. KS_V Multiplier Design Flow.
Fig. 3 shows the design flow of our KS_V multiplier consisting of the Karatsuba multiplier
and our Vedic multiplier design. The higherorder multiplication method follows the
simple Karatsuba algorithm and the lowest order multiplication is done using the Vedic
multiplier. As the concept of the Karatsuba algorithm is to use the divide and conquer
approach, it initially breaks the inputs into the most significant half and least
significant half. This algorithm is best suited for operands of higher bit length
and loses its efficacy at lower bit lengths. Hence, the Vedic Algorithm is followed
at lower bit multiplications since the binary multiplication is best suited in terms
of area and delay for lowerorder bits when compared to higherorder bits. When the
order of bits is increased in Vedic multiplication it results in delay. These constraints
of Karatsuba and Vedic Algorithms are taken as an advantage in the KS_V multiplier
design and hence the multiplier becomes more efficient.
V. IMPLEMENTATION RESULTS AND ANALYSIS
The verilog hardware description language model of the proposed architecture is created
to verify and analyze the performance of the proposed design. The proposed architecture
is synthesized, placed, and routed on three Xilinx platforms such as Xilinx Virtex4
(xc4vfx 1212sf363) device using Xilinx ISE 14.7, Xilinx Virtex 7 (xc7vx485tffg 17612)
device, and ZedBoard (xc7z020clg4841) using Vivado 2018.2.
The proposed Vedic multiplier was synthesized in Xilinx ISE and the RTL schematic
was obtained. Our Vedic design occupied 82 slices for 14 $\textit{${\times}$}$ 14
bits and 94 slices for 15 $\textit{${\times}$}$ 15 bits which are lesser compared
to other designs ^{[1,}^{14]}. Only 16 AND gates and 9 OR gates were used for a basic 4 $\textit{${\times}$}$ 4
Vedic multiplication proving that our Vedic Multiplication design is area efficient.
The implementation results of the proposed ECC processor using the KS_V multiplier
and the comparison between the slices occupied by the proposed multiplier and hybrid
KS multiplier are shown in Table 1.
The ECC processor using the hybrid Karatsuba multiplier ^{[1]} is compared with our proposed ECC architecture. The obtained results are shown in
Table 2. Moreover, our proposed ECC architecture occupied 37 % LUT, 8 % LUTRAM, 1 % FF, 5
% IO and 3% BUF. Different Karatsuba multipliers are taken as a reference to check
the number of slices occupied. Fig. 5 shows the area occupied by the existing Karatsuba multipliers ^{[1]} and our multiplier in Virtex 4 platform. From the above results, it is obvious that
our proposed multiplier (KS_V) occupies a lesser area when compared to the previously
existing work ^{[1]}. This is because our Vedic multiplier design has lesser computational overhead and
when combined with a simple Karatsuba multiplier gives lesser slices.
Since ECC is a lightweight algorithm, the area efficiency is an important parameter
to be noted while implementing in a hardware device (OBU of a vehicle). To achieve
this, our KS_V multiplier is implemented for scalar multiplication which is found
to be occupying a comparatively lesser number of slices. This in turn proves that
designing a lighter multiplier to occupy lesser slices is always costefficient and
area efficient.
Table 2 Comparison of slices occupied by[11]and our processor
ECC PROCESSOR

PLATFORM

SLICES

HKS ^{[11]}

Virtex4

19304


Virtex7

22832


Zynq 7000

22536

KS_V

Virtex4

17505


Virtex7

19489


Zynq 7000

19489

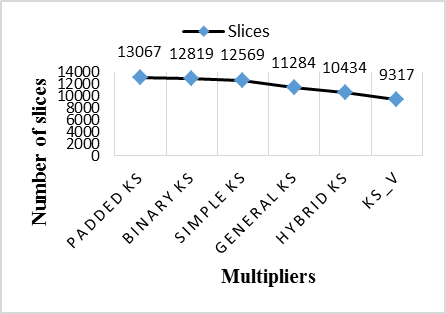

Fig. 5. Slices occupied by the multipliers in Xilinx Virtex 4.
Table 3 Slices Comparison
REF

FIELD

MULTIPLIER

SLICES

^{[15]}

GF (2233)

GNB Mul

16782

^{[16]}

GF (2233)

DigitSerial GF Mul

16766

^{[17]}

GF (2233)

Hybrid Bit parallel KS Field Mul

13620

^{[18]}

GF (2233)

BitSerial Mul

15209

^{[19]}

GF (2233)

DigitSerial Systolic KS Mul

22716

proposed

GF (2233)

KS_V Mul

10760

Table 3 provides a comparison between the different multipliers used and the number of slices
occupied by each multiplier. The GNB multiplier used in ^{[15]} is based on exponentiation by powers of 2 and multiplication by the normal element
of GF(2$^{m}$) and is said to have low hardware complexity and low critical path delay.
The design is based upon the usage of some regular modules for computation of exponentiation
by powers of 2 and lowcost blocks for multiplication by normal elements of the binary
field. For the powers of 2 exponents, the modules are implemented by some simple cyclic
shifts in the normal basis representation.
The DigitSerial GF Multiplier ^{[16]} uses different levels of digitserial computation were applied to the data path of
Galois field multiplication and division to explore the resulting performances and
find out an optimal digit size. More resources were used to achieve faster circuits.
The multiplier was designed using three multipliers and one divider. The Hybrid bitparallel
Karatsuba field multiplier (HBKM) ^{[17]} has the subquadratic complexity of the Karatsuba algorithm coupled with efficient
utilization of the FPGA’s LUT resources. Moreover, this scheme requires lesser clock
cycles. The HBKM operates by splitting the input operands up to a threshold and then
applying threshold multipliers. The outputs of the threshold multipliers are combined
and then reduced.
In the Bit serial Multiplier ^{[18]} each point operation is decomposed to its basic GF(2$^{k}$) operations. The GF(2$^{k}$)
operations that can be performed in parallel are identified and are multiplexed with
similar operations in the consecutive point operation in the PM algorithm so as to
maximize parallelism. Using this approach, two different PM accelerator architectures
using bitserial or bitparallel GF(2$^{k}$) multipliers were developed. In the DigitSerial
Systolic KS multiplier ^{[19]} a digitserial structure has been derived, where three different approaches have
been introduced to reduce the registercomplexity. These digitparallel structures
were presented for FPGA platforms but can also be used in applicationspecific integrated
circuit (ASIC) platforms for low power and highperformance implementation.
From this comparison, it is evident that our proposed multiplier shows better area
efficiency. Our ECC processor is found to function at the time period of 0.060~ms,
which consumes 1.545 W power and 92.7 $\textit{${\mathrm{\mu}}$J}$ energy. Since we
have focused only on the area occupied, we have not included any comparison for the
parameters mentioned above.
VI. CONCLUSION
In this work, a novel multiplication method is proposed to reduce the area occupied
by the multiplication algorithms during scalar multiplication. The proposed architecture
is implemented in ZedBoard, Xilinx Virtex 7, and Virtex 4. ZedBoard is chosen as the
prime target of our implementation as it supports certain distinguished functions
and can be used in a wide range of applications. Since it has a tightly coupled ARM
processing system and 7series programmable logic, it can be used to create unique
and powerful designs with the ZedBoard. Because of this property, the above implementation
can be targeted in OnBoard Units (OBU) in vehicles. This is mainly due to the lesser
area occupied by the ECC processor.
References
Chester Rebeiro , Debdeep Mukhopadhyay , 2007, Hybrid Masked Karatsuba Multiplier
For Gf(2$^{233}$), Proceedings of the 11th IEEE VLSI Design and Test Symposium, Kolkata,
VLSI Society of India., No. 1, pp. 379387
Ravi Kishore Kodali , Siva Kumar , Vishal Jain , Boppana Lakshmi , December 2015,
Hybrid Multiplier for ECC, IEEE Recent Advances in Intelligent Computational Systems
(RAICS), pp. 6570
Kadu Rakesh K., Adane Dattatraya S., August 2019, Hardware Implementation of Efficient
Elliptic Curve Scalar Multiplication using Vedic Multiplier, International Journal
of Communication Networks and Information Security (IJCNIS), Vol. 11, No. 2, pp. 270277
Steffen Peter , Peter LangendOrfer , 2007, An Efficient Polynomial Multiplier in GF(2m)
and its Application to ECC Designs, Design, Automation & Test in Europe Conference
& Exhibition, Nice, pp. 16
Jiafeng Xie , Pramod Kumar Meher , Mingui Sun , Yuecheng Li , Bo Zeng , ZhiHong Mao
, July 2017, Efficient FPGA Implementation of LowComplexity Systolic Karatsuba Multiplier
Over GF(2m) Based on NIST Polynomials, IEEE Transactions On Circuits And SystemsI:
Regular Papers, Vol. 64, No. 7, pp. 18151825
ChiouYng Lee , ChiaChen Fan , Jiafeng Xie , ShyanMing Yuan , 2018, Efficient Implementation
of Karatsuba Algorithm Based ThreeOperand Multiplication Over Binary Extension Field,
IEEE Access, Vol. 6, pp. 3823438242
Bonifus , Dani George , 2013, Ecc Encryption System Using Encoded Multiplier And Vedic
Mathematics., International Journal of Advanced Research in Electrical, Electronics
and Instrumentation Engineering
Manoj Kumar , Ankur Kumar , August 2019, Some Algorithms of Various Projective Coordinate
Systems for ECC Using Ancient Indian Vedic Mathematics Sutras, International Journal
Of Scientific & Technology Research, Vol. 8, No. 08
Susantio, D , MuchtadiAlamsyah, Intan , 2016, Implementation of Elliptic Curve Cryptography
in Binary Field, Journal of Physics: Conference Series. 710. 012022.
Nguyen N., Gaj K., Caliga D., ElGhazawi T., Tokyo December 2003, Implementation of
Elliptic Curve Cryptosystems on a Reconfigurable Computer, George Mason University,
SRC Computers, The George Washington University. Second International Conference on
FieldProgrammable Technology, FPT 2003
Hankerson, Darrel , Vanstone, Scott , Menezes, Alfred , 2004, Guide to Elliptic Curve
Cryptography, Springer Professional Computing. New York: SpringerVerlag, ISBN 038795273X.
https://en.wikipedia.org/wiki/Elliptic_curve_point_multiplication#Point_addition
Karatsuba Anatoly A., Ofman Y., 1963, Multiplication of Multidigit Numbers on Automata,
Soviet Physics Doklady, Vol. 7, pp. 595596
Arish S., Sharma R. K., 2015, An efficient binary multiplier design for high speed
applications using Karatsuba algorithm and UrdhvaTiryagbhyam algorithm, 2015 Global
Conference on Communication Technologies (GCCT), Thuckalay, pp. 192196
Rashidi B., Sayedi S. M., Rezaeian Farashahi R., 3 2017, Efficient and lowcomplexity
hardware architecture of Gaussian normal basis multiplication over GF(2m) for elliptic
curve cryptosystems, in IET Circuits, Devices & Systems, Vol. 11, No. 2, pp. 103112
Sutter G. D., Deschamps J., Imana J. L., Jan. 2013, Efficient Elliptic Curve Point
Multiplication Using DigitSerial Binary Field Operations, in IEEE Transactions on
Industrial Electronics, Vol. 60, No. 1, pp. 217225
Rebeiro C., Roy S.S., Mukhopadhyay D., 2012, Pushing the Limits of HighSpeed GF(2m)
Elliptic Curve Scalar Multiplication on FPGAs., In: Prouff E., Schaumont P. (eds)
Cryptographic Hardware and Embedded SystemsCHES 2012. CHES 2012. Lecture Notes in
Computer Science, Springer, Berlin, Heidelberg, Vol. 7428
Fournaris A. P., Zafeirakis J., Koufopavlou O., 2014, Designing and Evaluating High
Speed Elliptic Curve Point Multipliers, 2014 17th Euromicro Conference on Digital
System Design, Verona, Vol. verona, No. 2014, pp. 169174
Chiou C.W., Lee ChiouYng, Lin J.M., Yeh Y.C., Chang H.W., Lin L.C., 2015, Digitserial
systolic Karatsuba multiplier for special classes over GF(2m)., Journal of Computers
(Taiwan), Vol. 26, pp. 4057
Renita J, has completed her Bachelor’s degree from St. Xaviers Catholic College
of Engineering, Anna University in Electronics and Communication engineering in the
year 2015. She obtained her Master’s degree from Sri Sivasubramaniya Nadar college
of engineering, Anna University in Communication Systems in the year 2017. She is
a parttime research scholar doing PhD in the area of Elliptic Curve Cryptogaphy at
Anna University. She is currently working as Project Associate in Hardware Security
Research Group at Society for Electronic transaction and security (SETS), Chennai.
Edna Elizabeth N, has graduated her Bachelor’s degree from Government college of
Technology –Coimbatore in Electronics and communication in the year 1990. She obtained
her Master’s degree from MITAnna University in the year 2001. She completed her Ph.D
in the area of Mobile Ad hoc networking at Anna University. She has 25 years of teaching
experience and has been working for a reputed company for 5 years. She is currently
working as Professor in Electronics and communication department in Sri Sivasubramaniya
Nadar college of engineering, SSN Nagar, kalavakkam, Chennai 603 110, India. She has
55 publications in International and National Journals and conferences in the area
of Mobile Ad hoc Networks. Her current area of research is security issues in Mobile
Ad hoc Networks and Vehicular Ad hoc Networks. She received Best Faculty award for
the outstanding performance for the academic year 20062007 & 20092010 at SSN.
Nandhini Asokan, has completed her Bachelor’s degree from Sri Krishna College of
Engineering and Technology, Coimbatore. She obtained her Master’s degree from Sri
Sivasubramaniya Nadar college of engineering, Anna University in VLSI in the year
2020. She is currently working as Associate System Engineer at Tata Consultancy Services
(TCS), Chennai.
