I. INTRODUCTION
Recently, the reference clock doublers have widespread use in integrated circuits.
They are used at the phase locked loop (PLL) input, with UARTs to achieve higher baud
rate and useful in a clock distribution network (1,2). As data rates have increased, the operating frequency of many circuits has also
increased. In particular, the operating frequency of the analog-to-digital or PLL
is determined by the reference clock, and a frequency doubler is used to increase
the clock frequency. This reduces overall cost of the system and time to market.
The conventional low-power reference clock doubler architecture generates a reference
clock signal and a delayed reference clock signal through an Exclusive-OR (XOR) gate
as shown in Fig. 1(a).
Fig. 1(b) and (c) show the XOR output when the input is 50 % duty and not 50 % duty respectively.
As shown in Fig. 1(c), if not 50 % duty, XOR output have a large cycle-to-cycle jitter with double frequency.
The amount of cycle-to-cycle jitter increases proportionally to the duty of the input.
Previous clock doublers have a problem that if the input signal does not have 50 %
duty, the jitter characteristic of the reference clock in the PLL is bad and directly
affects the phase noise. In the Previous duty-cycle error correction controller (DCC),
capacitors are used to sense the duty. The capacitor has a large area and the current
consumption is large for the operation of the analog circuit.
Section II shows the architecture of this work. Section III shows the circuit description.
Section IV and V show the measurement results and conclusion.

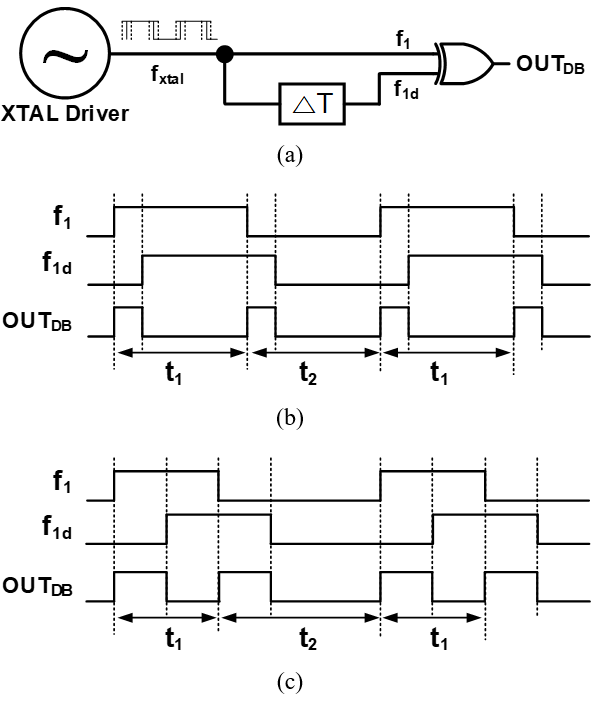

Fig. 1. (a) Block diagram of conventional clock doubler, (b) Duty cycle of the input
is 50 %, (c) Duty cycle of the input non 50 %.
II. ARCHITECTURE
Fig. 2. Block diagram of proposed reference clock doubler.
Fig. 2 shows the block diagram of proposed clock frequency doubler. The duty-cycle error
correction controller is added to the conventional reference clock doubler to eliminate
the non-50 % duty cycle input. The DCC block is a digital method that uses time to
digital converter (TDC) to measure duty error and compensate for delay using delay
cell. It has smaller area and lower current consumption than analog method [3].
III. CIRCUIT DESCRIPTION
Fig. 3 shows the block diagram of automatic DCC. It is composed of several logical gates,
TDC, 2-step delay array and controller to correct duty cycle error. If the high duty
is initially greater than the low duty, use inverter to always make the high duty
smaller, making the controller simpler. The high duty can be increased as the block
is delayed through the delay array and OR gate of the DCC. The high duty and low duty
are measured with TDC to control the delay array at the controller so that the high
duty and low duty are the same. At the end of all DCC processes, the clock with 50
% duty is output from f1.
Fig. 3. Block diagram of automatic DCC.
Fig. 4. Block diagram of 2-step delay array in DCC.
1. Delay Array of DCC
Fig. 4 shows the block diagram of two-step delay array in DCC. Delay array consists of MUX,
coarse delay cell, and fine delay cell. Delay array can be adjusted the delay by selecting
the number of coarse delay cells with DELAYCOARSE<2:0> and selecting the number of
fine delay cells with DELAYFINE<3:0>. The resolution of the delay array is smaller
than the resolution of the TDC. The smaller the resolution of the delay array, the
duty can be adjusted finely, making it closer to the 50 % duty.
2. Time to Digital Converter
Fig. 5 shows the block diagram of TDC. It consists of a delay cell that can be delayed from
0 to 20 ns, a buffer with 100 ps delay, and a D-flip flop(DFF) and an inverter. Delay
the pulse using the delay cell so that the pulse edge is within the measurable TDC
range of 2ns and measure the pulse width through TDC_OUT<19:0>. If a non-inverter
clock enters the DFF's clock input, high duty can be measured, and low duty can be
measured when an inverted clock comes in. The smaller the TDC resolution, the more
sensitive the pulse duty can be measured, enabling calibration closer to 50 % duty.
Since both buffers and DFFs are composed of digital blocks, adding the number of buffers
and DFFs has the advantage of more accurate calibration simply. This paper is designed
to be optimized for PLL applications using 64 MHz as a reference clock, but if more
control bits are used in the Delay Array, it can be used in a wide frequency range.
Fig. 5. Block diagram of TDC.
Fig. 6. Flowchart of automatic DCC
3. Mechanism of DCC
Fig. 6 shows the flow chart of automatic DCC. Initially, if the high duty rate is greater
than 50 %, enter INIT_POL=0. INIT_POL=0 opens the switch and allows the clock to pass
through the inverter so that the unconditionally high duty rate is less than 50 %.
The TDC's internal delay cell is then adjusted so that the pulse edge is within the
TDC range of 2 ns. Using TDC to measure high pulse duty and low pulse duty, and if
the measured high duty and low duty are different, increase the high duty by increasing
the delay of the delay array and compare the high duty and low duty of the pulse again.
Repeat the above process until High Duty and Low Duty are the same. Since High Duty
and Low Duty are the same, even if the delay is changed due to a change in the supply
voltage or temperature, it is compensated so that the duty is always 50%.
Fig. 7 shows the timing diagram of the automatic DCC. Measure and compare the high duty
and low duty of the fOR node signal that is the input of the TDC. If the high duty
is smaller, increase the delay of the Delay Array to increase the high duty, and then
repeat the comparison process again. If the high duty and the low duty are the same,
finish this process and save and use the delay at that time.
Fig. 7. Timing diagram of automatic DCC.
Fig. 8. Block diagram of delay cell in reference clock doubler
4. Delay Cell
Fig. 8 shows the Block Diagram of Delay cell in reference block doubler. This delay cell
and XOR gate produce double the frequency. High duty is determined as much as it is
delayed, and most digital blocks operate only on pulse edge, so can adjust it roughly.
IV. MEASUREMENT RESULTS
Fig. 9 shows the microphotograph of the proposed reference clock doubler. It is implemented
using 55 nm CMOS technology. Fig. 10 show measurement result input and output of DCC and jitter analysis at 64 MHz output
clock. Even if the duty-cycle error is 5 %, the error of the duty-cycle decreases
to 0.5 % after passing DCC. A comparison between the proposed reference clock doubler
and previous publications is shown in Table 1. This work has a power consumption of 30 µW and an area of 0.0064 mm${^2}$.
Table 1. Performance summary (measurements)
|
|
[4]
|
[5]
|
[6]
|
[7]
|
This Work
|
|
Technology (nm)
|
130
|
130
|
350
|
55
|
55
|
|
Clock Frequency (MHz)
|
312.5 ~ 1000
|
350~1000
|
1~50
|
333~1000
|
32
|
|
Duty Correction Extent (%)
|
40 ~ 60
|
10 ~ 90
|
-
|
20 ~ 80
|
20 ~ 80
|
|
Power Consumption (mW)
|
3.2
|
5.6
|
3
|
1.25
|
0.03
|
|
Chip Area (mm${^2}$)
|
0.048
|
0.059
|
0.0036
|
0.0186
|
0.0064
|
Fig. 9. Microphotograph of proposed reference clock doubler.

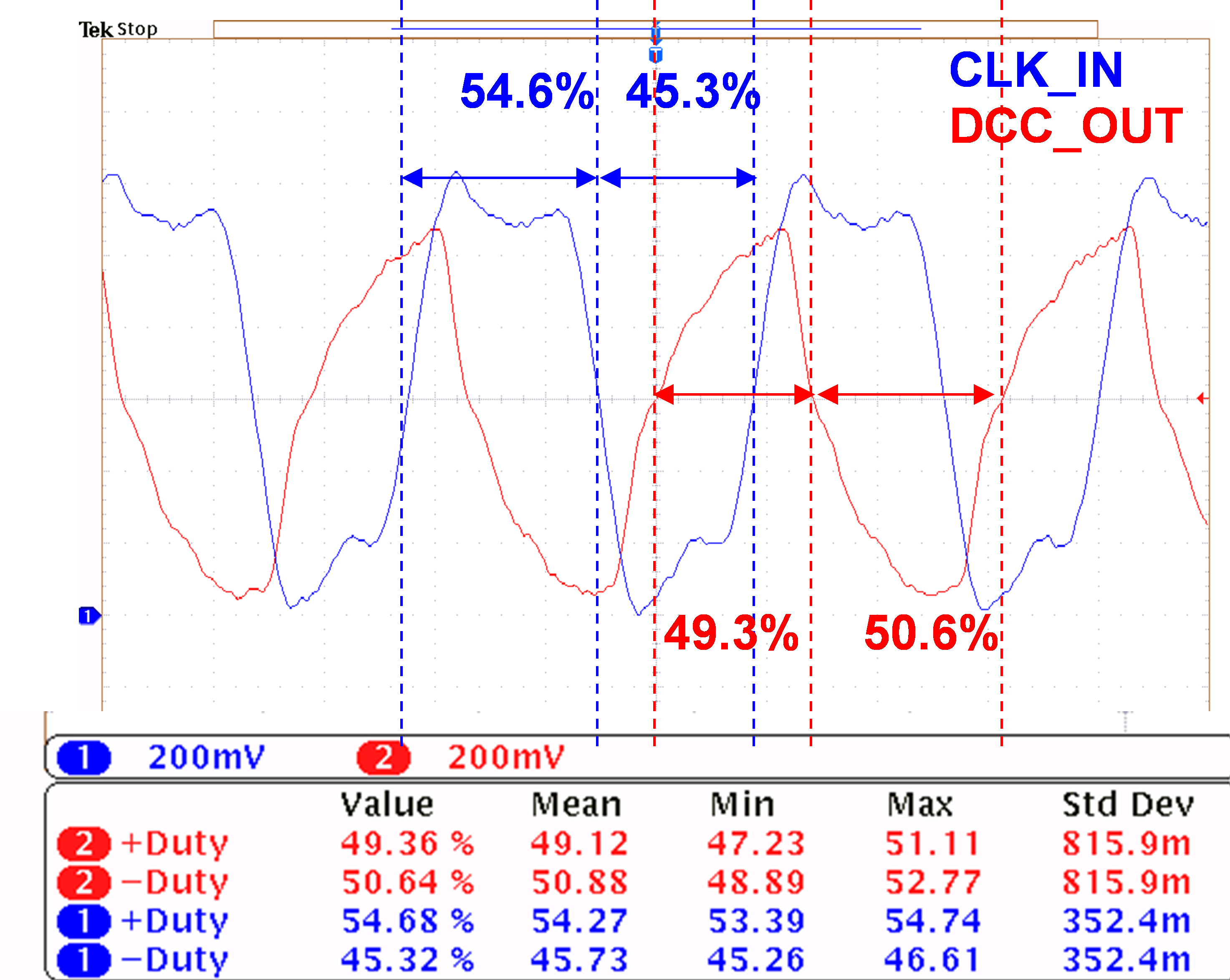

Fig. 10. Measurement results input and output of DCC.
V. CONCLUSIONS
The proposed reference clock doubler has less power consumption and smaller area due
to its fully digital DCC structure than other structures using Conventional analog
DCC. By using DCC that automatically compensate for the duty, they always have 50
% duty and thus have improved jitter characteristics. It has an area of 0.0064 mm${^2}$
and a power consumption of 30 µW.
