## I. INTRODUCTION

For broadband signal generation, there are direct digital synthesizer (DDS) and multi phased locked loops (PLL). DDS offers board frequency generation, fast frequency hopping, compact size, high power efficiency, decent signal to noise ratio, and excellent phase noise (1). The multi-PLLs method has a limitation on the frequency hopping due to the switching among PLLs and the PLL locking range from the individual loop (2). Furthermore, DDS has its advantage on the phase modulation, which is an essential part of the communication and radar co-existence dual-functional system (3). For a broadband signal generation coving L/S/C-band, a DDS based solution with a 16 GHz clock could achieve the whole-band coverage with only one module.

Ultra-high-speed full adder is frequently used to evaluate the device performance and integration capability of a technology (4). The phase accumulator composed of adders is the critical part of a DDS, and it is also one of the speed bottlenecks of the whole DDS (5). The data width and clock frequency of the phase accumulator determine the frequency resolution and output frequency range of the DDS system. To meet the requirements of high speed and high frequency, the phase accumulator designed by III-V compound semiconductor process is usually realized by pipeline architecture (6). The performance of the full adder directly determines the highest frequency of the pipelined phase accumulator (7).

In a tens of GHz mixed-signal circuit, signal integrity (SI) is crucial. In a DDS system, clock distribution is the most critical part of SI analysis. The time-domain misalignment for clock distribution would generate the DDS system's dynamic error, which would decrease the signal quality. Considering that a clock line would easily be in the order of hundreds of micrometers, the passive EM model and active SPICE model co-simulation are introduced in the RF and mm-wave synthesizer design. It is quite time-consuming due to the complicity of the metal and semiconductor materials (8). Furthermore, in an 8-bit DDS, the clock distribution complexity is too complicated for this design methodology. In this paper, we proposed a transmission line equivalent (TLE) design methodology to simplify it. In this way, the long wire will be extracted after layout and modeled by a transmission line mode. This method can simplify the design cycle and SI consideration according to the termination condition and successfully demonstrated by the fulfillment of the full adder.

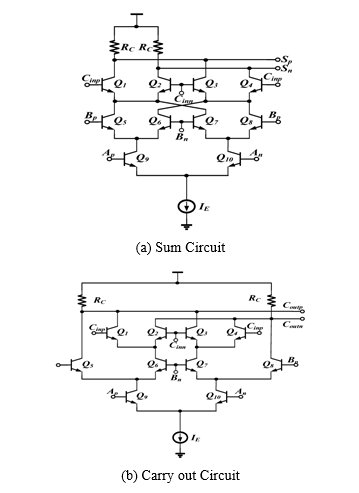

Fig. 1. Circuit diagram of the 3-level series-gated full adder.

For high-speed mixed-signal circuit, the InP material has higher mobility and larger band gap than Si and GaAs. With the development of InP DHBT technology, it can integrate a mixed-signal system on a die under a scale of hundreds of transistor (9-13). Furthermore, in InP DHBT technology, the substrate is semi-insulating. This high resistance substrate is ideal for noise insulating, such as high-frequency clock cross-coupling, digital-analog signal cross-coupling, and substrate noise-coupling. Compared to silicon material and GaAs, InP DHBT is a better technology for mixed-signal circuit in millimeter-wave frequency. In this design, the InP technology adopted is with an emitter width of 0.7 μm, with its $f_{\mathrm{t}}$ and $f_{\mathrm{max}}$ higher than 250 GHz and 280 GHz, respectively. The reverse saturation voltage (BV$_{\mathrm{CEO}}$) can be larger than 3.5 V.

In this paper, a 32.2 GHz, 1bit full adder and its application in a 17 GHz, 8 bit DDS in a 0.7 μm InP DHBT technology is presented. The rest of the paper is organized as follows. In section Ⅱ, the ultra-high-speed, low power full adder circuit will be introduced. The TLE design methodology will be analyzed in Section III. Section IV presents the measurement results of the full adder and its application in the DDS. Conclusions will be drawn in Section V.

## II. Full Adder Circuit Design

### 1. Latch Combined Full Adder

A 1bit full adder generates sum “S” and carry out “$C_{\mathrm{out}}$” based on A, B and carry in “$C_{\mathrm{in}}$”. The relations of the full adder can be expressed by Boolean operators as shown in Eq (1) and Eq (2).

##### (1)
$S=A \oplus B \oplus C_{in}$

##### (2)
$C_{\text {out }}=A \cdot B+A \cdot C_{\text {in }}+B \cdot C_{\text {in }}$

Current-mode logic (CML) is one of the best choices for bipolar devices to realize ultra-high-speed digital circuits. It has the advantages of fast speed and low noise (14). At the same time, CML circuits can realize complex logic operations by differential stacking of multilevel transistors. According to Eq (1) and Eq (2), the logic operation circuits are shown in Fig. 1. It can be seen that sum “S” and carry out “$C_{\mathrm{out}}$” can be realized in logic gate circuit by stacking three-level differential pairs and utilizing the full differential characteristics of CML circuit.

A sequential circuit can be realized by inserting latches between combinational circuits. The clock controlled full adder can be realized by cascading a latch at the output end. The time required to perform one addition includes combinational logic delay $t_{\mathrm{dlogic}}$ and latch delay $t_{\mathrm{dlatch}}$, so the maximum frequency of the full adder is 1/($t_{\mathrm{dlogic}}$+$t_{\mathrm{dlatch}}$). If the combinational logic and latch are combined together (15), the signal delay caused by latch can be eliminated, and the maximum frequency can be increased to 1/$t_{\mathrm{dlogic}}$. Fig. 2 shows the clock-controlled circuit diagram of sum and carry out. The circuit adopts four-level differential stacking structure. Compared with the combinational logic, this circuit adds one level of differential pair. Therefore, the clock-controlled circuits require that the supply voltage increase at least one diode voltage to ensure the circuit work normally. It can be seen that the performance improvement is at the cost of increasing power consumption.

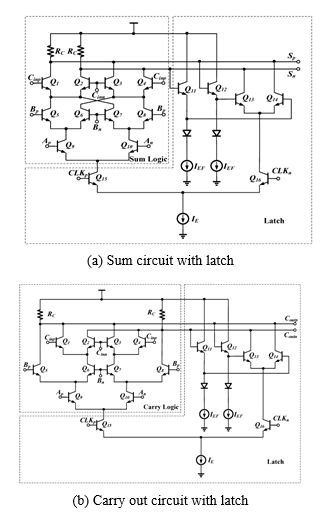

Fig. 2. Circuit diagram of 4-level series-gated full adder with cascaded latch.

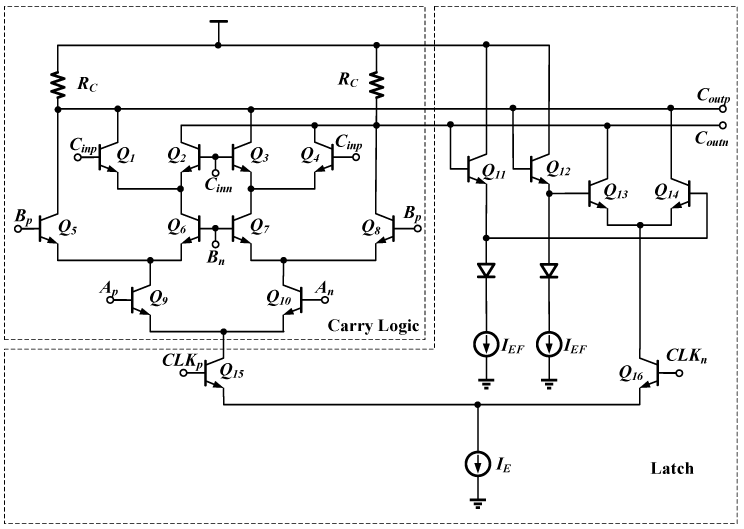

Fig. 3. Single-level parallel-gated carry circuit with cascaded latch.

### 2. Lower Power Full Adder

In DDS circuits, except for phase accumulator, most of the other circuits are one-level or two-level stacking, and a few three-level stacking. If the four-level stacking full adder is directly applied to DDS’s phase accumulator, the supply voltage and power consumption will increase. Therefore, it is necessary to adjust the structure to reduce power supply voltage. Analyzing the carry operation of an adder, when two or three of the three input signals are logically high, the carry output is high, which just accords with the majority decision rule (16). From the circuit point of view, the parallel structure is in good agreement with majority decisive operations. Based on this conclusion, a single-level parallel carry circuit is designed as shown in Fig. 3, which also integrates latch functions. Only two-level differential pair stacking is needed to realize carry operation and data latching.

According to Fig. 3, when all three inputs are “1” or “0”, all current flows through $X_{\mathrm{p}}$ or $X_{\mathrm{n}}$ nodes, and X-terminal outputs full-swing differential signals. When one or two input terminals are “1”, one branch flows through 1/3 of the current, the other side 2/3, and the output amplitude of X-terminal decreases. Although the output amplitude of majority decision operation circuit is small in some states, the later stage latch will amplify to full-swing amplitude without affecting latter stage circuit. Fig. 4 shows the simulation results, it is obvious that the output differential signal is in full-swing amplitude after the latch, and the logic operation is correct.

For the multi-bit adder, the high-bit can only be performed after the low-bit is finished. Therefore, carry link is key factor while the requirement for the sum circuit is relatively low. Using two-stage logic to complete the sum operation and the circuit is presented in Fig. 5. The sum circuit combines synchronous latch and adopts a three-level differential stacking structure.

Through the above circuit design, the full adder with latches can be reduced from four-level to three-level stacking, so the circuit can work for lower supply voltage and lower power consumption while the performance is unchanged.

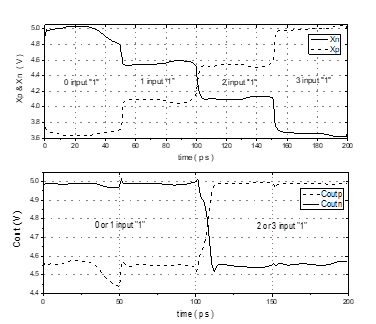

Fig. 4. Simulation results of single-level parallel-gated carry circuit.

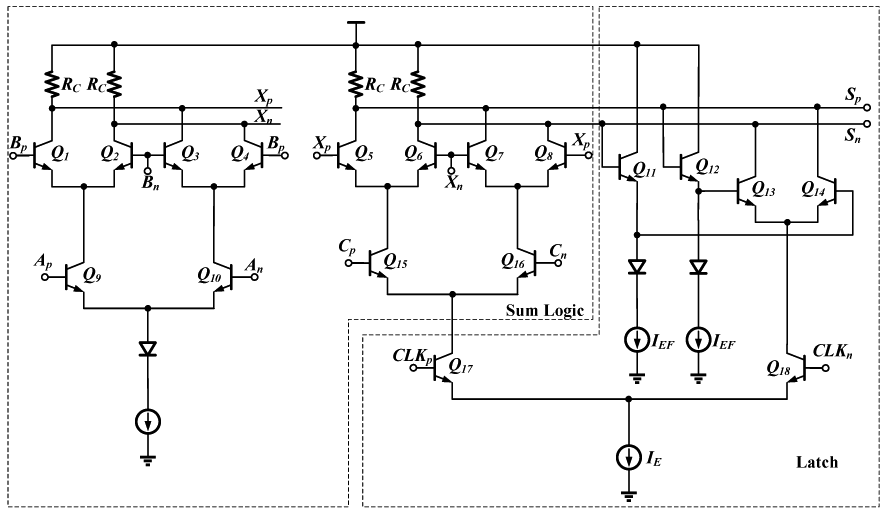

Fig. 5. Circuit diagram of 3-level series-gated sum circuit with cascaded latch.

## III. TLE Design Methodology

### 1. TLE Effect

In a high-speed mixed-signal circuit, the routing for the signal line could be hundreds of micrometer. According to the rule of thumb, when the trace length of the interconnect is greater than 1/6 of the equivalent length of the rising edge, it is considered that this interconnect has an effect on the signal transmission and needs to be treated as a transmission line (17). This boundary conditional can be described as,

##### (3)
l = $t_{r}$/6D

where $t_{r}$ is the minimum rising edge of the signal on the interconnect, D is the propagation delay of the signal.

According to the rising edge $t_{r}$, the time constant τ of the circuit and the relationship between the circuit bandwidth (BW) and the time constant can be obtained, as shown by Eq (4) and Eq (5).

##### (4)
$t_{r}=\tau \cdot \ln \left(\frac{90 %}{10 %}\right)=2.2 \tau$

##### (5)
$B W=\frac{1}{2 \pi \cdot \tau}$

As can be seen from the above two equations, the relationship between the rising edge tr and the bandwidth is shown in Eq (6).

##### (6)
$B W \cdot t_{t}=\frac{1}{2 \pi} \times \ln 9=0.35$

For ultra-high-speed circuit, as the logic circuit with a fully differential structure is adopted, the clock sampling edge is judged according to the differential signals' intersection, so the circuit has lower requirements for the rising and falling edge of the clock signal. Also, because of the differential structure, the clock signal can be sinusoidal. In this sinusoidal case, the bandwidth requirement of the circuit is equal to the clock frequency. With a clock frequency of 36 GHz, the rising edge of the clock signal is $t_{r}$ = 0.35/36 GHz = 9.7 ps. The relative permittivity of substrate material used in InP DHBT process is ${\varepsilon}$$_{r}$=12.4, so the phase velocity and propagation delay of the signal are

##### (7)
$v_{p}=c / \sqrt{\varepsilon_{r}}=0.85 \times 10^{8} \mathrm{~m} / \mathrm{S}$

##### (8)
$D=1 / v_{p}=0.0119 \mathrm{ps} / \mu \mathrm{m}$

According to Eq (3), the boundary length is 136 μm. For interconnection longer than 136 μm, the transmission line effect must be considered.

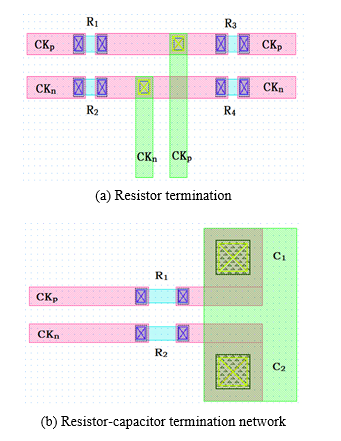

Fig. 6. Method to improve signal integrity by taking TLE effects.

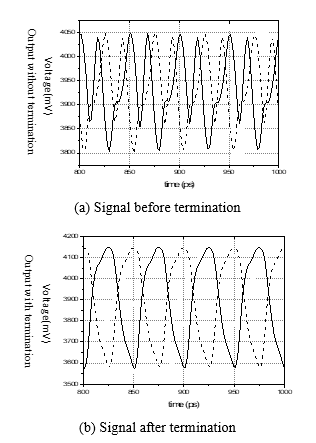

Fig. 7. Comparison of the Signal.

### 2. Signal Integrity Issues Due To TLE

For ultra-high-speed circuits working at tens of GHz, the switching frequency of internal signals is extremely high, and the interconnection between signals have a great impact, mainly for reflection, crosstalk, oscillation and attenuation. All of these will cause SI issues. To overcome these problems, the termination is needed. At the connection node for several branches in a long interconnection line, a series resistor should be applied to absorb the reflected signal, reducing the signal's overshoot. While, at the end of the long interconnect, a parallel RC network should be applied to absorb signal reflections caused by discontinuities in the interconnect impedance, as shown in Fig. 6. A comparison of this method for a connection node among different branches is provided in Fig. 7. As shown in Fig. 7, this method could improve the signal quality, and the SI issue is improved in this way. Furthermore, the routing distribution should be symmetrical and balanced in the layout, also its loading condition should be identical to each other.

### 3. Circuit Design With TLE Method

At present, there are simulation software and design methods for SI analysis of PCB circuit. However, for integrated circuits (ICs), the wiring densities are much larger and space size is much smaller. Also, active and passive devices are implemented on the same semiconductor material so that circuit environment is more complex. Therefore, there is no perfect solution for SI analysis at chip level, especially for ultra-high speed mixed signal circuits in Ku and above bands.

For RF and microwave ICs, full-circuit three-dimensional electromagnetic simulation is widely adopted (8). This method has good accuracy, but it takes very long time, so it is not appropriate for mixed signal circuits such as DDS which have much greater integration density. Compared with RF and microwave circuits, mixed signal circuits are relatively insensitive to microwave parameters such as harmonic characteristics, so the requirement of accuracy for the model is lower.

Fig. 8. Diagram of test circuit and its measurement configuration.

As mixed signal circuits have high integration and high wiring density, if the interconnect is modified only when the physical layout design is completed, then the scope of modification is usually small. Also the layout of the circuit needs to be adjusted, and the electromagnetic simulation analysis is needed after each modification. Therefore, the iteration period is very long, and the flexibility of terminal design adjustment is limited. For the TLE method proposed, after completion of circuit layout, the length of the high-speed signal interconnects can be estimated. For interconnects that exceed the equivalent length of the rising edge, take their transmission line model into the circuit schematic diagram for co-simulation analysis, and the termination mode and device parameters of the termination network can be designed accordingly. Then the physical layout of the circuit is designed according to the calculated termination parameters. This method can carry out the signal integrity design at the same time of physical layout design, and the physical layout can be adjusted at any time according to the simulation results. Therefore, the design flexibility of termination mode is high and there is no need for electromagnetic simulation of physical layout, thus shorten simulation time and iteration period.

Fig. 9. Co-simulation of passive components with TLE model and active component with the SPICE model.

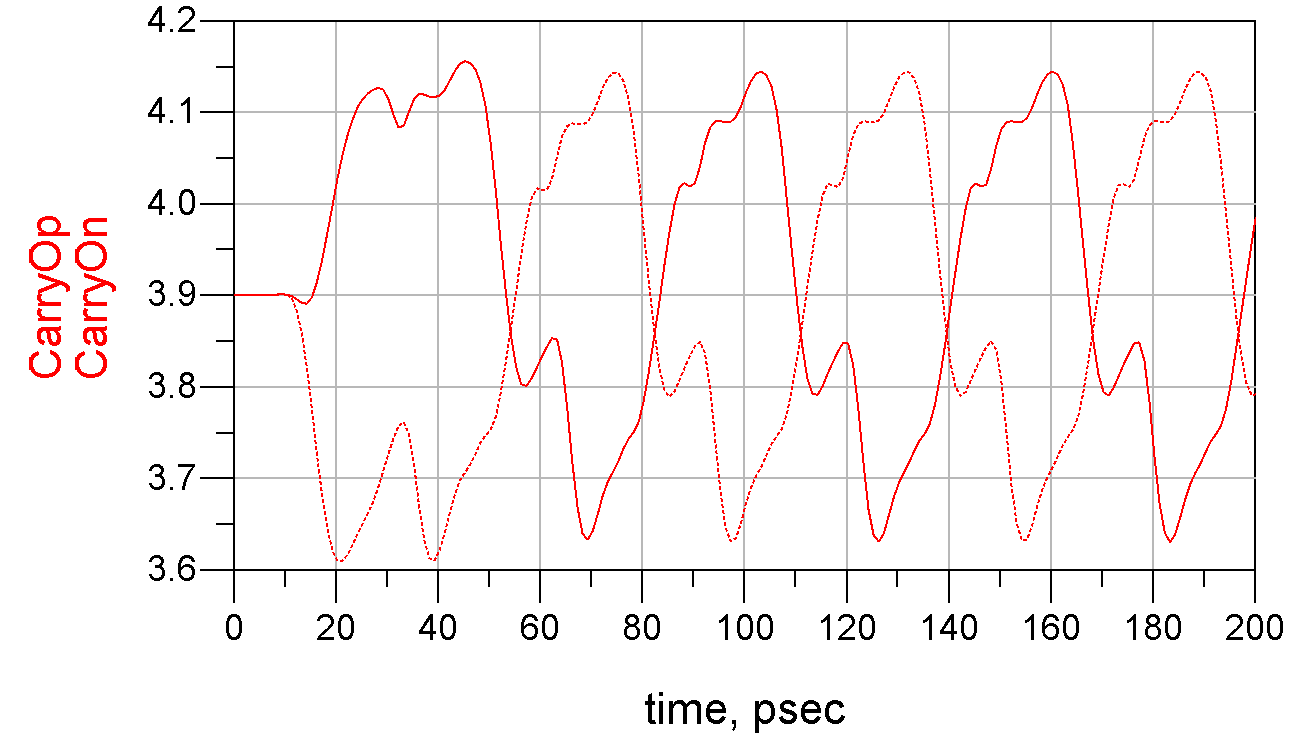

Fig. 10. Equivalent simulation results of adder transmission line.

The full adder is designed with this TLE method. The clock frequency of the 1-bit adder is designed to be 36 GHz. Because it is extremely difficult to provide such a high-speed input signal during measurement, the 1-bit adder is connected as shown in Fig. 8. The two inputs are connected to "1" and "0" respectively, and the carry output is connected to the carry input in reversed-phase so that the adder can realize the function of by two frequency divider. The equivalent length of a rising edge is 136 μm. Therefore, some redundant designs have been made, so that the TLE is adopted for all the interconnection lines with the length greater than 120 μm. Fig. 9 presents the co-simulation circuit diagram after the TLE is completed. The longest interconnection line is the clock signal, and its length is 480 μm. The second-longest is the carry output feedback to the carry input. Its frequency is half of the clock, but its rising edge is close, and the length is 390 μm.

Fig. 10 shows the simulation results of the equivalent joint simulation of the transmission line of the adder measurement circuit. Through the appropriate termination design, the maximum clock frequency of the 1-bit adder is 35 GHz. Compared with the circuit designed, the performance is slightly degraded, which is caused by the propagation delay of the carry output feedback link.

The physical layout design is implemented according to the termination parameters obtained from co-simulation, and the length of interconnect in the layout is then extracted and inverted into the co-simulation circuit diagram for post-simulation verification. As the interconnect length obtained after the overall layout is quite accurate, and the influence of tens of μm interconnect length change on the termination network is small, so design iterations needed is much less.

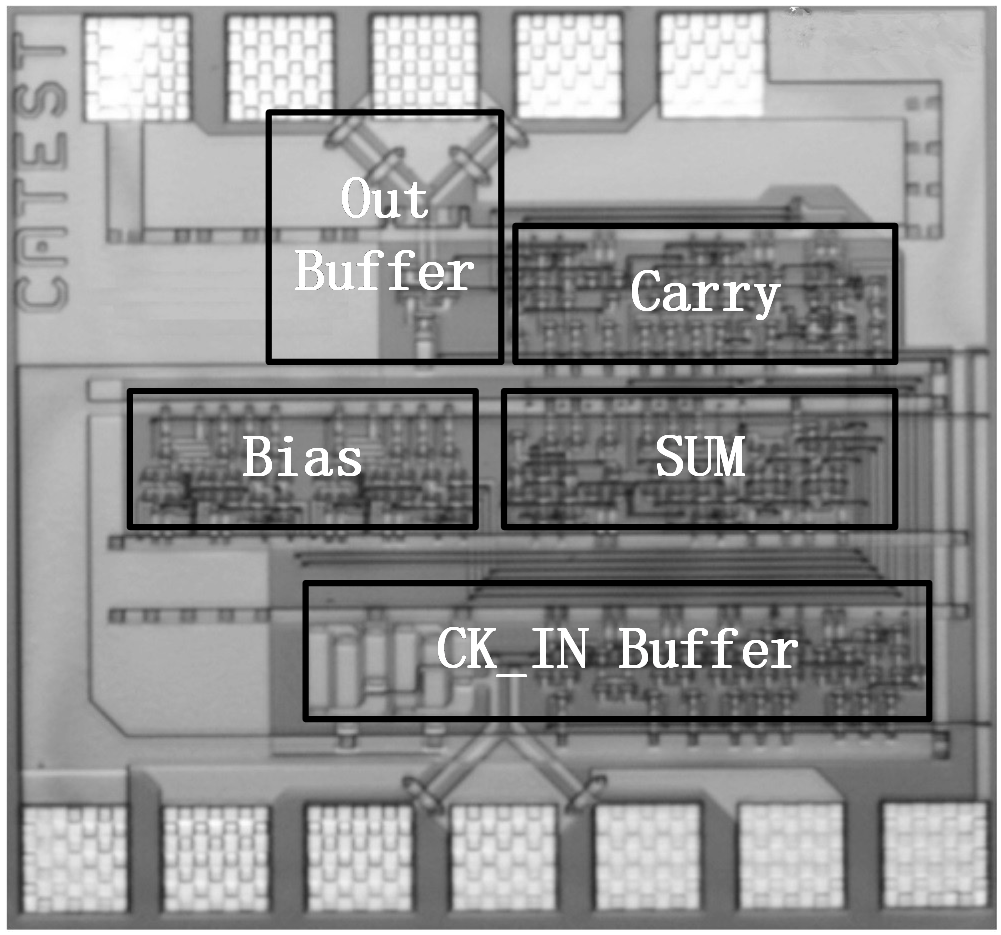

Fig. 11. Microphotograph of full adder measurement circuit.

## IV. Measurement Results

The micrograph of the full adder test circuit is presented in Fig. 11. The chip consists of 142 transistors with a size of 630 μm${\times}$680 μm. It is fabricated in two metal layers 0.7 μm InP DHBT process with $f_{\mathrm{t }}$ > 250 GHz and $f_{\mathrm{max}}$ > 280 GHz.

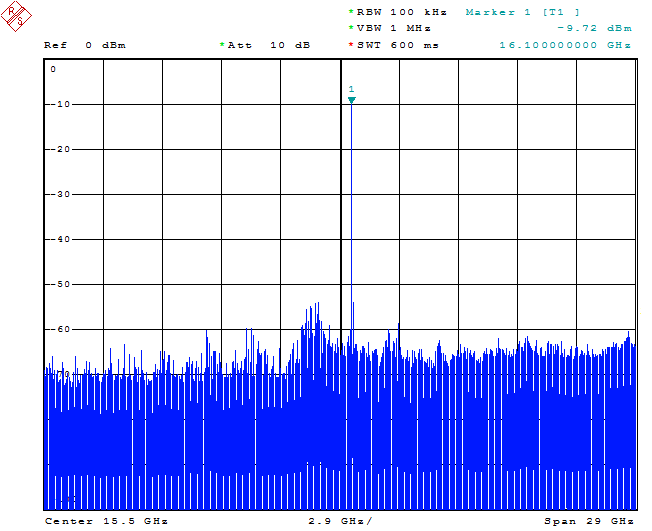

Fig. 12. Measured spectrum of output @$f_{\mathrm{clk}}$=32.2 GHz.

Table 1. Full adder performance summary and comparison

 Comparison (7)MWCL’05 (6)EL’01 (9)CSB’12 This work Technology VIP-2 InP DHBT 1.0 μm InP DHBT 1.4 μm GaAs HBT 0.7 μm InP DHBT Transistor’s ft(GHz) 300 170 60 250 fclk,max(GHz) 41 19 5.3 32.2 FOM(bit•GHz/W) 91.1 31.7 70.67 92

Fig. 12 shows the output signal spectrum. It can be seen from this figure that for 32.2 GHz input clock the output signal frequency is 16.1 GHz. From the measurement result, the TLE co-simulation aligned with the measurement. Its accuracy is 91.4%. Also, this standalone test circuit proves the TLE design methodology.

Table 1 summarize the performance and compares to the other works on compound semiconductor process. To the author’s knowledge, the maximum operating frequency of ultra-high speed adder is 41 GHz with $f_{\mathrm{t}}$ of 300 GHz (7). Ours ranks the second fastest with $f_{\mathrm{t}}$ of 250 GHz, and has the best Figure of Merit (FOM) performance.

The 1bit full adder is the speed bottleneck of the phase accumulator thus the bottleneck of the DDS. With the help of TLE method, a 17 GHz, 8 bit ROM-Less DDS is designed and fabricated in the same technology. Fig. 13 is the micrograph of the DDS chip. The chip consists of about 1700 transistors with an area of 2.2${\times}$1.6 mm$^{2}$.

The DDS is powered by a single 5 V power supply with an overall power consumption of 7.4 W. Fig. 14 presents the SFDR curves of all frequencies rang with 17 GHz clock. The frequency control word (FCW) increases from 1 to 128. The output frequencies of DDS range from 66.41 MHz to 8.5 GHz. The frequency resolution is 66.41 MHz. The worst SFDR is -10.4 dBc, and the average SFDR is -18.1 dBc.

Table 2. Ultra-High-Speed DDS Performance Comparison

 Comparison (3) EuMIC’18 (20)MWCL’06 (21)CSIC’05 (22)JSSC’06 This work Process SiGe InP InP InP InP ft/fmax(GHz) 180/220 300/300 406/423 300/300 250/280 Emitter area of minimal Size Transistor [μm2] - 0.4×2 0.25×1 0.4×2 0.7×5 Accumulator size [bit] 12 8 9 8 8 DAC resolution [bit] 6 7 - 5 4 Max clock frequency [GHz] 20 13 12 32 17 Average SFDR within Nyquist frequency [dBc] - -26.67 -30 -21.56 -18.1 Power consumption [W] 1.54 5.42 8 9.45 7.4 Transistors number 4500 1646 8800 1891 1700 Die size [mm2] 3.61 3.915 - 3.915 3.52

Table 2 summarize the DDS’s performance and its comparison to the other works. This work achieves high speed, moderate resolution and keeps a decent power efficiency compared to other works.

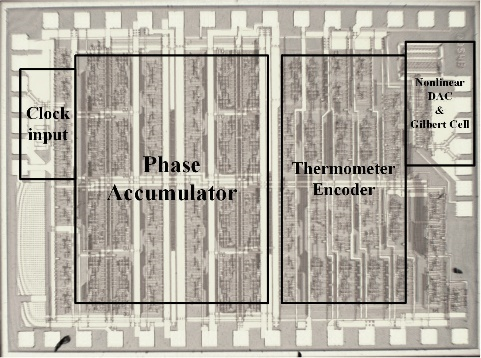

Fig. 13. Microphotograph of 17 GHz, 8 bit ROM-Less DDS.

Fig. 14. SFDR VS DDS output frequency @ 17 GHz clock.

## V. CONCLUSIONS

In this paper, a 32.2 GHz, 1bit full adder in a 0.7 μm InP DHBT technology is presented. The synchronous latch is combined with adding operation to improve the calculation speed. A single-level parallel-gated circuit is designed using majority decision algorithm to reduce power consumption. To solve the signal integrity issue for high integration and high wiring density mixed signal integrated circuit, TLE design method is proposed and demonstrated by the realization of the adder and the 17 GHz, 8 bit DDS which can synthesize sin-wave outputs from 66.41 MHz to 8.5 GHz in 66.41 MHz steps with an average SFDR of -18.1 dBc.

### ACKNOWLEDGMENTS

The research is supported by National Natural Science Foundation of China (No. 61804081), China Postdoctoral Science Foundation (No.2018M642292), Open project of State Key Laboratory of Millimeter Waves (No. K202220) and Chinese international cooperation funding (No. G2021016011L).

### REFERENCES

1
Vankka J., Halonen K., Dordrecht: 2001, Direct Digital Synthesizers: Theory, Design and Applications, Kluwer Academic Publishers
2
Moll J., Hils B., Shrestha A., Ehlert A., Krozer V., Thurn K., Vossiek M., Horbak M., Hossain M., Heinrich W., Resch M., Bosse J., 2017, Panel design of a MIMO imaging radar at W-band for space applications, 14$^{th}$ European Radar Conference, pp. 126-129
3
Shrestha A., Moll J., Raemer A., Horbak M., Krozer V., 2018, 20 GHz Clock Frequency ROM-Less Direct Digital Synthesizer Comprising Unique Phase Control Unit in 0.25 μm SiGe Technology, 13$^{th }$European Microwave Integrated Circuits Conference, pp. 206-209
4
Stanchina W. E., Jensen J. F., Walden R. H., Hafizi M., Sun H. C., Liu T., Raghavan G., Elliott K. E., Kardos M., Schmitz A. E., Brown Y. K., Montes M. E., Yung M., 1995, An InP-based fab for high-speed digital, analog, mixed-signal, and optoelectronic ICs, GaAs IC Symposium IEEE Gallium Arsenide Integrated Circuit Symposium 17th Annual Technical Digest, pp. 31-34
5
Aitken A. G., Matsui J., Kaneshiro E. N., Oyama B. K., Sawdai D., Oki A. K., Streit D. C., 2002, Ultra high-speed direct digital synthesizer using InP DHBT technology, IEEE Journal of Solid-State Circuits, Vol. 37, pp. 1115-1119
6
Eckroot C. G., Long S. I., 1988, A GaAs 4-bit adder-accumulator circuit for direct digital synthesis, IEEE Journal of Solid-State Circuits, Vol. 23, pp. 573-580
7
Turner S. E., Elder R. B., Jansen D. S., Kotecki D. E., 2005, 4 bit adder-accumulator at 41-GHz clock frequency in InP DHBT technology, IEEE Microwave and Wireless Components Letters, Vol. 15, pp. 144-146
8
Cao J., 2014, Research on Key Technologies of microwave and millimeter wave integrated circuits based on CMOS technology, Southeast University Nanjing China
9
He G., Howard J., Le M., Partyka P., Li B., Kim G., Hess R., Bryie R., Lee R., Rustomji S., Pepper J., Kail M., Helix M., Elder R.B., Jansen D.S., Harff N.E., Prairie J.F., Daniel E.S., Gilbert B.K., 2004, Self-aligned InP DHBT with $f_{\mathrm{t}}$ and f}$_{\mathrm{max}}$ over 300 GHz in a new manufactural technology, IEEE Electron Device Letters, Vol. 25, pp. 520-522
10
Li X., Wang Z., Zhang Y., Zhang Y., Zhang M., 2018, A 13GS/s One-Bit ADC with 18GHz Analog Bandwith Based On InP DHBT Technology, 14th IEEE International Conference on Solid-State and Integrated Circuit Technology, pp. 1-3
11
Li X., Zhang Y., Wang Z., Zhang Y., Zhang M., Cheng W., Gao H., 2019, A 14-GHz 8-bit Direct Digital Synthesizer in InP DHBT Technology, IEEE International Symposium on Radio-Frequency Integration Technology, pp. 1-3
12
Zhang M., Meng Q., Zhang Y., Li X., Zhang Y., Cheng W., 2019, A Broad-Band 1:4 Static Frequency Divider MMIC in InP HBT, IEEE 4th International Conference on Integrated Circuits and Microsystems, pp. 242-245
13
Ye Q., Zhang Y., Li X., Zhang Y., 2017, A 12-bit 10GSps ultra high speed DAC in InP HBT technology, 2nd IEEE International Conference on Integrated Circuits and Microsystems, pp. 9-12
14
Razavi B., Ota Y., Swartz R. G., 1994, Design techniques for low-voltage high-speed digital bipolar circuits, IEEE Journal of Solid-State Circuits, Vol. 29, pp. 332-339
15
Ivanov V. N., 1968, On realization of majority operation (the voting function) in feedback systems, Avtomat I Telemekh, pp. 112-117
16
Jensen B. S., Khafaji M. M., Johansen T. K., Krozer V., Scheytt J.C., 2012, Twelve-bit 20-GHz reduced size pipeline accumulator in 0.25 μm SiGe:C technology for direct digital synthesiser applications, IET Circuits Devices & Systems, Vol. 6, pp. 19-27
17
Bogatin E., 2009, Signal and Power Integrity, Prentice Hall Upper Saddle River
18
Mathew T., Jaganathan S., Scott D., Krishnan S., Wei Y., Urteaga M., Rodwell M., Long S., 2001, 2-bit adder carry and sum logic circuits clocking at 19 GHz clock frequency in transferred substrate HBT technology, Electronics Letters, Vol. 37, pp. 1156-1157
19
Chen J. W., Wu D. Y., Zhou L. Wu J., Jin Z., Liu X.Y., 2012, A 5.3-GHz 32-bit accumulator designed for direct digital frequency synthesizer, Chinese Science Bulletin, Vol. 57, pp. 2480-2487
20
Turner S., Kotecki D., 2006, Direct digital synthesizer with ROM-less architecture at 13-GHz clock frequency in InP DHBT technology, IEEE Microwave and Wireless Components Letters, Vol. 16, pp. 296-298
21
Elliott K., 2005, Direct digital synthesis for enabling next generation RF systems, IEEE Compound Semiconductor Integrated Circuit Symposium, pp. 125-128
22
Turner S., Kotecki D., 2006, Direct digital synthesizer with sine-weighted DAC at 32-GHz clock frequency in InP DHBT technology, IEEE Journal of Solid-State Circuits, Vol. 41, pp. 2284-2290
