DoKyoung-Il1
LeeByung-Seok1
JinSeung-Hoo1
KooYong-Seo1*
-
(Dept. Engineering of Electronics and Electrical, Dankook University, Yongin, Korea)
Copyright © The Institute of Electronics and Information Engineers(IEIE)
Index Terms
Electrostatic discharge(ESD), high current driving capability, lateral insulated gate bipolar transistor (LIGBT), silicon controlled rectifiers (SCR), holding voltage, ESD network
I. INTRODUCTION
In the semiconductor industry, processes that require a continuous reduction in the
size of integrated circuits (ICs) are being developed. Consequently, electrostatic
discharge (ESD) has emerged as a major problem that affects the reliability of ICs
(1,2). Particularly, with the decrease in the chip area, ESD-induced malfunction and breakdown
in the normal state have been increasingly recognized as a serious problem (3,4). To solve this problem, ESD protection clamps such as gate-grounded n-type metal-oxide-silicon
(GGNMOS) circuits and silicon-controlled rectifiers (SCRs) are commonly used. A GGNMOS
circuit discharges ESD current through parasitic lateral NPN bipolar junction transistors
(BJTs), is perfectly CMOS-compatible, and has excellent snapback range characteristics.
However, because the current driving ability of a GGNMOS circuit is low, multi-fingers
is used to improve its robustness; therefore, the GGNMOS circuit consumes a large
area (5,6). Unlike a GGNMOS circuit, an SCR discharges ESD current through the positive feedback
operation of parasitic lateral PNP and NPN BJTs, so it has excellent current driving
ability and superior area efficiency. However, avalanche breakdown is induced between
two well regions of the SCR, leading to a high trigger voltage. In addition, because
of the high current gain of the parasitic BJTs, the holding voltage is low, which
may cause the problem of latch-up (7,8). To address these problems of the SCR, various studies have aimed to improve its
electrical properties. In addition, to verify the reliability of ESD protection between
all the pins of the whole chip, four ESD test modes (PS, PD, NS, and ND) were developed
for the tests between the input/output (I/O) pad and the V$_{\mathrm{DD}}$ or V$_{\mathrm{SS}}$
terminal and a test mode was developed for the test between the V$_{\mathrm{DD}}$
and V$_{\mathrm{SS}}$ terminals (DS) of the power line. The conventional GGNMOS and
SCR circuits can ensure the reliability of the core IC by discharging the ESD current
through the snapback operation of the lateral parasitic BJTs for the positive ESD
current (PS, PD, and DS) flowing into the I/O pad or V$_{\mathrm{DD}}$ terminal. However,
these conventional designs are highly vulnerable to negative ESD currents (NS and
ND) because of the unidirectional characteristic of these designs. Thus, to achieve
stable ESD discharge in the NS and ND modes, four ESD clamps are required, but this
solution has the drawback of consumption of a very large space. Therefore, in this
paper, a whole-chip all-directional ESD protection circuit is proposed. In this circuit,
the conventional resistor-capacitor (RC)-based ESD detection circuit is used as the
power clamp. In addition, a new I/O clamp structure is developed that is capable of
responding to four ESD discharge modes at the I/O terminal. In the proposed circuit
configuration, only two types of ESD clamps are required. Thus, the area efficiency
is improved and a structural increase in the holding voltage is induced, thereby providing
latch-up immunity.

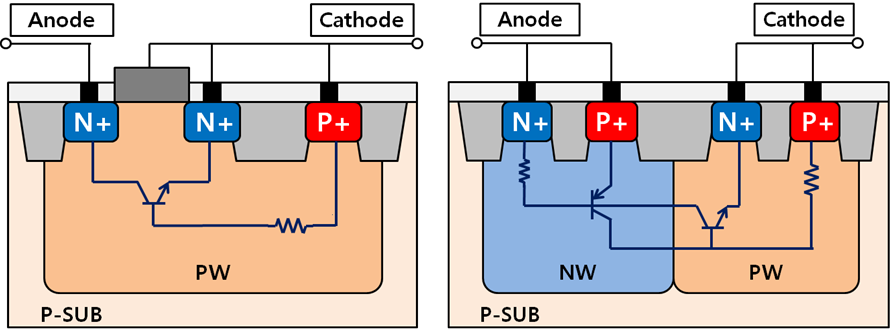

Fig. 1. Cross-sectional views of conventional GGNMOS (left) and SCR (right) ESD clamp
structures.

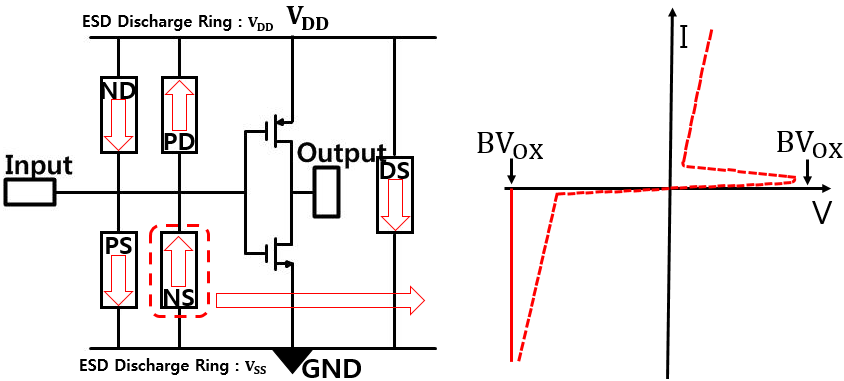

Fig. 2. ESD protection circuit composed of conventional snapback components and electrical
properties of I/O clamp.
II. Proposed Whole-Chip ESD Protection Circuit
1. ESD Protection Circuit based on Conventional ESD Clamp
Fig. 1 shows cross-sectional views of the conventional GGNMOS and SCR circuits. When a positive
ESD current flows to the anode, the parasitic BJT begins to operate and causes snapback,
and the ESD current is discharged at a low holding voltage. However, when a negative
ESD current is introduced, it is discharged only through a PN diode in which a small
perimeter is formed structurally, thus considerably reducing ESD reliability. Fig. 2 shows a whole-chip ESD protection circuit composed of a conventional ESD clamp and
the I-V characteristics for each ESD discharge mode. Four ESD clamps (including the
power clamp) are configured so that all the ESD discharge modes (PS, PD, NS, and ND)
are considered. However, this circuit requires a considerably large area to achieve
high ESD robustness.
2. Proposed All-directional ESD Protection Circuit and Its Operating Principle
Fig. 3 shows the cross-sectional view of the I/O ESD clamp of the proposed SCR-based ESD
protection circuit and the equivalent circuit diagram including the ESD discharge
paths. The proposed I/O clamp consists of six parasitic BJTs and eight parasitic resistors.
The left part is connected to the V$_{\mathrm{DD}}$ terminal, the center part is connected
to the I/O terminal, and the right part is connected to the V$_{\mathrm{SS}}$ terminal.
The inserted floating regions increase the effective base lengths of the parasitic
BJTs, reducing the emitter injection efficiency and increasing the holding voltage.
The operating principle of the proposed I/O clamp in different modes is as follows.
In the PD mode, when a positive ESD pulse flows to the I/O terminal, the potential
of the N well rises and the left P well located in the direction of the V$_{\mathrm{DD}}$
terminal is reverse biased. When the electric field of the junction reaches the critical
point, avalanche breakdown occurs and an electron-hole pair (EHP) is generated. The
emitter-base junction of Q2 (PNP BJT) is forward biased by the generated EHP, and
the current flowing through the turned-on Q2 (PNP) increases the potential of the
P well, thereby turning on Q1 (NPN). The turned-on Q2 and Q1 supply a base current
to each other to discharge the high ESD current through a latch operation. In addition,
the effective base lengths of Q2 and Q1 increase because of the N+ and P+ floating
regions, resulting in a high holding voltage.

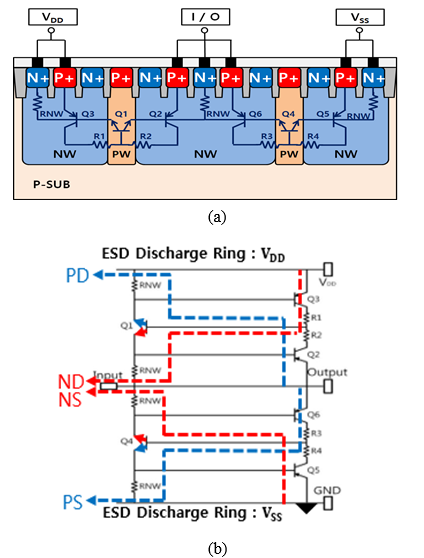

Fig. 3. (a) Cross-sectional view of proposed all-directional ESD protection structure,
(b) its equivalent circuit (PD, ND, PS, and NS discharge paths).

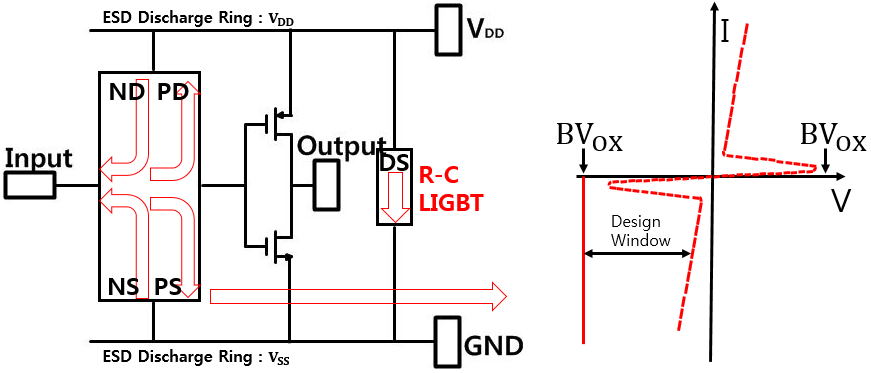

Fig. 4. Proposed ESD protection circuit and electrical properties of ESD clamp.

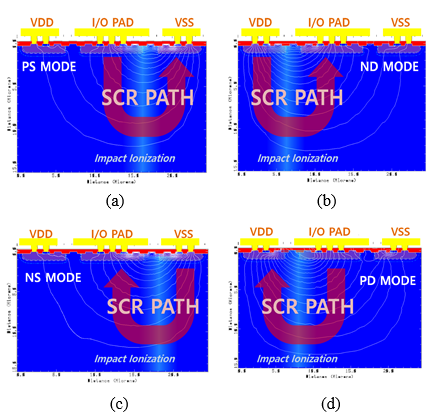

Fig. 5. Current path and impact ionization simulation results for I/O clamp of proposed
I/O ESD Clamp (a) PS mode, (b) ND mode, (c) NS mode, (d) PD mode.
The operating principle of the ND mode is the same as that of the PD mode, and a high
ESD current is discharged by Q3 and Q1 this time. In addition, in the PS mode where
a forward ESD surge is applied to the V$_{\mathrm{SS}}$ terminal, when a positive
ESD pulse flows to the I/O terminal, the potential of the N well rises. When the electric
field of the junction reaches the critical point, avalanche breakdown occurs, resulting
in the generation of an EHP in the P well, and as previously described for the PD
mode, the parasitic BJTs Q6 (PNP) and Q4 (NPN) are turned on. Through the latch operation
of Q6 and Q4, a high ESD current is discharged, and in the case of the NS mode, an
opposite path is formed. Therefore, although the proposed I/O clamp has a single structure
(Fig. 4), its high holding voltage and double symmetrical structure enable it to provide
appropriate responses to all four modes of the ESD discharge paths (PD, ND, PS, and
NS) at the I/O pad. To demonstrate the operating mechanism of the proposed I/O clamp,
a lateral current path simulation was performed using a two-dimensional technology
computer-aided design tool. To examine the operating principle of the device under
ESD stress, a human body model (HBM)-based 4 kV ESD surge formed in a 100 pf capacitor
and a 1.5 kΩ resistor was applied to the proposed structure through mixed-mode simulation
(9,10). Fig. 5 presents the simulation results, which show the lateral current flow with impact
ionization line. In all the four modes, leakage current transport due to the reverse
junction potential was observed before the trigger, and finally, parasitic SCR paths
of the same type with a uniform current flow running deep into the substrate were
observed.

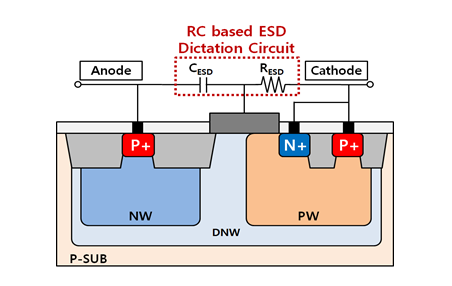

Fig. 6. Cross-sectional view of R-C LIGBT structure and layout (DS).

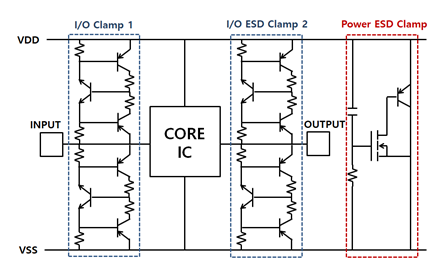

Fig. 7. Full equivalent circuit diagram of proposed all-directional ESD protection
circuit with I/O and power clamps.

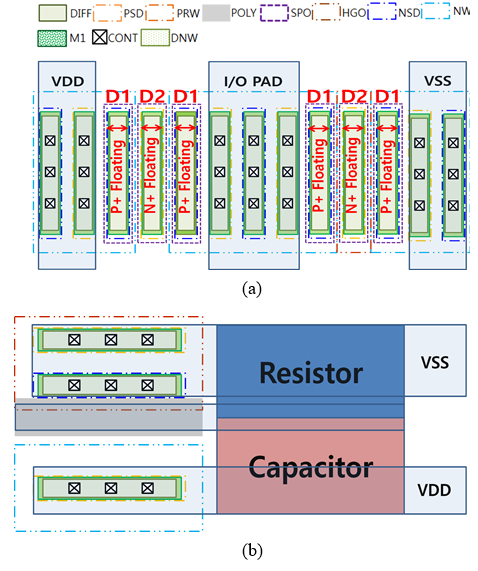

Fig. 8. Layout of proposed ESD protection circuit components (a) I/O clamp, (b) power
clamp.
Fig. 6 shows a cross-sectional view of a power ESD clamp applied to the proposed ESD protection
circuit. Power clamps generally require a higher operating voltage than I/O clamps.
To achieve a flexible response to the latchup phenomenon caused by the load resistance
of the I/O clamp, the power ESD clamp was composed of an ESD detection circuit with
an RC circuit and a lateral insulated-gate bipolar transistor (LIGBT) with a relatively
high current density. When an ESD surge with a high frequency characteristic is applied
to the anode, a bias is applied to the gate terminal of the LIGBT, and the residual
ESD current is discharged through the operation of the LIGBT. Hence, the power clamp
of the proposed ESD protection circuit is relatively free from latchup and allows
the optimization of the I/O clamp for the required ESD design window by appropriately
adjusting the values of resistors and capacitors according to the V$_{\mathrm{DD}}$
value of the core IC. Fig. 7 shows the equivalent circuit diagram of the proposed ESD protection circuit with
I/O and power clamps. The proposed ESD protection circuit has only one I/O clamp,
which is applied to each of the input and output terminals, thereby achieving superior
area efficiency compared to the conventional ESD protection circuit, which includes
four I/O clamps (one for each terminal).
III. Measurement Results and Discussion
1. Optimization of Electrical Properties
The proposed ESD protection circuit and conventional ESD clamps were fabricated through
a 0.18 ${\mathrm{\mu}}$m CMOS process and were optimized for application at 12 V considering
the drain-to-source breakdown voltage (BVDSS) and oxide breakdown voltage (BVox) of
the process. The 12 V ESD design window of the 0.18 ${\mathrm{\mu}}$m CMOS process
was formed between 13.2 V (operation voltage + safe margin of 10%) and 24 V (oxide
breakdown voltage) (11). To verify the electrical properties of the proposed ESD protection circuit, a transmission
line pulse (TLP) measurement method with a rising time of 10 ns and a pulse width
of 100 ns was used (12). The measurement results obtained from the TLP system are illustrated as an I-V curve,
and the key parameters of the snapback device (Vt1, Vh, and It2) are presented. Fig. 8 shows the layout of the I/O and power clamps of the proposed ESD protection circuit
and the associated design variables. Each floating region of the I/O clamp was selected
as the design parameter. The design variable D1 represents the P+ floating region,
and as D1 increased, the lengths of the base regions of the NPN parasitic BJTs (Q1
and Q4) increased and the emitter injection efficiency reduced. On the other hand,
D2 represents an N+ floating region, and an increase in D2 decreased the emitter injection
efficiency of the PNP parasitic BJTs (Q2, Q3, Q5, and Q6) and increased the holding
voltage. Fig. 9(a) shows that the holding voltage increased to 12.4 V as D1 changed from 4 ${\mathrm{\mu}}$m
to 12 ${\mathrm{\mu}}$m, and Fig. 9(b) shows that the holding voltage of the I/O clamp increased up to 13.1 V as D2 increased
from 8 ${\mathrm{\mu}}$m to 24 ${\mathrm{\mu}}$m. In this experiment, the area increase
induced by the design variable D2 was half of that induced by D1. Hence, the length
for D2 was doubled for the same increase in the area. According to the measurement
results, in the case of the NPN parasitic BJTs (Q1 and Q4), the design variable D2
allowed more effective control of the holding voltage than D1 because the same feedback
loop was formed in both the forward and reverse modes. Therefore, the proposed I/O
clamp was optimized for the 12 V ESD design window by adjusting the design variable
D2.

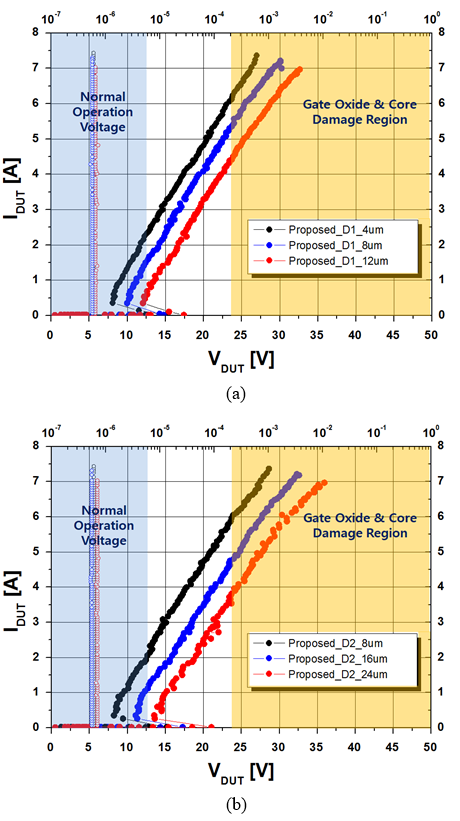

Fig. 9. Variation in holding voltage according to changes in design variables (a)
D1, (b) D2.

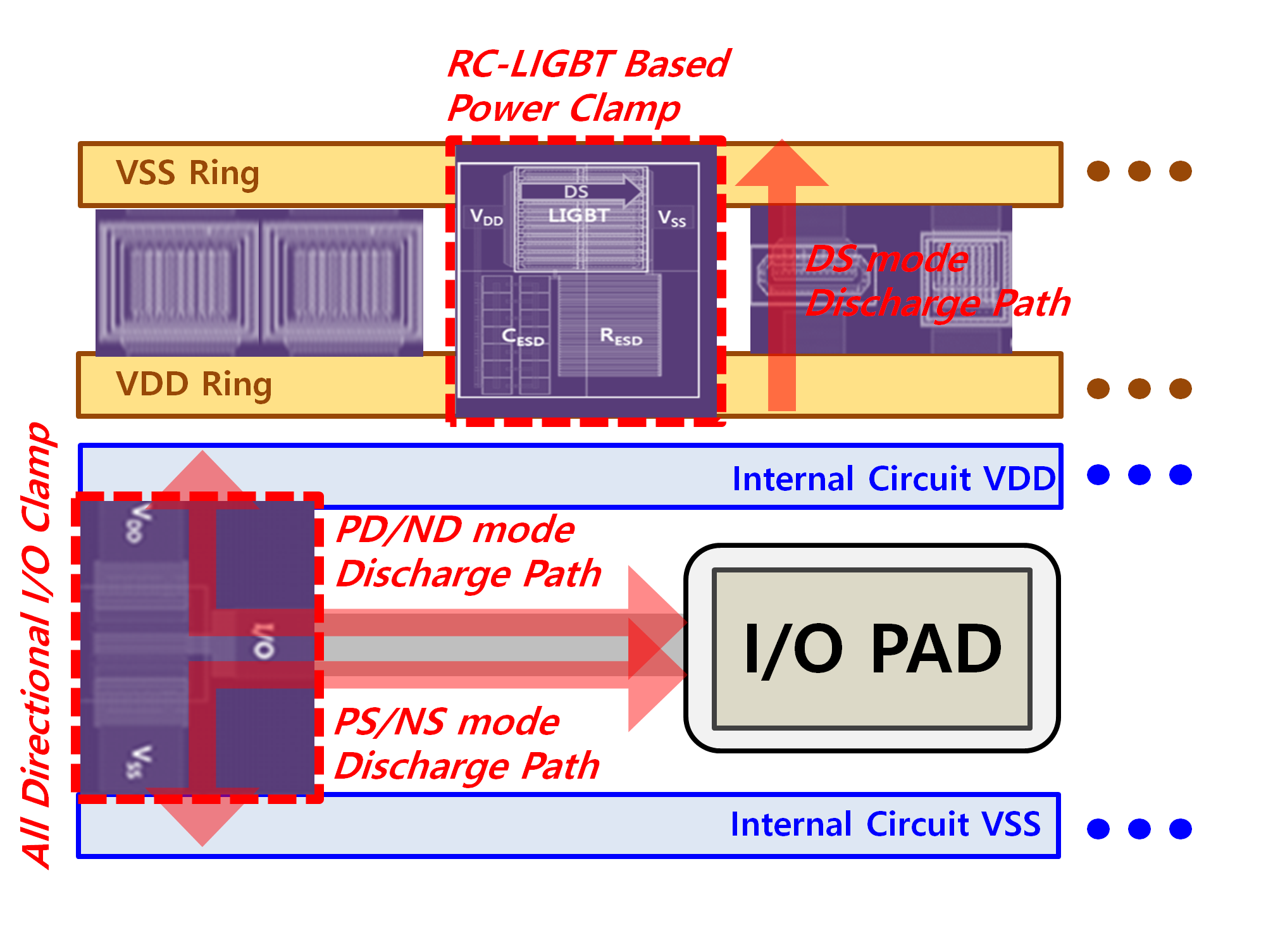

Fig. 10. Configuration of whole-chip ESD protection circuit.
2. Comparison between Electrical Properties of Optimized I/O Clamp and Conventional
ESD Clamps

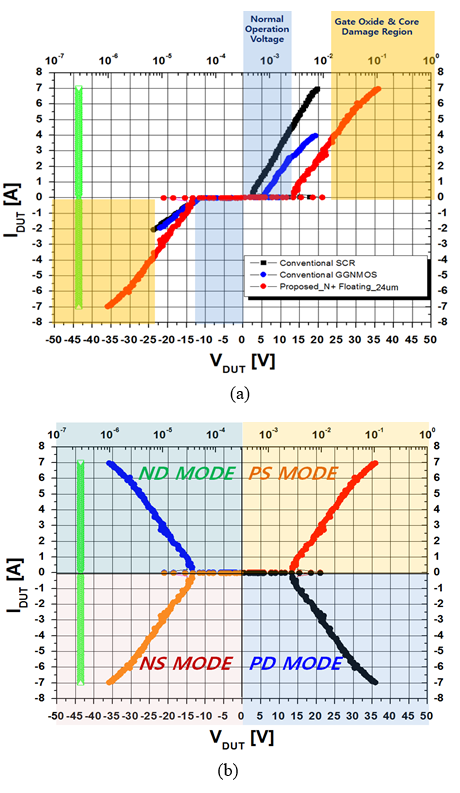

Fig. 11. (a) TLP measurement results for proposed I/O clamp and conventional GGNMOS
and SCR circuits (PS and NS), (b) TLP waveforms for four ESD modes of proposed I/O
clamp (PD, ND, PS, and NS).

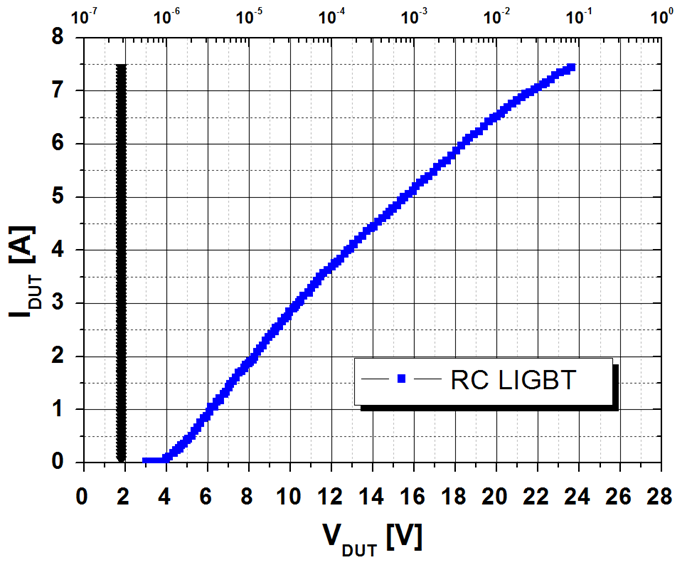

Fig. 12. TLP measurement results for RC LIGBT-based power clamp.
Fig. 10 shows the configuration of the whole-chip ESD protection circuit according to the
components and ESD discharge paths. Fig. 11(a) shows the TLP measurement results for the optimized I/O clamp (D2 = 24 ${\mathrm{\mu}}$m)
and the conventional ESD protection devices. The proposed structure and the conventional
GGNMOS and SCR circuits were all fabricated through a 0.18 ${\mathrm{\mu}}$m bipolar-CMOS-DMOS
(BCD) process, and all the devices had the same width to achieve proper comparison
of their electrical properties. The area of the proposed I/O clamp is 9796um$^{2}$(124
um * 79 um), which is much larger compared to the conventional GGNMOS (33 um * 79
um = 2607 um$^{2}$) and SCR (39 * 79 = 3081 um$^{2}$). However, GGNMOS needs to increase
the number of multi-fingers to achieve improved It2, and SCR needs to increase the
implant spacing to optimize the ESD Design Window. Also, since the two traditional
structures only operate in positive ESD mode, they must be configured with four clamps
to account for the polarity of the ESD surge. On the other hand, the proposed structure
has excellent area efficiency as it can respond to ESD surges in all modes with one
clamp. According to the measurement result, the holding voltages of the conventional
GGNMOS and SCR circuits were 6.2 and 2.6 V, respectively. In comparison, the proposed
I/O clamp had a high holding voltage of 13.3 V owing to a large decrease in the emitter
injection efficiency, which was achieved by inserting floating regions and optimizing
the length variation. This voltage value was adequate for the 12 V ESD design window.
In addition, unlike the conventional GGNMOS and SCR circuits in which different diode
operation characteristics were observed in the reverse mode, the proposed I/O clamp
exhibited the same waveform in the reverse mode as well. Fig. 11(b) shows the TLP measurement results for the proposed I/O clamp in four modes while
considering the ESD polarities of the I/O pad, VDD terminal, and VSS terminal. Because
the proposed I/O clamp had a double-symmetrical structure, in all the four ESD modes,
snapback was induced because of the formation of internal SCR paths and a high secondary
breakdown current (It2) was achieved at 7 A. Fig. 12 shows the TLP waveform for the power clamp of the proposed ESD protection circuit.
When an ESD event occurred at the VDD terminal, the voltage corresponding to the gate
region of the LIGBT increased because of the ESD detection circuit, and the transient
gate bias of the LIGBT device exceeded the critical voltage in the turned-on state
with a low channel resistance. In addition, the reverse breakdown voltage of the LIGBT
was 20 V and It2 was 7.4 A. Table 1 lists the main electrical properties of all the fabricated ESD clamp structures.
3. Results of High-temperature Reliability Test
The thermal reliability of the proposed ESD protection circuit at high temperatures
(300-500 K) was determined (Fig. 13 and Fig. 14) (13,14). In the thermal reliability test, the wafer was heated using a hot-chuck control
system, and the electrical properties were evaluated through TLP system measurements.

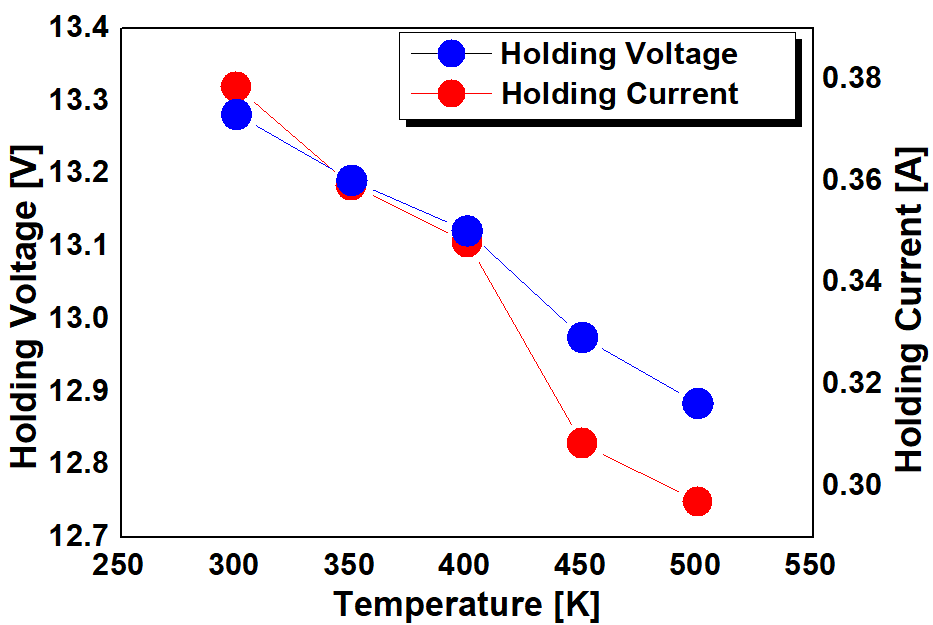

Fig. 13. Holding voltage and current characteristic results obtained for high temperatures
(300-500 K).

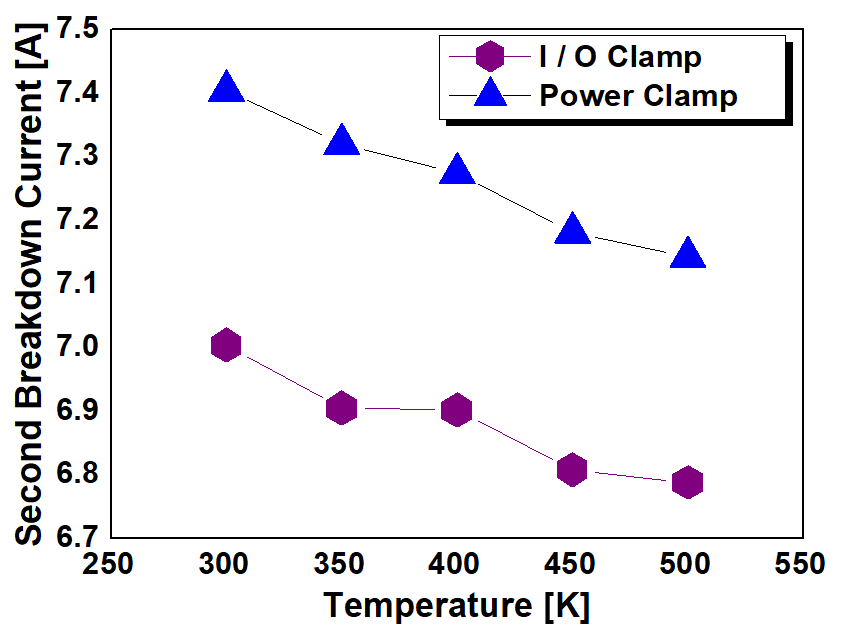

Fig. 14. Second breakdown current characteristic results obtained for high temperatures
(300-500 K).
Table 1. Summary of the electrical characteristics of all fabricated structures
|
Structure
|
Operation
Mechanism
|
Trigger Voltage
(Vt1)
|
Holding
Voltage
(Vh)
|
Holding
Current
(Ih)
|
2nd Breakdown
Current
(It2)
|
Area
|
|
Conventional
Clamp
|
GGNMOS
(PS Mode)
|
Snapback
|
9.7
|
6.2 V
|
0.26 A
|
3.91 A
|
2607 u$m^{2}$
|
|
SCR
(PS Mode)
|
Snapback
|
17.5 V
|
2.6 V
|
0.34 A
|
6.96 A
|
3081 u$m^{2}$
|
|
Proposed
I/O Clamp
|
PS Mode
|
Snapback
|
20.9 V
|
13.3 V
|
0.37 A
|
7.02 A
|
9796 u$m^{2}$
|
|
NS Mode
|
Snapback
|
20.3 V
|
13.1 V
|
0.33 A
|
6.99 A
|
|
PD Mode
|
Snapback
|
20.7 V
|
13.4 V
|
0.34 A
|
6.97 A
|
|
ND Mode
|
Snapback
|
20.5 V
|
13.3 V
|
0.38 A
|
7.01 A
|
|
Proposed
Power Clamp
|
DS Mode
|
Non-Snapback
|
Vt = 4.02 V
|
7.5 A
|
12507 u$m^{2}$
|
The high-temperature characteristics are important because they affect the electrical
properties and It2 of the ESD protection circuit. As the temperature increased, the
carrier mobility decreased, thereby increasing the parasitic resistance of the well
region and causing a decrease in the clamping range and heat loss of It2. According
to the measurement results, at a high temperature of 500 K, the proposed I/O clamp
had a holding voltage of 12.9 V, holding current of 298 mA, and secondary trigger
current of 6.98 A. In addition, the power clamp had a secondary trigger current of
7.1 A. The holding voltage of the I/O clamp of the proposed ESD protection circuit
was still higher than 12 V, which is the normal operating voltage of the internal
circuit, and both the I/O and power clamps had secondary trigger currents of 6.5 A
or higher, indicating the excellent ESD robustness of the proposed circuit for an
HBM above 6~kV (calculated as (1500 + Ron) ${\times}$ It2). Therefore, the proposed
ESD protection circuit has excellent thermal reliability and high-temperature characteristics.
IV. CONCLUSIONS
In this paper, we propose a design for a whole-chip all-directional ESD protection
circuit. The proposed ESD protection circuit consists of only two types of ESD clamps:
an I/O clamp and a power clamp. The I/O clamp provides discharge paths with a high
holding voltage for each ESD stress mode (PD, ND, PS, and NS) that can occur at the
I/O pad, V$_{\mathrm{DD}}$ terminal, and V$_{\mathrm{SS}}$ terminal. The proposed
I/O clamp was optimized for the 12 V I/O ESD design window by specifying the lengths
of the inserted floating regions as a design variable and analyzing the electrical
properties. In addition, the RC LIGBT-based ESD protection circuit provides a discharge
path for the V$_{\mathrm{DD}}$-to-V$_{\mathrm{SS}}$ mode (DS) and exhibits latchup
immunity with regard to the supply clamp voltage. The proposed whole-chip all-directional
ESD protection circuit was fabricated using a 0.18 ${\mathrm{\mu}}$m BCD process,
and its electrical properties were examined through TLP system measurements. In addition,
a hot-chuck controller was used to investigate changes in the electrical properties
at high temperatures. The proposed all-directional ESD protection circuit shows excellent
robustness for an HBM above 6 kV at a high temperature of 500 K. Therefore, it is
expected that the proposed circuit can be employed for 12 V applications, can provide
good area efficiency, and can enhance the reliability of the core IC.
ACKNOWLEDGMENTS
This research was supported by the MSIT(Ministry of Science and ICT), Korea, under
the ITRC(Information Technology Research Center) support program(IITP-2020-2018-0-01421)
supervised by the IITP(Institute for Information & Communications Technology Planning
& Evaluation)” and was supported by Korea Evaluation Institute of Industrial Technology(KEIT)
grant funded by the Ministry of Trade, Industry & Energy (20009213, “High efficiency
High Voltage Smart Ceramic Speaker Driver SoC for Bezelless Smart phones”)
REFERENCES
Ker M.D., Hsu K. C., 2005, Overview of on-chip electrostatic discharge protection
design with SCR-based devices in CMOS integrated circuits, IEEE Transaction on Device
and Material Reliability, Vol. 5, No. 2, pp. 235-249
Jiang Z.W., Chen S.-H., Ker M.-D., 2009, Bi-directional SCR device with dual-triggered
mechanism for ESD protection in extended-voltage swing I/O application, in Proc International
Conference on Solid State Devices Material, pp. 420-421
Wang Y., Jin X. l., Peng Y., Luo J., Yang J., 2020, Design and Optimization of High-Failure-Current
Dual-Direction SCR for Industrial-Level ESD Protection, IEEE Trans. Power Electronics,
Vol. 35, No. 5, pp. 4669-4677
Semenov O., Sarbishaei H., Sachdev M., 2008, ESD Protection Device and Circuit Design
for Advanced CMOS Technologies
Song B., Han Y., Li M., Dong S., Guo W., Huang D., Ma F., Miao M., 2010, Substrate-triggered
GGNMOS in 65 nm CMOS process for ESD application, Electronics Letters, Vol. 46, No.
7, pp. 518-520
anderson W.R., Krakauer D.B., 1998, ESD protection for mixed-voltage I/O using NMOS
transistors stacked in a cascode configuration, Electrical Overstress/Electrostatic
Discharge Symposium, pp. 54-62
Wu C.H., Lee J.H., Lien C.H., 2016, A New Low-Voltage Triggering SCR for the Protection
of a Double RESURF HV-LDMOS, IEEE Electron Device Letters, Vol. 37, No. 9, pp. 1201-1203
Y.shan , He J., Hu B., J , Liu , Huang W., 2009, NLDD/PHALO-Assisted Low-Trigger SCR
for High-Voltage-Tolerant ESD Protection Without Using Extra Masks, IEEE Electron
Device Letters, Vol. 30, No. 7, pp. 778-780
Salcedo Javier A., Liou Juin J., Liu Zhiwei, Vinson James E., 2007, TCAD Methodology
for Design of SCR Devices for Electrostatic Discharge (ESD) Applications, IEEE TRANSACTIONS
ON ELECTRON DEVICES, Vol. 54, No. 4, pp. 822-832
Do K.I., Y.S Koo , 2020, A Novel Low Dynamic Resistance Dual-Directional SCR with
High Voltage for 12V Applications, IEEE Journal of the Electron Devices Society, Vol.
7, pp. 635-639
Du F., Liu Z., Liu J., Wang J., Liou J. J., 2019, A Compact and Self-Isolated Dual-Directional
Silicon Controlled Rectifier (SCR) for ESD Applications, IEEE Transactions on Device
and Materials Reliability, Vol. 19, No. 1, pp. 169-175
Grund E., Hernandez M., 2007, Obtaining TLP-like information from an HBM simulator,
Electrical Overstress/Electrostatic Discharge Symposium, pp. 2A.3-1-2A 3-7
Cui Q., 2013, High-robustness and low-capacitance silicon controlled rectifier for
high-speed I/O ESD protection, IEEE Electron Device Letter, Vol. 34, No. 2, pp. 178-180
Hou F., Liu J., Liu Z., Huang W., Gong T., Yu B., Liou J. J., 2019, New Diode-Triggered
Silicon-Controlled Rectifier for Robust Electrostatic Discharge Protection at High
Temperatures, IEEE Transactions on Electron Devices, Vol. 66, No. 4, pp. 2044-2048
Author
was born in Seoul, Republic of Korea, in 1989. He was M.S and PhD.-course since 2016
in Electronics and Electrical Engi-neering, Dankook University.
His current research interests include electrostatic discharge (ESD) protec-tion circuit
design and semiconductor devices, such as power BJTs, LDMOSs, and IGBTs; and electrostatic
discharge (ESD) protection circuit design.
was born in Changwon, Republic of Korea, in 1993.
He is a master's program in Electrical and Electronic Engineering, Dankook University
since 2020.
His current research interests are electrostatic discharge (ESD) protection circuit
design and power semiconductor devices such as BJT, LDMOS and IGBT; Electrostatic
Discharge (ESD) Circuit Design.
received the B.S. degree in the Department of Elec-tronics Engineering from Seokyeong
University, Korea, in 2010 and the M.S. and Ph.D. degree in Electronics and Electrical
Engineering from Dankook Univer- sity, Korea, in 2012 and 2020.
He joined Research Institute for Industrial Technology, Dankook University as a research
professor.
His interests include ESD Protection Circuit, Power Device.
received the BS, MS. and Ph.D. degrees in the Department of Electronic Engineering
from Sogang University, Seoul, Rep. of Korea, in 1981, 1983 and 1992, respectively.
From 1983 to 1993, He had worked at Electronics Tele-communications Research Institute
as senior researcher.
In 2009, He joined the Department of Electronics and Electrical Engineering, Dankook
University as a Professor.
His research interests include electrostatic discharge (ESD) protection circuit design,
silicon carbide(SIC) power device, high-efficiency power management integrated circuits(PMICs).
