a-IGZO TFT, channel defect, DOS, c-t, carrier lifetime


With the advent of the Internet-of-Things (IOT), the importance of flexible display-based application compatibility technology is increasing, and the need for wearable devices in the medical field is increasing (1). Recently, a-IGZO has been attracting attention as a good material for next-generation flexible TFTs because it can be processed at low temperatures, has good uniformity, and exhibits high field effect mobility (2). To improve the performance of IGZO TFTs, research has been conducted to improve the film quality characteristics such as changing the oxygen partial pressure ratio and changing the IGZO composition ratio (3). However, if these process conditions change, physical analysis such as X-ray photoelectron spectroscopy (XPS) and photoluminescence spectroscopy (PL) is performed to confirm the oxygen vacancy (V$_{\mathrm{o}}$ and V$_{\mathrm{o}}$$^{2+}$) and metastable defects ($p p \pi^{*}$) of the IGZO layer (4,5) . This study proposes a method that can easily and quickly check the channel characteristics of IGZO TFTs electrically without physical analysis. To confirm the consistency of the experimental results, TFTs with two different OFRs were used in the experiments with the IGZO sputtering process. The interfacial properties of IGZO and the insulator were confirmed by DOS extraction using the PECCS method. The channel region characteristics of the IGZO were confirmed through the minority carrier lifetime extracted through c-t measurements. The consistency of the analysis method was verified by confirming the final measurement results with the results reported through existing physical analysis methods.

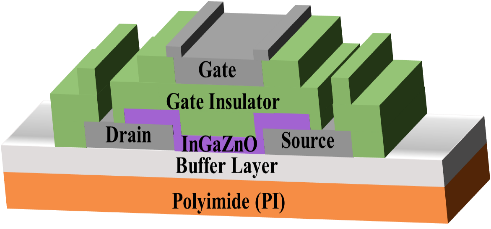

Fig. 1. Schematic image of a flexible a-IGZO TFT.



Fig. 1 is the schematic cross section of the top gate a-IGZO TFT used in the experiment. 300 nm of SiO$_{2}$ was deposited as a buffer layer on the polyimide (PI) substrate. The 50 nm thick active layer (a-IGZO) was formed by sputtering using an alloy target (In$_{2}$O$_{3}$: Ga$_{2}$O$_{3}$: ZnO =1: 1: 1) at 200 °C. During the sputtering process, the gas flow rates were Ar: O$_{2}$ = 30:20 sccm (O-Poor) and 30:60 sccm (O-Rich). 50 nm-SiO$_{2}$ film used in the gate insulator was grown by atomic layer deposition (ALD) using tris(dimethylamino)-silane as a silicon precursor and oxygen plasma as an oxidant. ALD processes were carried out at a temperature of 250 ℃. Ti/Au (20 nm/30 nm) source/drain electrodes were deposited by sputtering and patterned by dry etching. The gate electrode of Ti/Pt (4 nm/8 nm) was first deposited by sputtering. The final step was annealing at 300 °C in a vacuum for 1h. Finally, IGZO TFTs with different OFR were produced. The structure of the MOS capacitor used in the experiment is PI/buffer/IGZO/SiO$_{2}$/gate. For the TFT, a W/L = 10 $\mu \mathrm{m}$/10 $\mu \mathrm{m}$ device was used, and for the MOS capacitor, a 200 $\mu \mathrm{m}$ /200 $\mu \mathrm{m}$ device was used. The electrical parameters were obtained from I-V and C-V measurements. The PECCS was measured by examining the monochromatic light at intervals of 5 nm, from 350 nm to 700 nm on the IGZO TFTs. The interface density of states [(DOS); D$_{\mathrm{it}}$] according to the incident photon energy (ε) can be extracted from Eq. (1)(6):

$$ D_{i t}\left(E_{c}-\varepsilon\right)=\frac{C_{o x}}{q} \times \frac{\partial V_{t h}(\varepsilon)}{\partial \varepsilon} $$

where C$_{\mathrm{ox}}$ is the capacitance of the gate insulator per unit area, q is the electron charge, and E$_{\mathrm{c}}$ is the conduction band minimum. Using the c-t method, the generation lifetime was measured at 100 kHz.


Fig. 2 shows the results of the I-V measurements of TFTs with different OFRs. Table 1 shows the parameters extracted from the I-V measurement results. The subthreshold swing (SS) indicates the gate voltage needed to increase the drain current by a factor of 10 times, and can be obtained by analyzing the subthreshold region. The field effect mobility ($\mu$$_{\mathrm{FE}}$) was extracted from the transfer curve in the linear regime (V$_{\mathrm{D}}$=0.1 V), and is related to the transconductance ($g_{m}$) at a low drain voltage as obtained using Eq. (2).

$$ \mu_{F E}=\frac{g_{m}}{C_{o x} \times W / L^{\times V_{D}}} $$

Similar to the results of previous papers, $\mathrm{V}_{\mathrm{th}}$ shifted positively as the OFR increased, and the $\mu_{F E}$, SS, and current ratio ($\mathrm{I}_{\mathrm{on}} / \mathrm{I}_{\mathrm{O} \mathrm{ff}}$) did not change significantly (3). The reason for the $\mathrm{V}_{\mathrm{th}}$ positive shift is that as the OFR increases, more oxygen vacancies are compensated for by the injected oxygen and the conductivity of the channel is lowered, leading to a decrease in carrier concentration.

Fig. 2. Transfer curves of IGZO TFTs according to OFRs.


Table 1. Electrical parameters of a-IGZO TFTs with different OFRs.


$\mathrm{V}_{\mathrm{th}}$ (V)

$ \mu_{\mathrm{FE}}\left(\mathrm{cm}^{2} / \mathrm{V} \mathrm{s}\right) $

SS (V/dec)

$\mathrm{I}_{\mathrm{on}} / \mathrm{I}_{\mathrm{O} \mathrm{ff}}$











Fig. 3 shows the carrier concentration according to the C-V measurement results of the MOS capacitor and the depth extracted from the C-V data. Through the C-V measurement results, it was confirmed that the higher the OFR, the more that $\mathrm{V}_{\mathrm{FB}}$ shifts positively in accordance with the TFT's $\mathrm{V}_{\mathrm{th}}$ shift trend. The inversion capacitance

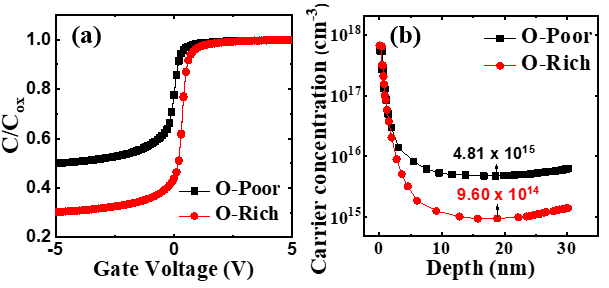

Fig. 3. (a) C-V plot of the MOS capacitors, (b) Carrier concentration according to IGZO depth (nm).


of the O-poor rate was increased because the carrier concentration of a-IGZO was increased. The total capacitance of the MOS capacitor is determined based on the electron capacitance ($\mathrm{C}_{\mathrm{n}}$), hole capacitance ($\mathrm{C}_{\mathrm{p}}$), interface trap capacitance ($\mathrm{C}_{\mathrm{it}}$), and space charge region bulk capacitance ($\mathrm{C}_{\mathrm{b}}$). However, under the inversion bias condition, electrons move away from the surface, where holes and interface traps are only present in small amounts that do not respond at high frequency, so the effects of $\mathrm{C}_{\mathrm{n}}$, $\mathrm{C}_{\mathrm{p}}$, and $\mathrm{C}_{\mathrm{it}}$ are ignored. Therefore, the influences of $\mathrm{C}_{\mathrm{ox}}$ and $\mathrm{C}_{\mathrm{b}}$ are dominant relative to the total capacitance and can be expressed as Eq. (3)(7):

$$ \begin{array}{l} C_{\text {total}}=\frac{1}{1 / C_{\text {ox}}+1 /\left(C_{n}+C_{p}+C_{i t}+C_{b}\right)} \approx \frac{C_{\alpha x} C_{b}}{C_{\alpha x}+C_{b}} \\ C_{b}=\frac{\kappa_{s} \varepsilon_{0}}{W_{i n v}} \end{array} $$

where K$_{\mathrm{s}}$ is the semiconductor dielectric constant, $\varepsilon_{0}$ is the permittivity of free space, and $\mathrm{W}_{{inv }}$ is the inversion space-charge region width. $\mathrm{W}_{{inv }}$ decreases due to the electrons originating from the increased oxygen vacancy of the O-poor. Fig. 3(b) shows that the carrier concentration increased with a lower OFR. It can be seen that as the oxygen supply decreases, the oxygen vacancy increases, and thus the carrier concentration increases.

Fig. 4 shows the PECCS measurement results of TFTs with different OFRs. The neutral, ionized oxygen vacancy and metastable ($p p \pi^{*}$) defects of IGZO exist in the E$_{\mathrm{v}}$ + 1.1 eV, E$_{\mathrm{c}}$ - 0.05 eV, and E$_{\mathrm{v}}$ + 0.15 eV energy level states (1). It was confirmed that as the OFR increased, the oxygen vacancy decreased and the O-O bond increased. The DOS extracted through PECCS was identical to previously reported XPS results (4). Through these results, it is possible to identify the cause of the $\mathrm{V}_{\mathrm{th}}$ positive shift of the O-rich TFTs in the $\mathrm{I}_{\mathrm{D}}-\mathrm{V}_{\mathrm{G}}$ plot and the

Fig. 4. DOS in IGZO TFTs, extracted by photoexcited charge collection spectroscopy.

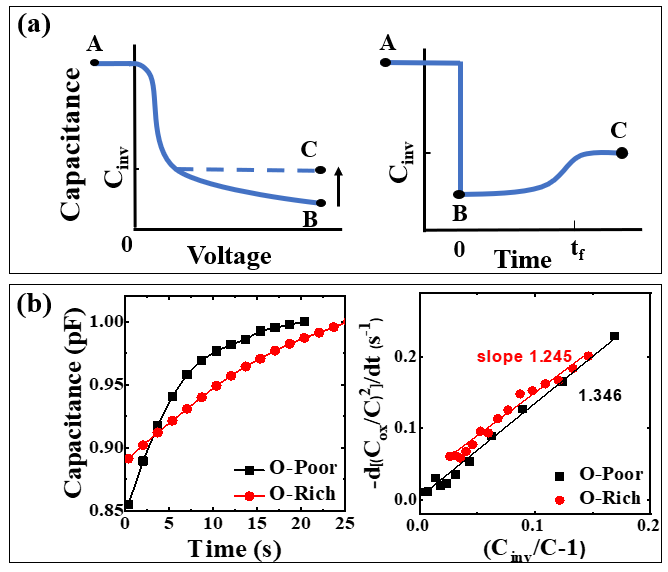

Fig. 5. (a) C-V and c-t behavior of bias applied to MOS capacitors by deep depletion, (b) Zerbst plot.


increase of the inversion capacitance value of the O-poor in the C-V curve.

Fig. 5(a) shows the C-V and c-t behavior in the deep depletion state of a bias (±5 V) applied MOS capacitor. The generation lifetime measurement taken using the c-t method relies on the fact that the IGZO channel reaches the deep depletion state when a momentary reversal voltage is applied. Deep depletion is formed in the channel region when the device is switched to the inversion voltage momentarily after the accumulation voltage is applied. Over time, electron hole pairs (EHP) generation occurs from impurities in the IGZO (oxygen vacancy defect), and as the number of majority carriers charged in the capacitor increases, the reverse capacitance (C$_{\mathrm{inv}}$) gradually recovers, leading to state C. The recovery time (t$_{\mathrm{f}}$) in the c-t plot is determined by the amount of EHP in IGZO. The recovery time of the O-poor TFT appeared short, which means that more defects are distributed in the channel region. As such the generation lifetime ($\tau_{g}$), defined as Eq. (4), can be measured via c-t characterization (7):

$$ \tau_{g}=\frac{2 n_{i} C_{o x}}{N_{A} C_{i n v} \text { slope }} $$

where n$_{\mathrm{i}}$ is the IGZO intrinsic carrier density (1.71 x 102 cm-3) (2), N$_{\mathrm{A}}$ is the acceptor doping density, and S is the slope in the -d(C$_{\mathrm{ox}}$/C)$^{2}$/dt-(C$_{\mathrm{inv}}$/C)$^{-1}$ plot. Fig. 5(b) shows the results of the c-t measurements and Zerbst plot extraction. The $\tau_{g}$ extracted through this process was higher with an increasing OFR, the $\tau_{g}$ of the O-poor sample was 5.86 ${\times}$ 10$^{-14}$ (s), and the $\tau_{g}$ of the O-rich sample was 5.54 ${\times}$ 10$^{-13}$ (s).


We proposed a method to identify the channel characteristics of IGZO TFTs through electrical analysis without physical analysis. By fabricating devices with different OFRs that have been reported previously, the interface characteristics of the IGZO and gate insulator were analyzed through PECCS to compare the number of defects according to the energy level. Bulk IGZO was investigated by extracting the carrier lifetime through c-t measurements. Finally, by verifying the same results as previously reported through physical analysis, the effectiveness of the electrical analysis method presented in this paper was confirmed. In future studies, the quality index can be affirmed when IGZO film quality is improved using the electrical property evaluation presented in this paper.


This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (MSIT) (No. 2019R1F1A1051493). And, this research was funded and conducted under ‘the Competency Development Program for Industry Specialists’ of the Korean Ministry of Trade, Industry and Energy (MOTIE), operated by Korea Institute for Advancement of Technology (KIAT) (No. P0012453, Next-generation Display Expert Training Project for Innovation Process and Equipment, Materials Engineers).


Jang J. T., Feb., 2018, Effects of structure and oxygen flow rate on the photo-response of amorphous IGZO-based photodetector devices, Solid-State Electronics, Vol. 140, No. , pp. 115-121DOI
Kim Y. S., Oct., 2012, Amorphous InGaZnO Thin-Film Transistors-Part I: Complete Extraction of Density of States Over the Full Subband-Gap Energy Range, IEEE Trans on Electron Device, Vol. 59, No. 10, pp. 2689-2698DOI
Kim S. C., Jan., 2012, Impact of Oxygen Flow Rate on the Instability Under Positive Bias Stresses in DC-Sputtered Amorphous InGaZnO, IEEE Electron Device Letter, Vol. 33, No. 1, pp. 62-64DOI
Yoon J. S., Sep., 2018, Hybrid complementary inverter based on carbon nanotube and IGZO thin-film transistors with controlled process conditions, Journal of Alloys and Compounds, Vol. 762, No. 25, pp. 456-462DOI
Eric kai-Hsiang Yu , Mar., 2018, photoluminescence study of Amorphous InGaZnO Thin-Film Transistors, IEEE Trans on Electron Device, Vol. 65, No. 3, pp. 1258-1261DOI
Kim H. J., May, 2020, The Effects of Valence Band Offset on Threshold Voltage Shift in a-InGaZnO TFTs Under Negative Bias Illumination Stress, IEEE Electron Device Letter, Vol. 41, No. 5, pp. 737-740DOI
Schroder D. K., 2006, Semiconductor Material and Device Characterization, 3rd ed., Wiley, New YorkGoogle Search
