I. INTRODUCTION
Energy-efficient computation is recognized as one of the key issues in designing battery-powered
electronic devices. Especially, ultra-low-power devices such as human body implantable
medical electronic devices (1) require operations with extremely low energy to let them stay active for a noticeably
long period. Voltage scaling is one of the most effective ways to achieving the goal
because the switching energy of digital CMOS circuits can be quadratically reduced
by scaling the supply voltage (2). In an extreme case, near- or sub-threshold CMOS (3-5) allows the circuit to operate
at a supply voltage similar to or lower than the threshold voltage of MOS transistors,
resulting in a dramatic reduction of the switching energy. But, unfortunately, severe
degradation of speed in the subthreshold CMOS circuits lets the leakage energy be
increased since the time required to perform a given task increases proportionally,
during which the leakage current continues to flow steadily. These opposite trends
of the switching energy and the leakage energy for supply voltage scaling have brought
about a need for identifying a minimum energy point (MEP) (4) for achieving a maximum possible power reduction, which is defined as the supply
voltage at which the total energy of a digital CMOS circuit can be minimized. This

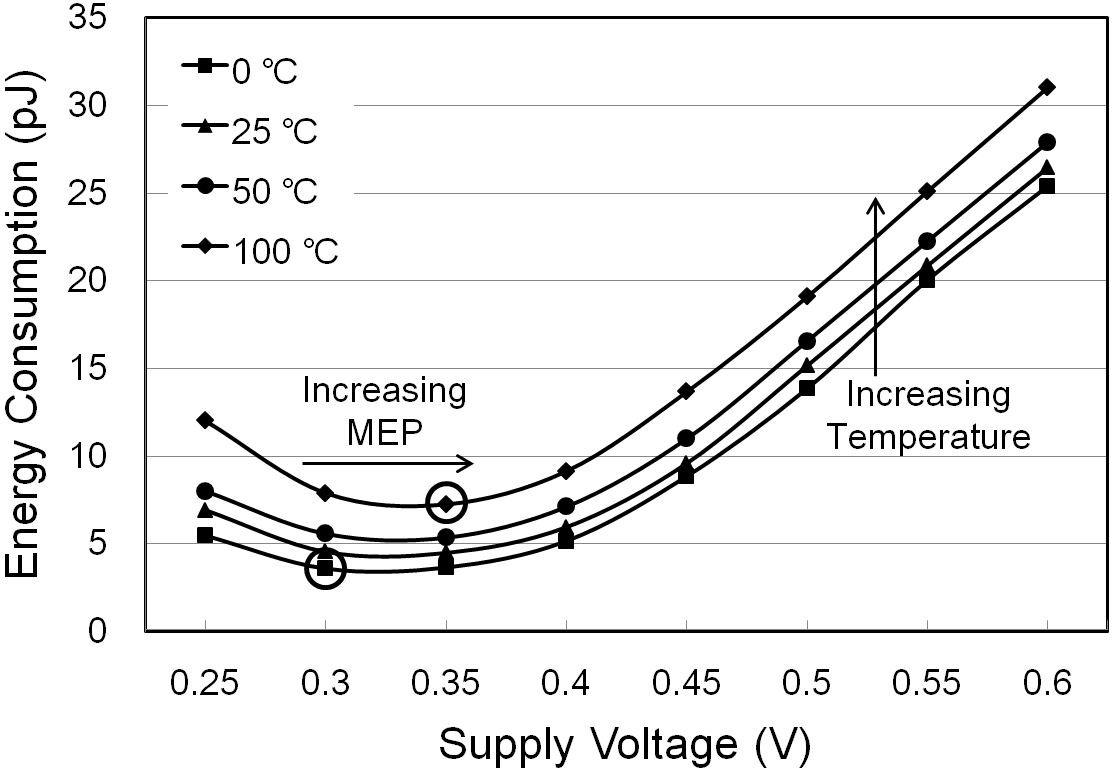

MEP is not fixed, and can vary depending on the workload given to the circuit and
the temperature at which the circuit is operating.

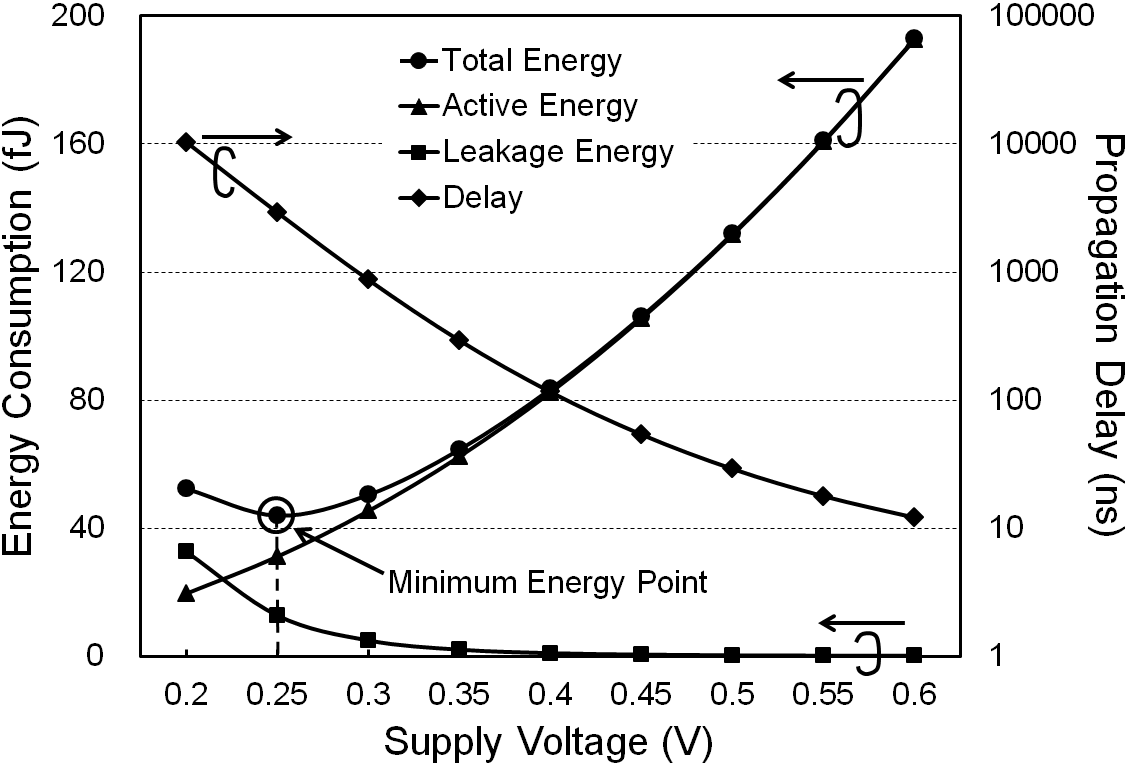

Fig. 1. Total energy, active energy, leakage energy, and propagation delay curves
to show the minimum energy point (0.25 V) for a 50-stage inverter chain.
A minimum energy tracking loop
(6) using an embedded DC-DC converter
(7) was proposed, which has several limitations due to the fact that the total energy
consumed by the load system is measured by intentionally changing the supply voltage
for the load system. First of all, the amount of energy measured by the loop inevitably
has an error proportional to the amount of supply voltage change. For example, if
the load system is consuming much energy so that the change of the supply voltage
during the sensing period becomes large, the error of the measured energy becomes
correspondingly very large, resulting in a deviation from true MEP. Secondly, the
energy of the load system cannot be measured accurately due to the limitations of
circuit components. For example, if the load system consumes very little energy so
that the supply voltage change during sensing becomes negligible (1 mV or less), the
error due to the offset of the comparator detecting the supply voltage change becomes
dominant, preventing an exact measurement of the total energy consumed. As the third
limitation, the tracking voltage step of the conventional loop is limited to 50 mV
or higher. Setting up the voltage step too small might lead the conventional loop
to settling at a non-minimum energy point due to errors
(6). Nowadays, however, the supply voltages for smartphones and smart pads need to be
fine controlled, say by a step of 10 mV or less, for finding an operating energy level
as close to the true minimum energy as possible. A voltage difference of 50 mV can
cause a large error on measured minimum energy in accordance with applications or
characteristics of CMOS processes.
In this paper, an improved minimum energy tracking (MET) hardware is proposed to address
the problems of the conventional loop explained above. Section II summarizes the energy
of digital CMOS circuits. Section III describes the architecture and operation principle
of the proposed MET hardware. Section IV, the measurement results are presented to
verify the performance. Finally, we present the conclusion in Section V.
II. ENERGY OF DIGITAL CMOS CIRCUITS
The total energy consumed by a digital CMOS circuit can be divided into active energy
and leakage energy. Fig. 1 shows the active energy, the leakage energy, the total energy, and the propagation
delay curves of a 50-stage inverter chain, where the minimum energy point occurs at
a supply voltage of around 0.25 V. The active portion of the total energy of a digital
CMOS circuit can be given as
where $C_{EFF}$ is the average effective switched capacitance, ${Q}_{ACTIVE}$ is the
active charge consumed by the circuit, and ${V}_{DD}$ is the supply voltage. As seen
in
(1), the active energy decreases quadratically with decreasing ${V}_{DD}$, which can
also be recognized by the active energy curve in
Fig. 1. The leakage portion of the total energy can be written as
where ${I}_{LEAK,AVG}$ is the average leakage current, ${T}_{D}$ is the operation
period, and${Q}_{LEAK}$ is the total leakage charge consumed by the circuit for the
given operation period. As can be seen by the leakage energy curve in
Fig. 1, the leakage energy is very small as compared to the active energy in the super-threshold
region, but sharply increases in the subthreshold region. This is because the time
to complete a given task increases exponentially as supply voltage is reduced to the
subthreshold region, during which the leakage energy is steadily consumed. Combining
(1) and
(2), the total energy can be written as
where ${Q}_{TOT}$ is total charge consumed by the circuit. As seen in
(3), ${E}_{TOT}$ can be calculated by the product of ${Q}_{TOT}$ and ${V}_{DD}$, which
implies that, for finding the minimum energy of a digital CMOS circuit, ${Q}_{TOT}$
needs to be measured as accurately as possible at a given supply voltage. As mentioned
previously, the opposite trends of the active and leakage energies of a digital CMOS
circuit for ${V}_{DD}$ change gives rise to a minimum energy supply voltage, which
usually appears in the subthreshold region. A feedback loop for accurately finding
this voltage is described in the next section.
Fig. 2. Overall block diagram of the proposed minimum energy tracking loop.
III. PROPOSED MINIMUM ENERGY TRACKING HARDWARE
Fig. 2 shows overall block diagram of the proposed MET hardware, which is comprised of an
energy sensing unit, a minimum energy finder, a linear voltage regulator, a buck converter,
a DAC, an oscillator, and a load system. The energy sensing unit calculates a quantity
(${E}_{PROP}$) that is proportional to the total energy consumed by the load system
at a specific supply voltage. The minimum energy finder finds the minimum energy point
of the load system by monitoring the values of ${E}_{PROP}$ at various supply voltages,
and outputs the result as a 6-bit digital value (${DV}_{REF}$). The DAC converts the
digital ${V}_{REF}$ (${DV}_{REF}$) into an analog ${V}_{REF}$ (${AV}_{REF}$) to be
used as the reference voltage for the buck converter or the linear voltage regulator.
During the whole period for energy sensing, in which the energy sensing unit measures
the amounts of energy consumed at various supply voltages, the load system is powered
by the linear voltage regulator, whose output stays constant in each step in the energy
sensing period (see Fig. 4). During this period, the buck converter is powered off. After the loop finds the
minimum energy point, the buck converter takes turn to power the load system with
the supply voltage, at which the load system operates with the minimum energy. The
oscillator mimics the critical path of the load system, and automatically scales the
clock frequency as the supply voltage for the load system changes.
A. Energy Sensing Unit
Fig. 3. Block diagram of the energy sensing unit.
Fig. 3 shows the block diagram of the energy sensing unit, which consists of a ring oscillator,
a frequency-to-digital converter (FDC), and a multiplier. A bias current (${I}_{OSC}$)
scaled from the regulator output current (${I}_{REG}$) is fed into the ring oscillator,
which is used to charge and discharge internal nodes of the oscillator. Thus, the
operating frequency ${f}_{OSC}$ can be written as
(8)
where ${N}_{OSC}$ is the number of stages, ${C}_{OUT}$ is the output capacitance of
each oscillator stage, and ${V}_{DD\_ EXT}$ is the supply voltage. Constant $m$ is
the scaling factor for obtaining ${I}_{OSC}$ from ${I}_{REG}$. As seen in
(4), ${f}_{OSC}$ is proportional to ${I}_{OSC}$ and thus to ${I}_{REG}$. During the energy
sensing period, ${I}_{REG}$ continues to change according to the given workload, and
thus, ${f}_{OSC}$ also continues to change proportionally. Since the load system is
powered by the linear regulator during this period, the total charge ( ${Q}_{TOT}$)
consumed by the load system can be obtained by integrating ${I}_{REG}$ during whole
energy sensing period ${T}_{ES}$, and can be written as
Integrating both sides by defining average quantities gives
where ${I}_{REG,AVG}$ is the average current and ${f}_{OSC,AVG}$ is the average frequency
during ${T}_{ES}$. Since the product of ${f}_{OSC,AVG}$ and ${T}_{ES}$ in
(6) is equal to the number of toggles (${N}_{TOG}$) at the output of the oscillator during
${T}_{ES}$, the total charge consumed by the load system during the energy sensing
period can be written as
This result indicates that the total charge consumed by the load system during the
energy sensing period can be found by counting the toggle number of the ring oscillator.
To exploit this result, the frequency-to-digital converter in the energy sensing unit
converts the toggle count of the ring oscillator into a digital value (${N}_{TOG}$),
as seen in
Fig. 3. ${N}_{TOG}$ is set to have 10 bits to cover a wide range of workload. Note that,
as seen by
(3) and
(7), multiplying ${N}_{TOG}$ (proportional to ${Q}_{TOT}$) to ${DV}_{REF}$ (a digital
equivalent to ${V}_{DD\_ INT}$) will result in a value proportional to the total energy
consumed by the load system. More specifically, ${E}_{PROP}$ (=${N}_{TOG}$·${DV}_{REF}$)
calculated by the multiplier in the energy sensing unit is a 16-bit digital data proportional
to energy consumed by the load system at a given load supply voltage.
As explained in Section I, the minimum energy tracking loop in (6) has the problem that the measured energy can have an error due to the load supply
voltage change during the energy sensing period. In contrast, the proposed energy
sensing unit supplies a stable voltage and current to the load system through a voltage
regulator during each step in the energy sensing period, resulting in a total elimination
of such error. Another problem of the energy sensing circuitry in (6) comes from the error due to the offset of the comparator detecting the supply voltage
change of the load system when the amount of change is very small. That is, if the
load system consumes very little energy, the supply voltage change will become negligibly
small, resulting in an increased error of the conventional energy sensing circuitry
due to the offset of the comparator. The proposed energy sensing unit instead employs
a current-starved ring oscillator whose operating frequency is accurately proportional
to the amount of current consumed by the load system, letting the error of the proposed
energy sensing unit kept small. Therefore, the proposed minimum energy tracking loop
can measure energy consumption more accurately than the conventional scheme.
B. Minimum Energy Tracking Algorithm
Fig. 4. Flowchart of the proposed minimum energy tracking algorithm.
After ${E}_{PROP}$, a quantity that is proportional to the total energy consumed by
the load system, is obtained by the energy sensing unit, the minimum energy finder
in
Fig. 2 identifies the minimum energy point using the tracking algorithm described in this
section. The flowchart of the proposed minimum energy point tracking algorithm is
shown in
Fig. 4, which has two tracking loops: a coarse tracking loop and a fine tracking loop. As
the first step, the coarse tracking loop calculates ${E}_{PROP}$ with an initial ${DV}_{REF}$,
which is stored in register ${E}_{PROP,REG}$. After ${DV}_{REF}$ is decreased by coarse
voltage step ${V}_{STEP,COARSE}$(50 mV), the loop recalculates and compares ${E}_{PROP}$
with the value stored in ${E}_{PROP,REG}$. If current ${E}_{PROP}$ is smaller (larger)
than ${E}_{PROP,REG}$, the loop keeps on decreasing (increasing) ${DV}_{REF}$ by the
same step and updating ${E}_{PROP,REG}$ until new ${E}_{PROP}$ becomes higher than
the value stored in ${E}_{PROP,REG}$. If that happens, the coarse tracking loop ends
and the fine tracking loop starts where the direction for the tracking is put in reverse.
This loop updates ${E}_{PROP,REG}$ by changing ${DV}_{REF}$ by fine voltage step ${V}_{STEP,FINE}$
(10 mV) as far as current ${E}_{PROP}$ is lower than the previous ${E}_{PROP}$. When
the fine tracking loop first finds new ${E}_{PROP}$ larger than the previous ${E}_{PROP}$,
the loop ends after returning ${DV}_{REF}$ by one fine voltage step back to get to
the minimum energy point.
The energy minimization point tracking algorithm proposed in the paper lets the load
system approach to the vicinity of the minimum energy point by the coarse tracking
loop, and finds the exact minimum energy point by the fine tracking loop. Since the
coarse voltage step is as much as 50 mV, the proposed tracking loop has a merit of
quickly approaching to the vicinity of the minimum energy point. Since the fine voltage
step is as small as 10 mV, the loop has another merit of accurately finding the true
minimum energy point. The tracking accuracy is good due to the fine tracking loop,
and the overall tracking speed is also good due to the coarse tracking loop.
IV. MEASUREMENT AND DISCUSSION

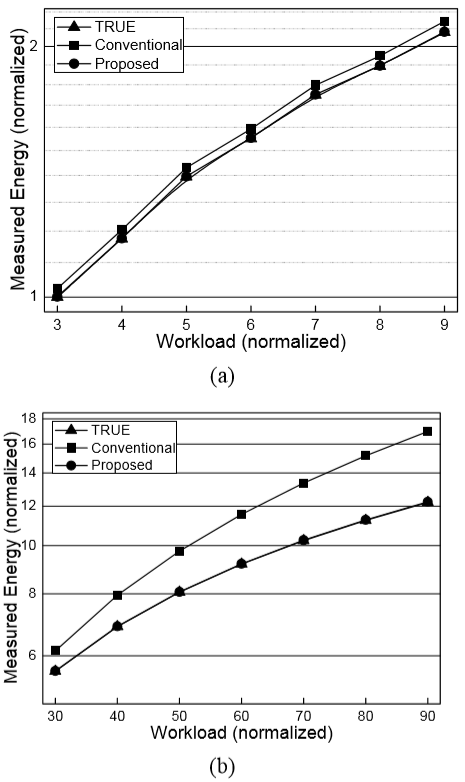

To evaluate the performance of the proposed scheme, the conventional loop in (6) and the proposed loop whose load system is an inverter chain array are designed in
a 130 nm CMOS process. A 100-stage inverter chain is used as a unit load system. To

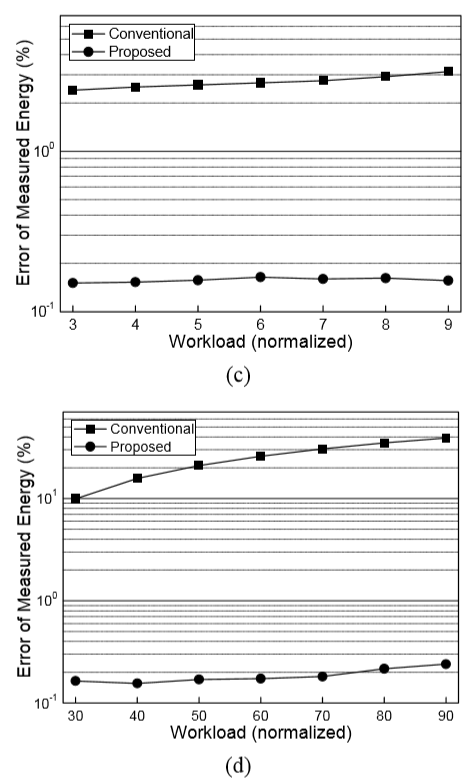

compare the accuracy of tracking loops, each loop was set to be the worst-case condition
at which the amount of the minimum energy measured by each tracking loop gives the
maximum error. Fig. 5(a) and (b) compare the normalized worst-case minimum energy measured by each tracking loop versus
light and heavy workloads, respectively. In these figures, TRUE indicates the true
minimum energy curve as a reference to compare the accuracy of the minimum energy
obtained by each loop. As Fig. 5(a) and (b) indicate, the amount of minimum energy measured by the proposed loop is very close
to and almost the same as the true minimum energy levels at light and heavy workloads,
respectively, as compared to the conventional loop. Fig. 5(c) and (d) compares the percentage error between the $true$ minimum energy and the minimum energy
measured by each loop. The error of the minimum energy measured by the conventional
loop is up to 3.1% for light workloads (3~9 times of unit workload) and up to 38.9%
for heavy workloads (30~90 times of unit workload), respectively. Meanwhile, the error
of the minimum energy measured by the proposed loop is just up to 0.16% for light
workloads (3~9 times of unit workload) and 0.24% for heavy workloads (30~90 times
of unit workload), respectively, resulting up to 95.0% and 99.4% accuracy improvement
as compare to the conventional loop. The evaluation result indicates that the proposed
loop has an ability to identify the true minimum energy level very accurately.
To assess practical applicability, the proposed MET loop with a variable word-length
multiplier (9) as the load system was fabricated. The variable word-length multiplier has two operation
modes: 16x16 and 32x32 modes. In the 16x16 mode, the lower 16-bit multiplicand and
multiplier are used, and unused inputs and partial product blocks are forced to be
zero. In the 32x32 mode, all inputs and partial product blocks are used. This multiplier
employs modified Booth algorithm and Wallace tree structure and is able to operate
down to 250 mV supply voltage. Fig. 6 shows the die photo of the test chip containing the MET hardware and the load system,
occupying 1.43x0.64 mm$^{2}$. The MET loop circuitry except the multiplier occupies
0.66x0.64 mm$^{2}$.
Fig. 5. Minimum energies at (a) light workload, (b) heavy workload, percentage errors
of measured minimum energy at (c) light workload, (d) heavy workload.

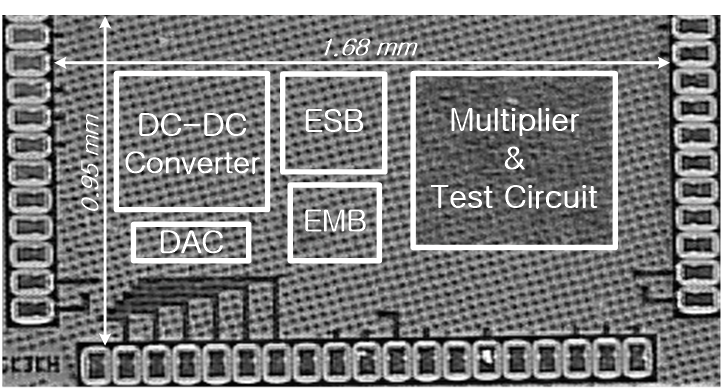

Fig. 6. Die photo of the test chip.

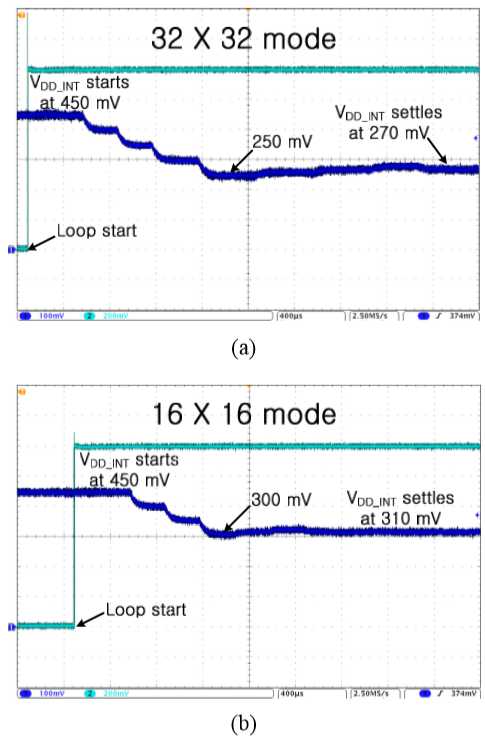

Fig. 7. Measured waveforms of the proposed MET loop with different workloads (a) 32x32
mode, (b) 16x16 mode.
Fig. 7 shows measured waveforms of the proposed MET hardware with the load system operating
at each operation mode:
Fig. 7(a) for the 32x32 operation mode and
Fig. 7(b) for the 16x16 operation mode. From
Fig. 7(a), it can be seen that the coarse tracking loop begins with ${V}_{DD\_ INT}$ at 450
mV, and searches the minimum energy point by lowering ${V}_{DD\_ INT}$ (= ${DV}_{REF}$)
by a coarse voltage step of 50 mV. Recognizing that the new ${E}_{PROP}$ at 250 mV
becomes higher than the previous ${E}_{PROP}$, the coarse tracking loop is switched
to the fine tracking loop that starts by increasing ${V}_{DD\_ INT}$ by a fine voltage
step of 10 mV. As soon as the fine tracking loop finds the new ${E}_{PROP}$ at 280
mV to become larger than the previous ${E}_{PROP}$, the proposed loop recognizes that
the minimum energy point of the multiplier occurs at 270 mV. As
Fig. 7(b) shows, the proposed tracking loop finds by a similar procedure that the minimum energy
point of the multiplier operating at the 16x16 mode occurs at 310 mV.

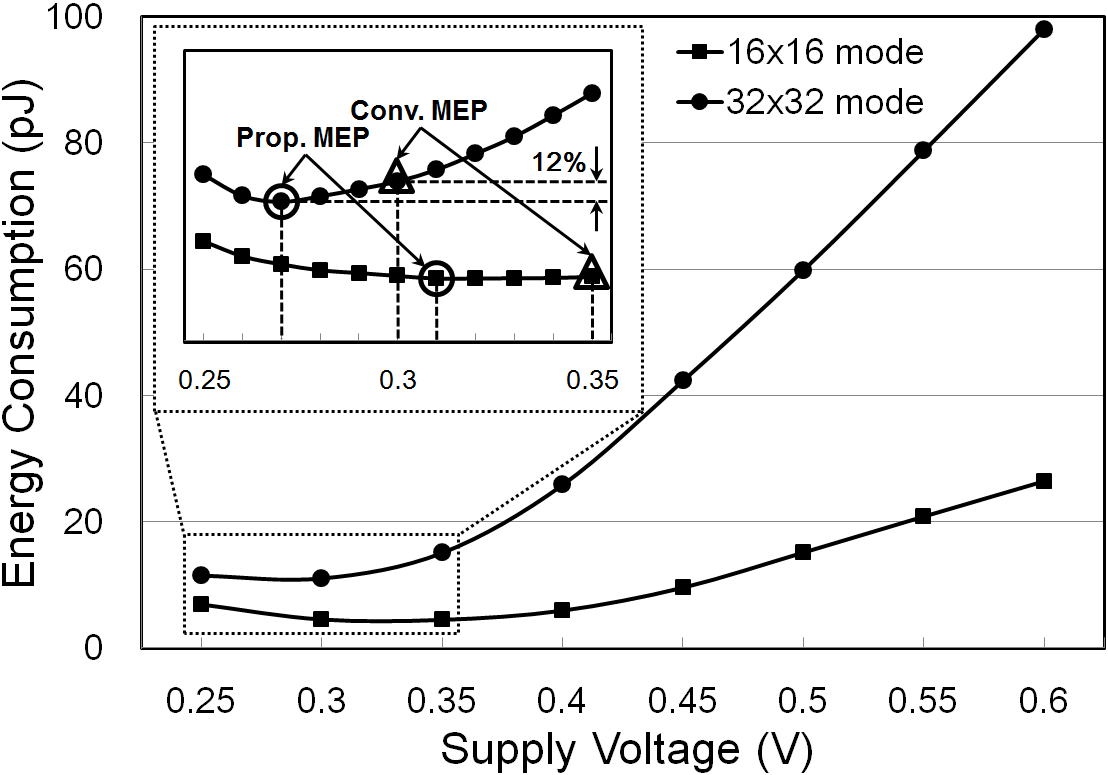

Fig. 8. Measured energy versus supply voltage with change in workload.
Fig. 9. Measured energy of 16x16 multiplier mode at various temperatures.
Fig. 8 depicts the measured energy of the variable word-length multiplier with changing
the supply voltage. The figure indicates that the more the workload is given to the
load system, the lower the minimum energy point becomes. This is expected since the
ratio of the active energy to the leakage energy at a same supply voltage becomes
higher as workload increases. The points marked with rings and triangles on the curves
are MEPs measured with tracking steps of 10 mV and 50 mV, respectively. As shown in
this figure, the minimum energy consumption of the multiplier measured with 10-mV
step was reduced by up to 12% as compare to the minimum energy consumption of the
multiplier measured only with 50-mV step. Thus, the proposed MET hardware that tracks
the MEP by a step of 10 mV can find more accurate minimum energy operating voltage
as compare to conventional loop that tracks the MEP only by 50 mV step. The MEP measured
in 10 mV of each multiplier mode appears respectively at 310 mV and 270 mV.
Fig. 9shows that the MEP on the 16x16 multiplier mode increases as temperature is increased
from 0 $^{\circ}$C to 100 $^{\circ}$C. This result is also expected since an increase
of temperature induces an increase of the leakage energy.
V. CONCLUSIONS
In this paper, a minimum energy tracking (MET) loop is proposed, which can allow a
load system to consume the minimum energy for a given workload and temperature. The
proposed minimum energy tracking loop can track the minimum energy point more accurately
than the conventional design by adopting an accurate energy sensing method and a hierarchical
tracking scheme. Experimental result in 130-nm CMOS process indicated that the proposed
loop can find the true minimum energy point far more accurately than the conventional
loop can do, resulting in about 12% more energy saving when a variable word-length
multiplier is used as the load system. According to our evaluation, it is expected
that, if the proposed minimum energy tracking loop is applied to a full-chip level
design like a microprocessor, the energy saving will be getting substantially larger.
ACKNOWLEDGMENTS
This work was partly supported by the National Research Foundation of Korea (NRF)
grant funded by the Korean Government (MSIT) (No. 2019R1A2C1011155) and by the Institute
of Information & Communications Technology Planning & Evaluation (IITP) grant funded
by the Korean Government (MSIT) (No.2019-0-00421, AI Graduate School Support Program
(Sungkyunkwan University)).
REFERENCES
Potocny M., 2018, Self Vth-compensating CMOS on-chip rectifier for inductively powered
implantable medical devices, IEEE International Symposium on Design and Diagnostics
of Electronic Circuits and Systems, pp. 158-161
Yang K., 2017, Hardware designs for security in ultra-low-power IoT systems: an overview
and survey, IEEE Micro, Vol. 37, No. 6, pp. 72-89
Manolov E. D., 2018, Design of CMOS analog circuits in subthreshold region of operation,
IEEE Int. Scientific Conference Electronics, pp. 1-4
Mohammad S., 2017, A low-power temperature-compensated CMOS peaking current reference
in subthreshold region, in IEEE International Symposium on Circuits and Systems, pp.
1-4
Park J.-H., Feb 2017, Conditional-Boosting Flip-Flop for Near-Threshold Voltage Application,
IEEE Trans. on VLSI Systems, Vol. 25, No. 2, pp. 779-782
Ramadass Y., Jan 2008, Minimum Energy Tracking Loop with Embedded DC-DC Converter
Enabling Ultra-Low-Voltage Operation Down to 250 mV, IEEE J. Solid-State Circuits,
Vol. 43, No. 1, pp. 256-265
Suh J.-D., March 2019, A fast response PWM buck converter with active ramp tracking
control in a load transient period, IEEE Trans. on CAS-II, Vol. 66, No. 3, pp. 467-471
Hwang Y.-S., Feb 2009, Low-sensitivity low-bounce high-linearity current-controlled
oscillator, IEEE Trans. on Ultrasonic, Ferroelectric, and Frequency Control, Vol.
56, No. 2, pp. 254-262
Takayanagi T., 1996, 350 MHz time-multiplexed 8-port SRAM and word size variable multiplier
for multimedia DSP, in IEEE ISSCC Dig. Tech. Papers, pp. 150-151
Author
received the B.S. and the M.S. degrees in electrical engineering from Korea Aerospace
University, Goyang, Korea, in 2003 and 2005, respectively, and the Ph.D. degrees in
electrical engineering from Sungkyunkwan University, Seoul, Korea, in 2013.
In 2013, he joined System LSI business, Samsung Electronics Co. Ltd., Suwon, Korea,
where he is currently a staff engineer at Design Technology team and involved in the
design of custom circuits for mobile AP and CIS products.
He is conducting research on high-speed, low-power mobile SOC and Sensor design methodology,
and his recent research interests include AI processor design.
received the B.S. degrees from the Department of Electronic and Electrical Engineering
from Sungkyunkwan University, Suwon, Korea, in 2015, where he is currently pursuing
the Ph.D. degree with the Department of Electrical and Computer Engineering.
His current research interests include the design of analog integrated circuits, computing
in memory, and hardware-friendly neural networks.
received the B.S. degrees in Department of Electronic and Radio Engineering from KyungHee
University, Youngin, South Korea, in 2013, and the M.S. and the Ph.D. degree in Department
of Electrical and Computer Engineering from Sungkyunkwan University, Suwon, South
Korea, in 2020.
In 2019, he joined System LSI Business, Samsung Electronics, Hwasung, South Korea,
where he is involved in the design of LDOs and DC-DC converters.
His current research interests include Power Management IC design.
received the B.S degree in school of information and communication engineering from
Korea Aerospace University, Goyang, Korea, in 2004, and M.S and Ph.D degrees in electrical
engineering from Sungkyunkwan University, Suwon, Korea, in 2007 and 2013, respectively.
From 2013 to 2016, he joined System LSI business, Samsung Electronics, Co, Ltd., Suwon,
Korea.
In 2016, he joined Foundry business, Samsung Electronics, Co, Ltd., Suwon, Korea,
where he is currently a staff engineer at IP Development team and involved in the
design of analog IP for mobile AP and foundry products.
He is currently conducting research on small-area low-power temperature sensor, analog
security detector, and voltage regulator design.
(SM’94, M’00) received the B.S. degree in electronics engineering from Yonsei University,
Seoul, Korea, in 1990, and the M.S. and the Ph.D. degrees in electrical engineering
from Korea Advanced Institute of Science and Technology (KAIST), Taejon, Korea, in
1992 and 1996, respectively.
From 1996 to 1999 he was with LG Semicon (currently Hynix Semiconductor), Seoul, Korea,
as a senior design engineer, where he was working on the design of high-density and
high-bandwidth DRAMs.
In 2000, he joined the faculty of Korea Aerospace University, Goyang, Korea, as an
assistant professor at the School of Electronics Telecommunication and Computer Engineering.
In 2005, he moved to Sungkyunkwan University, Suwon, Korea, where he is currently
a professor at the College of Information and Communication Engineering.
His research interests include high-performance processor and memory architecture/circuit
designs, high-speed transceiver design, neuromorphic integrated circuit design, and
IC designs for low-power and high-speed application.
