In this paper, the influences of design parameters on the line-edge roughness (LER) effects in a nanowire tunnel field-effect transistor (TFET) and a metal-oxide-semiconductor FET (MOSFET) have been discussed with the help of technology computer-aided design simulation. The strength of LER effects are quantitatively examined by correlation coefficients (R) between electrical performances and variations of nanowire dimensions; 1) threshold voltage (Vth) vs. channel volume, 2) ONstate current (ION) vs. channel volume, 3) Vth vs. source-channel junction area, and 4) ION vs. sourcechannel junction area. According to the simulation results, the nanowire MOSFET shows the similar values from 0.47-R to 0.74-R for all cases. On the other hand, the nanowire TFET only depends on the variation in the source-channel junction area with R more than 0.4.

※ The user interface design of www.jsts.org has been recently revised and updated. Please contact inter@theieie.org for any inquiries regarding paper submission.

### Journal Search

## I. INTRODUCTION

Recently, tunnel field-effect transistors (TFETs) have attracted many researching
groups as the promising alternatives for metal-oxide-semiconductor FETs (MOSFETs)
due to its low leakage current and small subthreshold swing (SS) ^{(1-}^{8)}. MOSFETs have theoretical limit of 60 mV/dec-SS at room temperature (i.e., 300 K)
because their carrier injections are based on thermionic emission. Meanwhile, TFETs
can overcome the limit since the function tail of Boltzmann distribution does not
exist with the help of forbidden gap ^{(1-}^{8)}. In addition, the TFETs can be easily fabricated due to their good complementary
MOS (CMOS) process compatibility ^{(9-}^{11)}. Therefore, there have been various attempts to demonstrate TFETs with the state-of-the-art
technologies ^{(12-}^{19)}.

However, there exist various sources of process-parameter fluctuations such as random
discrete dopants, oxide thickness variations and line-edge roughness (LER), which
degrade the performance of FETs ^{(16-}^{19)}. Among them, LER effects are the most significant concerns with an aggressive scaling
of minimum feature size ^{(20)}. Previous papers have focused on changes in electrical characteristics [e.g. threshold
voltages ($\textit{V}$$_{\mathrm{th}}$) or ON-state current ($\textit{I}$$_{\mathrm{ON}}$)]
by a local dimension-variation from the LER effects ^{(21-}^{23)}. These studies suggest an easy way for an evaluation and for an insight about the
effects of LER on TFETs’ electrical performances. However, there are a fundamental
limit in providing quantitative analysis on how much LER effects are correlated to
the electrical characteristics. Therefore, an advanced study about the LER effects
in terms of the quantitative correlation factor should be performed.

This paper aims to report the influences of design parameters on the LER effects in
nanowire TFETs and MOSFETs. Especially, this research focus on the channel LER since
TFET’s electrical characteristics rarely depend on the channel length variation caused
by gate LER ^{(20)}. This paper is organized as follows. First, the structure and dimension of TFETs
and MOSFETs are explained. Second, the influences of channel LER on nanowire TFETs
and MOSFETs are compared comprehensively by using full three-dimensional (3D) technology
computer-aided design (TCAD) simulation. Third, the channel LER effects are discussed
by investigating the correlation coefficients ($\textit{R}$) for the $\textit{V}$$_{\mathrm{th}}$
and $\textit{I}$$_{\mathrm{ON}}$ with respect to the channel volume, and source-channel
junction area.

## II. SIMULATION CONDITIONS

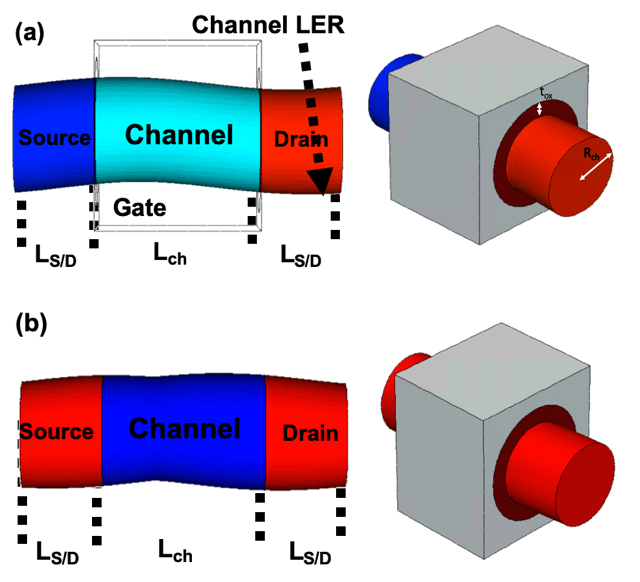

Fig. 1. Schematic structures of (a) TFET, (b) MOSFET used in TCAD simulations. They feature nanowire channel structures with LER effects.

Fig. 1 shows the structures of nanowire TFET and MOSFET to compare the channel LER effects.
The 3D TCAD simulations are performed by using Synopsys Sentaurus$^{\mathrm{TM}}$
and device design parameters are summarized in Table 1 ^{(24)}. Both FETs are designed to have the same physical dimension except the dopant type
of source. In these structures, the LER is randomly applied to make randomized deviation
to the straight channel-mask edges. The LER function is made by the power spectrum
of a Gaussian autocorrelation function ^{(24)}. In the Gaussian model, two parameters of root mean square (${\Delta}$) and correlation
length (${\Lambda}$) have been assumed to be 2 nm and 10 nm, respectively ^{(19)}. Therefore, it makes all different mask edges which have same ${\Lambda}$ and standard
deviation.

Table 1. The simulation conditions for LER effect

In order to rigorously examine TFET’s current-voltage characteristics, a dynamic nonlocal
band-to-band tunneling (BTBT) and a Shockley-Read-Hall (SRH) generation-recombination
models are used ^{(21,}^{22)}. In addition, a modified local-density approximation (MLDA) is applied to consider
quantum effect. From the simulation results, $\textit{I}$$_{\mathrm{ON}}$ is defined
as the drain current ($\textit{I}$$_{\mathrm{D}}$) when gate voltage ($\textit{V}$$_{\mathrm{GS}}$)
is 2.5 V and drain voltage ($\textit{V}$$_{\mathrm{DS}}$) is 0.5 V. The $\textit{V}$$_{\mathrm{th}}$
is extracted at the $\textit{V}$$_{\mathrm{GS}}$ where the $\textit{I}$$_{\mathrm{D}}$
is 10$^{4}$ times higher than minimum $\textit{I}$$_{\mathrm{D}}$ ($\textit{I}$$_{\mathrm{OFF}}$).

## III. RESULTS AND DISCUSSION

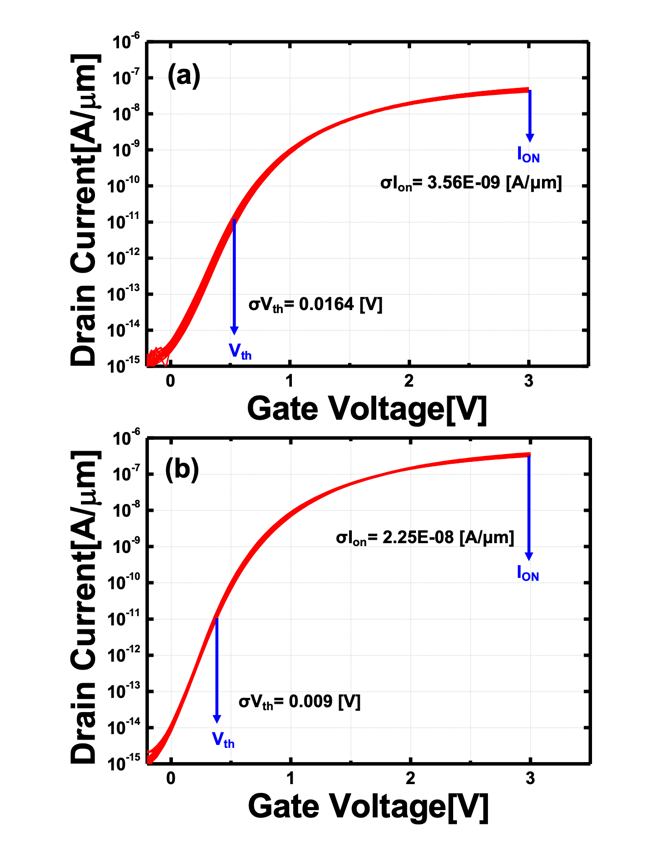

Fig. 2. Transfer curves of 28 generated TFETs and MOSFETs. The $\textit{V}$$_{\mathrm{th}}$ and $\textit{I}$$_{\mathrm{ON}}$ are extracted and indicated in each figure.

Fig. 2 shows the simulated transfer curves of TFETs [Fig. 2(a)] and MOSFETs [Fig. 2(b)] under the influences of channel LER. In the simulation, 28 device structures of
nanowire TFETs and MOSFETs have been generated and simulated, respectively. The SS
of TFET and MOSFET are extracted to be 118 mV/dec and 151 mV/dec, respectively. The
standard deviations for $\textit{I}$$_{\mathrm{ON}}$ (${σ}$$\textit{I}$$_{\mathrm{ON}}$)
and $\textit{V}$$_{\mathrm{th}}$ (${σ}$$\textit{V}$$_{\mathrm{th}}$) can be extracted
from the transfer curves. In ^{(21-}^{23)}, the analysis is performed for each LER case by confirming the variation of energy
band diagram, ${σ}$$\textit{I}$$_{\mathrm{ON}}$ and ${σ}$$\textit{V}$$_{\mathrm{th}}$.
However, each analysis result cannot provide quantitative correlation for several
LER cases and is valid only for cases where the analysis has been performed. In order
to obtain the reliable analysis, the correlation through regression analysis should
be performed. The correlation coefficient ($\textit{R}$) for quantity $\textit{x}$
and $\textit{y}$ is defined as

$$\begin{equation*} R=\frac{cov\left(x,y\right)}{\sigma _{x}\sigma _{y}} \end{equation*}$$

where $\textit{cov}$($\textit{x}$, $\textit{y}$), ${\sigma}$$_{x}$ and ${\sigma}$$_{y}$
are the covariance and the standard deviations for quantity $\textit{x}$ and $\textit{y}$,
respectively ^{(26)}. The $\textit{R}$ values are assumed to be in the range from ${-}$1 to +1. A +1-$\textit{R}$
means a perfect positive correlation, while a -1-$\textit{R}$ means a perfect negative
correlation. On the other hand, a 0-$\textit{R}$ means that there is no relationship
^{(26)}. The channel LER effects are examined by extracting the $\textit{R}$ for $\textit{V}$$_{\mathrm{th}}$
and $\textit{I}$$_{\mathrm{ON}}$ with respect to the channel volume and source-channel
junction area for the MOSFETs and TFETs, respectively (Fig. 3). Fig. 4 summarizes the $\textit{R}$ for each case. First, in the aspect of $\textit{V}$$_{\mathrm{th}}$,
TFET shows the highest 0.913-$\textit{R}$ with respect to the source-channel junction
area because the channel LER causes significant tunneling barrier width variation
^{(20)}. On the other hand, MOSFET shows relatively high $\textit{R}$ for both the channel
volume (-0.602-$\textit{R}$) and the source-channel junction area (-0.738-$\textit{R}$).
It is because the $\textit{V}$$_{\mathrm{th}}$ of MOSFET is determined by an entire
energy barrier at the channel. It is noteworthy that, unlike to the TFET, the $\textit{V}$$_{\mathrm{th}}$
of MOSFET shows the negative $\textit{R}$ for both geometrical parameters; the $\textit{V}$$_{\mathrm{th}}$
decreases as the source-channel junction area or the channel volume increases. It
is attributed to the increase of short-channel effects (SCE) (e.g., drain-induced
barrier lowering) ^{(5)}. On the other hand, the $\textit{V}$$_{\mathrm{th}}$ of TFET is directly affected
by the decrease of gate controllability as the source-channel junction area increases
(i.e., positive $\textit{R}$), because it has high immunity to the SCE ^{(8)}.

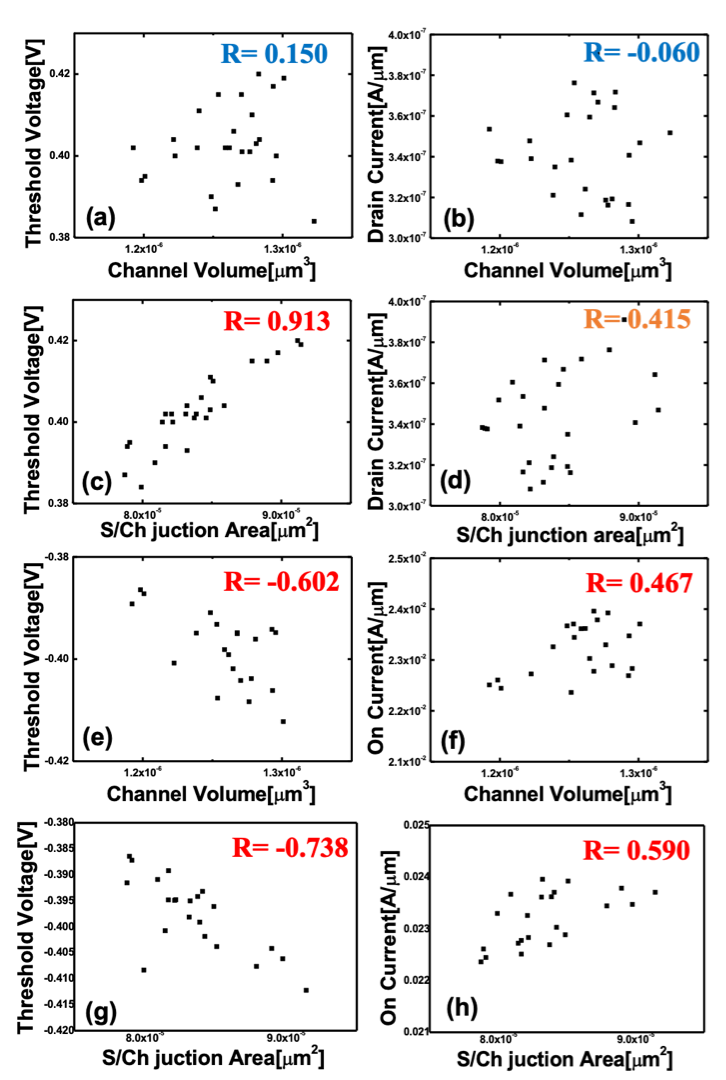

Fig. 3. Regression fitting curves between channel volume and (a) $\textit{V}$$_{\mathrm{th}}$, (b) $\textit{I}$$_{\mathrm{ON}}$ in TFETs, between source-channel junction area, (c) $\textit{V}$$_{\mathrm{th}}$, (d) $\textit{I}$$_{\mathrm{ON}}$ in TFETs, between channel volume, (e) $\textit{V}$$_{\mathrm{th}}$, (f) $\textit{I}$$_{\mathrm{ON}}$ in MOSFETs, between source-channel junction area, (g) $\textit{V}$$_{\mathrm{th}}$, (h) $\textit{I}$$_{\mathrm{ON}}$ in MOSFETs.

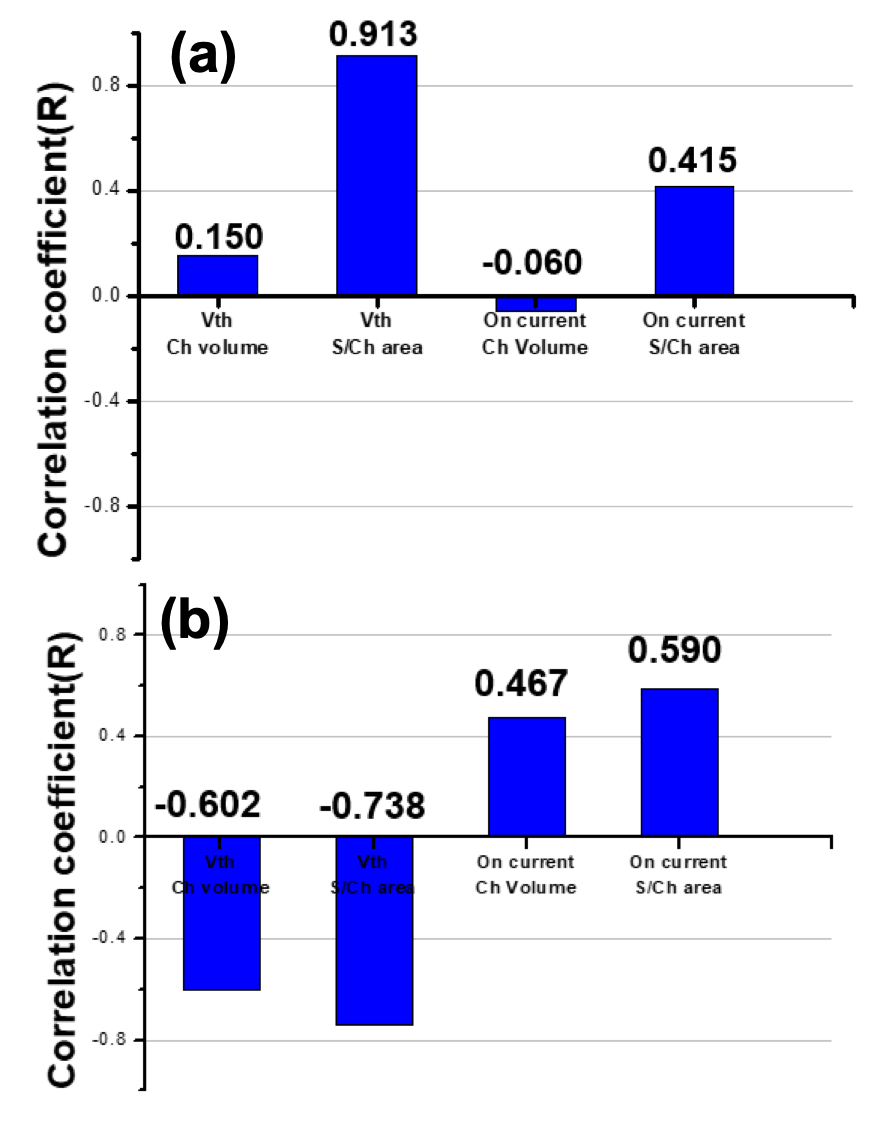

Fig. 4. $\textit{R}$ value between $\textit{V}$$_{\mathrm{th}}$, $\textit{I}$$_{\mathrm{ON}}$, channel volume, and source-channel junction area obtained from the channel LER effect for (a) TFETs, (b) MOSFETs.

Second, there is a similar correlation in terms of $\textit{I}$$_{\mathrm{ON}}$. In
other words, the $\textit{I}$$_{\mathrm{ON}}$ of TFET mainly depends on the source-channel
junction area, while the $\textit{I}$$_{\mathrm{ON}}$ of MOSFET depends on both the
channel volume and the source-channel junction area. It is interesting that the $\textit{I}$$_{\mathrm{ON}}$
of both FETs are increased although the gate controllability is decreased as the source-channel
junction area or the channel volume increases; positive $\textit{R}$. It is attributed
to the definition of $\textit{I}$$_{\mathrm{ON}}$ [Fig. 2]. It is well known that the channel surface potential is rarely modulated by $\textit{V}$$_{\mathrm{GS}}$
after inversion layer formation, regardless of TFET and MOSFET ^{(27)}. In short, the source-channel junction area and/or the channel volume directly determine
the $\textit{I}$$_{\mathrm{ON}}$ ($\textit{R}$ > 0), because the $\textit{I}$$_{\mathrm{ON}}$
is extracted at high $\textit{V}$$_{\mathrm{GS}}$.

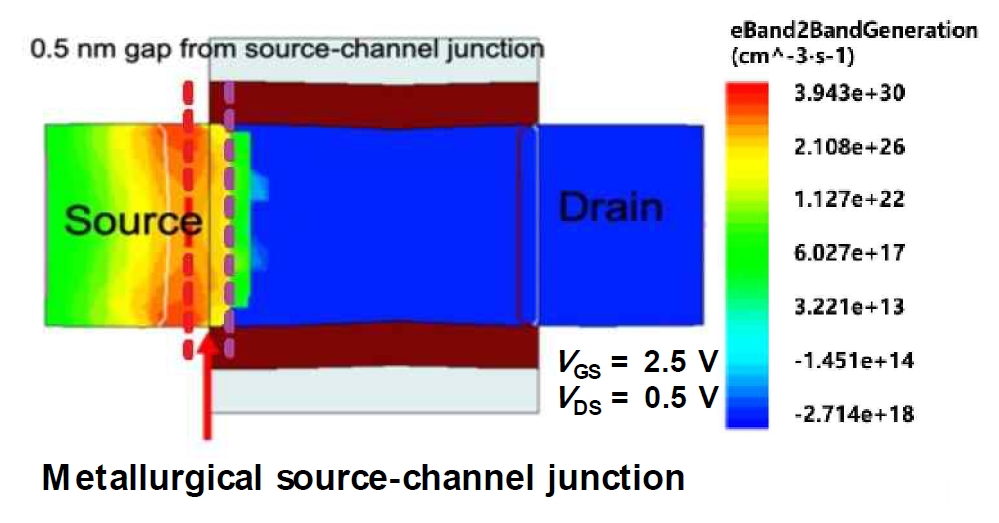

There is another noteworthy point in TFET that the $\textit{R}$ for $\textit{I}$$_{\mathrm{ON}}$ (0.415) is relatively lower than the $\textit{R}$ for $\textit{V}$$_{\mathrm{th}}$ (0.913) with respect to the source-channel junction area. Therefore, the relative weak correlation is investigated by extracting the source-channel junction area at different positions. If the area is extracted 0.5 nm away from the metallurgical source-channel junction to the source direction, $\textit{R}$ is 0.708 (Fig. 5, red dot line). On the other hand, $\textit{R}$ becomes 0.105 if the area is extracted 0.5 nm away from the metallurgical source-channel junction to the channel direction (Fig. 5, purple dot line). In detail, as $\textit{V}$$_{\mathrm{GS}}$ increases, the source region is depleted and the location of maximum BTBT rate is shifted from the metallurgical junction to the source direction (Fig. 5). Therefore, the $\textit{V}$$_{\mathrm{th}}$ of TFETs shows that it depends on metallurgical junction, while $\textit{I}$$_{\mathrm{ON}}$ depends on effective junction area.

## IV. CONCLUSIONS

The influences of channel LER on the MOSFETs and TFETs have been discussed with the help of $\textit{R}$. Based on the results, we found that the $\textit{I}$$_{\mathrm{ON}}$ and $\textit{V}$$_{\mathrm{th}}$ of the nanowire TFET are determined by the tunneling barrier width. In addition, considering the BTBT rate near source-channel junction, the region affecting $\textit{I}$$_{\mathrm{ON}}$ and $\textit{V}$$_{\mathrm{th}}$ is very narrow. In order to control the variation in nanowire TFET's $\textit{I}$$_{\mathrm{ON}}$ and $\textit{V}$$_{\mathrm{th}}$, more research should be performed on the tunnel junction area where $\textit{R}$ values are affected. In future works, research will have to be conducted to reduce the correlation in channel LER effect by increasing the source-channel junction.
