  1. (School of Electrical and Electronic Engineering, University of Seoul, 163 Seoulsiripdae-ro, Dongdaemun-gu, Seoul 02504, Korea)

Ferroelectric, P(VDF-TrFE), PVDF, P3HT, organic FET, sol-gel method


Poly(vinylidene fluoride)(PVDF) is a ferroelectric polymer whose use in organic ferroelectric devices has been widely investigated (1). Increasing the PVDF β-phase, demands that certain processes such as stretching and poling take place (1,2). PVDF has a crystalline phase in at least four forms (i.e., α-, β-, γ-, and δ) (2,10). Generally, PVDF has a non-polar α-phase that can be transformed into a γ- or δ-phase through the application of an electric field. In the case of a γ- or δ- phase, a crystalline phase with some polarity but a stronger ferroelectric property is found in the β-phase, but it must be obtained through stretching or poling work as mentioned (1,2).

On the other hand, poly(vinylidene fluoride-trifluoroethylene)(P(VDF-TrFE)) which features a combination of TrFE in PVDF has been developed to resolve this problem, and is considered a material with crystallinity and ferroelectric properties superior to those in pure PVDF. This ferroelectric copolymer has been studied in various fields, including functional organic devices such as sensors, transducers, and field-effect transistors (11). In recent P(VDF-TrFE) studies, various attempts have been made to increase the β-phase and physical stability of thin films. One such method involves the use of buffer layers, such as polyvinyl alcohol, polyvinyl pyrrolidone, and poly(methyl-methacrylate) (3). The use of a mixture of PVDF and P(VDF-TrFE) has also been studied with the aim of maximizing the ferroelectric properties and improve the dielectric properties of P(VDF-TrFE) films (2).

Miscibility is an important factor in mixing two or more polymers (2). Chemical studies have previously addressed this issue in experiments featuring blended PVDF/P(VDF-TrFE). According to research results, in the crystallization process, PVDF crystallizes spherically and P(VDF-TrFE) crystallizes into a stacked lamellar structure, while in the case of blended thin films, both polymers crystallize together, with a no clear phase separation. What is interesting is that the Curie transition temperature of blended thin films is lower than that of pure PVDF films [2, 5, 8]. The ability to lower the Curie temperature is advantageous in creating organic devices in which low-temperature processes are important (6,12). Published results show that if PVDF content is higher than that of P(VDF-TrFE), and that residual polarization is low due to the formation of the β-phase, even after heat treatment. We therefore sought to observe changes in characteristics when PVDF was added, relative to pure P(VDF-TrFE).

In this study, we fabricated metal-ferroelectric-metal (MFM) capacitors with TiN substrates and ferroelectric field-effect transistors (FeFETs) using poly(3-hexylthiopene) (P3HT) to compare the device characteristics of pure P(VDF-TrFE) and blended PVDF/P(VDF-TrFE) thin films. We used P3HT because it can be easily deposited in a thin film through the spin- coating method; as such, there was no need to use expensive deposition equipment. Additionally, P(VDF-TrFE) (9) which is a ferroelectric material can be manufactured through a spin-coating method. Therefore, its use was adopted to simplify the process (4,7,13). This is the first time research of the PVDF/PVDF-TrFE blending films apply for Fe-OFETs..


The materials used were further purification or purchased from the following companies: PVDF (Sigma-Aldrich, USA), P(VDF-TrFE) (Piezotech, 75/25 mol%, France), Poly(3-hexylthiopene-2,5-diyl)(P3HT; Rieke Metals, Inc., USA), N,N-Dimethylformamide(DMF; Acros Organics, Belgium), and chloroform (99.8%; Samchun, Republic of Korea).

P(VDF-TrFE) and PVDF/P(VDF-TrFE) were each prepared with a solution bearing a ratio of 3wt%; DMF was used as the solvent. Two different PVDF/P(VDF-TrFE) ratios were used and subsequently compared to a pure P(VDF-TrFE) film namely, 50:50 and 30:70. Furthermore, each solution was stirred in 12 hours. Then, also they have to the aging time during 1 day. Prepared solutions were using for ferroelectric thin films. and there were formed on the TiN substrate by spin-coating at 3000 rpm, using the prepared solution and crystallizing at 150$^{\circ}$C in a dry oven for 1 h. P3HT was used as an organic channel layer; a solution was prepared by dissolving 1wt% in chloroform, followed by the formation of a thin film by spin-coating and annealing at 100$^{\circ}$C in a dry oven for 1 h. All electrodes were fabricated by Au evaporation, using a thermal evaporator.

In this study, we fabricated MFM capacitors to investigate the electrical and ferroelectric properties of P(VDF-TrFE) and PVDF/P(VDF-TrFE) ferroelectric layers. To characterize the ferroelectric layer in term of such properties as remnant polarization, coercive field, and capacitance MFM capacitors were fabricated and measured in more than five samples under each condition. In addition, we supplemented the basis of the judgment that affects the characteristics of the device, by using AFM to analyze the thin film surface of the ferroelectric layer. Finally, we fabricated Fe-FETs using P3HT and we observed certain device characteristics such as threshold voltage and memory window to investigate the possibility of eventually improving device characteristics.


Fig. 1 is a polarization-electricfield (P-E) graph of the pure P(VDF-TrFE) and PVDF/P(VDF-TrFE) films. The P-E hysteresis loops were measured by applying an electric field until the polarization characteristics became saturated (~2 MV/cm). For pure P(VDF-TrFE) films, when the applied electric field was 2 MV/cm, the coercive field and remnant polarization were 0.79 MV/cm and 5.05 μC/cm$^{2}$, respectively. The PVDF content was then increased to 30% and 50%, and changes in remnant polarization $P_{\mathrm{r}}$ were observed. When the PVDF content was 30%, the remnant polarization was 5.48 μC/cm$^{2}$ and the coercive field was 0.76 MV/cm; these characteristics were either similar to those of the pure P(VDF-TrFE) thin film, or the remnant polarization tended to improve. The 50% thin blended film, on the other hand, exhibited reduced properties relative to pure P(VDF-TrFE) in terms of remnant polarization and coercive field; this appears to be due to a decrease in the crystallized β-phase (2). Table 1 lists the remnant polarization $P_{\mathrm{r}}$ and coercive field values derived in this study.

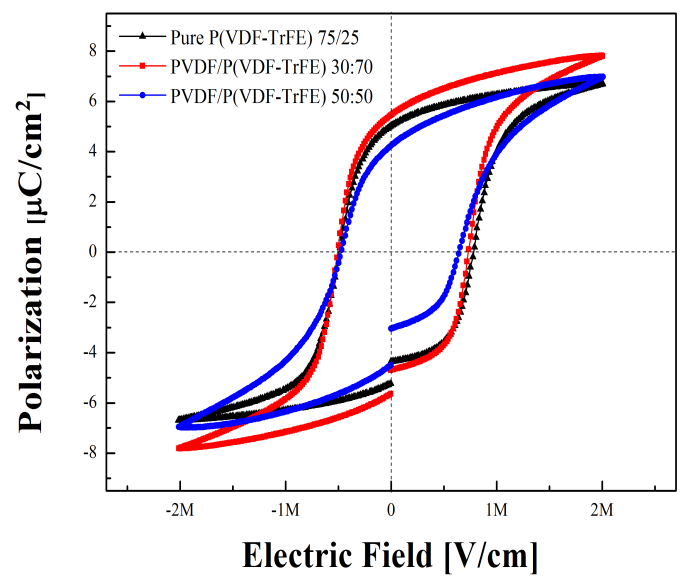

Fig. 1. P-E hysteresis properties of pure P(VDF-TrFE) and PVDF/P(VDF-TrFE) films at 30:70 and 50:50 ratios.


Table 1. Summary of remnant polarization $P_{\mathrm{r}}$ and coercive field






Pr (μC/$cm^{2}$)




Coercive field (MV/cm)




Fig. 2 shows the C-V results. Every C-V characteristics showed the butterfly curve and Capacitance was increased when a PVDF concentration was increased from 0 to 50 wt%. Then, 50% PVDF concentration film has the smallest memory window properties. Moreover, the 30% PVDF concentration film has the largest memory window. Therefore, This C-V characteristic results were affected to Fe-OFETs characteristics as insulating properties.

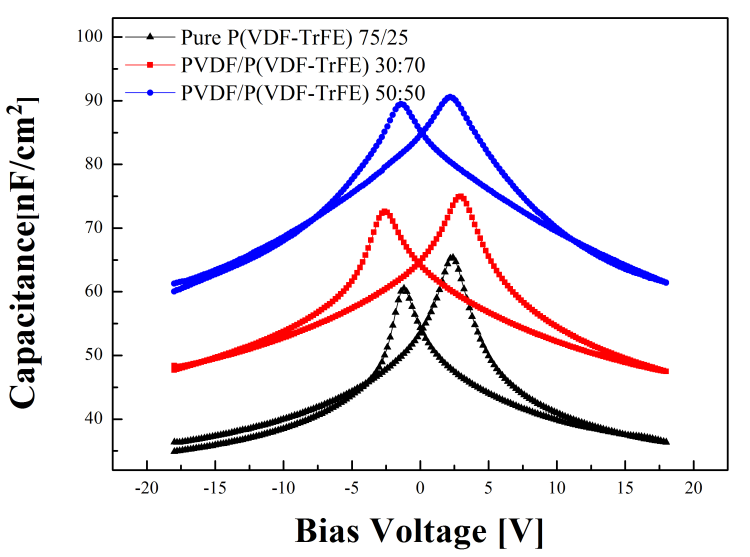

Fig. 2. C-V characteristics of pure P(VDF-TrFE) and blended PVDF/P(VDF-TrFE) films, blended at 30:70 and 50:50.


As mentioned, PVDF and P(VDF-TrFE) are known to take different crystalline forms during crystallization: PVDF crystals tend to form as lamellae of spherical crystals, whereas P(VDF-TrFE) crystals form as stacked lamellar structures (1,2). Fig. 3. shows the surface morphology of pure P(VDF-TrFE) and blended PVDF/P(VDF-TrFE) thin films. The pure P(VDF-TrFE) thin film has a stacked lamellar structure, and as the PVDF content increases, the crystalline characteristics of PVDF and P(VDF-TrFE) coexist. Particularly, in the case of the 50:50 ratio, it was found that the P(VDF-TrFE) crystal volume was reduced. It was confirmed that the ferroelectric properties of the 50:50 sample were attenuated in both the P-E and C-V characteristics curves.

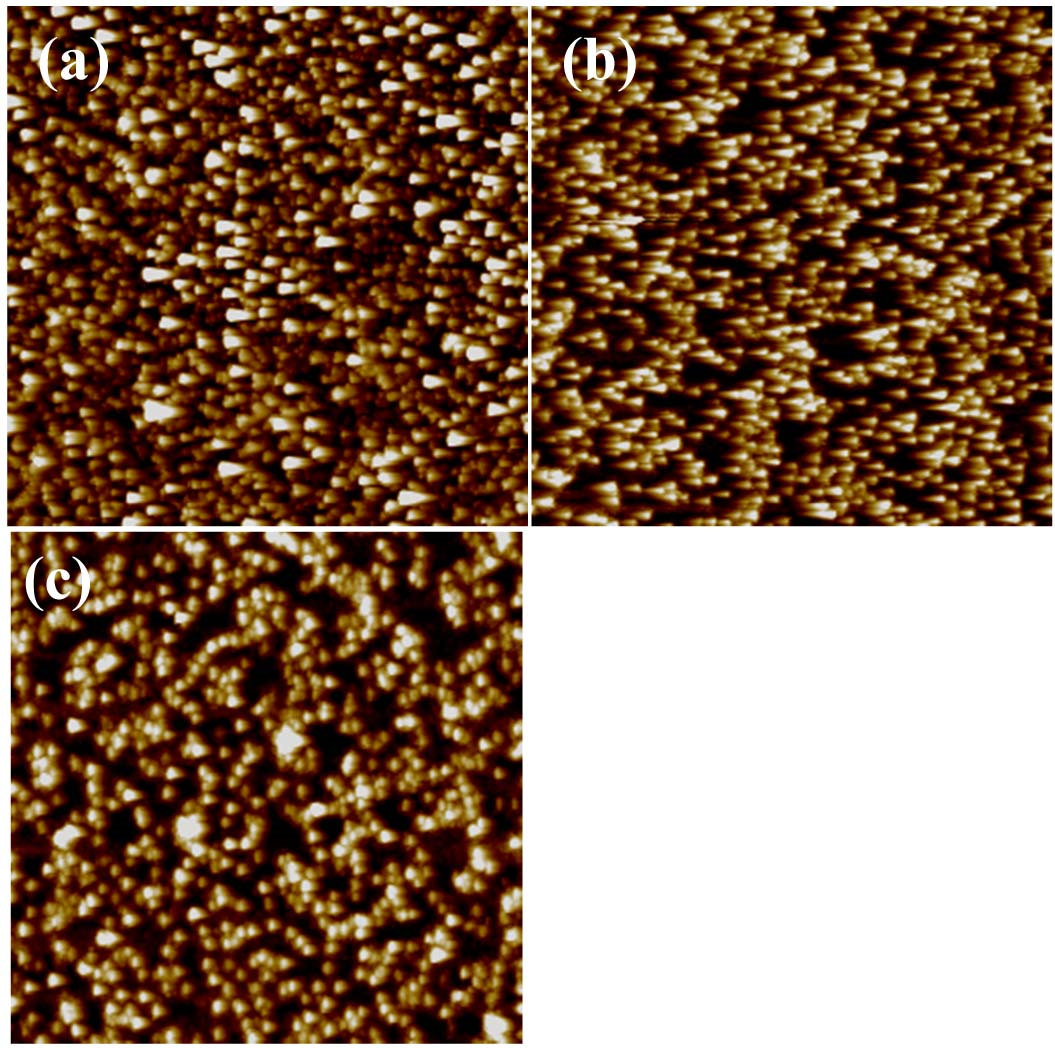

Fig. 3. AFM images of surfaces of (a) Pure P(VDF-TrFE), (b) PVDF/P(VDF-TrFE) 30:70, (c) PVDF/P(VDF-TrFE) 50:50. The image size is 20 x 20 μm.


Fig. 4(a) shows the drain current-gate voltage ($I_{D}$-$V_{G}$) characteristic curves of the FeFETs, from using P3HT as a organic channel layer on a TiN substrate. Gate voltage was applied at strength ranging from -15V to 15V; the drain voltage value of -10V was used to evaluate the device characteristics. First, in the case of pure P(VDF-TrFE) thin films, the on-current and off-current were approximately 1.63${\times}$10$^{-6}$ and 2.32${\times}$10$^{-7}$, respectively. On the other hand, the on/off ratio of the blended film was improved. For a sample of the 30:70, it became current in the on state when improved to about 1.18${\times}$10$^{-5}$; if the current was off, there was a similar level for pure P(VDF-TrFE) film, of 2.12${\times}$10$^{-7}$. Sample with a 50:50 ratio was found to have the most pronounced on/off ratio characteristics with an on-current of 1.01${\times}$10$^{-5 }$and an off-current of 4.04${\times}$10$^{-8}$. Furthermore, the field effect mobility ($μ_{\mathrm{FET}}$) can be extracted from the Eq. (1)

$I_{DS}=\frac{1}{2}\frac{W}{L}C_{FE}\mu _{FET}\left(V_{GS}- V_{TH}\right)^{2}$

where $I_{\mathrm{DS}}$ is the drain to source current, $C_{\mathrm{FE}}$ is the capacitance of the Ferroelectric insulator per unit area, and $V_{\mathrm{GS}}$ is the gate-to-source voltage. The extracted hole mobility was increased from 0.005 cm$^{2}$/V·s to 0.06~cm$^{2}$/V·s when PVDF concentration was increased from 0 to 50 wt%.

In addition, we used extrapolation to calculate the threshold voltage and memory window, the core characteristics of FeFET devices; the results thereof are shown in Fig. 4(b). According to the calculated results, the memory window has a pattern similar to that of the 4-5V level overall, but the 50:50 samples tend to have a slightly smaller memory window than those in other experimental conditions.

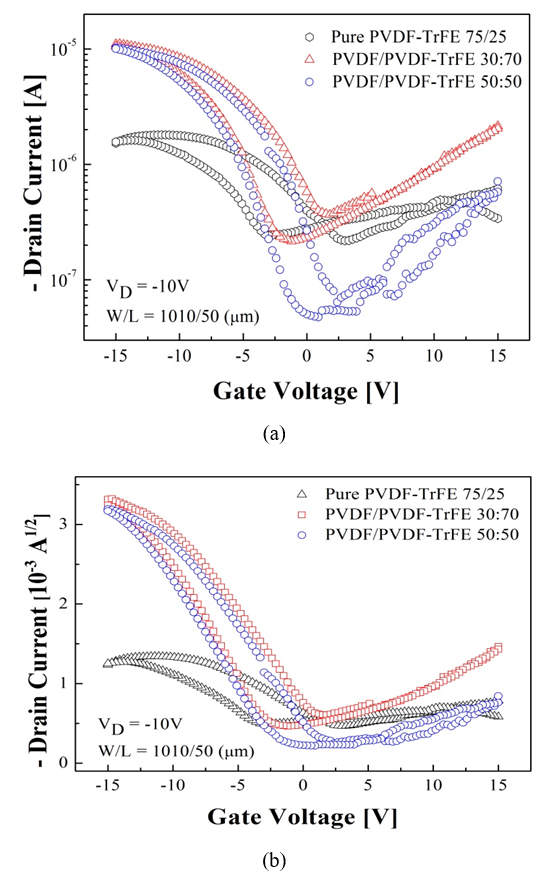

Fig. 4. (a) Drain current – gate voltage curve, (b) (-$I_{\mathrm{D}}$)$^{\mathrm{1/2}}$-$V_{\mathrm{G }}$curve of FeFETs.



In this experiment, we conducted a characterization experiment with an organic FeFET device, using blended PVDF/P(VDF-rFE) thin films. First, blended PVDF/P(VDF-TrFE) thin films were fabricated and compared with pure P(VDF-TrFE) thin films. Then, a FeFET using P3HT was fabricated, and the device characteristics were observed and compared. The blended film was found to be more electrically stable than the pure P(VDF-TrFE) film. Especially, for the 30:70 sample, both the ferroelectric and electrical characteristics of the FeFET were found to be superior to those of the pure P(VDF-TrFE) film.


This work was supported by the 2017 Research Fund of the University of Seoul.


Jia Nan, et al. , Dec., 2016, Crystallization behavior and electroactive properties of PVDF,P(VDF-TrFE) and their blend films, Polymer Testing 57, pp. 302-306DOI
Meng Nan, et al. , Feb., 2017, Nanoscale interfacial electroactivity in PVDF/PVDF-TrFE blended films with enhanced dielectric and ferroelectric properties, Journal of Materials Chemistry C 5, pp. 3296-3305DOI
Gregorio R., Jr , Sousa Borges D., Jul., 2008, Effect of crystallization rate on the formation of the polymorphs of solution cast poly(vinylidene fluoride), Polymer, Vol. 49, pp. 4009-4016DOI
Lee G. G., et al. , Jul., 2011, The flexible non-volatile memory devices using oxide semiconductors and ferroelectric polymer poly(vinylidene fluoride-trifluoroethylene), Applied Physics Letters, 99, 012901DOI
Ploss B., et al. , Nov., 1999, Dielectric nonlinearity of PVDF-TrFE copolymer, Polymer, Vol. 41, pp. 6087-6093DOI
Kim M. G., et al. , Apr., 2017, Nonvolatile organic field-effect transistors fabricated on Al foil substrates, IEICE Electronics Express, Vol. 14, pp. 1-6DOI
Furukawa T., et al. , Jul., 2006, Factors Governing Ferroelectric Switching Characteristics of Thin VDF/TrFE Copolymer Films, IEEE Transactions on Dielectrics and Electrical Insulation, Vol. 13, pp. 1120-1131DOI
Cho Yuljae, et al. , Aug., 2016, Enhanced Ferroelectric Property of P(VDF-TrFE-CTFE) Film Using Room-Temperature Crystallization for High-Performance Ferroelectric Device Applications, Adv. Electron. Mater. 2, 1600225DOI
Knotts G., et al. , May., 2014, Enhanced performance of ferroelectric-based all organic capacitors and transistors through choice of solvent, Appl. Phys. Lett, 104, 233301DOI
Meng Nan, et al. , Sep., 2016, Processing and characterization of free standing highly oriented ferroelectric polymer films with remarkably low coercive field and high remnant polarization, Polymer, Vol. 100, pp. 69-76DOI
Shaik H., et al. , Mar., 2016, Towards β-phase formation probability in spin coated PVDF thin films, J. Polym Res 24(2017)35 Journal of polymer research, 2, 1600225DOI
Lee G. G., et al. , Aug 2011, Low-Voltage Operation of Ferroelectric Gate Thin Film Transistors Using Indium Gallium Zinc Oxide-Channel and Ferroelectric Polymer Poly(vinylidene fluoride-trifluoroethylene), Applied Physics Express 4, 091103DOI
Fujisaki Sumiko., et al. , Jul., 2008, Organic Ferroelectric Diodes with Long Retention Characteristics Suitable for Non-Volatile Memory Applications, Applied Physics Express, 1, 081801DOI
