  1. (Department of Electronics Engineering, Chungnam National University, Daejeon, Korea)
  2. (Department of Electronic and Electrical Engineering, Ewha Womans University, Seoul, Korea)
  3. (Department of Electronic Engineering, Hanyang University, Seoul, Korea)



Active shield, hardware security, invasive attack, micro-probing attempt, top metal shield

I. INTRODUCTION

In modern society, the security of information stored inside chips is very important. In 2016, IHS Technology predicted that with the growth of the Internet of Things (IoT), the IoT market will expand to 30.7 billion devices by 2020 and 75.4 billion devices by 2025 (1). Most devices connected to the IoT store either personal or business information, which includes information about health, location, finances, military affairs, and other areas. These IoT devices communicate with one another, driving the emergence of security integrated circuits (ICs) that protect stored data using either software or hard-ware techniques.

IoT devices containing multiple pieces of information are more likely to be targeted by attackers. Typically, the attacker wants to either obtain the cryptographic key or force the security IC to give up critical data. State-of-the-art attacks on security ICs are classified as invasive, non-invasive, or semi-invasive attacks. In this paper, we focus on invasive attacks, also called physical attacks, including micro-probing attempts and focused ion beam (FIB) chip editing. An invasive attack is a method of accessing the chip package directly and either observing the IC or analyzing the internal structure of the chip. Such attacks consist mainly of layout reconstruction along with de-packaging, micro-probing attempts, and FIB chip editing. A layout reconstruction attack is a procedure for obtaining the layout of a chip (2). An attacker extracts a high-resolution image of each of the chip’s layers through an optical microscope equipped with a CCD camera while simultaneously removing the metal layers, which can be observed through the program. In particular, intellectual property blocks (IPs) such as ROM, RAM, EEPROM and address bus lines are easily distinguishable (3). The reverse-engineered layout information obtained based on the acquired images is available for both micro-probing attempts and FIB chip editing. A micro-probing attempt is a method of reading, modifying, or forcing the data of a metal layer using a probe station. An attacker can probe the bus line inside the chip to acquire its data, and the state of the bus line can be modified via data injection (4,5). In addition, an attacker can use an FIB attack to either remove or connect some circuitry to obtain important information from the chip. For example, when a circuit related to an encryption operation is removed, the encryption will no longer be performed as normal, and the encryption key and other information can easily be taken (6). Security ICs can be seriously threatened by these attacks, so they require on-chip countermeasures. Micro-probing attempts and FIB chip editing attacks have also been reported on mobile devices such as smart cards (7,8).

The use of either a passive or an active metal shield is a simple and effective means of protecting against invasive attacks. Passive metal shields are related to the capacitive measurement of the top mesh. However, a passive metal shield, such the one used by Laackmann and Taddiken (9), cannot be detected, even when part of the top mesh is modified with FIB chip editing (10). Most security ICs use active metal shields to both detect micro-probing attempts and initialize critical information when a breach is detected. The active shield is designed to cover the entire protection block, and it requires at least one metal routing layer. Some smart cards use complete metal layer as an active shield, which increases their manufacturing costs by about 15% (11). Previous studies have shown that a conventional active shield for a security IC consisting of a top metal shield is not very effective against micro-probing attacks (12-14). Manich and Strasser (15) studied top metal shields capable of detecting micro-probing attempts by using two synchronized ring oscillators. The micro-probing detector proposed in Manich and Strasser (15) can be disabled by using micro-probing to force a fixed voltage to an XOR gate after having removed the top metal used as a path for each ring oscillator with an FIB chip editing attack. An active shield consisting of a shift register that used a top metal line at regular intervals was proposed in Janke and Engl (16). This method is more difficult for micro-probing attacks to defeat, but it can still be breached by solving a system of linear equations (17). Ngo et al. (10) prevented bypass attacks by sending different data to each of the top metal lines. In this paper, the data passing through a top metal line cannot be predicted by an attacker because a block cipher operating in chained block cipher (CBC) mode is used. However, it is possible to acquire information from the security IC by probing ends of the top metal line that the random data is obtained on one side and the same data is applied to the other side via operating a micro-probing attempt, as shown in Fig. 1. Briais et al. (5) implemented an intricate spaghetti-routing in a dense wire mesh. The mesh consisted of two metal layers and made it almost impossible to track the random signal injected into the top metal line without the layout reconstruction technique. The use of more than two metal lines as an active shield, however, increases manufacturing costs. Moreover, the constraints provided by the metal layers become a limiting factor in the circuit design.

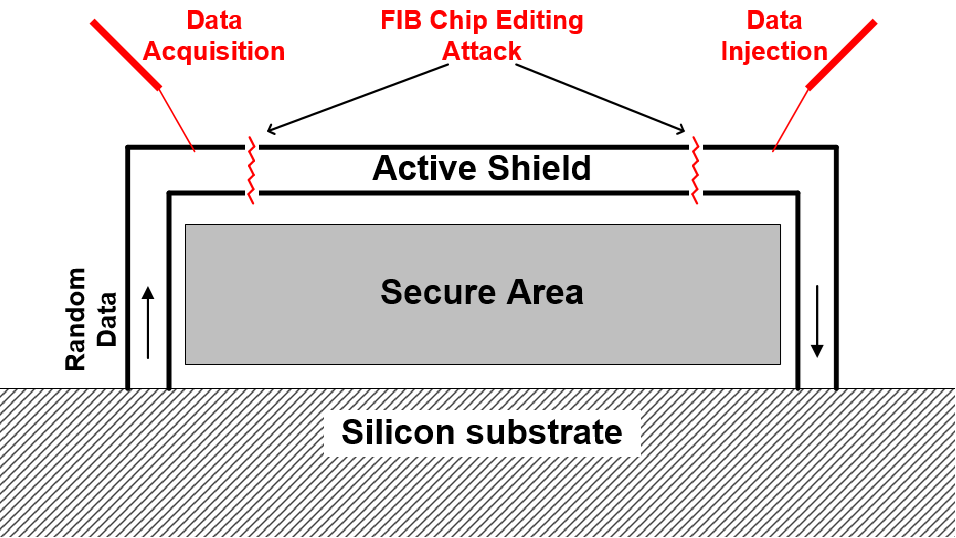

Fig. 1. Types of physical attacks on a secure IC with an active shield.

../../Resources/ieie/JSTS.2019.19.3.260/fig1.png

Many research studies have been performed on both passive and active metal shields (10, 12, 13, 18). However, no shield has yet been proposed to prevent both micro-probing attempts and FIB attacks, including top-metal removal and bypass attacks. In this article, a new active metal shield structure named the “reconfigurable top metal shield” that solves the current security issues related to state-of-the-art attacks is presented. Its main features are as follows:

·The top metal shield protects against both FIB chip editing and bypass attacks because the top metal lines are reconfigured at random.

·Two asynchronous ring oscillators are used to detect micro-probing attempts.

·It consists of only a top metal layer.

The rest of this paper is organized as follows. Section II presents the reconfigurable top metal shield structure that has both FIB chip editing detection and micro-probing attempt detection modes. In addition, simulation results of the proposed top metal shield are presented. In Section III, both an FIB chip editing attack and a micro-probing attempt are implemented using an FIB instrument and a probe station, respectively, to test the shield. Finally, in Section IV, conclusions are drawn and discussed.

II. RECONFIGURABLE TOP METAL SHIELD

1. Shield Architecture

The reconfigurable top metal shield consists of two parts:

·The FIB chip editing detection part, which is composed of an external random number generator (RNG), re-routing switch arrays in multiplexer (mux) arrays 1 and 2, a top metal shield, and detection logic. After comparing the TX generated by both the RNG and the RX passing through the top metal shield, the detection logic generates a D_OUT signal if the TX and RX signals are different.

·The micro-probing attempt detection part, which is composed of two oscillators, four multiplexer in mux arrays 1 and 2, a top metal shield, and detection logic. The top metal shield and detection logic blocks are shared with the FIB chip editing detection part. When an attacker attempts to micro-probe the top metal shield, the delay of one of ring oscillators is increased by the probing capacitance. If the phase difference between the two ring oscillators is greater than 90°, the detection logic generates both D_OUT and reset signals.

The structure of the top metal shield proposed in this paper represents a simple and effective countermeasure against both micro-probing attempts and FIB chip editing attacks. The top metal layer consists of a mesh structure.

2. FIB Chip Editing Detection Mode

The structure of the FIB chip editing detection mode is shown in Fig. 2. Whenever this mode is active, the micro-probing attempt detection mode is inactive. Both ends of the top metal line are connected to the re-routing switch array that receives the same 5-bit signal from the RNG. The re-routing switch creates non-overlapping P1 and P2 signals by utilizing the random signal received from the RNG. The TX1 and TX2 signals generated by the external RNG pass through both the top metal line and the re-routing switch arrays. If the top metal line is not tampered with by external attacks, the TX and RX signals are the same regardless of the re-routing switch array’s sw[4:0] signal. Whenever the top metal line is either removed or bypassed by an FIB chip editing attack, both top metal shield removal and bypass attacks are detected, because the top metal line connection is reconfigured according to the states of the re-routing switch array’s sw[4:0] signal. If the two pairs of TX and RX signals differ, the detection logic generates the D_OUT signal.

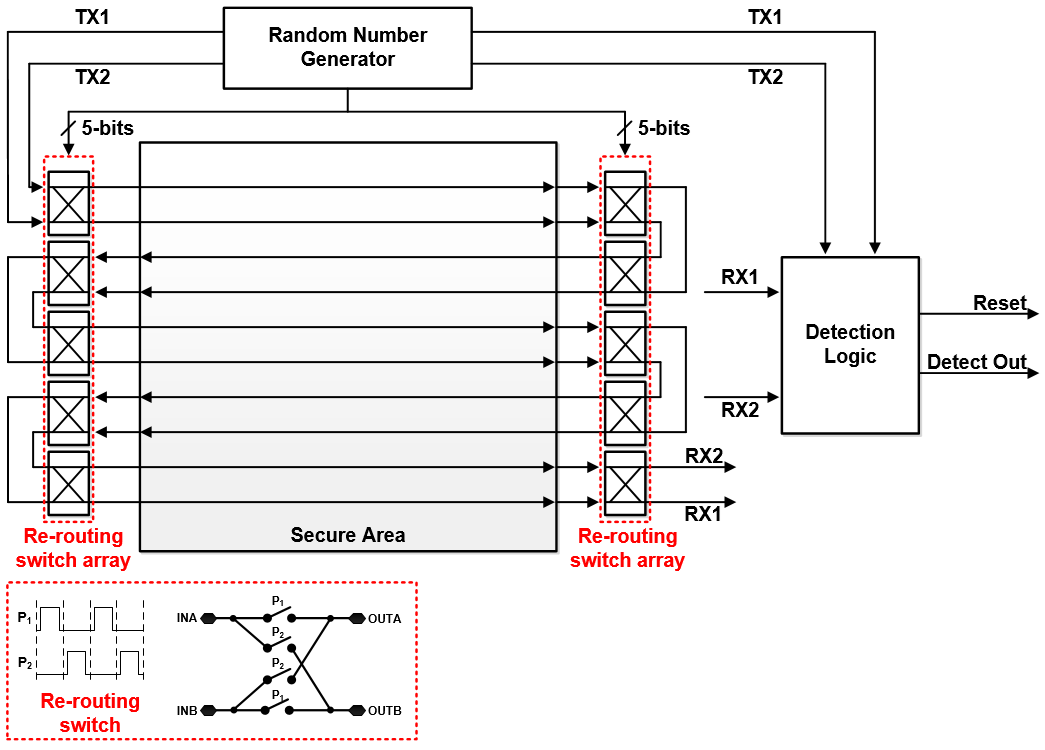

Fig. 2. FIB chip editing detection mode structure.

../../Resources/ieie/JSTS.2019.19.3.260/fig2.png

An example of the operation of the FIB chip editing detection mode is shown in Fig. 3. The blue line indicates the path of the TX1 signal when a sw[4:0] signal generated from the RNG is input to the re-routing switch arrays. This paper assumed that the fourth and fifth top metal lines are bypassed. Fig. 3(a) shows the path of the TX1 signal when a sw[4:0] signal of 1b'10110 is generated in the RNG. In this case, the same TX1 signal passes through the fourth and fifth top metal lines, and a bypass attack is not detected temporarily. If the sw[4:0] signal generated by the RNG, however, changes to 1b'10010, as shown in Fig. 3(b), the TX1 signal passes through fourth top metal line and the TX2 signal passes through fifth top metal line. As a result, a bypass attack is detected. No absolute equipotential path exists, because the top metal line’s connection is changed continuously by the random 5-bit signal. Previous studies generated different signals for each top metal line to prevent FIB chip editing attacks (10,16). Compared with the active shields proposed in those studies, the proposed reconfigurable top metal shield effectively reduces the number of generated signals and can detect FIB chip editing attacks using only 7 signals.

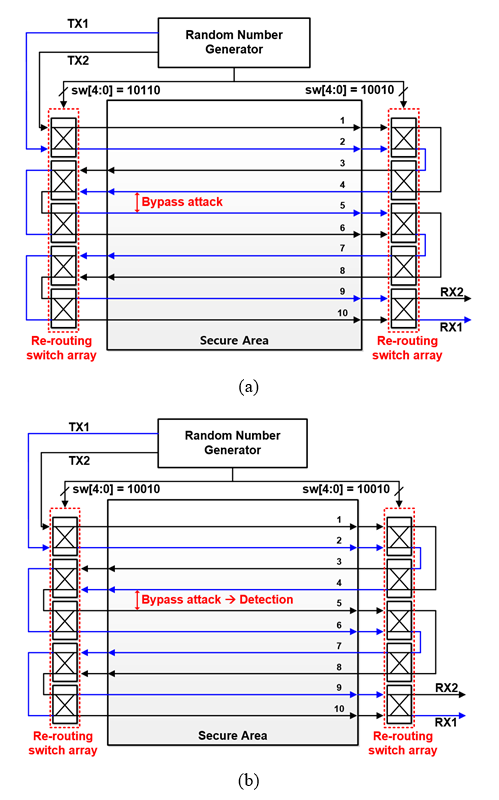

Fig. 3. Paths of TX1 signal in FIB chip editing detection mode when re-routing switch arrays receive (a) sw[4:0] = 10110, (b) sw[4:0] = 10010.

../../Resources/ieie/JSTS.2019.19.3.260/fig3.png

The simulation results for the FIB chip editing detection mode are shown in Fig. 4. A simulation was performed in which two arbitrary top metal points were bypassed using an FIB attack. The TX and RX signals were the same before the bypass attack, so no detection signal was generated. A bypass attack enabled signal was generated after 2 ms. The re-routing switch arrays on the reconfigurable top metal shield caused the TX and RX signals to differ. Therefore, a bypass attack can be detected using the pulse frequency of the D_OUT signal.

Fig. 4. Simulation results of FIB chip editing detection mode (a) bypass attack enabled, (b) TX1, (c) RX1, (d) D_OUT.

../../Resources/ieie/JSTS.2019.19.3.260/fig4.png

3. Micro-probing Attempt Detection Mode

The micro-probing attempt detection mode structure is illustrated in Fig. 5. Whenever the micro-probing attempt detection mode is active, the FIB chip editing detection mode is inactive. In addition, both ring oscillators pass through different top metal lines, and the lines used for these paths are periodically switched by four multiplexer. The basic security concept is the detection of the capacitance that occurs from a micro-probing attempt. Each top metal line has the same parasitic resistance and parasitic capacitance values in a result of the layout parasitic extraction. When an attacker attempts to micro-probe the top metal shield, probing capacitances of several fF to tens of fF are added to the probed metal lines, as was the case in previous studies (11, 19, 20). The added probing capacitance causes a phase difference between the two ring oscillators. If this phase difference is greater than 90°, the detection logic generates D_OUT and reset signals to resynchronize the ring oscillators.

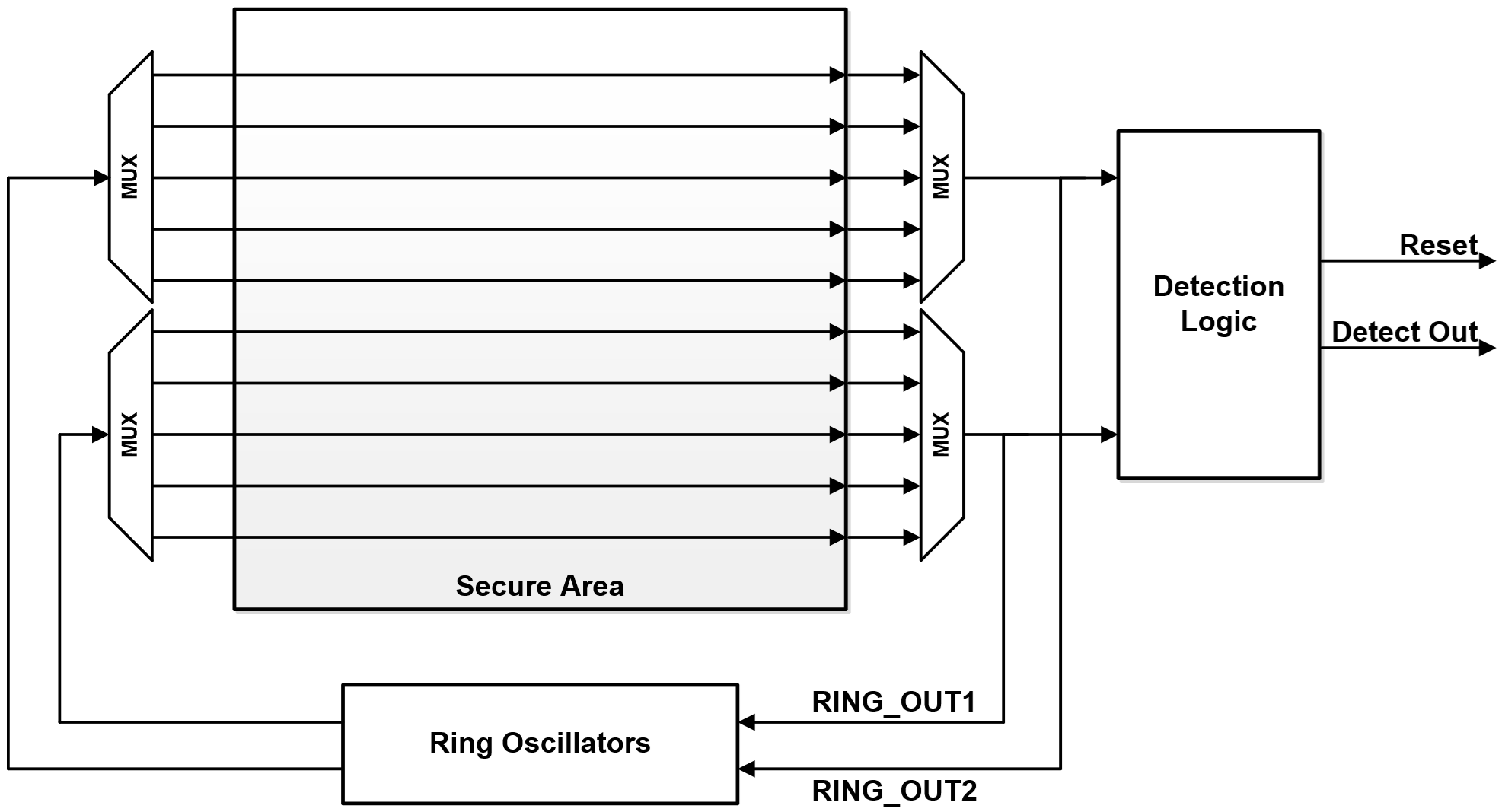

Fig. 5. Micro-probing attempt detection mode structure.

../../Resources/ieie/JSTS.2019.19.3.260/fig5.png

The simulation results of the micro-probing attempt detection mode are shown in Fig. 6. A simulation was performed in which arbitrary top metal points were probed using a micro-probe station. In this simulation, the actual parasitic components of the top metal shield layout were calculated using the layout parasitic extraction. The parasitic capacitance extracted from one line of the top metal shield was approximately 90 fF, and the parasitic resistance was measured at approximately 51.5 Ω. Phase differences between the two ring oscillators rarely occur without a micro-probing attempt. Each of the oscillators in this simulation essentially had a 968 ns delay. To compensate for problems that occurred in the process, the detection logic automatically generated a periodic reset signal to synchronize the two oscillators. A micro-probing attempt enabled signal was generated after 5 μs. The parasitic capacitance created by micro-probing of approximately 100 fF was attached to the top metal line of the ring oscillator, including the RING_OUT2 signal. The delay time of one of the ring oscillators increased, and a phase difference occurred due to the parasitic capacitance added to the top metal line. The delay of the ring oscillator with the probing capacitance of approximately 100 fF increased to 976 ns. When the phase difference between the two ring oscillators reached 90°, the D_OUT signal was output and the oscillators were resynchronized, as shown in Fig. 6. During the simulation, micro-probing attempts could be detected in as little as 30 μs.

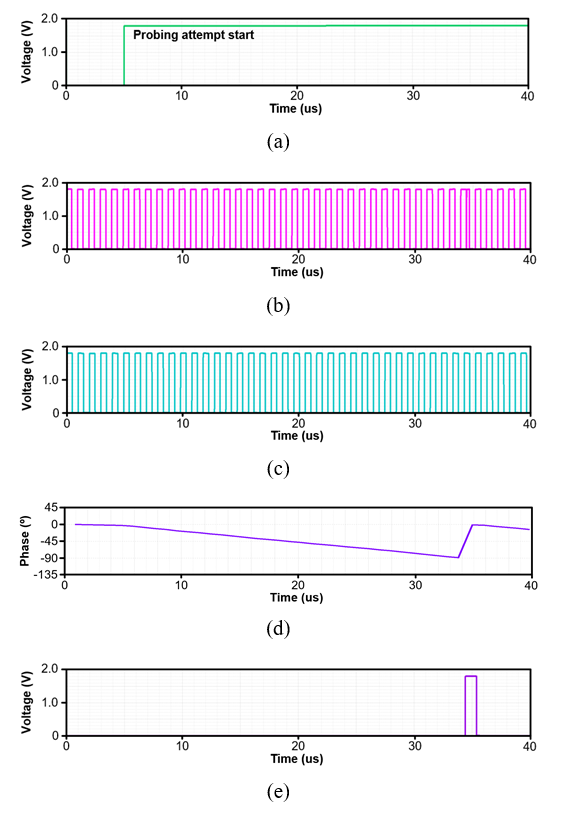

Fig. 6. Simulation results of micro-probing attempt detection mode (a) micro-probing attempt enabled, (b) RING_OUT1, (c) RING_OUT2, (d) Phase difference of the two signals, (e) D_OUT.

../../Resources/ieie/JSTS.2019.19.3.260/fig6.png

III. EXPERIMENTAL RESULTS

We verified our presented idea, reconfigurable top metal shield, in a standard 0.18 μm 1P6M CMOS process. Fig. 7 shows the test setup for the reconfigurable top metal shield.

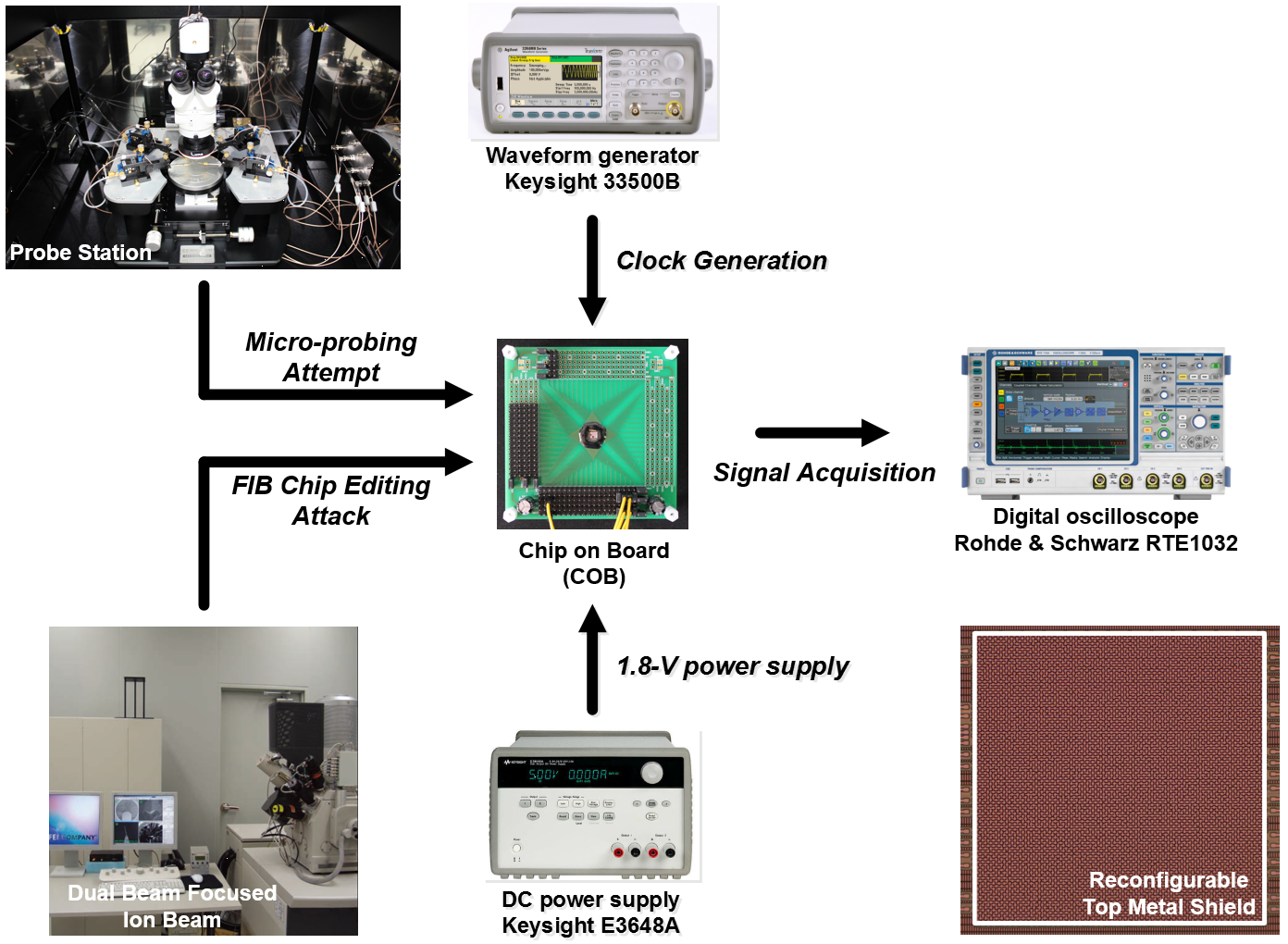

Fig. 7. Test setup with reconfigurable top metal shield.

../../Resources/ieie/JSTS.2019.19.3.260/fig7.png

1. FIB Chip Editing Detection Results

We carried out an FIB attack on the reconfigurable top metal shield using a dual-beam focused ion beam (DB-FIB) NOVA200. A bypass attack was implemented based on FIB chip editing, as shown in Fig. 8. Two adjacent top metal lines were disconnected and then reconnected using a metal deposition. Fig. 9 shows the experimental results of the FIB chip editing detection mode before the bypass attack. The TX1 and RX1 signals always output the same value, and there was no detection signal. The D_OUT signal’s glitch was removed from the detection logic and, consequently, did not cause any problems. The experimental results of the FIB chip editing detection mode after the bypass attack are illustrated in Fig. 10. When an arbitrary TX1 signal was applied from an external signal generator, the RX1 signal passed through the top metal line differed from the TX1 signal. As a result, the reconfigurable top metal shield proposed in this study is an effective countermeasure against various attacks based on FIB chip editing.

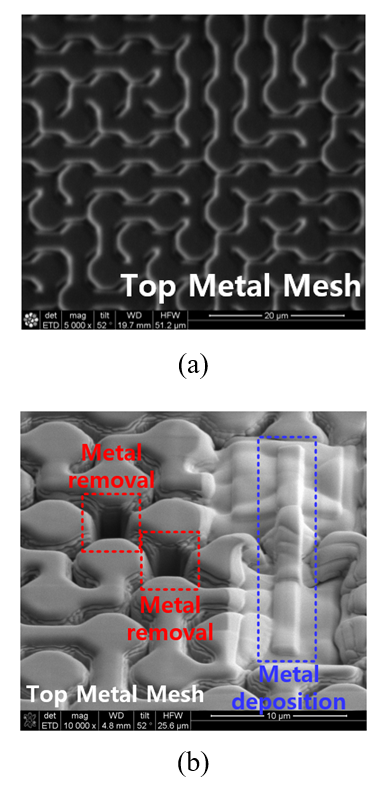

Fig. 8. Implementation of bypass attack using FIB (a) before bypass attack, (b) after bypass attack.

../../Resources/ieie/JSTS.2019.19.3.260/fig8.png

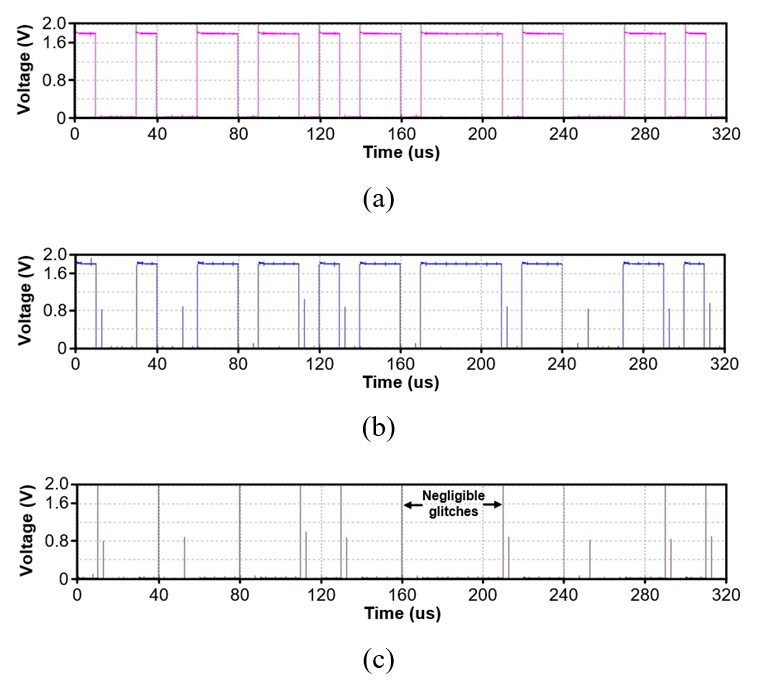

Fig. 9. Experimental results of FIB chip editing detection mode before bypass attack (a) TX1, (b) RX1, (c) D_OUT.

../../Resources/ieie/JSTS.2019.19.3.260/fig9.png

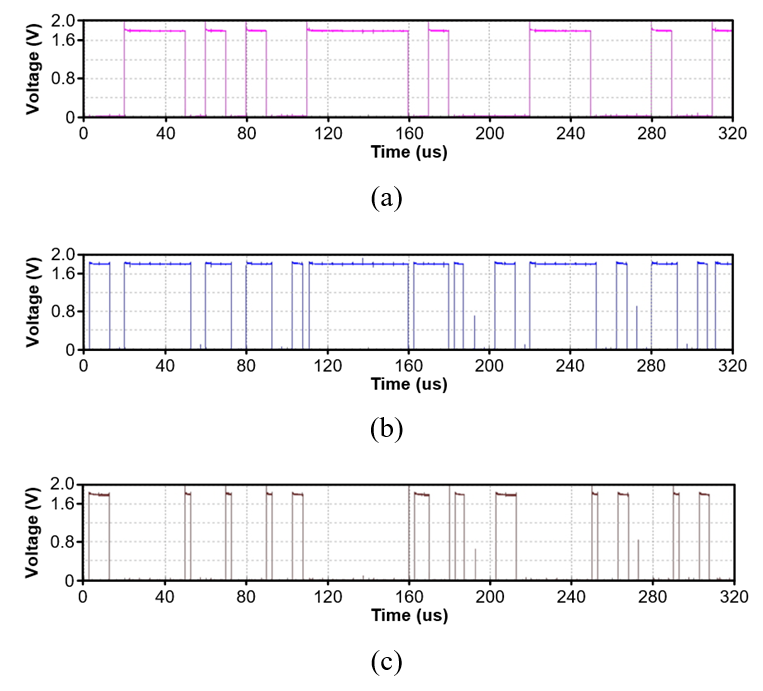

Fig. 10. Experimental results of FIB chip editing detection mode after bypass attack (a) TX1, (b) RX1, (c) D_OUT.

../../Resources/ieie/JSTS.2019.19.3.260/fig10.png

2. Micro-probing Attempt Detection Results

The experimental environment of the micro-probing attempts made in this study is illustrated in Fig. 11. These attempts were implemented using a probe station with a resolution of 3 μm. The micro-probe and oscilloscope were connected to read the data from the top metal line, and the passivation layer above the reconfigurable top metal shield was removed.

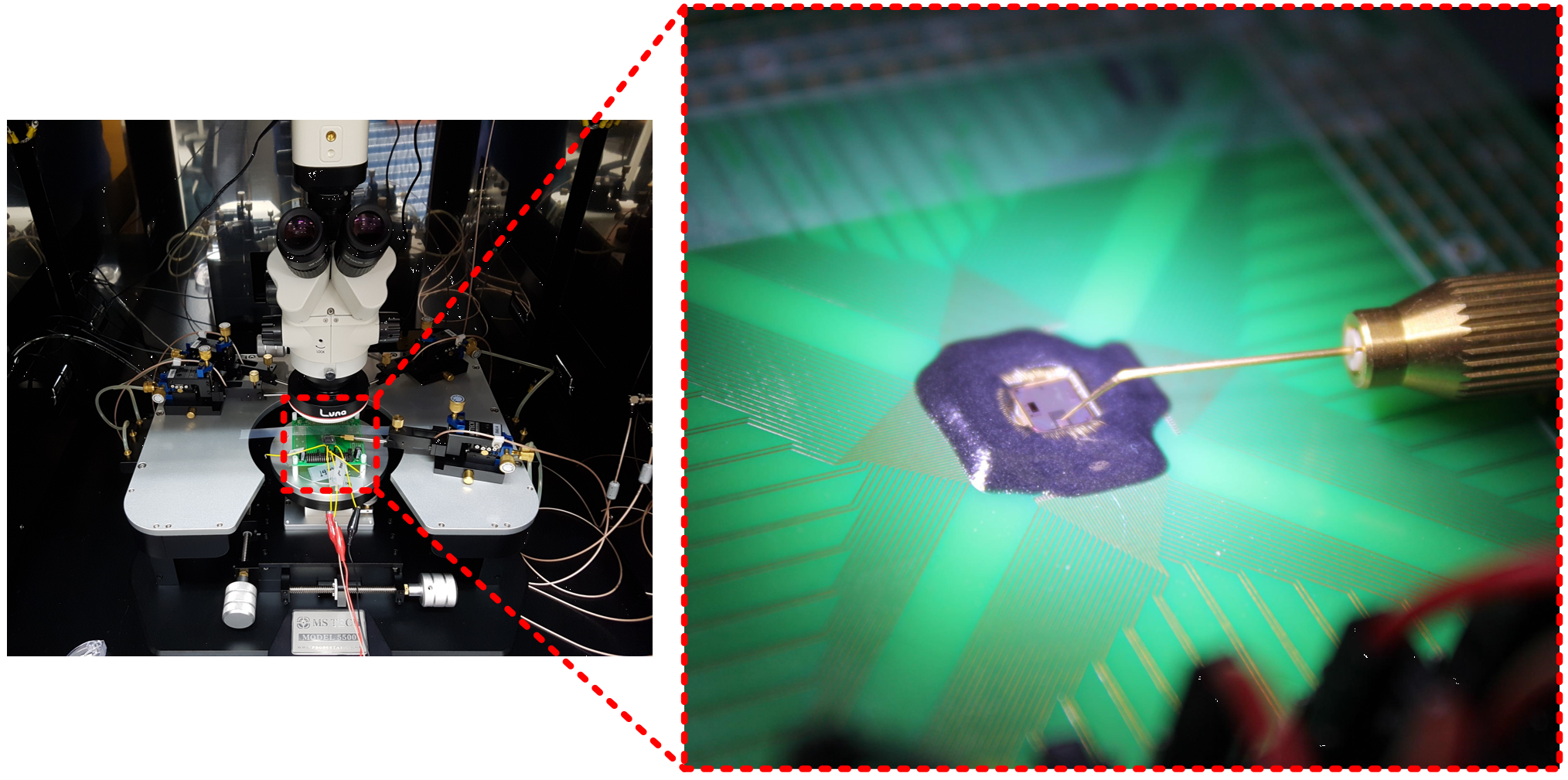

Fig. 11. Experimental environment for micro-probing attempt mode.

../../Resources/ieie/JSTS.2019.19.3.260/fig11.png

The implementation of the micro-probing attempt is illustrated in Fig. 12, and the experimental results of the micro-probing attempt detection mode are shown in Fig. 13. Both ring oscillators in the fabricated chip operated almost synchronously before the micro-probing attempt took place, and the D_OUT signal rarely occurred. These erroneous D_OUT signals can be eliminated by using counter logic at the systematic level. The D_OUT signal that occurred after the micro-probing attempt had taken place is illustrated in Fig. 13(b). The micro-probing capacitance caused a phase difference between the two ring oscillators, which generated a detect signal. In chapter 2, the micro-probing attempt simulation was performed with the probing capacitance set to about 100 fF. As a result of measuring the probing capacitance, however, the probing capacitance of several pF was obtained by LCR meter. As the probing capacitance increases, the frequency of the D_OUT signal increases, but the reconfigurable top metal shield proposed in this study effectively detected micro-probing attempts.

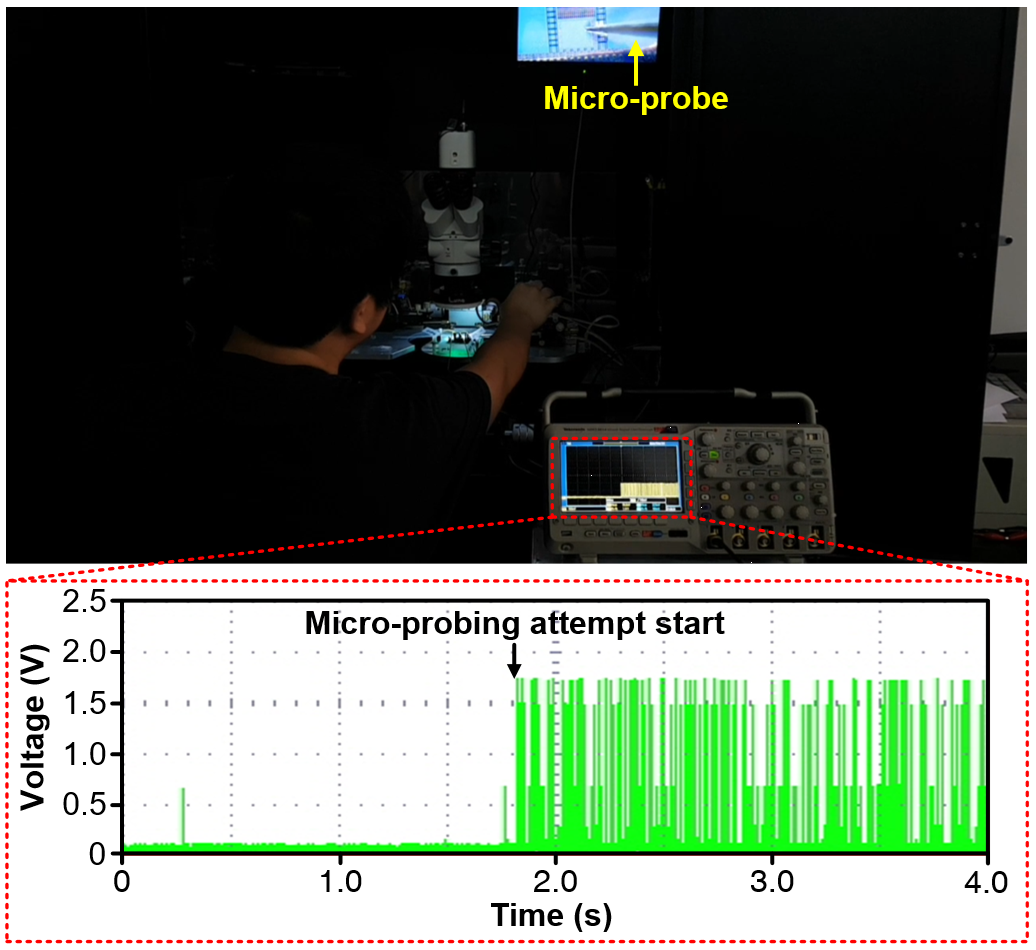

Fig. 12. Implementation of micro-probing attempt.

../../Resources/ieie/JSTS.2019.19.3.260/fig12.png

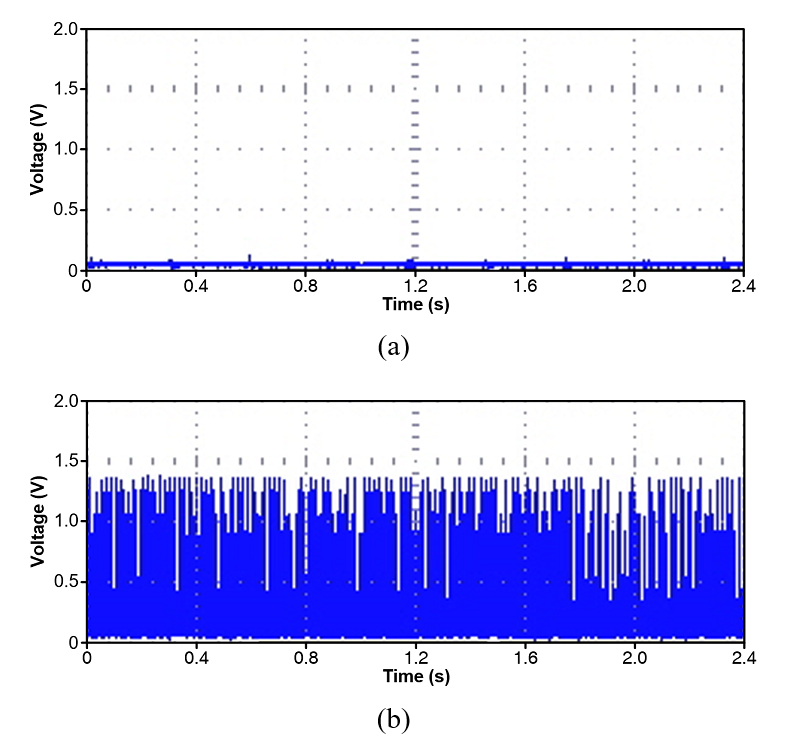

Fig. 13. Experimental results of micro-probing attempt detection mode. (a) D_OUT signal before micro-probing attempt, (b) D_OUT signal after micro-probing attempt

../../Resources/ieie/JSTS.2019.19.3.260/fig13.png

V. CONCLUSIONS

A novel countermeasure against physical attacks using randomly reconfigurable top metal shield was presented. The proposed circuit includes both an FIB chip editing detection circuit and a micro-probing attempt detection circuit. The FIB chip editing detection circuit consists of both an RNG and re-routing switch arrays that can detect state-of-the-art FIB chip editing attacks effectively. The micro-probing attempt detection circuit detects micro-probing attacks via the phase difference between two ring oscillators that are conditionally synchronized. The IC protection methods presented in previous studies were vulnerable to attacks based on state-of-the-art invasive techniques, micro-probing attempts, and FIB chip modification techniques. The reconfigurable top metal shield proposed in this paper is simple, utilizing only a single top metal layer, and it can detect invasive attacks effectively. Through evaluation based on implementation of invasive attack in simulation and experiment, the reconfigurable top metal shield has been identified as a promising countermeasure for state-of-the-art invasive attacks.
