1. (Department of Electronic Engineering, Myongji University, Yongin-si, Gyeonggi-do 17058, Korea)
2. (Department of IT Convergence Engineering, Gachon University, Seongnam-si, Gyeonggi-do 13120, Korea)

1T DRAM, middle partial insulation, gate-induced drain leakage(GIDL), TCAD

## I. INTRODUCTION

The conventional dynamic random-access memory (DRAM) cells consisting of one transistor and one capacitor require complicated device structure for obtaining the sufficient storage capacitances[1,2]. This leads to complexity in process architecture and makes it very hard to secure enough room for transistor scaling. For these reasons, capacitorless one-transistor (1T) DRAM is regarded as the breakthrough for the next-generation DRAM technology owing to simple device structure and process integration[3-5]. Many researchers have investigated 1T DRAM devices based on the silicon-on-insulator (SOI) platform[4-9]. However, in a conventional SOI 1T DRAM device, program window tends to be narrow due to recombination of carriers and junction leakages. A middle partial insulation (MPI) structure can be employed in the 1T DRAM device for improvement of retention characteristics. In the MPI 1T DRAM cell, the neutral region for hold accumulation is increased in volume and the recombination is prohibited near the source junction[10]. Moreover, MPI has an effect of suppressing the leakage current by band-to-band tunneling and enhancing the drive current[11,12]. However, previous 1T DRAM devices with the MPI structures have mostly employed impact ionization for program operation. This induces several problems such as high power consumption and lattice defect generation near the drain junction. Program by gate-induced drain leakage (GIDL) can reduce the destructive carrier injections and consequently suppress oxide degradation and power loss in the 1T DRAM operation[13].

In this work, we provide insight and design guidelines of double-gate MPI 1T DRAM device. Double-gate structure has been applied to improve gate controllability and strengthen the immunity against the short-channel effects in the MOSFET operation[14,15]. In order to optimally design the 1T DRAM cell, various parameters including channel width, barrier length, and bias voltage have been controlled and characterized through a technology computer-aided design (TCAD) tool, Sentaurus by Synopsys.

## II. DEVICE STRUCTURE AND SIMULATION APPROACHES

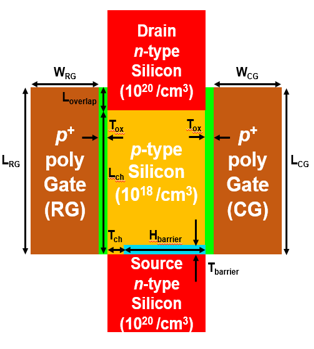

The proposed 1T DRAM device with the MPI and double-gate structures is schematically shown in Fig. 1. The doping concentrations in the p-type channel and n-type source/drain junctions are 1 × 1018 cm-3 and 1 × 1020 cm-3, respectively. The oxide layer near the source junction blocks the leakage current from the body.

Fig. 1. Schematic of the double-gate MPI 1T DRAM.

The proposed 1T DRAM has independent double gates and the read gate reads the memory states and the control gate governs the program and erase operations. Si channel length ($L_{ch}$), overlap length ($L_{overlap}$), barrier oxide thickness ($T_{barrier}$), and barrier oxide height ($H_{barrier}$) are 190 nm, 10 nm, 5 nm, and 14 nm, respectively. A number of physical models including band-to-band tunneling, carrier mobility models, Auger recombination model, Shockley-Read-Hall (SRH) recombination model have been applied simultaneously in cooperation for more accurate simulation results.

## III. RESULTS AND DISCUSSION

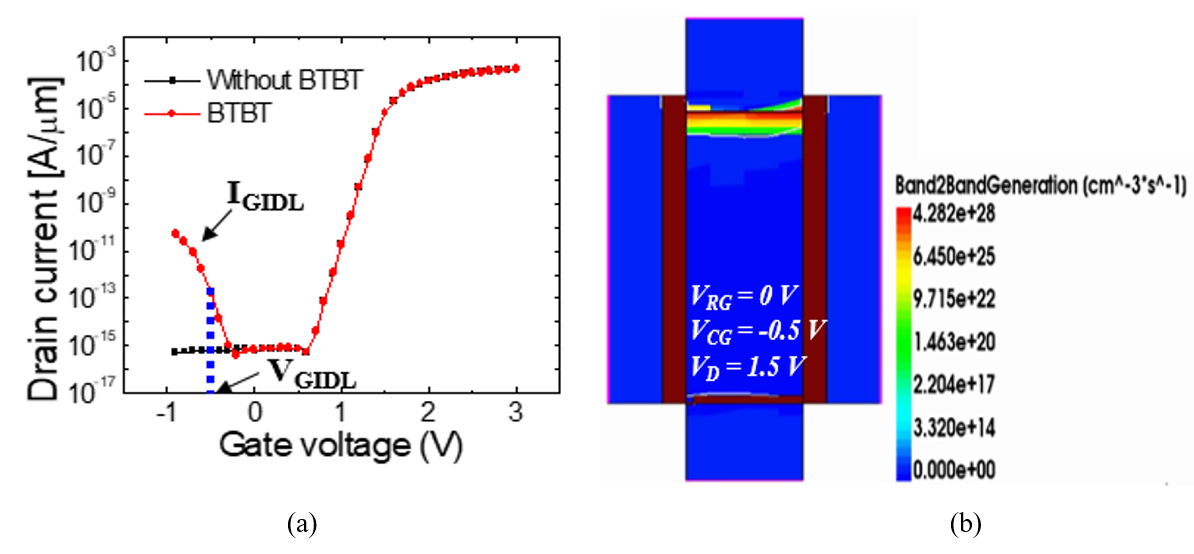

Fig. 2(a) shows $I_{D}$-$V_{GS}$ characteristic curves of the proposed 1T DRAM devices with different set of simulation models. The leakage current by GIDL ($I_{GIDL}$) in the presence of the band-to-band tunneling (BTBT) model is extracted at $V_{GS}$ = -0.5 V. By utilizing the GIDL for program operation, mechanically non-destructive and electrically low-power operation can be schemed compared with the impact ionization mechanism[16]. Fig. 2(b) shows the spatial distribution of BTBT generation rates over the device structure. Fig. 3 shows read gate voltage ($V_{RGS}$), control gate voltage ($_{VCGS}$), and drain voltage ($V_{DS}$) waveforms to validate the memory operations. All the operating times for program, hold, read, and erase operations are 10 ns and all the operating voltages do not exceed 1.6 V, which reveals the high-speed and low-voltage operation capabilities of the proposed 1T DRAM cell.

Fig. 2. Current characteristics (a) Validation of the BTBT model by GIDL current, (b) BTBT generation rates over the device.

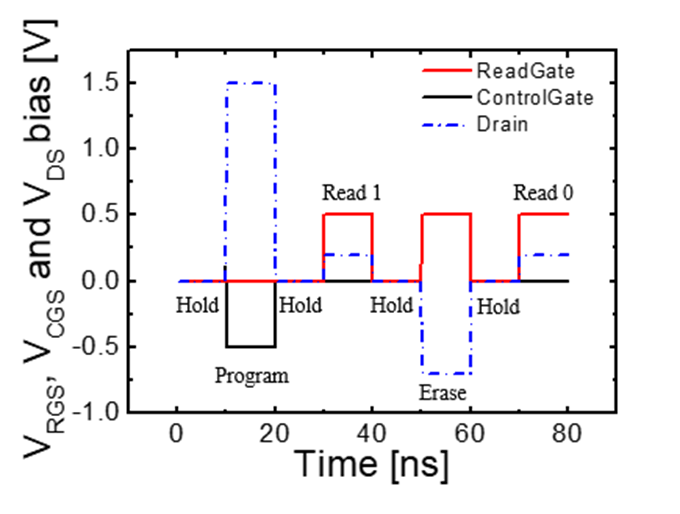

Fig. 3. Full memory operation scheme for one cycle.

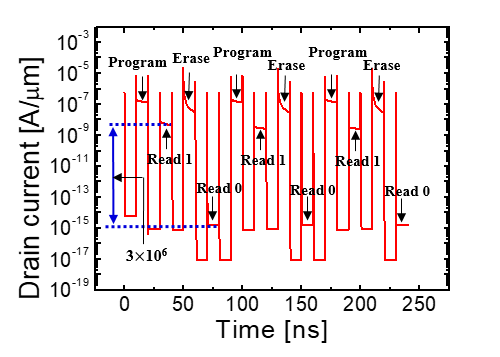

Fig. 4 shows the drain current over three cyclic memory operations and each cycle consists of program, hold, read 1, hold, erase, hold, read 0, and hold operations in sequence. The current ratio between read 1 and read 0 is approximately 3 × 106 and does not vary with cycles. IN case of hold operation, there is no power consumption since no additional voltage is applied to hold the carriers.

Fig. 4. Transient simulation of ID over three cycles.

Table 1 summarizes the possible operating conditions and the energy required for individual operations. The maximum value of $I_{D}$ takes place at the program operation as shown in Fig. 4. Therefore, it can be seen that the energy consumption of the proposed device is determined mainly by the program operation. Comparing with the previous work where the program operation is conducted by impact ionization, the power consumption is drastically reduced about 106 times[17]. The above simulation results confirm that the proposed device is highly suitable to low-power 1T DRAM applications.

Table 1. Summary of operation bias schemes

 $V_{RGS}$ [V] $V_{CGS}$ [V] $V_{DS}$ [V] Time [ns] Energy [J] Program 0 -0.5 1.6 10 1.94×10-10 Erase 0.5 0.5 -0.3 10 8.62×10-12 Read 1 0.5 0 0.2 10 8.30×10-13 Read 0 0.5 0 0.2 10 3.08×10-19 Hold 0 0 0 10 0

In order to optimize the performances of the proposed 1T DRAM device, barrier length and voltage conditions have been controlled. Junction leakage and recombination near the source junction can be reduced by increasing the barrier length[11,12]. Therefore, the longer the barrier length, the better the transient characteristics including retention time and sensing margin are expected.

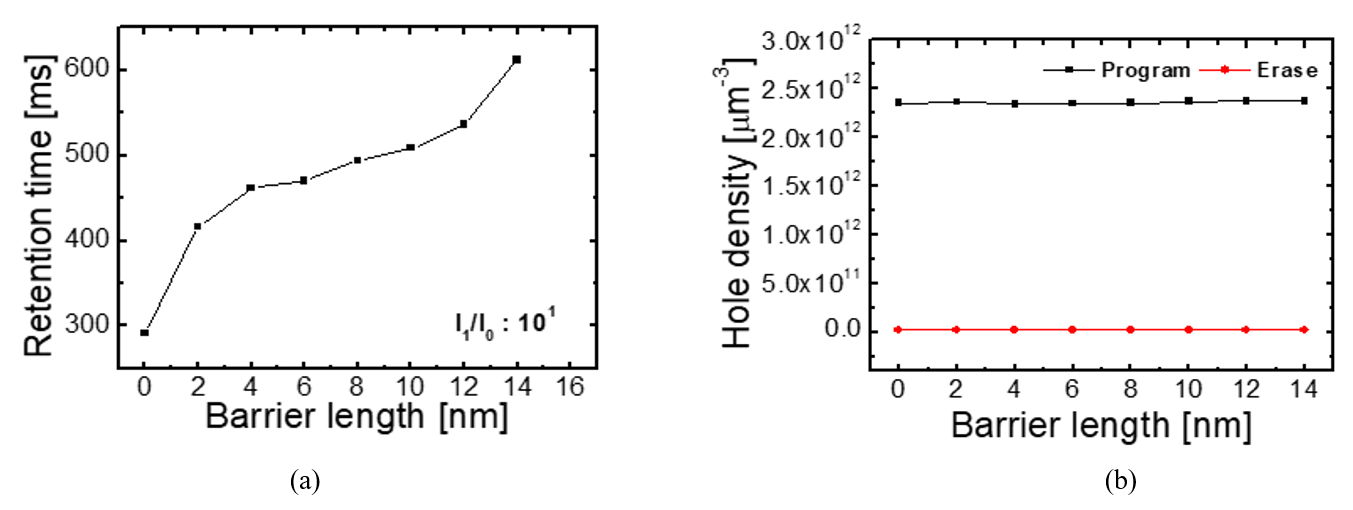

Fig. 5(a) depicts the retention time depending on barrier length. Since the barrier inhibits recombination in the source and body regions, the longer the barrier length, the longer the retention time is obtained. However, Fig. 5(b) shows that the hole concentration in the channel region is not dependent on barrier length. Since GLDI is employed as the program operation mechanism and the holes are removed from the drain area, the barrier does not affect the program and erase operations. Therefore, only the retention characteristics are influenced by the barrier length. In this work, a double-gate structure is applied to operate the 1T DRAM and the distance between two gates has a significant influence on electrical characteristics[14]. Shorter distance between double gates enhances the gate controllability over the channel. Thus, dependences of retention time and physical quantities on channel width have been investigated to study the effects on 1T DRAM.

Fig. 5. Effects of barrier length on memory characteristics (a) Retention time, (b) Hold concentration in the channel region after program and erase operations as a function of barrier length.

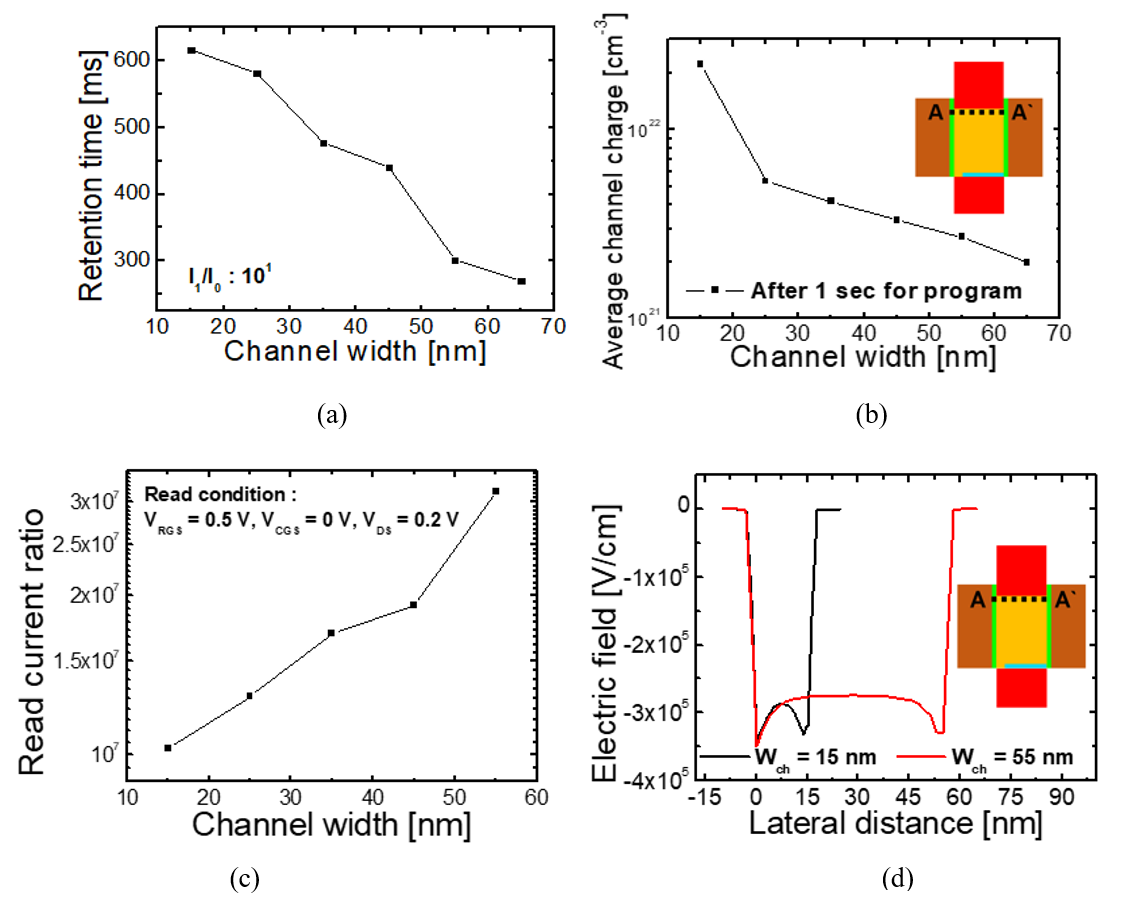

Fig. 6(a) shows the retention time vs. channel width. Here, the channel can be termed as channel thickness, more specifically. As the channel width increases, the excess hole generation by GIDL is reduced[18]. As the channel width increases, the average channel charge (net value) shows a monotonic decrease as depicted in Fig. 6(b) but the decrease is not a significant amount. Contrary to the retention characteristics, the current ratio is improved as the channel width increases as shown in Fig. 6(c). Over the erase operation, holes are removed to the drain junction by the forward bias on pn junction between channel and drain. Decreasing the channel width leads to reduction in electric field, which determines the erase efficiency and reduces the current ratio eventually. Fig. 6(d) shows the vertical electric field at the drain side under erase operation condition at different channel widths. According to Fig. 6(d), the vertical field increases as the channel width increases. Increase of vertical electrical field near the drain edge induces low hole concentration at state 0. Therefore, the read current at state 0 decreases and the current ratio increases as channel width increases. From the results in Fig. 6(a) and Fig. 6(c), channel width can be optimized for both current ratio and retention time.

Fig. 6. Dependence of memory characteristics and physical quantities on channel width (a) Retention time vs. channel width, (b) Average hole concentration in the channel vs. channel width (inset: cutline over the region where the results are obtained), (c) Read current ratio vs. channel width, (d) Vertical electric field vs. channel width ($W_{ch}$ = 15 and 55 nm) (inset: cutline over the region where the results are obtained).

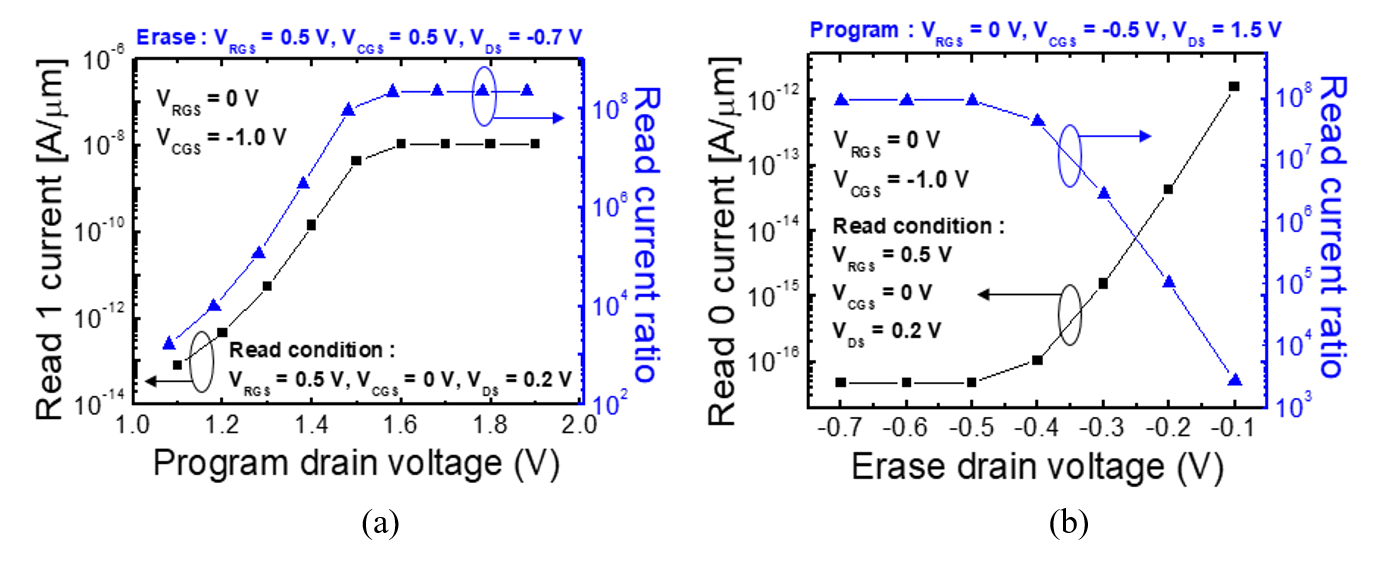

Fig. 7(a) shows the read 1 current and current ratio as a function of program voltage. As $V_{DS}$ increases, more drastic band bending takes place and BTBT probability gets higher. It is revealed that he sensing margin becomes larger as $V_{DS}$ increases and is saturated at $V_{DS}$ = 1.6 V. Therefore, $V_{DS}$ can be kept no higher than 1.6 V for low-voltage operation. Fig. 7(b) demonstrates the optimization conditions for erase bias. As the negative $V_{DS}$ gets larger in magnitude, read 0 current decreases and current ratio increases monotonically. $V_{DS}$ = -0.3 V is a permissible read bias and $V_{DS}$ does not have to go below -0.5 V where the state 0 current and current ratio are saturated, for sufficiently large sensing margin and low-power operation.

Fig. 7. Read current and ratio vs (a) program, (b) erase bias.

## IV. CONCLUSION

In this work, we proposed a double-gate 1T DRAM with MPI structure for enhancements of data retention and low-power operation capabilities, and optimally designed using TCAD device simulation. The proposed 1T DRAM utilizing GIDL program method demonstrates significant reduction in power consumption compared with the previous 1T DRAM device operated by impact ionization. The increase in dielectric layer length between the channel and the source junction improves the retention time of the proposed 1T DRAM device. When it comes to channel width, the retention capability is enhanced while the current ratio is decreased as the channel width decreases. Also, it has been confirmed that there are upper limits in the magnitudes of program and erase voltages considering the read current ratio and sensing margin. The proposed 1T DRAM has the strong potential for next-generation DRAM technology featuring higher integration density with truncation of capacitor, elongated retention time, and low-power operation capability.

### ACKNOWLEDGMENTS

This work was supported by the 2018 research fund of Myongji University in Korea and by the Ministry of Trade, Industry and Energy (MOTIE) and the Korean Semiconductor Research Consortium (KSRC) through the Development of Next-Generation Semiconductor Devices Program (Grant No. 10080513).

### REFERENCES

1
Nitayama A., Kohyama Y., Hieda K., Dec. 1998, Future directions for DRAM memory cell technology, Tech. Dig. IEEE IEDM, pp. 355-358
2
Jeon D. I., Chung K. S., Jun. 2018, DRBAC: Dynamic row buffer access control for power and performance of DRAM systems, J. Semicond. Technol. Sci., Vol. 18, No. 3, pp. 307-314
3
Jung J. W., Han S. B., Lee K., Mar. 2001, W Polymetal Gate Technology for Giga Bit DRAM, J. Semicond. Technol. Sci., Vol. 1, No. 1, pp. 31-39
4
Radens C. J., et al , Dec. 2000, An orthogonal 6F2 trench-sidewall vertical device cell for 4 Gb/16 Gb DRAM, Tech. Dig. IEEE IEDM, pp. 349-352
5
Kim S., Yang H., Dec. 2017, Dual-port SDRAM Architecture for Low-power Communication of Internet-of-things Devices, J. Semicond. Technol. Sci., Vol. 17, No. 6, pp. 893-903
6
Kuo C., King T. J., Hu C., Dec. 2002, A capacitorless double-gate DRAM cell design for high density applications, Tech. Dig. IEEE IEDM, pp. 843-846
7
Fazan P., et al , Oct. 2002, Capaitor-less 1-transistor DRAM, Proc. 2002 IEEE Int. SOI Conf., pp. 10-13
8
Okhonin S., Nagoga M., Sallese J. M., Fazan P., Aug. 2002, A capacitor-less 1T DRAM cell, IEEE Electron Device Lett., Vol. 23, No. 2, pp. 85-87
9
Sasaki N., Nakano M., Iwai T., Togei R., Dec. 1978, Charge pumping SOS-MOS transistor memory, Tech. Dig. IEEE IEDM, pp. 356-359
10
Tack M. R., Gao M., Claeys C. L., Declerck G. J., May 1990, The multistable charge-controlled memory effect in SOI MOS transistors at low temperatures, IEEE Trans. Electron Devices, Vol. 37, No. 5, pp. 1373-1382
11
Wann H. J., Hu C., Dec. 1993, A capacitorless DRAM cell on SOI substrate, Tech. Dig. IEEE IEDM, pp. 635-638
12
Ohsawa T., et al , Jun. 2003, A memory using one-transistor gain cell on SOI (FBC) with performance suitable for embedded DRAM’s, IEEE VLSI Tech. Dig., pp. 93-96
13
Chen C. H., et al , Nov. 2010, A novel MOSFET with bMPI structure for 1T-DRAM application, 2010 IEEE International Symposium on Next Generation Electronics, pp. 133-135
14
Tian Y., Huang R., Zhang X., Wang Y., Mar. 2005, A novel nanoscaled device concept: quasi-SOI MOSFET to eliminate the potential weaknesses of UTB SOI MOSFET, IEEE Trans. Electron Devices, Vol. 52, No. 4, pp. 561-568
15
Ertosun M. G., Cho H., Kapur P., Saraswat K. C., Jun. 2008, A Nanoscale Vertical Double-Gate Single-Transistor Capacitorless DRAM, IEEE Electron Device Lett., Vol. 29, No. 6, pp. 615-617
16
Yoshida E., Tanaka T., Apr. 2006, A capacitorless 1T-DRAM technology using gate-induced drain-leakage (GIDL) current for low-power and high-speed embedded memory, IEEE Trans. Electron Devices, Vol. 53, No. 4, pp. 692-697
17
Mahmud F. A., Islam Md. M., Hasan Maruf Md., Feb. 2017, Comparative study on single-gate MOSFET and double gate MOSFET, Appl. Res. J., Vol. 3, No. 2, pp. 80-86
18
Ha J., Lee J. Y., Kim M., Cho S., Cho I. H., Jul. 2018, Investigation and optimization of double gate MPI 1T-DRAM structure with gate induced drain leakage operation, Proc. Asia-Pacific Workshop on Fundamentals and Applications of Advanced Semiconductor Devices (AWAD), pp. 229-231
19
Hou J., Shao Z., Miao X., Dec. 2009, A High speed low power capacitorless SOI-DRAM cell using impact ionization and GIDL effect, Proc. 2009 IEEE Int. Conf. Electron Devices and Solid-State Circuits (EDSSC), pp. 517-520
20
Lin J. T., Lin P. H., Eng Y. C., Chen Y. R., May 2013, Novel Vertical SOI-Based 1T-DRAM With Trench Body Structure, IEEE Trnas. Electron Devices, Vol. 60, No. 6, pp. 1872-1877
21
Fan J., et al , Dec. 2014, Insight Into Gate-Induced Drain Leakage in Silicon Nanowire Transistors, IEEE Trans. Electron Devices, Vol. 62, No. 1, pp. 213-219
