  1. (Research Center for Electrical and Information Technology, Department of Electrical and Information Engineering, Seoul National University of Science and Technology, Seoul 01811, Korea)

Processing-in-memory, deep learning, next-generation memory, near-memory computing, deep neural network


With the emergence of the backpropagation algorithm [8] and multilayer perceptron [3], deep neural networks (DNNs) have demonstrated outstanding performance in various fields [1,2,110]. However, they face the challenge of exponentially increasing computational load as the number of learnable parameters grows. This poses a significant obstacle to the practical implementation of DNN models in terms of processing speed and power consumption [113]. To tackle these issues, parallel processing devices such as graphics processing units (GPUs) and neural processing units (NPUs) [4] are being utilized, and researchers are actively exploring optimized acceleration algorithms for each device [5]. However, modern computer architectures based on the von Neumann architecture still have limitations regarding DNN processing. Specifically, a substantial portion of the power consumption, up to 75%, is attributed to loading parameters for DNN operations (e.g., feature maps and weights) from external memory, such as dynamic random-access memory (DRAM), to the processor, or storing them back to memory [9,10,115]. To address this issue, processor-in-memory (PIM) architecture has emerged as a promising technology [6]. By integrating computing and memory units at the processing element (PE) level, PIM significantly reduces latency associated with data transmission and enhances data processing efficiency [112]. This integrated architecture has the potential to significantly reduce energy consumption during memory access, thereby enhancing the efficiency of applications that require high-performance computing [7].

This survey explores diverse PIM architectures and methodologies for enhancing PIM performance in different memory types. It analyzes the characteristics of various DNN models, including convolutional neural networks (CNNs), graph neural networks (GNNs), recurrent neural networks (RNNs), and transformer models. The focus is on optimizing data mapping and dataflows within the context of PIM, providing valuable insights into efficient handling of DNNs. This comprehensive study aims to deepen researchers' understanding of the connection between DNNs and PIM, opening up new avenues for future AI research and advancements.

Section II shows the background of this work. Section III presents the PIM architectures for DNNs, and Section IV concludes this paper.


1. Processing in Memory (PIM)

In this section, we categorize PIM into two main types: processing-near-memory (PnM) and processing-using-memory (PuM), based on where the data processing takes place, as classified in [116]. We then provide an overview of the characteristics associated with each category. Section III highlights representative studies that fall within these respective categories, offering valuable insights into the field.

1) Processing-using-Memory (PuM)

PuM refers to a technology that performs data operation processing within the memory itself. Previous research on in-memory computing architectures [81-99] has paved the way for PuM, which leverages memory cell structures or modifies the minimum unit memory structures to carry out computational functions directly in the memory. This approach helps alleviate the bottleneck between the processor and memory, resulting in minimal overhead and without requiring additional space. However, due to the need for compatibility with existing memory structures, PuM has limitations in terms of the range of operations it can support. Typically, PuM implementations focus on bitwise operations like AND, OR, XOR, and NOR [81,82,84,85]. Implementing PuM technology is a notable challenge, particularly with DRAM, as it is already highly advanced and optimized for its read/write operations. DRAM-based PuM designs typically incorporate simple logic after sense-amplifier (SA) to perform small-scale operations [81,82,84,85]. On the other hand, static random-access memory (SRAM)-based studies have explored analog operator units, taking advantage of relatively fewer spatial constraints, which enable support for more complex operations [86-89]. Another promising candidate for PuM is resistive random-access memory (ReRAM), a next-generation memory that efficiently carries out multiple-accumulate (MAC) operations by leveraging the crossbar structure [84, 90-94, 100].

2) Processing-near-Memory (PnM)

PnM is a technology that performs data operation processing using dedicated operation logic located close to the memory. Research is being conducted to apply PnM to various memory types [48-80, 118, 119]. The goal of PnM is to enhance system performance by minimizing data movement between the processor and memory for computation or by optimizing the data frame structure. Unlike PuM, PnM allows for the implementation of more complex operations, resulting in a wider range of methods. However, it should be noted that the improvement in memory bottleneck is not as significant as with PuM, as it still involves more data movement between the processors and memory. Additionally, PnM has the drawback of requiring a higher area overhead. Many studies focusing on SRAM-based PnM have explored implementing multiple operators in parallel near an SRAM cell array to enable parallel operation [48,49,89]. On the other hand, DRAM-based studies have primarily focused on achieving parallel operations by efficiently utilizing bank parallelism [50-59].

2. Various Deep Neural Networks

Various types of DNNs have been proposed based on diverse inductive biases (e.g., locality, sequentiality, arbitrariness) [6]. The computational process of DNNs can be broadly classified into two categories: linear operations (i.e., operations such as matrix-vector multiplication (VMM) and matrix-matrix multiplication (MatMul) that utilize MAC as the fundamental unit of operation) and non-linear operations (i.e., ReLU [11], tanh [12], and sigmoid [13]). Linear operations are used to calculate the weights of the input features and hidden layers for feature extraction. Generally, strategies to enhance the performance of DNNs involve stacking deeper layers [14,15] or widening a layer [16]. Owing to these strategies, MAC operations constitute the largest share of all operations in DNNs, leading to potential issues. 1) Its computationally intensive nature can lead to high latency, necessitating high parallelism. 2) Frequent memory access and data movement for the weights and input data can result in substantial power consumption, creating bottlenecks. 3) Substantial hardware design costs can occur in an effort to mitigate these issues. In this subsection, DNNs are classified based on their network structure and inductive bias.

1) Convolutional Neural Network (CNN)

A CNN is a type of DNN specialized for processing two-dimensional (2D) image data. It typically consists of convolution (CONV) layers, normalization layers, pooling layers, and activation functions. CNN is capable of extracting and learning features from the input that are then used to perform specific tasks. In particular, within the CONV layer, a multichannel kernel extracts local features from an image by sliding across the input at a certain stride interval [17]. The CONV operation constitutes a significant part of the CNN model and requires a high external memory bandwidth owing to the need to load multichannel intermediary features and a large number of weights [18,19,111]. Traditionally, CNNs have been used as the backbone for vision tasks. Recently, they have been used as embedding layers for token extraction in transformer-based networks [20].

2) Graph Neural Network (GNN)

A GNN is a general framework for operating on complex structures represented by graphs, consisting of nodes (vertices) and the edges connecting them. Unlike fixed formats such as 2D or 3-dimensional (3D) data, it mainly deals with the more abstract relationships used in workloads, such as social networks or media influence. Traditional algorithms that use graph data (e.g., search [21], shortest path finding [22], spanning tree [23], and clustering [24]) cannot inherently evolve into research on the graph structure itself because they require prior knowledge of the input graph. However, GNN applies artificial neural networks directly to the graph data, enabling predictions at the node, link, and graph levels. Through iterative parameter updates, learnable parameters are trained to better represent the relationships between adjacent nodes within a graph [25]. Additionally, a GNN is capable of mimicking most deep learning models (e.g., CNN, RNN, and self-attention mechanisms) by applying the relationships between nodes. In particular, the graph convolutional network (GCN), a prominent network derived from the GNN, focuses on aggregating information from neighboring nodes, similar to how a 2D CNN learns the locality between pixels, as shown in Fig. 1, which can reduce the computational complexity of GNNs with little performance degradation as they do not include unnecessary node connections [26,27].

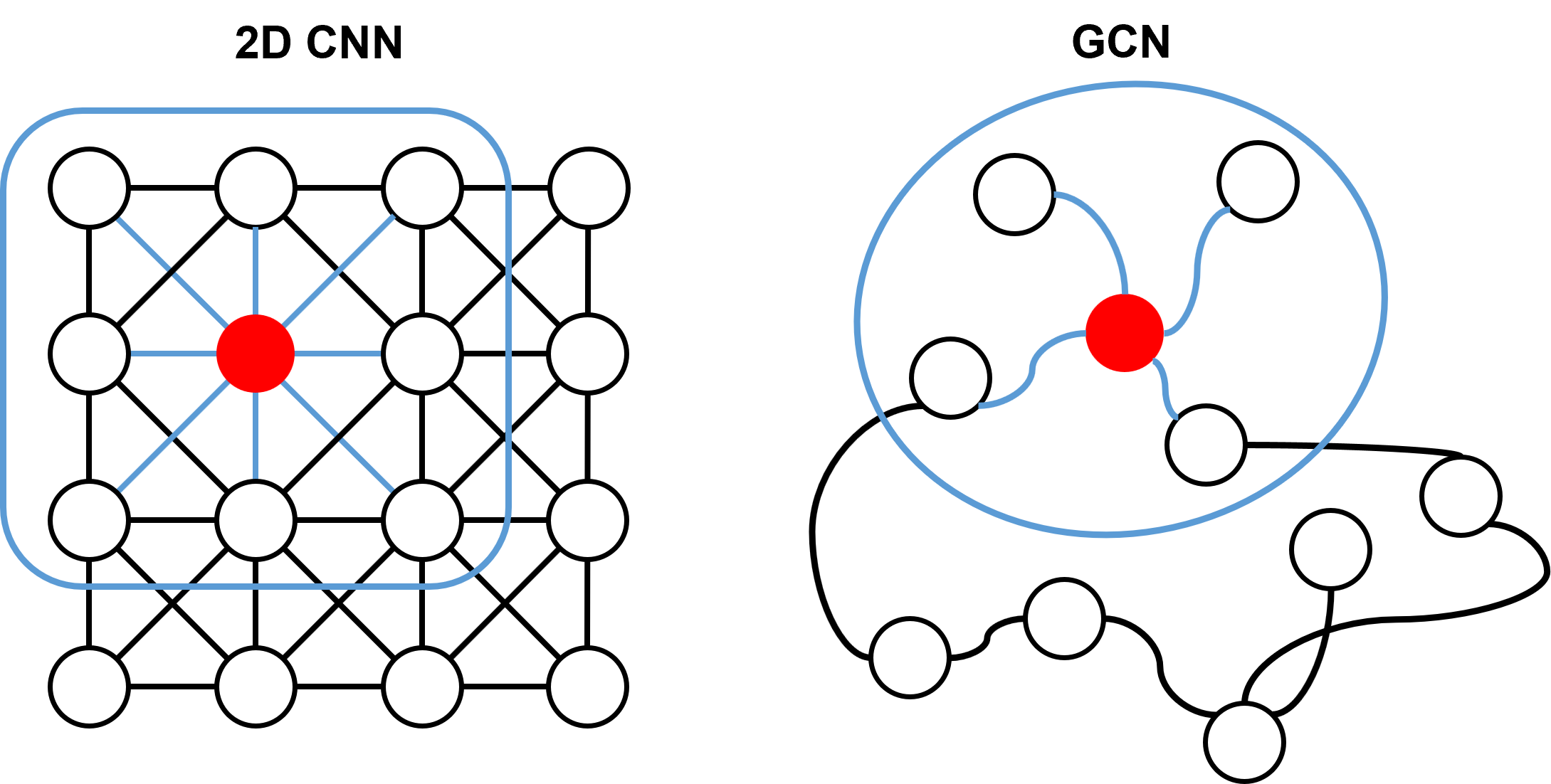

Fig. 1. 2D (two-dimensional) convolutional neural networks and graph convolution networks.

3) Recurrent Neural Network (RNN)

An RNN is designed for tasks that involve learning patterns in sequential data or understanding contextual information in sentences. They are designed to retain previous information and incorporate new information, thereby effectively learning the patterns or dependencies in sequential data. RNN architecture employs recurrent neurons that sequentially process each element of the data sequence. The result of the operation in the previous hidden state is used as an input for the calculations in the current hidden state. This allows for the simultaneous processing of the output of the previous hidden state and the current input data, enabling the network to understand the interrelationships and dependencies within the data.

Long short-term memory (LSTM) [101] and gated recurrent unit (GRU) [102] are variants of RNNs designed to learn long-term dependencies in data. Fig. 2 shows the structures of the RNN and LSTM. LSTM has a more complex structure than an RNN and includes three gates: forget, input, and output. The LSTM computational process involves numerous MAC operations and uses various parameters. Because the output of one cell is used as the input for the next cell, significant data movement is required. In summary, the operations within an RNN are performed sequentially, making the overall workflow challenging to parallelize. Furthermore, given various weight parameters, the value of one cell block is reused and its operation is repeated, leading to constant data movement. To improve this situation, it is necessary to carefully consider the mapping of the data required for computation and manage the data flow effectively.

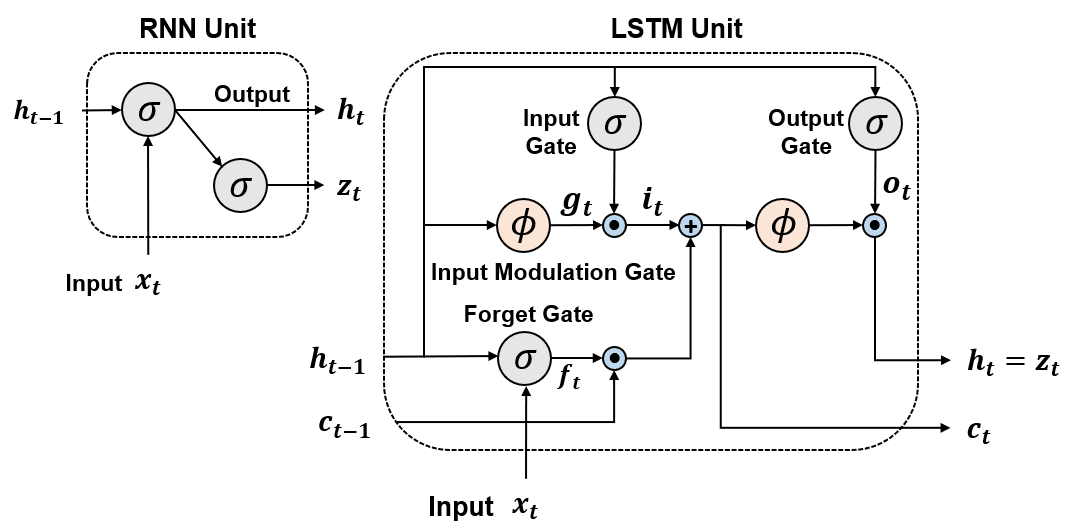

Fig. 2. RNN and LSTM architectures.

4) Transformer

Transformer [105] is a model that significantly outperforms the performance of RNNs in terms of processing sequence data. It consists of an encoder-decoder structure that incorporates a self-attention mechanism. The model is capable of training on sequence data more comprehensively and learning long-term dependencies effectively owing to its ability to process all elements in parallel. The more these encoder-decoder layers are stacked, the better the model understands the complex patterns and interrelationships among the embeddings. Because of these characteristics, transformers outperform RNNs, particularly in the field of natural language processing (NLP) [109]. Furthermore, owing to their scalability and flexibility, variants without decoders, such as the vision transformer (ViT) [108], have been introduced into the field of computer vision [114], where they demonstrate excellent performance.

Fig. 3 shows the structure of the transformer. The transformer consists of three main components: an embedding layer, a multihead self-attention (MHA), and a feed-forward network (FFN). The embedding layer converts each sequence element into a continuous high-dimensional vector, thereby allowing the model to consistently extract complex information from each element and facilitate deeper learning. Transformer operations are primarily concentrated in MHA and FFN. MHA maintains interdependencies by training different feature maps from multiple attention heads and combining them into the output. Each attention head obtains a query (Q), key (K), and value (V) through matrix multiplication of weights. This process, which involves the parallel operation of different weights, requires high memory bandwidth and frequent data transfers. Self-attention is then applied through Q, K, and V, and the attentional head is updated. The FFN serves to mix the attention from the heads obtained through the MHA, preventing bias towards any single attention value. In summary, the transformer processes the inputs based on various weights and continually reuses the outputs as inputs for subsequent operations. Therefore, to optimize the operational process of the transformer, data mapping must be carefully considered so that the input/output values and weights can be effectively reused.

Fig. 3. Transformer architecture.


1. Technologies and Representative Architectures Needed for PIM

PIM fundamentally offers high throughput because it minimizes data transfer with the host processor by integrating data processing logic directly into memory, thus resolving the associated bottleneck [28,29]. In the DNN inference process, the most frequently performed MAC operations are executed in the PIM core to achieve high energy efficiency. In addition, during the DNN training process, PIM can reduce both processing time and power consumption by performing the computations necessary for weight updates directly within the memory [88,94]. However, not all functions benefit from the application of PIM. For instance, it can be burdensome to process functions with high computational complexity and memory reusability using in-memory logic. Therefore, to determine where a specific function should be computed, it is necessary to establish appropriate metrics and analyze them using a benchmark simulator. DAMOV [30] is a memory simulator comprising a frequently used ramulator [31] and a zsim CPU simulator [32]. It extracts memory traces for each workload [117] using an Intel VTune profiler [33]. The extracted traces calculate the temporal/spatial locality and divide the causes of memory bottlenecks into six classes using three indicators: the last-to-first miss-ratio (LFMR), last-level-cache misses per kilo-instruction (LLC MPKI), and arithmetic intensity. Moreover, by conducting an experimental analysis with 77 K functions, we demonstrated its reliability and applicability across various research areas.

Current PIM research is largely categorized into commercially accessible DRAM-based PIM research [52-59, 81-85] and research utilizing next-generation memory [90-99], both of which are presented in a competitive manner. Unlike academic research, mass-producible PIM products fundamentally utilize bank-level parallelism of DRAM for computation processing. In addition, they also consider maximizing compatibility with existing mass-produced products and prioritizing cost aspects, such as minimizing the area occupied by logic operations and addressing heat-dissipation issues. The HBM-PIM [58] is an addition of PIM functionality to the HBM architecture, designed to increase memory bandwidth and energy efficiency by performing computational processing within the memory. It proposes not only a hardware architecture but also a software stack. The software stack supports FP16 operations, MAC, general matrix-matrix product (GEMM), and activation functions, along with the operation logic loaded onto the HBM by applying the LUT. In addition, it allows programmers to write PIM microkernels using PIM commands to maximize performance. The hardware architecture was implemented based on 20 nm DRAM technology and integrated with an unmodified commercial processor to prove its practicality and effectiveness at the system level. Furthermore, it is designed to be replaceable because it is compatible with existing HBM. By implementing the proposed PIM architecture, there was a significant improvement in the performance of memory-bound neural network kernels and applications. Specifically, the performance of neural network kernels increased by 11.2${\times}$, while applications showed a 3.5${\times}$ improvement. Additionally, the energy consumption per bit transfer was reduced by 3.5${\times}$, resulting in an overall enhancement of the system's energy efficiency by 3.2${\times}$ when running applications.

Newton’s architecture [59] was designed as an accelerator in memory (AiM) for DNNs. In this design, a minimum number of computing units were placed in the DRAM to satisfy the area constraints, which can be a problem in the hardware design for PIM. The computing units included MAC operations and buffers. It also uses an interface similar to that of DRAM so that the host can issue commands for PIM computing. The PIM matches the internal DRAM bandwidth and speed, captures input reuse, and uses a global input vector buffer to divide the buffer area costs across all channels. The three optimization techniques proposed by Newton helped the PIM-host interface overcome bottlenecks: 1) Grouping multiple computational tasks in the in-bank and bank groups. 2) Support complex, multistep computing commands to process multiple stages of operations simultaneously. 3) The strength of the internal low-dropout (LDO) regulator and DC-DC pump driver should be increased to allow for higher current and faster voltage recovery. As a result, Newton applied to HBM2E achieves an average speed improvement of 10${\times}$ over a system assumed to ideally use the external DRAM bandwidth without applying PIM and 54${\times}$ over a GPU.

The UPMEM PIM architecture [52] was the first commercialized PIM architecture that combined traditional DRAM memory arrays and a common instruction sequence core: the DRAM processing unit (DPU). DPUs are a concept proposed for UPMEM and are used to perform operations within memory chips. The DPU has exclusive access to a 64MB DRAM bank, known as the main random-access memory (MRAM), 24 KB of command memory, and 64 KB of scratchpad memory, called the working random access memory (WRAM). This allows programmers to write code to be executed on the DPU and process the data within the memory. This implies that the data transfer between the host processor and DPU can be controlled, allowing for the selection of parallel and sequential processing.

On the other hand, the most commonly used next-generation memory in PIM architecture is ReRAM [36, 39, 91, 95, 100, 103, 107]. The ReRAM crossbar array consists of cells arranged in rows and columns. This array can be used for memory purposes and can efficiently perform computations such as the general matrix-vector product (GEMV), composed of MAC operations. In addition, the use of a crossbar array can significantly reduce the overhead and energy related to memory movement. In particular, as a pioneering study on ReRAM-based PIM, PRIME [91] distinguished the internal array space of a bank as memory a subarray (MemS), full function subarray (FFS), and buffer subarray. MemS is a circuit that stores only data. FFS allows the crossbar to be used for both memory and operation logic, achieving minimum area overhead. To enable this, multiple voltage sources are added to provide an accurate input voltage. The column multiplexer provides an analog subtraction unit and a nonlinear threshold value unit, and the SA is modified to achieve high precision.

2. PIM for CNN

Numerous PIM studies primarily support the MAC operation required by CNN [46, 47, 52-59]. However, this study focuses on PIM research that employs data mapping methods and dataflow necessary for CNN operations. Efficient data handling in the CNN inference process is crucial, with particular emphasis on maximizing the reuse of weights as well as the input and output feature maps used between layers.

1) Inference Phase

Peng et al. [45] proposed an ReRAM-based PIM accelerator that adapted the data-mapping technique proposed by Fey et al. [44] for the CONV layer. This reduces the use of interconnects and buffers by reusing the input data and weights. As shown in Fig. 4(a), a 3D kernel of size K${\times}$K${\times}$D is arranged in vertical columns, and the input feature map (IFM) is arranged in a similar manner in K${\times}$K submatrices within 1${\times}$1${\times}$D kernels. As shown in Fig. 4(b), computation of the subarrays proceeds as a single PE within the ReRAM subarray. This method is designed to maximize the reuse of IFMs and weights as the kernel (i.e., weights) slides over them during computation. Consequently, this study achieved a 2.1${\times}$ increase in speed and 17% improvement in energy efficiency (measured in TOPS/W) during the inference phase with the VGG-16 model compared with [92].

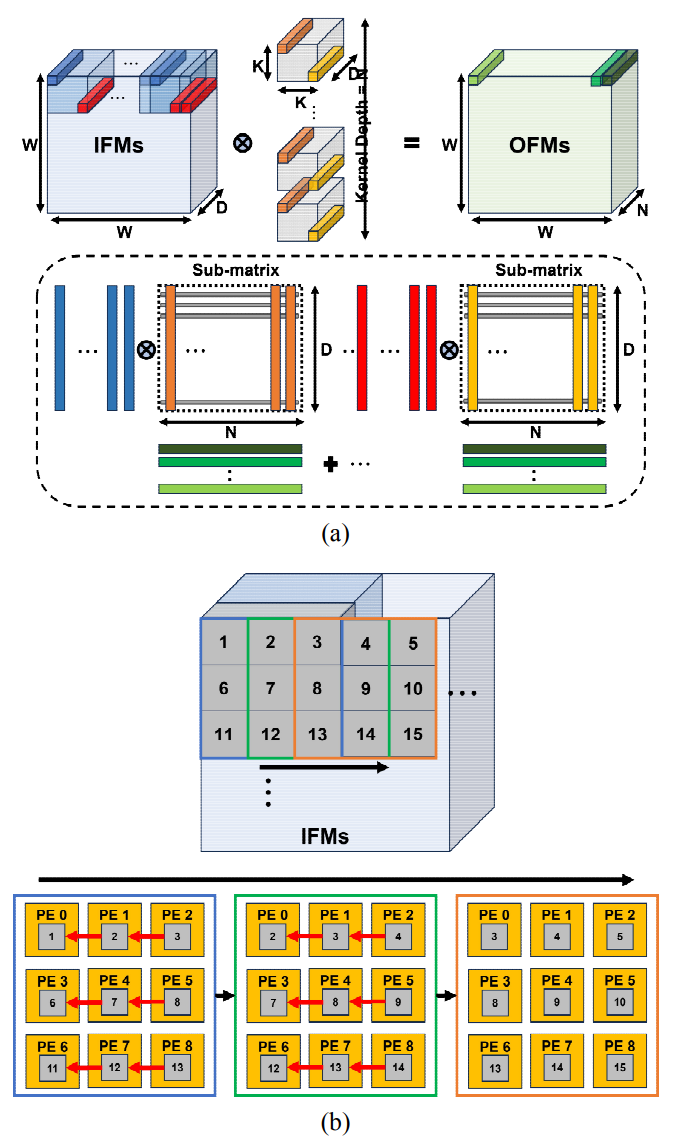

Fig. 4. Processing-in-Memory for CNN proposed in [45]: (a) A basic mapping method of input and weight data, with kernel moving in multiple cycles; (b) An example of IFMs transferred among PEs and how the kernel slides over the input.

2) End-to-End Training Phase

Backpropagation in CNNs requires a significant amount of computation because it involves computing the gradients for each layer and updating the weights to train the model. It is considered memory-bound because it includes storing and tracking the intermediate features and gradients of all the layers, which is more intensive than inferring the CONV layer. Therefore, higher efficiency can be expected by optimizing the training process in the PIM.

T-PIM [88] is a DRAM-based PIM study considering the end-to-end training of CNN models. Fig. 5 represents the data mapping of T-PIM that reduces the overhead caused by data rearrangement in DRAM and optimizes the data access to weights. Fig. 5(a) and (b) show the data mapping methods during the forward pass (FWP) and backward pass (BWP) within the MLP layer, respectively. To maximize the utilization of DRAM's cell array without rearranging data, the size of the tile is set to $M_{t}\times N_{t}$ and each weight is mapped to DRAM's column addresses. During the FWP process, the input vector is flattened to size $M_{t}$ (Input$_{\mathrm{L}}$ $\left(M_{t}\right))$ and multiplied with the weights arranged in DRAM. Each column is then accumulated into an output buffer of size $N_{t}$ (Output$_{\mathrm{L}}$ $\left(N_{t}\right)$). For the BWP process, to use the weights aligned in the FWP process without additional rearrangement, the loss (Error$_{\mathrm{L}}$ ($N_{t}$)) is flattened into $N_{t}$ elements and performs vector operations with the weights. Each row is then accumulated into an output buffer of size $M_{t}$ (Output$_{\mathrm{L}}$ $\left(M_{t}\right))$. Fig. 5(c) and (d) represent the data mapping methods used during the FWP and BWP in the CONV layer, respectively. Similar to the MLP layer, weights (Weight$_{\mathrm{L}}$) are arranged to column addresses by kernel size ($=W\mathrm{k}\times \mathrm{Hk}$), so the weights can be reused without the need for data rearrangement. T-PIM shows high efficiency of 0.84-7.59 TOPS/W for 8-bit input data and 0.25-2.21 TOPS/W for 16-bit input data in VGG16 model training, using the non-zero computing, powering off computing method.

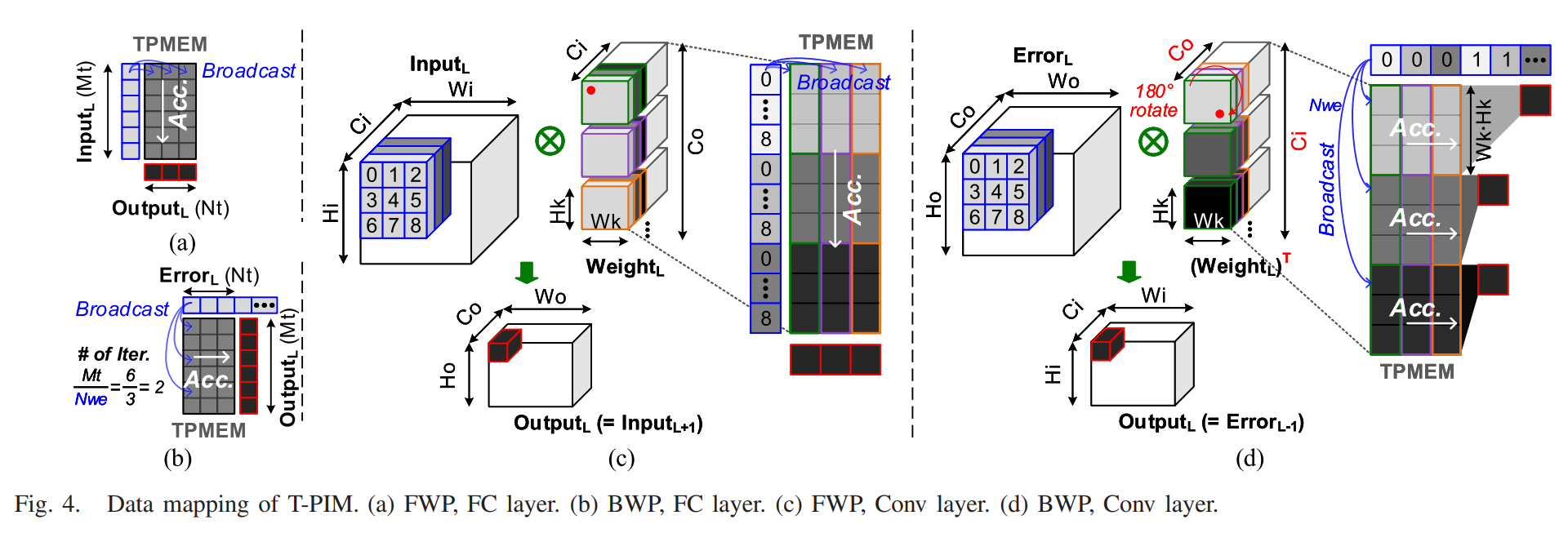

Fig. 5. Data mapping of T-PIM: (a) FWP layer; (b) BWP layer; (c) FWP, CONV layer; (d) BWP, CONV layer (Reprinted from [88] with permission).

3. PIM for GCN

The processing steps of a GCN (e.g., aggregation, combination, embedding, message passing, and readout) are mostly low in operational complexity, data-dependent, and performed repetitively. Among these, aggregation must process large amounts of data to combine the information of each node with that of its neighboring nodes. Moreover, these operations have the characteristic that they must be performed as different operation combinations depending on the relationship between each node and its neighbors. These characteristics require a large amount of computation and high memory bandwidth. Therefore, these drawbacks can be effectively mitigated using PIM. The PIM for GCN has also been approached by actively utilizing an ReRAM crossbar to perform operation processing as an analog computing method [36].

Two representative techniques are the MAC crossbar and content addressable memory (CAM) crossbar [37]. Among these two, the CAM crossbar performs content-based searches. This allows a parallel associative search by broadcasting the search key across multiple rows. This enabled the storage of more data on a chip in the same area. It was shown in TCAM [38] that 2-transistor-2-resistor ReRAM can achieve 3${\times}$ higher density than the existing 8-transistor SRAM. The MAC crossbar can effectively perform the VMM with low energy consumption through bit-line current accumulation. This process can be described in three steps. 1) The elements of the matrix were converted to voltage and assigned to the crossbar, and the resistor of the cell was precisely adjusted to correspond to the elements. 2) The vector is converted to a voltage, which is accumulated on the word line. 3) The current of the bit line was measured, and the sum of the currents of all cells connected to the bit line was obtained as the product of the column and vector.

Fig. 6 shows the overall architecture of PIM-GCN [39], which consists of a central controller, a search engine, and two computing engines. Each of these comprises a CAM crossbar and a MAC crossbar, and the two computing engines operate in a typical ping-pong architecture, alternately performing aggregation and combination. The central controller initially loaded the graph data and finally exported the GCN results back to the external DRAM. It also generates the necessary control logic for the CAM crossbar, the MAC crossbar, and the special function unit (SFU). The SFU, composed of a shift-and-add (S&A) unit and scalar arithmetic and logic (sALU) units, processes the partial results derived from the MAC crossbar. PIM-GCN introduces not only a hardware architecture that can maximize inter-vertex parallelism, but also a technique for optimizing node grouping without violating independence, providing scheduling for these groups to operate independently at each layer. It also proposes a timing strategy to reduce idle time owing to differences in read/write latency.

GCIM [40] is an accelerator research that presents a software-hardware co-design approach, becoming the first to enable efficient data processing of GCNs in 3D stack memory. From a hardware design perspective, the GCIM proposes a logic-in-memory (LIM) die that integrates light computing units near the DRAM bank, fully utilizing the bandwidth and parallelism at the bank level. The GCIM offloads memory-bound aggregation operations onto the LIM die. Each LIM bank group is equipped with an LLU consisting of a MAC array, vertex feature buffer (VFB), look-ahead FIFO, CAM, and a controller to accelerate the aggregation phase. A MAC array was used to execute the aggregation operations. VFB is used to buffer the output features during the aggregation phase. Look-ahead FIFO is a special edge buffer implemented as a scratch-pad memory that processes the frontmost edge upon receiving a signal from the controller. The CAM provides key-value storage that records the ID of nonlocal vertices and the local addresses where their replicas are buffered. The controller is a data-based control unit that processes the aggregation operations of local vertices. On the software side, GCIM proposes a data-mapping algorithm that considers locality. It balances the workload by splitting the input graph into subgraphs considering the connection strength of the nodes. Here, if the weight between two vertices is large or if multiple paths exist, the strength is determined to be strong. The divided subgraphs are assigned to the vault and mapped to the LIM bank group. This was optimized to utilize a high bandwidth and reduce unnecessary data movement. This significantly improves the computational efficiency while preventing redundant calculations. In addition, the GCIM adopts a sequential mapping strategy to maximize data locality and minimize the processing delay of the aggregation. This optimization technique uses dynamic programming [41], a mechanism that saves the optimal solution of a subproblem and reuses it to determine the optimal solution of the entire problem. Based on experimental results, GCIM demonstrated a remarkable improvement in inference speed compared to other models. Specifically, it achieved a speed enhancement of 580.02${\times}$ compared to HyGCN [42], 275.37${\times}$ compared to CIM-HyGCN, and 272.01${\times}$ compared to PyG-CPU [43]. These results highlight the significant performance boost offered by GCIM in terms of inference speed.

Although the two studies mentioned earlier were based on different memory-based PIM hardware architectures, they both proposed algorithms for grouping and mapping graph data nodes in a memory-friendly manner, and effectively handled GCN aggregation and combination operations.

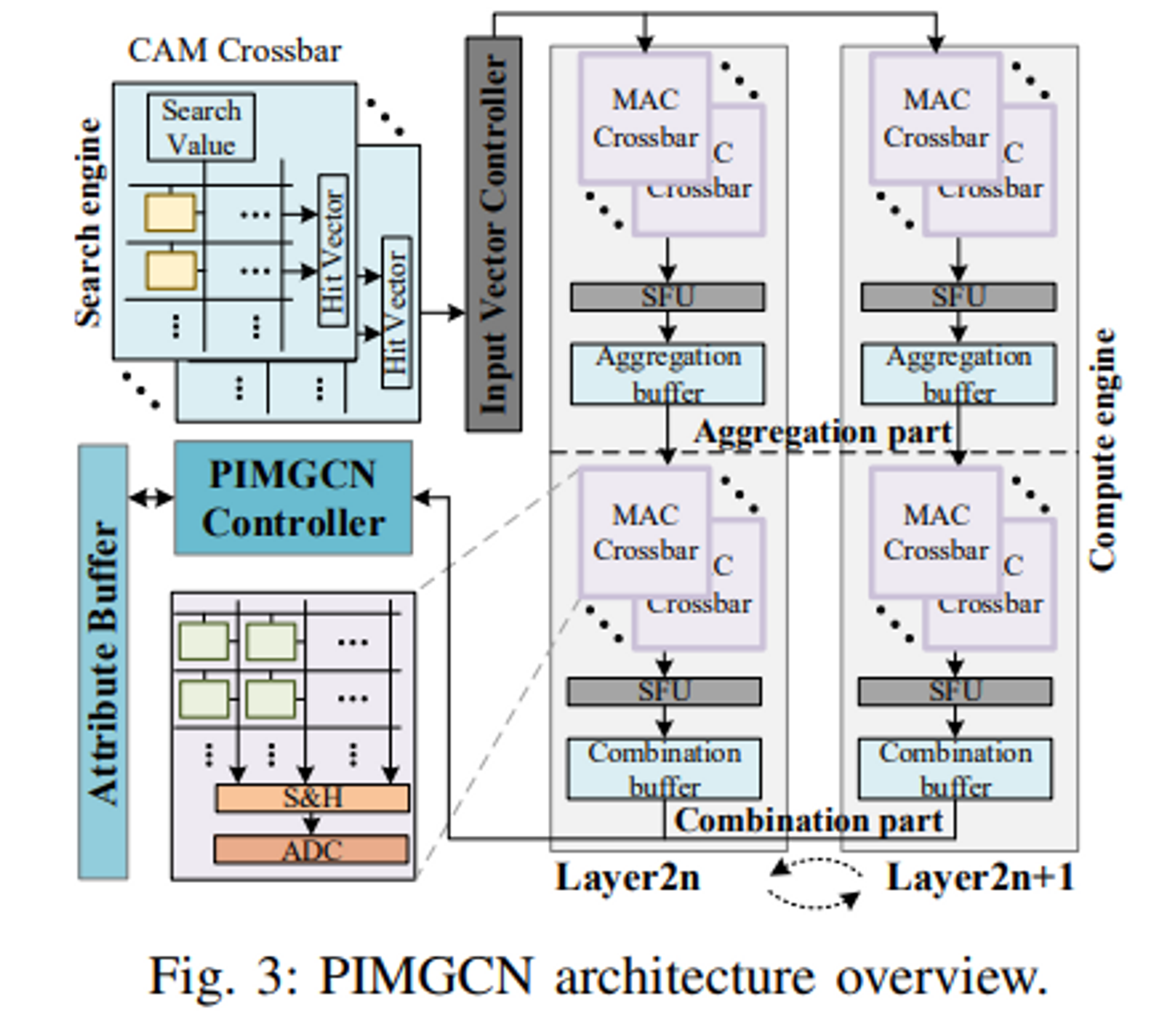

Fig. 6. PIMGCN architecture overview (Reprinted from [39] with permission).

4. PIM for RNN

RNN and LSTM structures can be effectively applied with PIM owing to their similarity to CONV layers and their ability to reuse feature maps and weights. ERA-LSTM [103] is a PuM architecture that uses ReRAM crossbars. It optimized the RNN's weight precision and digital-to-analog converter (DAC) in Long et al. [100] PIM architecture and applied systolic dataflow to improve computing efficiency and performance. Fig. 7(a) shows the overall structure of ERA-LSTM. The VMM unit in Fig. 7(b) stores the weights of the four LSTM gates and uses a digital-to-analog converter to deliver the input data and hidden states from the I/O buffer to the analog ReRAM crossbar. The computational results of the VMM unit are transmitted to an element-wise (EW) unit. The EW unit enables EW operation of the LSTM cell in the three feedforward layers. In addition, the VMM and EW units efficiently handle each of the four gate weights $(e.g.,\,\,W_{f},\,\,W_{i},~ \,\,W_{g},\,\,W_{o})$ by splitting each weight into four weights $(e.g.,\,\,W_{00}-W_{11})$ and tiling each weight into a tile for computation. In addition, the NN operation used an approximator to minimize the overhead caused by analog-to-digital converters, achieving a 6.1${\times}$ operational efficiency compared with Long et al. [100].

PSB-RNN [104] is another PuM architecture that uses a ReRAM crossbar. PSB-RNN transforms the MAC operation required for the RNN model into a single weights matrix using Fast Fourier Transform (FFT). The real ($Re$) and imaginary ($Im$) components of the resulting matrix are mapped onto the ReRAM crossbar, thereby enabling the retrieval of complex number operation results from each PE result. This method yielded a computational efficiency that was 17${\times}$ higher than that of Long et al. [100] for the LSTM model. Although this study requires additional operations and tasks beyond data mapping for the traditional LSTM model, it proposes an effective method for ReRAM crossbar PIM by mapping data for a complex number of operations necessary for MAC and utilizing the data flow.

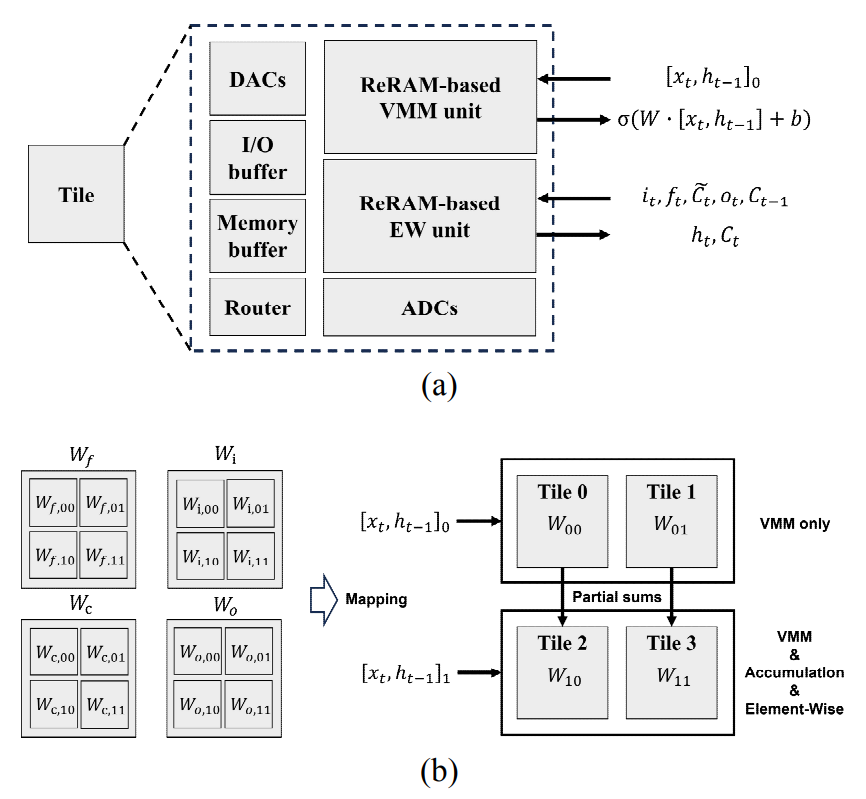

Fig. 7. ERA-LSTM: (a) architecture overview; (b) Mapping a LSTM cell to multiple tiles.

5. PIM for Transformer

TransPIM [106] is an HBM-based PnM designed for efficient transformer utilization. An arithmetic control unit (ACU) was allocated to each bank for computation, and a token-based data shading scheme was proposed to allow parallel processing by dividing and assigning the data required for the calculation to the HBM's bank stack. The study also optimizes data using a token-based transformer operation method, which enables independent operations between tokens, in contrast to the existing layer-operated transformer structure. Fig. 8(a) illustrates the encoder process of TransPIM. The input token size is L${\times}$D, where L signifies the number of tokens and D indicates the size of the embedding vector's dimension. Input tokens $I_{1},\,\,I_{2}$ and $I_{3}$ are allocated to each bank using a technique that distributes each input token to N banks. Based on this, the embedding values $Q_{i},\,\,K_{i},\,\,V_{i}$ corresponding to each input token are calculated and assigned to the same bank, followed by a

self-attention operation. For the MHA, $~ K_{i}$ and $~ V_{i}$ are sequentially transferred to bank i +1 and sent to another bank for calculation using the ring-broadcast technique, thus enabling computation with minimal data transmission between banks. Fig. 8(b) shows a decoder block, where K and V are received from the encoder vector for reuse, and only the last bank obtains new Q, K, and V vectors for the fully connected layer computation. The new $~ Q_{new}$ is broadcast to all other banks to calculate the attention score, and $~ K_{new}$ and $~ V_{new}$ are concatenated with the previous $~ K_{i}$ and $~ V_{i}$ of the last bank. Each bank stores the weights for Q, K, and V during this time, and the ring broadcast technique is employed to reuse the stored weights and Q, K, and V values in the other banks, facilitating the efficient processing of repeated NN operations. To this end, this study incorporates the ACU onto the banks of HBM memory and adds a ring broadcast unit between the banks. This allows for a reduction of more than 30.8% in the data movement overhead on average compared with the existing transformer, with only 4% additional area overhead relative to the original DRAM. This study ensured that the PIM power remained below the DRAM power budget of 60 W.

ReTransformer [107] proposed and applied optimization techniques to effectively accelerate GEMV operations within the transformer inference process, and softmax is suitable for low-power implementation in ReRAM-based PIM. This study has a similar direction to the existing ReRAM-based transformer-based workload target PIM study implementing MatMul operations inside ReRAM and applying optimization techniques. Thus, the latency of the operational process can be reduced. Specifically, this paper proposes a method of decomposing the operation into two consecutive multiplication steps to solve the compute-write-compute dependency that occurs when implementing the MatMul operation between Q and $K^{T}$during the transformer inference process using ReRAM. Consequently, the latency recorded in the crossbar of the ReRAM can be eliminated. In addition, a modified hybrid softmax formula that can maximize the crossbar arrangement of the ReRAM was proposed and applied to the softmax operation; as a result, only 0.691 mW was consumed and implemented, unlike 1.023 mW for the existing softmax operation. Finally, this study achieved a 23.21${\times}$ computational efficiency improvement and a 1,086${\times}$ power consumption reduction compared to NVIDIA TITAN RTX GPUs.

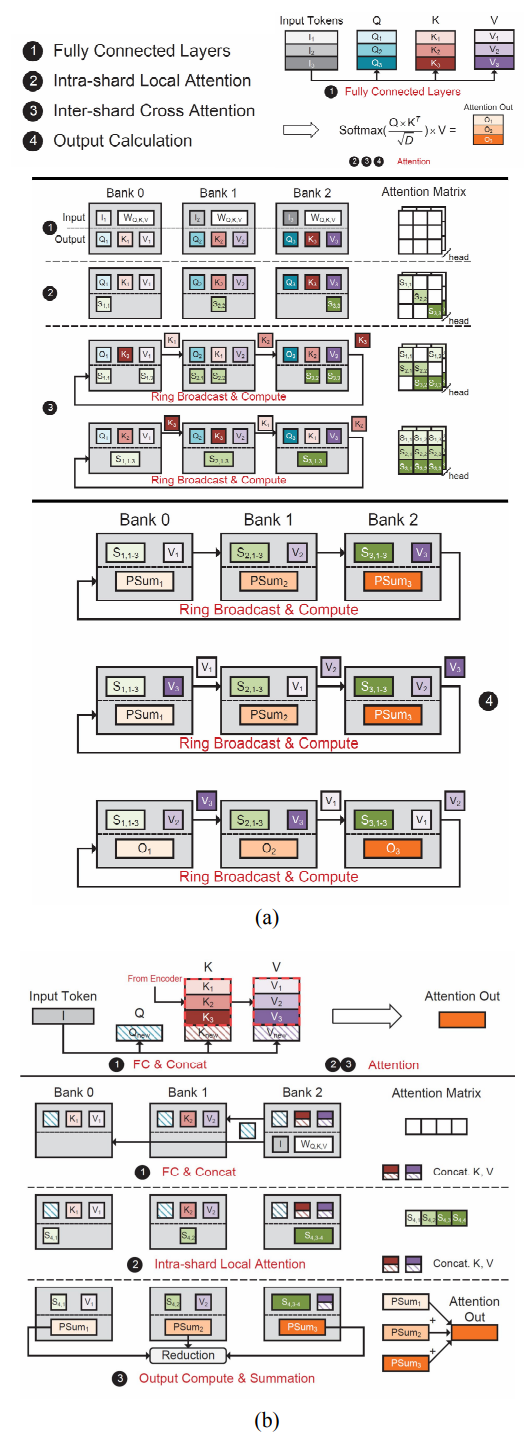

Fig. 8. Token-based data sharding scheme and the dataflow of Transformer: (a) encoder; (b) decoder in TransPIM (Reprinted from [106] with permission).

6. Discussions

The PIM is a new architecture that integrates processing and memory units into the PE, thereby enabling efficient data processing. However, owing to the integration of computational functions into memory cells, PIM may be limited in handling complex operations, and can cause performance degradation when computationally intensive operations are required. Moreover, PIM's complex control structure and limited memory capacity pose limit the full and effective handling of increasingly large AI workloads. For PIM cores to be effectively applied to AI workloads, clear criteria are required to determine whether operands should be computed in the host processor or the PIM core. These criteria are typically derived by statistically analyzing the results measured at the functional level using benchmark simulators [34,35]. In addition, in the PIM design process, the mapping of processes and parameters, as well as the data flow considering complex operations, must be carefully incorporated. In previous PIM studies, these considerations were designed heuristically. However, with increasingly diverse PIM architectures and algorithms, there is an urgent need for research on compilers that can automatically optimize workload functions, data mapping, and data flow.


In this paper, we present industrial products and analyze previous studies on PIM architectures for DNNs. We provide detailed explanations of the characteristics of representative DNNs and the overall structure of PIM. Specifically, we delve into how processing techniques, data mapping, and data flow are handled in PIM from a DNN perspective, drawing insights from representative studies. Additionally, we highlight the challenges that need to be addressed for PIM to replace the traditional von Neumann architecture. We emphasize the importance of conducting research on a universal software stack and compiler to effectively implement existing studies. We anticipate that this study will offer valuable insights to researchers exploring PIM technology.
