1. (Microwave Embedded Circuit & System (MECAS) Lab. School of Electrical Engineering, Chung-Ang University, Korea)

Injection-locked quadrature voltage-controlled oscillator (IL-QVCO), fourth-order resonator, in-phase and quadrature (I/Q), phase difference, CMOS

## I. INTRODUCTION

In the wireless communication field, an in-phase and quadrature (I/Q) signal is used for modulation methods such as quadrature phase shift keying and quadrature amplitude modulation (1,2). In addition, it can be used to eliminate ghost targets in radar applications (3,4). The frequency band required by wireless communication and radar application is increasing to the millimeter-wave band, and the bandwidth is also expanding. Therefore, a local oscillator must be used to output the millimeter-wave I/Q signal with a wide frequency range.

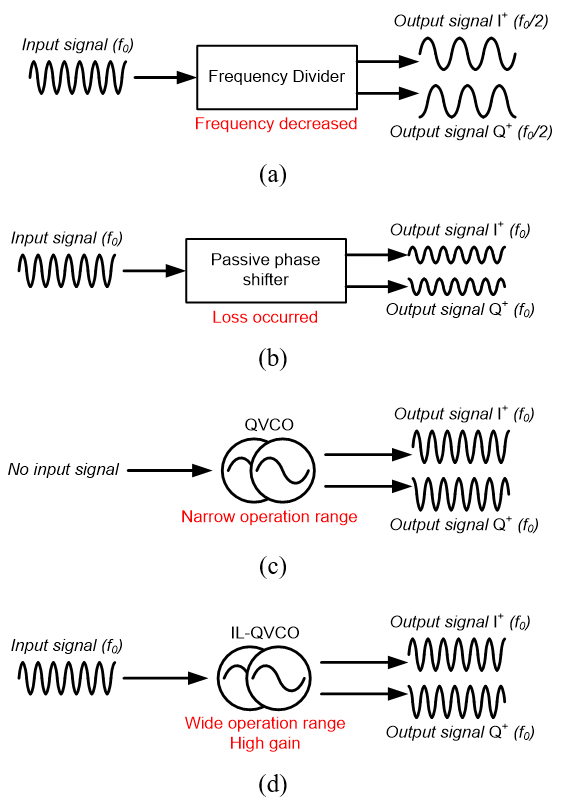

Fig. 1 shows four I/Q generator topologies: (a) frequency divider, (b) passive phase shifter, (c) quadrature voltage-controlled oscillator (QVCO), and (d) injection-locked (IL)-QVCO. The frequency divider receives the signal of f0 and outputs an I/Q signal, which decreases the frequency (5,6). Thus, it is not suitable for millimeter-wave frequency applications because a frequency that is twice as high is necessary to generate the I/Q signal. In addition, an active phase shifter, such as a polyphase filter (PPF), consists of passive components, including resistors and capacitors, that consume no power (7). The PPF is typically cascaded with different time constant to combat variations in the process, voltage and temperature (PVT). In addition, calibration circuits and driving amplifiers are used to calibrate the phase error and loss (8). QVCOs can output a I/Q signal without an input signal; however, they have a considerably narrow operation frequency range (9-11). The operation frequency ranges of a Colpitts QVCO (9) and a QVCO with tail current injection (10) are 0.217 GHz (4%) and 0.44 GHz (8%), respectively. The self-injection-coupled (SIC)-QVCO (11) and phase-tunable injection-coupled (PTIC)-QVCO (12) also have operation frequency ranges of 0.76 GHz (14%) and 0.6 GHz (6%), respectively.

Fig. 1. I/Q signal generator (a) frequency divider, (b) passive phase shifter, (c) QVCO, (d) IL-QVCO.

Fig. 2. Schematic of the proposed IL-QVCO.

Table 1. Design parameters

 Design parameter Value M1, M2, M9, M10 (W/L) 14/0.06 (mm/mm) M3, M4, M5, M6, M11, M12 (W/L) 8/0.06 (mm/mm) M7, M8, M13, M14 (W/L) 60/0.06 (mm/mm) L1, L1 737.5 pH L2, L6 791.3 pH L3, L7 1.5 nH L4, L8 1.44 nH k12, k56 0.29, 0.84 C1, C3 331 fF C2, C4 209 fF

In this study, an injection-locked (IL)-QVCO is proposed that can operate in a wide frequency range. The input signal should be applied because it is injection-locked to the fundamental signal; however, there are no frequency reduction and loss. Furthermore, there is no additional control circuit, such as a capacitor bank. This article is structured as follows: In Section II, the circuit in this work is described. In Sections III and IV, the measurement results and conclusion are presented.

## II. CIRCUIT DESCRIPTION

Fig. 2 shows a schematic of the proposed IL-QVCO that consists of an NMOS cross-coupled pair (M1–4, M9–12), direct injector (M5, 6), fourth-order resonator (L1, 2, L5, 6, C1–4), and output buffer (M7, 8, M13, 14, L3, 4, L7, 8). The differential input signal (Vin+, Vin) is applied to the gate of the injector (M5, 6) through DC blocking capacitors (Cdc). The DC voltage (Vin,DC) is biased through the high-impedance resistor (Rdc). The two nodes of the primary coil (L1, L3) are connected to the feedback injector (M3, 4, M9, 10); they oscillate with a phase difference of 90°. Additionally, in the figure, k represents the coupling coefficient between the primary and secondary coils. The value of k determines the self-resonance point. The I/Q signals (VoutI+, VoutI–, VoutQ+, and VoutQ–) are output from the secondary coil (L2, L6) nodes through the output buffer and have the same frequency as the input signals. In other words, this IL-QVCO is injection-locked to the fundamental signal. The topology of the output buffer is a differential common-source amplifier. The load impedance of the output buffer is matched at 8 GHz. Vbias is generated by an internal self-bias circuit, which is not shown in the figure to reduce complexity. The design parameters are organized in Table 1.

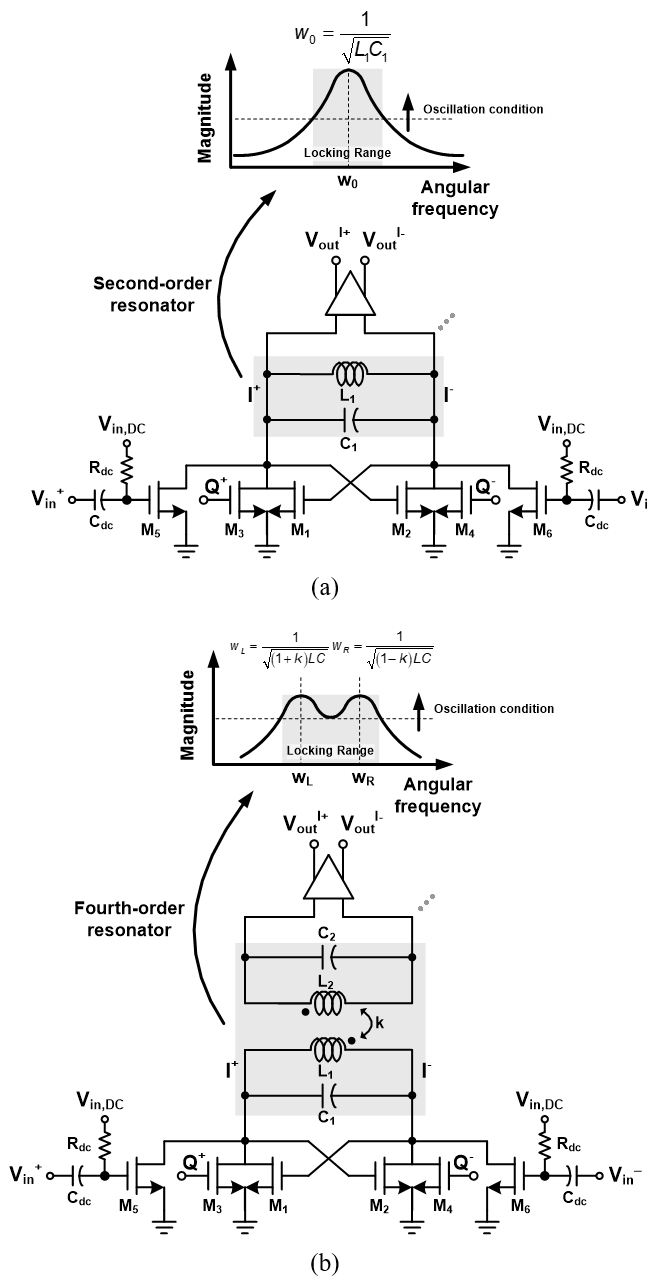

Fig. 3. Load impedance magnitude of the (a) second-order resonator, (b) fourth-order resonator.

Fig. 3 shows the load impedance magnitude of the IL-QVCO with a second-order resonator and fourth-order resonator, as well as a half core schematic. The second-order resonator consists of L1 and C1. Parasitic capacitors, including the drain–gate capacitors of M1–M6, are included in C1. This resonator has only one pole. The resonance angular frequency can be expressed as

##### (1)
$$w_{0}=\frac{1}{\sqrt{L_{1} C_{1}}}$$

The magnitude of the load impedance at w0 is the highest; however, the angular frequency range satisfied the oscillation condition is narrower than that of the fourth-order resonator (13,14). The fourth-order resonator comprises two poles. If the design parameter satisfies the following formula,

##### (2)
$$L_{1} \simeq L_{2} \simeq L, C_{1} \simeq C_{2} \simeq C$$

then the resonance angular frequency can be expressed as

##### (3)
$$w_{L}=\frac{1}{\sqrt{(1+k) L C}}, w_{R}=\frac{1}{\sqrt{(1-k) L C}}$$

where k is the coupling coefficient between L1 and L2. If the transformer is coupled strongly, the distance between the two poles increases, indicating that the locking range can be controlled by the coupling coefficient (15,16). Fig. 4 shows the simulation results of the impedance magnitude according to the coupling factor, k12. As the value of k12 increases, the distance between the two poles increases. Also, the self-resonant frequency is determined by the one with the higher impedance among the two poles. A wider operation frequency range can be obtained when a fourth-order resonator is used, rather than a second-order resonator, by adjusting the coupling coefficient. However, the locking range cannot be extended indefinitely because the IL-QVCO must satisfy the oscillation condition. The minimum oscillation condition follows the Barkhausen formula.

##### (4)
$$g_{m} \cdot\left|Z_{L}\right| \geq 1$$

where gm is the transconductance of the NMOS cross-coupled pair, and ZL is the magnitude of the load impedance of the IL-QVCO. As the distance between the two poles increases, a new minimum value is obtained. The IL-QVCO should be designed using this minimum value to satisfy the oscillation condition.

## III. MEASUREMENT RESULTS

This circuit was implemented by using a 65-nm complementary metal–oxide–semiconductor (CMOS) technology. Fig. 5 shows a photograph of the die. The chip size is 580 mm × 600 mm, and the entire die size, including all pads, is 860 × 770 mm. The power consumption of the core and output buffer are 42 and 11 mW, respectively. Fig. 6 shows the simulated and measured locking range of the IL-QVCO when Vdc is 0.7 V, with a supply voltage of 1 V. The simulated and measured locking ranges are 7.6–10.3 GHz and 7.08–10.56 GHz, respectively, when a 0 dBm input signal power is applied. The measurement result of the locking range is very similar to the simulation result. The self-resonance frequency difference between simulation and measurement is only 0.23 GHz.

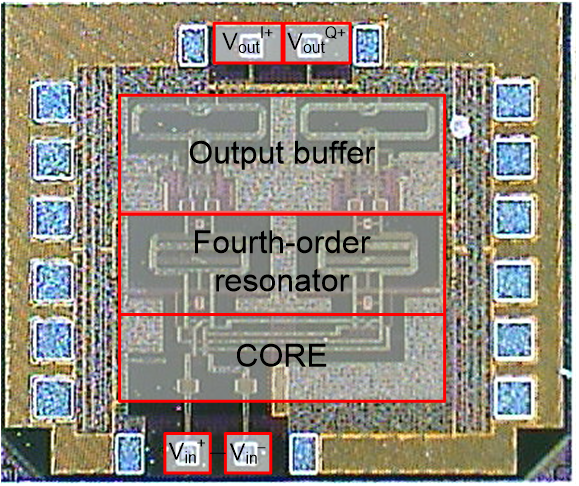

Fig. 5. Die photograph.

Fig. 6. Simulated and measured locking range of the IL-QVCO: Vdc = 0.7 V and 1 V supply voltage.

Fig. 7. Monte Carlo simulation of the phase difference.

Fig. 7 presents the Monte Carlo simulation results of the I/Q output signal when an 8 GHz injection signal is applied. The number of samples is 10000, mean phase difference is 0.643. The standard deviation is 4.87. Fig. 8 shows the measured I/Q output power and the amplitude imbalance according to the injection frequency. The maximum I/Q amplitude error is less than 2-dB.

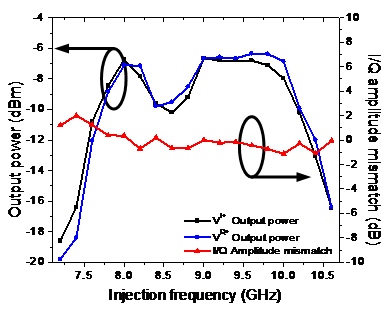

Fig. 8. Measured I/Q output signal power and I/Q amplitude mismatch according to the injection frequency.

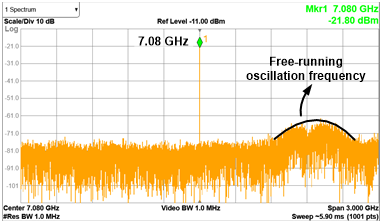

Fig. 9. Spectrum when the minimum frequency injection signal is applied: 7.08 GHz.

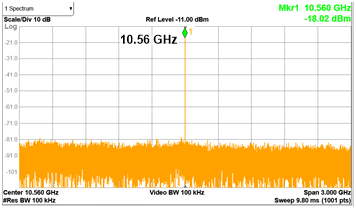

Fig. 10. Spectrum when the maximum frequency injection signal is applied: 10.56 GHz.

Fig. 9 and 10 show the spectra when the minimum and maximum injection-locked frequencies are applied, respectively. The cables, connectors, and baluns used during the measurement produced an approximately 4-dB loss. Fig. 11 illustrates the phase noises for the cases when the 8 GHz injection-locked frequency is applied, and no input signal is applied. The self-oscillation frequency is 7.89 GHz, and the phase noise is −105.41 dBc/Hz.

Fig. 11. Measured I/Q output signal power and I/Q amplitude imbalance according to the injection frequency.

Table 2. Performance comparison of other injection-locked circuits for generating quadrature signals

 (11) (17) (18) This work Technology 0.18 mm 0.18 mm 0.13 nm 65 nm Architecture SIC-QVCO VCO+ILFD ILFD+ILFM IL-QVCO Supply (V) 0.75 1.8 1.2 1.0 Output frequency (GHz) 5.11 – 5.87 2.2 – 3.2 19.6 – 20.4* 7.08 – 10.56 13.8% 37% 4% 39.8% PDC (mW) 16 – 26 16.5 48 42 Phase noise @ 100 kHz −99.8 dBc/Hz −96.8 dBc/Hz N/A −118.1 dBc/Hz @ 1 MHz −124.4 dBc/Hz −101.5 dBc/Hz −111 dBc/Hz −124.9 dBc/Hz Chip area (mm2) 0.81 N/A 1.8** 0.66

*: single side lock range > 350 MHz

**: full chip size

8 GHz injection-locked signal source has −125.38-dBc/Hz phase noise, and the IL-QVCO phase noise is −124.92 dBc/Hz. The phase noise values mentioned were at an offset frequency of 1 MHz. Table 2 shows the performance comparison of injection-locked circuits. Several blocks such as VCO, ILFD (injection-locked frequency divider), and ILFM (injection-locked frequency multiplier) are connected to generate quadrature signals (17,18). The phase noise in Table 2 is the value at each output frequency. The proposed IL-QVCO has the widest operation frequency range.

## IV. CONCLUSIONS

An IL-QVCO using a fourth-order resonator is implemented in a 65-nm CMOS technology. The fourth-order resonator is employed to generate wide frequency range of I/Q signals. The free-running frequency of the IL-QVCO is 7.89 GHz, and the input locking range is 7.08–10.56 GHz (39.8%) at an input power of 0 dBm. The I/Q phase difference is 0.6° in their mean value while the standard deviation reaches 4.87°. The phase noise is −124.92 dBc/Hz at an offset frequency of 1 MHz. The core power consumption was 42 mW from a supply voltage of 1 V. The die size was 0.86 mm × 0.77 mm.
