Photodetector, silicon-on-insulator, germanium-on-silicon, back-end-of-the-line, optical responsivity, metallization scheme


Photodetectors are a core component of integrated optoelectronic circuits and have been widely studied (1-4). Si photonics has been consistently finding a way out to chip-level production for future CMOS interconnection technology (5). Ge is gaining increasing popularity as an optical material in Si photonics owing to its genuine energy-band structure warranting higher probability of optical processes and relatively high Si compatibility (6). More recently, hexagonal atomic arrangements of Si and Ge in the low dimensions have been highlighted owing to its greatly increased change for transition to a direct-bandgap material and bandgap tunability (7). In this study, a Si waveguide-coupled 1,550-nm Ge-on-Si photodetector on silicon-on-insulator (SOI) is fabricated and contact engineering is carried out in the back-and-of-the-line (BEOL) for improving its direct-current (DC) performance. The fundamental reason for bringing 1,550-nm wavelength into the Si photonics is its local minimum in optical attenuation in the silica, or SiO$_{2}$, which is a very accessible material in the conventional Si processing, with is potential applicability in the low-loss optical waveguide (8-10). By introducing a single-layer scheme comprising in-plane contacts with Metal-1 and a double-layer scheme comprising contacts with Metal-1 and extended Metal-2, the responsivity has been prominently improved.


SOI is etched for defining the device active region first, in the mesa isolation for electrical isolation, and then, p$^{+}$ ion implantation is performed for forming the anode junctions. Ge is epitaxially grown with a thickness of 500 nm for a pseudomorphic growth on SOI and etched down to the Si region. n$^{+}$ ion implantation is performed forming the cathode junctions on Ge. The low-doping region of the Si where the high p-type doping has been screened is remained as the intrinsic region, by which Ge-on-Si p-i-n diode structure is constructed (11). After annealing the implanted dopants, inter-layer dielectric (ILD) deposition and the first metallization (Metal-1) are performed. Then, inter-metal dielectric (IMD) deposition and the second metallization (Metal-2) are performed. A passivation oxide is deposited and opened for contact pad, and the process is completed by alloying the wafer. Fig. 1 shows the cross-section of a fabricated device in which buried oxide (BOX), SOI, and epitaxially grown Ge active layer are clearly demonstrated.

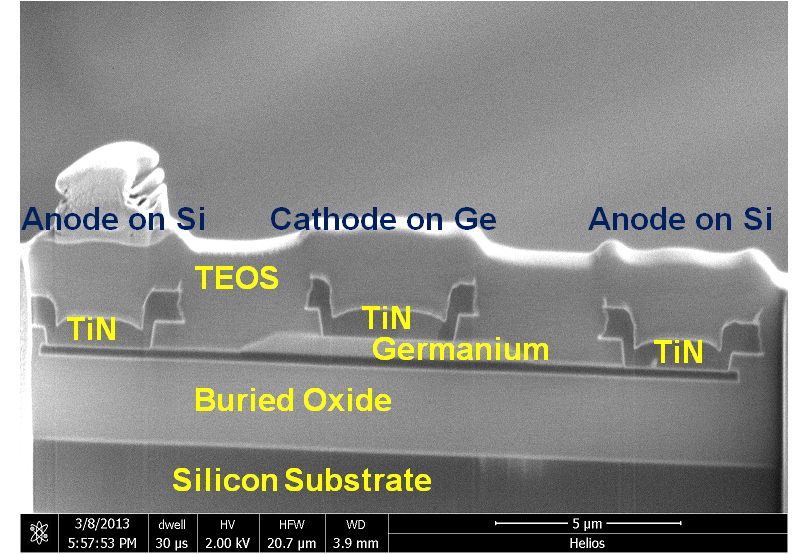

Fig. 1. TEM image of the cross-section of a fabricated device.


Fig. 2(a) and (b) show the full and magnified views of the waveguide-coupled Ge-on-Si photodetector with bulk-metal contact (BMC) scheme by scanning electron microscopy (SEM), respectively. The length and width of the Ge active region are 96 μm and 8 μm, respectively, and the lateral distance between n$^{+}$ Ge and p$^{+}$ Si is 4 μm. The numbers of vias through which the anode and cathode are contacted by Metal-1 are 42 (21 on each side) and 17, respectively, in the single-layer contact (SLC) scheme, as shown in Fig. 2(c). The numbers of vias from Metal-1 to Si and Ge active regions are 22 (11 on each side) and 9, respectively, and those from Metal-2 to Metal-1 are 20 (10 on each side) and 8 in the double-layer contact (DLC) scheme, as shown in Fig. 2(d). Fig. 3(a) and (b) show the schematics of the SLC and DLC, respectively. These interconnection types can be more tangibly understood if seen from the sides as shown in the figures. It is demonstrated that the number of vias on the anode and cathode electrodes observed from top is maintained for SLC and DLC devices by this approach in the layout design. For the comparison study, BMC acts as the reference. In the BMC scheme, Metal-1 is directly deposited on Ge without contact holes: same with the SLC scheme in Fig. 3(a) but Metal-1 is volume-contacted to Ge without Via-1, which can be also confirmed by Fig. 2(b).

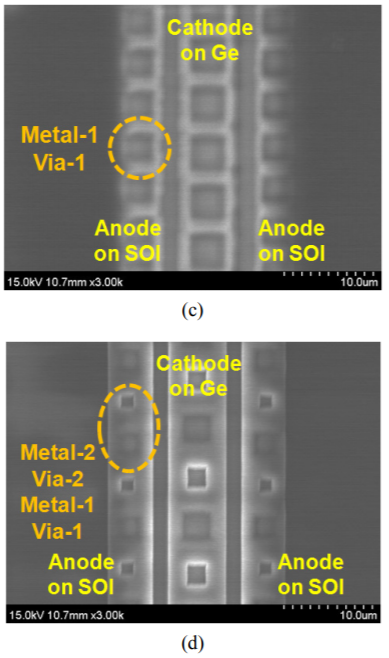

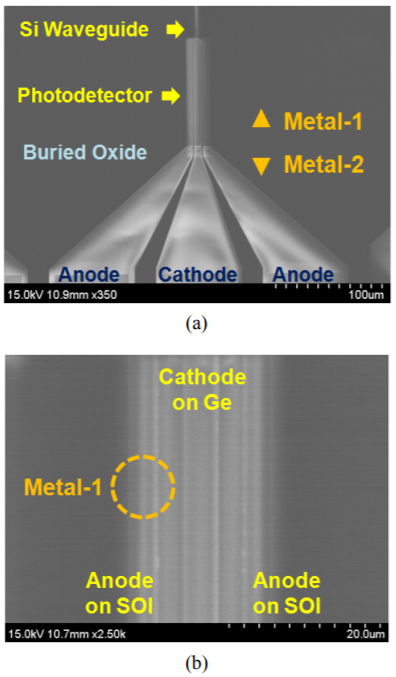

Fig. 2. SEM images of the fabricated devices (a) Top view of the entire Si waveguide-coupled Ge-on-Si photodetector. Magnified views of devices with (b) BMC (reference), (c) SLC, (d) DLC metallization schemes.

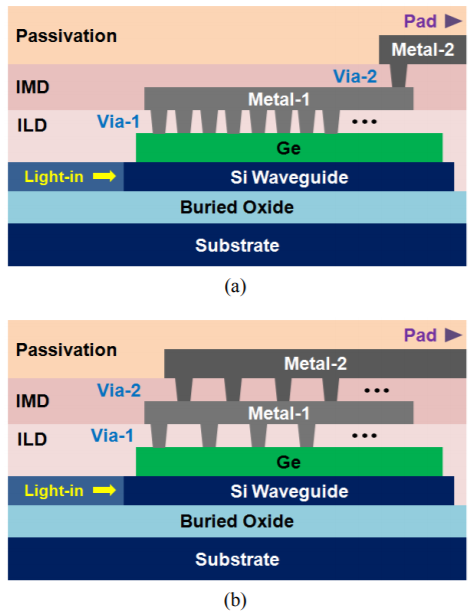

Fig. 3. Schematics seen from the sides for understanding the metallization schemes (a) SLC, (b) BLC interconnections.



The devices are mounted onto a temperature controlled copper stage held at 25 $^{\circ}$C. 1550-nm light is edge coupled into the photodetector waveguide through the use of a polarization maintaining (PM) lensed fiber. Polarization control is performed with the use of a polarization controller and polarizer at the input side and measurements were performed for TE polarization. For the DC characterization of each device, the dark current and responsivity are evaluated under various bias conditions. The cathode voltage (V$_{\mathrm{C}}$) is swept from 0 V to 4 V, while the anode pads on both sides of the Ge cathode are grounded in common (V$_{\mathrm{A}}$ = 0 V) for measuring the cathode current (I$_{\mathrm{C}}$) with no optical input. Fig. 4(a) shows the I$_{\mathrm{C}}$-V$_{\mathrm{C}}$ curves for the devices with BMC, SLC, and DLC schemes. Fig. 4(b) is a reproduction of Fig. 4(a) in terms of I$_{\mathrm{C}}$ values at several discrete V$_{\mathrm{C}}$ values, which allows more explicit comparisons to be made among the devices. It is revealed that the SLC and DLC schemes are substantially effective in reducing the reverse current, and the latter exhibits the minimum dark current. For the devices under measurements, the dark current is mainly composed of leakages from the Ge/Si heterojunction and metal-semiconductor (MS) interfaces. The heterojunction leakage is predetermined by the process and device dimensions, which are identically designed for all the devices, and therefore, the effectiveness of the interconnect SLC and DLC schemes is in the controllability of the MS interface leakages. The total contact area of BMC device where the metal is volume-contacted with the semiconductors is reduced by introducing segmented contact holes in the other schemes. The MS leakage is mainly governed by the contact area (12-14), and the total dark current is consequently reduced by the scaled MS interface leakages. A further reduction in the dark current is observed when the scheme transitions from SLC to DLC because the number of contacts between Metal-1 and the active regions through Via-1 is reduced by half.

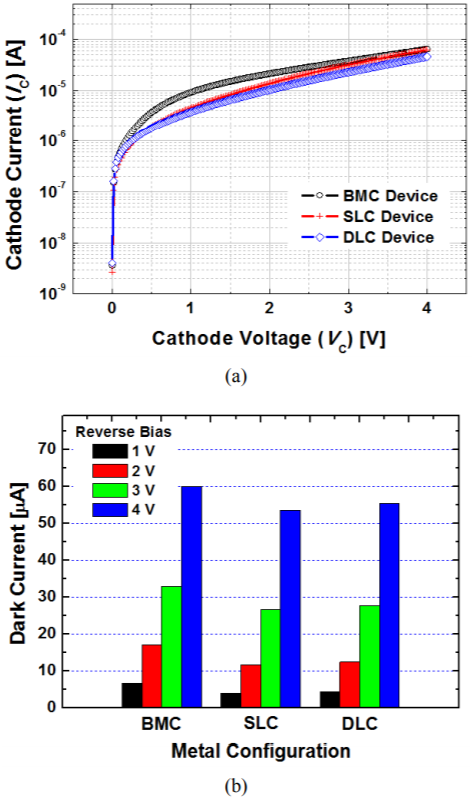

Fig. 4. Dark current characteristics (a) IC-VC curves under reverse bias, (b) Comparison of dark currents among devices at different operating voltages.

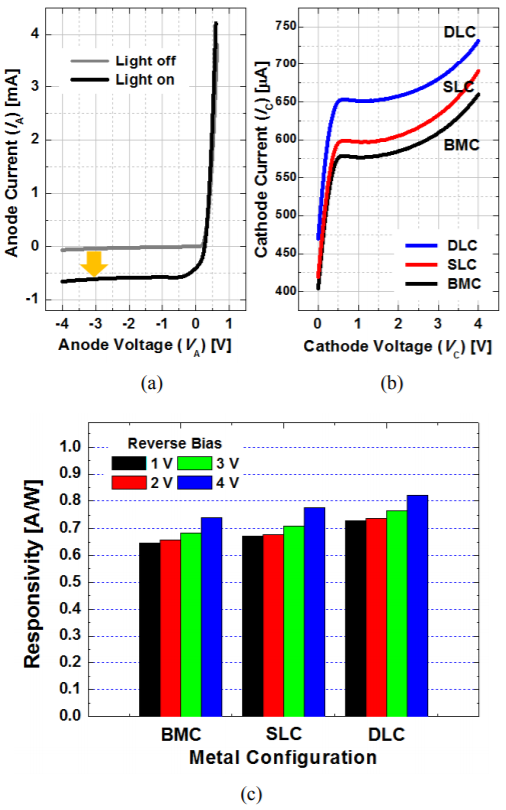

Fig. 5. Evaluation of responsivity (a) Measurement setup verification by a BMC device (V$_{\mathrm{A}}$ swept with V$_{\mathrm{C}}$ = 0 V), (b) I$_{\mathrm{C}}$-V$_{\mathrm{C}}$-curves from the devices with different metallization schemes (V$_{\mathrm{A}}$ = 0 V), (c) Extracted responsivity values.


A wavelength of 1550 nm is widely used for an optical telecommunication channel owing to the lowest attenuation loss in the silica fiber and is being pursued for processing signal in on-chip optical interconnect (15). The final input power from a 1550-nm laser source is -0.5 dBm (0.89 mW). Fig. 5(a) shows the electrical response of the Ge-on-Si photodetector (BMC) to the 1550-nm optical input, by which the electrical and optical measurement setups are validated. As the interconnect scheme transitions from SLC to DLC, the collected photocurrent increases, as depicted in Fig. 5(b). Although the responsivity of each device is improved under a larger reverse bias, the DLC device exhibits the highest responsivity among the devices under all bias conditions, as can be confirmed from Fig. 5(c). Increased number of contacts in a given area (SLC) and a shorter path from the active regions to the elongated Metal-2 (DLC) improve the responsivity by avoiding current localization and enhancing the efficiency of photocurrent collection (16).


A waveguide-coupled 1550-nm Ge-on-Si photodetector is designed, fabricated, and characterized with a particular interest in the BEOL technology for improved performance. It is observed that an increased number of smaller contacts on the active regions and higher accessibility to the metal pad warrant substantial reduction in the dark current and enhancement in the responsivity.


This work was supported by the National Research Foundation of Korea (NRF) funded by the Korean Ministry of Science and ICT (MSIT) through a Mid-Career Researcher Program (NRF-2017R1A2B2011570) and by the Ministry of Trade, Industry and Energy (MOTIE) through the Korea Semiconductor Research Consortium (KSRC) Support Program (Grant 10052928).


Michel J., Liu J., Kimerling L. C., Jul 2010, High-Performance Ge-on-Si Photodetectors, Nat. Photonics, Vol. 4, pp. 527-534DOI
Liow T.-Y., Ang K.-W., Fang Q., Song J.-F., Xiong Y.-Z., Yu M.-B., Lo G.-Q., Kwong D.-L., Jan/Feb 2010, Silicon Modulators and Germanium Photodetectors on SOI: Monolithic Integration, Compatibility, and Performance Optimization, IEEE. J. Sel. Top. Quantum Electron., Vol. 16, No. 1, pp. 307-315DOI
Cho S., Kim H., Sun M.-C., Park B.-G., Harris J. S., Jr. , Sep 2012, Process Considerations for 80-GHz High-Performance p-i-n Silicon Photodetector for Optical Interconnect, J. Semicond. Technol. Sci., Vol. 12, No. 3, pp. 370-376Google Search
Jang W.-H., Kim H.-S., Kang M.-J., Cho C.-H., Cha H.-Y., Apr 2019, Recessed AlGaN/GaN UV Phototransistor, J. Semicond. Technol. Sci., Vol. 19, No. 2, pp. 184-189Google Search
Liao L., Mar 2017, Intel Silicon Photonics: From Research to Product, Proc. IEEE Components, Packaging and Manufacturing Technologuy Chapter, Santa Clara ValleyGoogle Search
Dayeh S. A., Dickerson R. M., Picraux S. T., Sep 2011, Axial bandgap engineering in germanium-silicon heterostructure nanowires, Appl. Phys. Lett., Vol. 99, No. 11, pp. 113105-1-113105-3DOI
Fadaly E. M. T., Apr 2020, Direct-bandgap emission from hexagonal Ge and SiGe alloys, Nature, Vol. 580, pp. 205-209DOI
Maker A. J., Armani A. M., Oct 2011, Low-loss silica-on-silicon waveguides, Opt. Lett., Vol. 36, No. 19, pp. 3729-3731DOI
Tran M. A., Huang D., Komlijenovic T., Peters J., Malik A., Bowers J. E., Jul 2018, Ultra-Low-Loss Silicon Waveguides for Heterogeneously Integrated Silicon/III-V Photonics, Appl. Sci., Vol. 8, No. 7, pp. 1139-1-1139-13DOI
Zhang G., Haw J. W., Cai H., Xu F., Assad S. M., Fitzsimons J. F., Zhou X., Zhang Y., Yu S., Wu J., Ser W., Kwek L. C., Liu A. Q., Aug 2019, An integrated silicon photonic chip platform for continuous-variable quantum key distribution, Nat. Photonics, Vol. 13, pp. 839-842DOI
Pham T. T. T., Shin H., Chong E., Cha H.-Y., Oct 2018, Gallium Nitride PIN Avalanche Photodiode with Double-step Mesa Structure, J. Semicond. Technol. Sci., Vol. 18, No. 5, pp. 645-649Google Search
Tarplee M., Madangarli V., Sudarshan T. S., May 2002, Current-voltage characteristics of an integrated Schottky diode, Solid-State Electron., Vol. 46, No. 5, pp. 753-757DOI
Roy K., Mukhopadhyay S., Mahmoodi-Meimand H., Feb 2003, Leakage Current Mechanisms and Leakage Reduction Techniques in Deep-Submicrometer CMOS Circuits, Proc. IEEE, Vol. 91, No. 2, pp. 305-327DOI
Okyay A. K., Chui C. O., Saraswat K. C., Feb 2006, Leakage suppression by asymmetric area electrodes in metal-semiconductor-metal photodetectors, Appl. Phys. Lett., Vol. 88, No. 6, pp. 063506-1-063506-3DOI
Roth J. E., Palermo S., Helman N. C., Bour D. P., Miller D. A. B., Horowitz M., Dec 2007, An Optical Interconnect Transceiver at 1550 nm Using Low-Voltage Electroabsorption Modulators Directly Integrated to CMOS, IEEE J. Lightwave Technol., Vol. 25, No. 12, pp. 3739-3747Google Search
Allen L. H., Zhang M. Y., Mayer J. W., Colgan E. G., Young R., Jul 1991, Solutions to current crowding in circular vias for contact resistance measurements, J. Appl. Phys., Vol. 70, No. 1, pp. 253-258DOI
