I. INTRODUCTION
The SiN/SiO${}_{2}$ film deposition process, as shown in Fig. 1, is a passivation film created to protect the device after Through Silicon Via (TSV)
protrusion in the Wafer Level Package (WLPKG) TSV Si Dry Etch process.

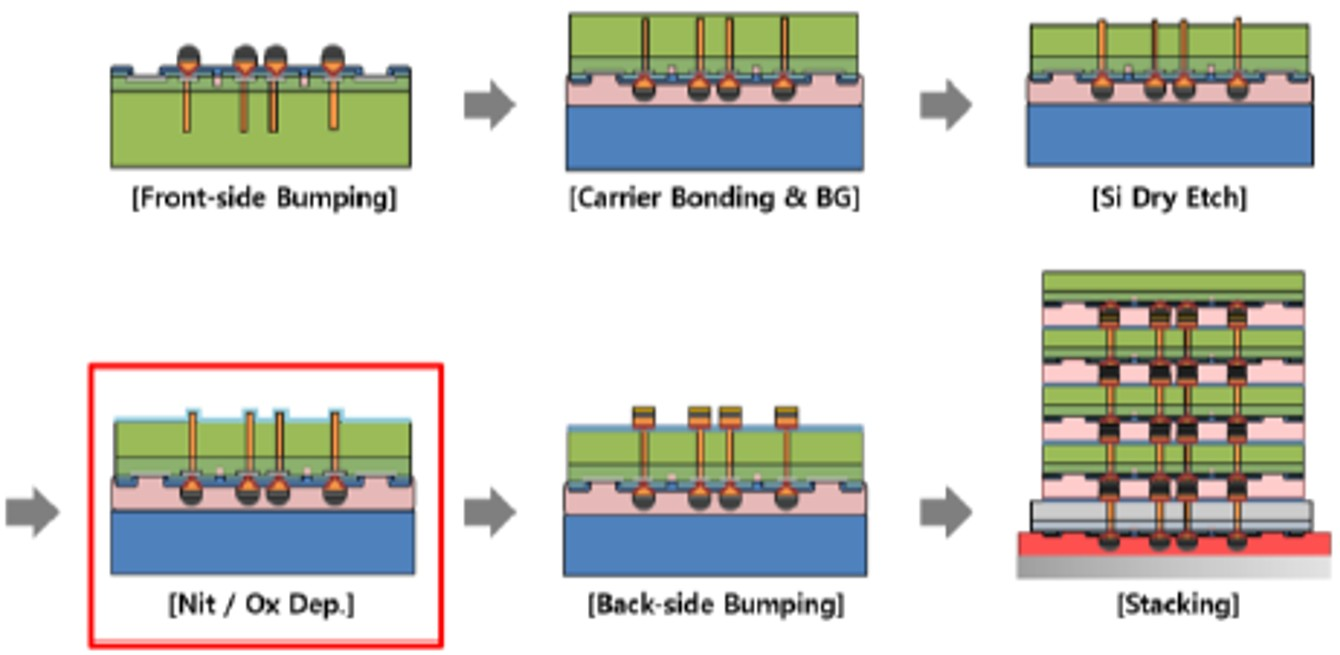

Fig. 1. TSV process flow & SiN/SiO$_{2}$ film dep.
To explain this in more detail, as shown in Fig. 2, after thinning the backside of the device wafer bonded to the carrier wafer, the
TSV protruded through the Si Dry Etch process. After that, a SiN layer for passivation
to prevent Cu diffusion in the protruded TSV and a SiO${}_{2}$ layer for robustness
to prevent TSV damage during the TSV opening and planarization process through the
Chemical Mechanical Polishing (CMP) process of the protruded TSV, are sequentially
deposited. At that time, our company had been working on an overall capacity improvement
task to achieve the High Bandwidth Memory (HBM) production target, but it was necessary
to improve the SiO${}_{2}$ deposition process, which had a relatively low deposition
rate and was acting as a bottleneck. However, although increasing high-frequency power
would easily increase the deposition rate of SiO${}_{2}$ film as shown [1], due to the characteristic of the equipment used by SK hynix, it was impossible to
simply increase the high-frequency power or the low-frequency power to improve the
deposition rate, which is usually used to improve the deposition rate.

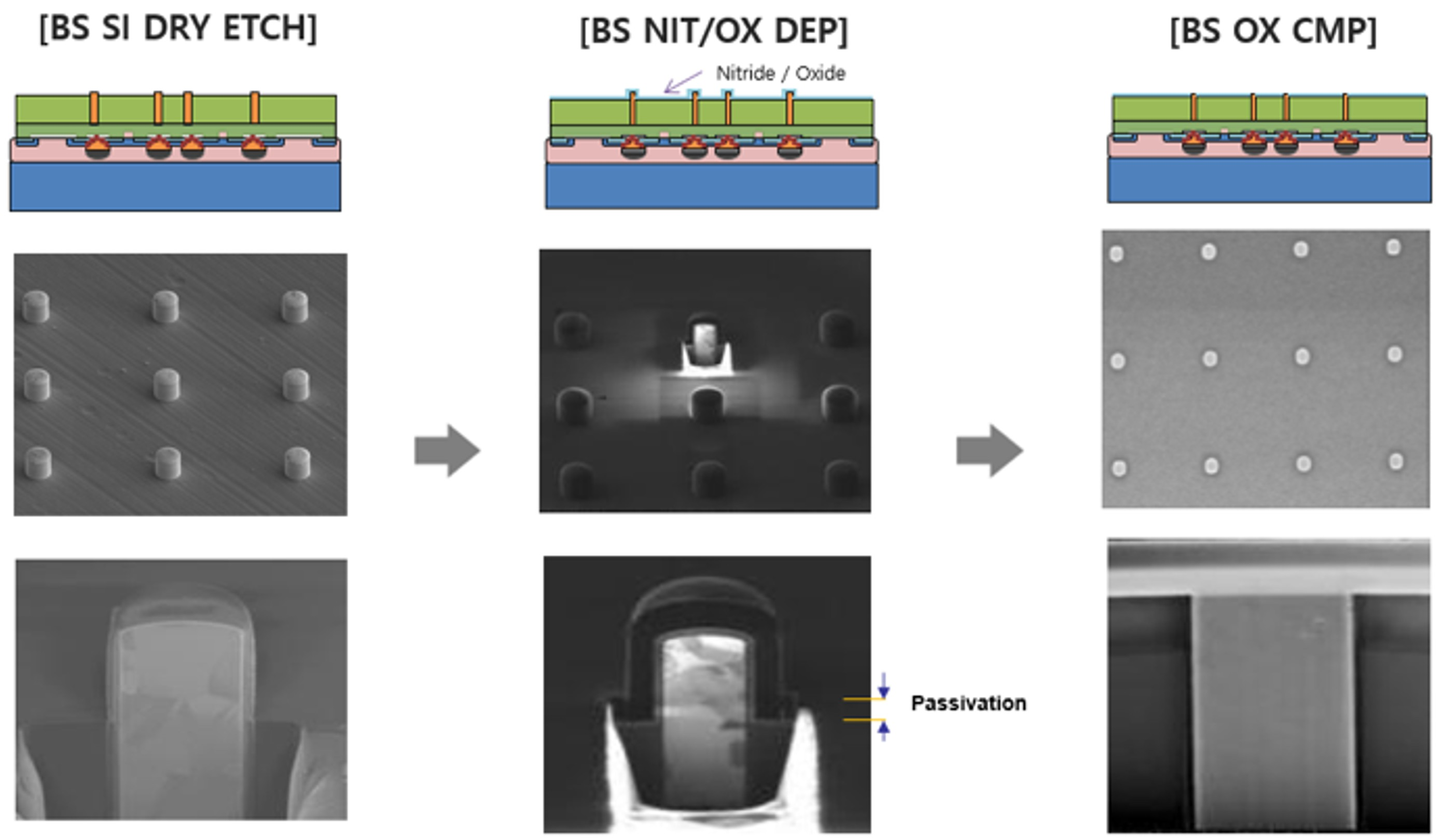

Fig. 2. TSV protrusion removal process.
Therefore, in this study, to improve productivity in the SiO${}_{2}$ film deposition
process, we aim to secure conditions that can minimize the change in the properties
of the SiO${}_{2}$ film that can affect the linked process while increasing the deposition
rate. In addition, since the recipe developed in this study is a mass production recipe
used in the SK hynix mass production line, most of the data is masked as it cannot
be disclosed due to confidentiality.
II. EXPERIMENTAL METHODS
1. Exploring Factors That Increase Deposition Rate
Prior to conducting this experiment, verification was conducted as shown in Table 1 to examine the influence of the major parameters of our CVD equipment on the Tetraethyl
Orthosilicate (TEOS) SiO${}_{2}$ film deposition rate. To verify the influence of
each gas flow composition in the recipe to increase the TEOS SiO${}_{2}$ film deposition
rate, the major parameters were selected and the process influence for each TEOS flow
and O${}_{2}$ flow was heuristically verified to examine the influence on film thickness
uniformity that can be used in the mass production line, not simply through an increase
in the deposition rate, as a recipe that can be used in the mass production line was
set. In addition, the level that can be applied to the mass production line immediately
after the recipe development is completed, in terms of both deposition rate and uniformity,
was reviewed. To evaluate the TEOS flow, the change in deposition rate when the TEOS
level was changed as in Table 1 in the existing recipe conditions, was verified.
Table 1. Deposition rate evaluation condition.
|
|
TEOS Flow
Evaluation
|
O2 Flow
Evaluation
|
He-Carrier Flow
Evaluation
|
|
TEOS
|
a ~ 2a
|
Original
|
Original Condition
|
|
O2
|
Original Condition
|
b ~ 4b
|
|
He Carrier
|
Original
|
c ~ 1.5c
|
As a result of the evaluation, as shown in Fig. 3, when confirming the relationship between the change in film deposition rate and
the increase in TEOS flow, as suggested in [3], it was confirmed that there was a strong positive correlation at the level of r${}^{2}$
0.99.

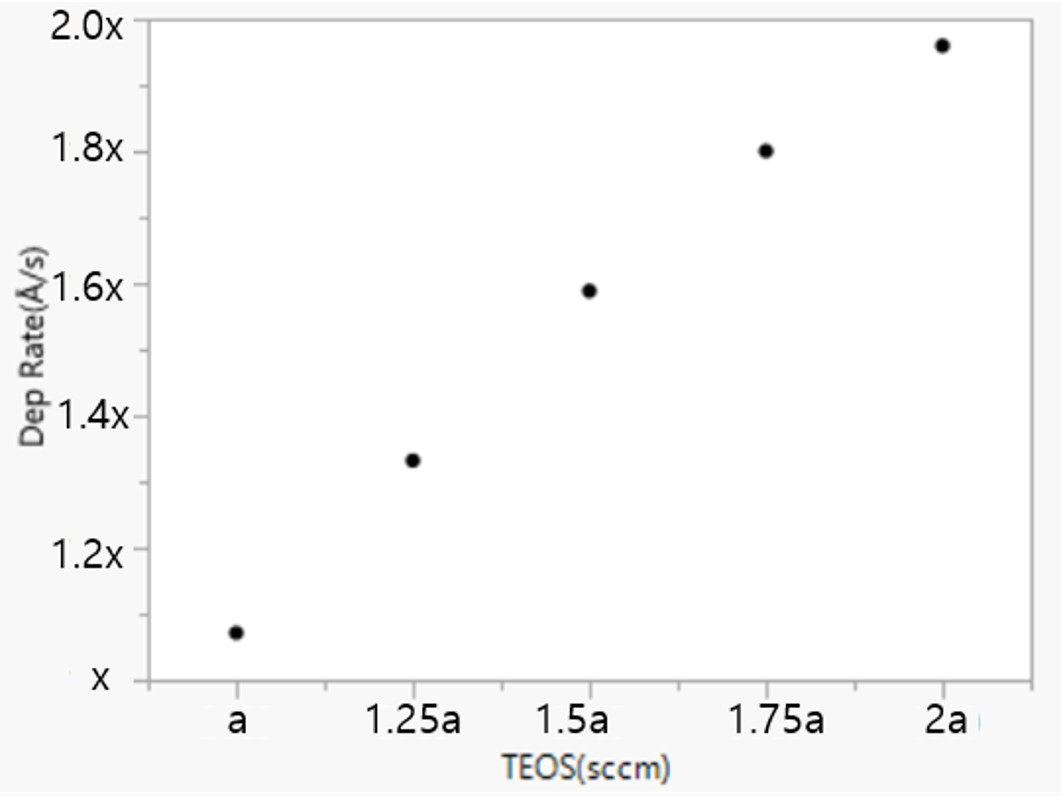

Fig. 3. Change in deposition rate according to changes in TEOS flow.
The second deposition rate verification evaluation according to the change in O${}_{2}$
flow was conducted. In this experiment, there was no correlation between the change
in O${}_{2}$ flow and the deposition rate as shown in Fig. 4.
Fig. 4. Change in dep. rate according to changes in O$_{2}$ flow.
However, the increase in the uniformity of the film thickness was confirmed according
to the change in O${}_{2}$ flow as shown in Fig. 5.
Fig. 5. Change in film uniformity to change in O$_{2}$ flow.
Reason for the result of Figs. 4 and 5 is although TEOS flow was kept constant, increasing the oxygen flow altered the spatial
distribution of deposition. A local decrease in deposition rate was observed in certain
wafer regions; however, due to compensating increases in other areas, the overall
mean film thickness remained nearly unchanged.
In this experiment, after confirming the results of the two parameters, it was found
that the deposition rate could be improved by increasing the TEOS flow, and the change
in O${}_{2}$ flow was minimized to lower the change in film uniformity. However, it
was confirmed that simply increasing the TEOS flow posed a particle source risk in
the operation of the company's CVD equipment, and in the long term, there was a risk
of clogging the fore-line, which is the pumping line of the CVD equipment. To improve
this, the amount of O${}_{2}$ flow and the amount of He-carrier gas flow in the recipe
were increased at the same rate as the increase in TEOS flow, and it was confirmed
that there was still no difference in the deposition rate under the given conditions.
Based on the results of the above experiment, after applying the changed recipe, it
was possible to secure an 80% deposition rate improvement condition compared to the
existing mass production conditions with the changed recipe.
2. Effect of the Linked Process According to the Application of the New Recipe
As a result of applying the SiO${}_{2}$ film deposition recipe for increasing the
deposition rate and improving the equipment stability, there were no unusual issues
in the inspection results and visual results as shown in Fig. 6.

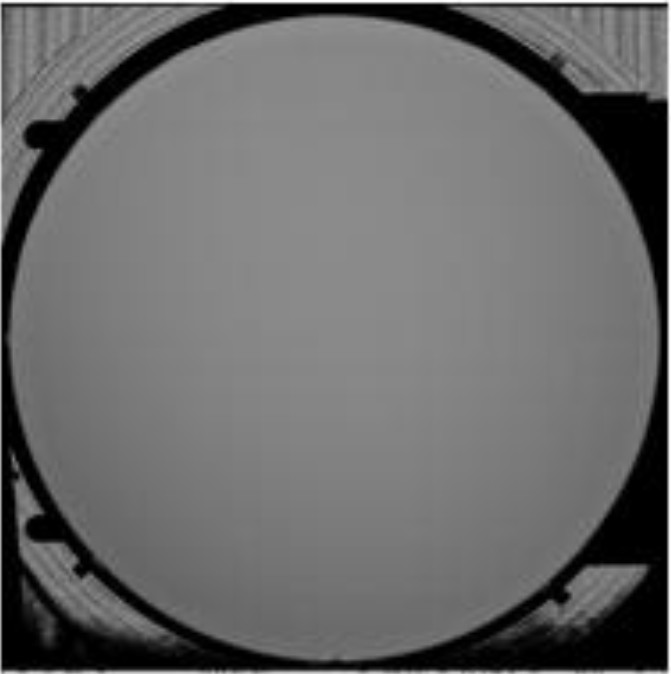

Fig. 6. CVD film IR inspection image.
However, a decrease in yield was confirmed due to TSV damage in the wafer edge area
after the subsequent CMP process. The cause of the decrease in yield was found to
be the difference in CMP removal rate (R/R) due to the change in the SiO${}_{2}$ film
properties, and as shown in Fig. 7, it was confirmed to be a lack of TSV robustness in the relatively vulnerable edge
area of wafer.

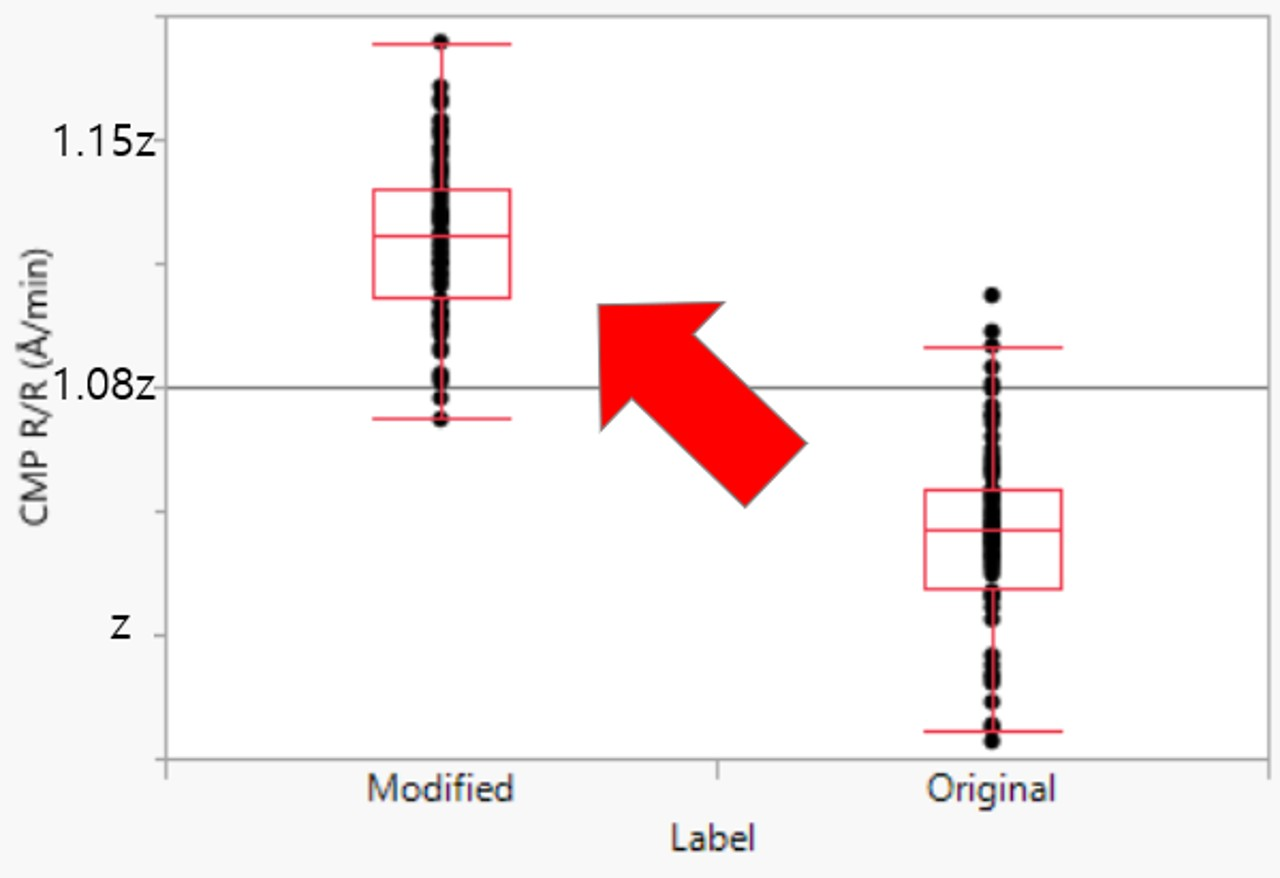

Fig. 7. CMP R/R comparison between original and modified recipe.
Therefore, to significantly improve the properties of the SiO${}_{2}$ film, additional
evaluation was performed for changes in O${}_{2}$ flow and pressure as shown in Table 2. As a result of the evaluation, a decrease in CMP R/R was confirmed for an increase
in O${}_{2}$ flow, as shown in Fig. 8.
Table 2. CMP removal rate evaluation condition.
|
|
O2 Evaluation
|
Pressure Evaluation
|
|
TEOS
|
2a
|
2a
|
|
O2
|
d~2d
|
Best from O2 eval
|
|
Pressure
|
Original
|
e~1.2e
|

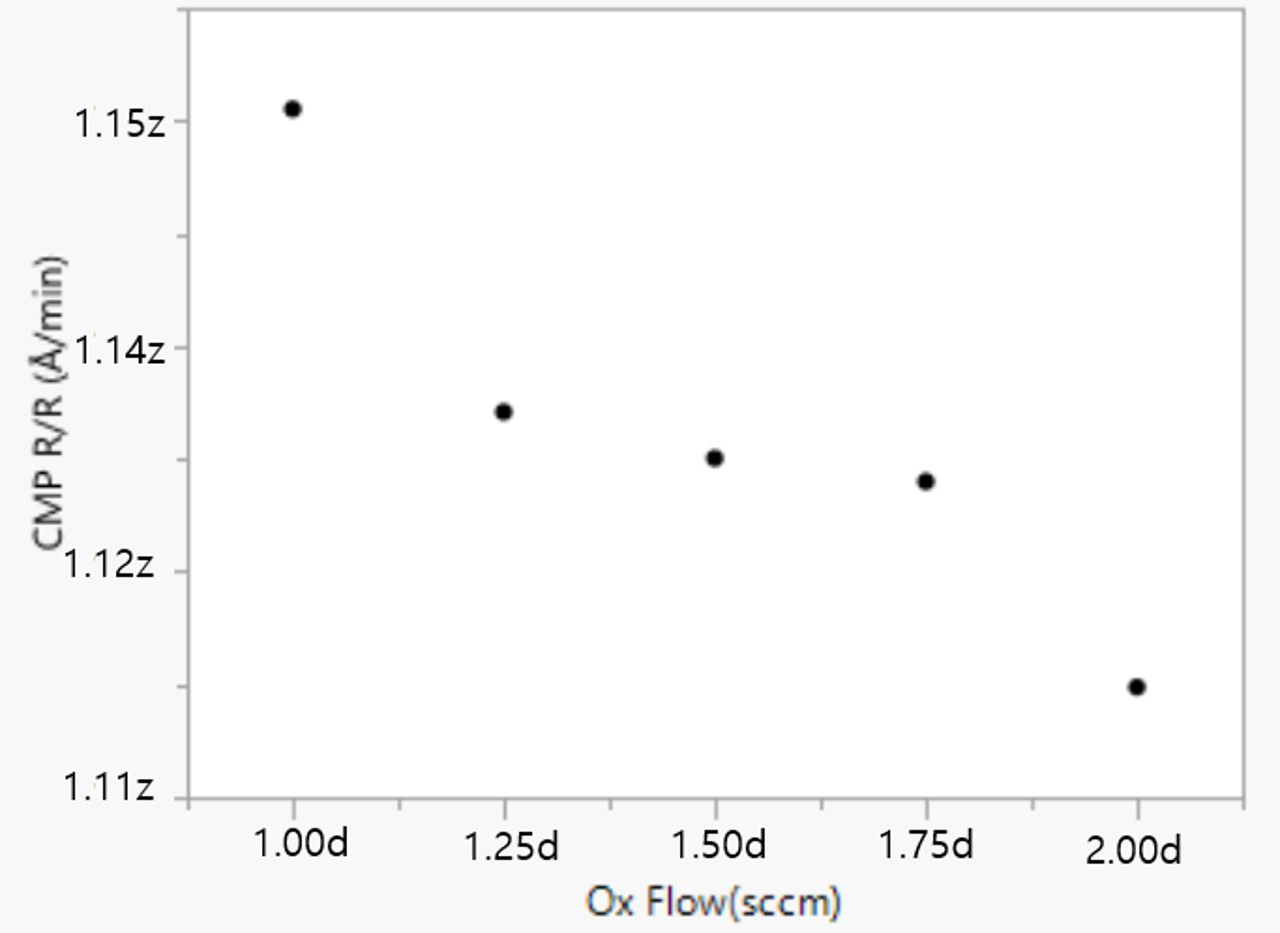

Fig. 8. Change in CMP R/R according to change in O$_{2}$ flow.
In addition, after verifying the change in pressure conditions, as shown in Figs. 9 and 10, the deposition rate increased but, having p-value less than 0.05 for comparing 3
different pressure conditions, there was no significant difference in CMP R/R.

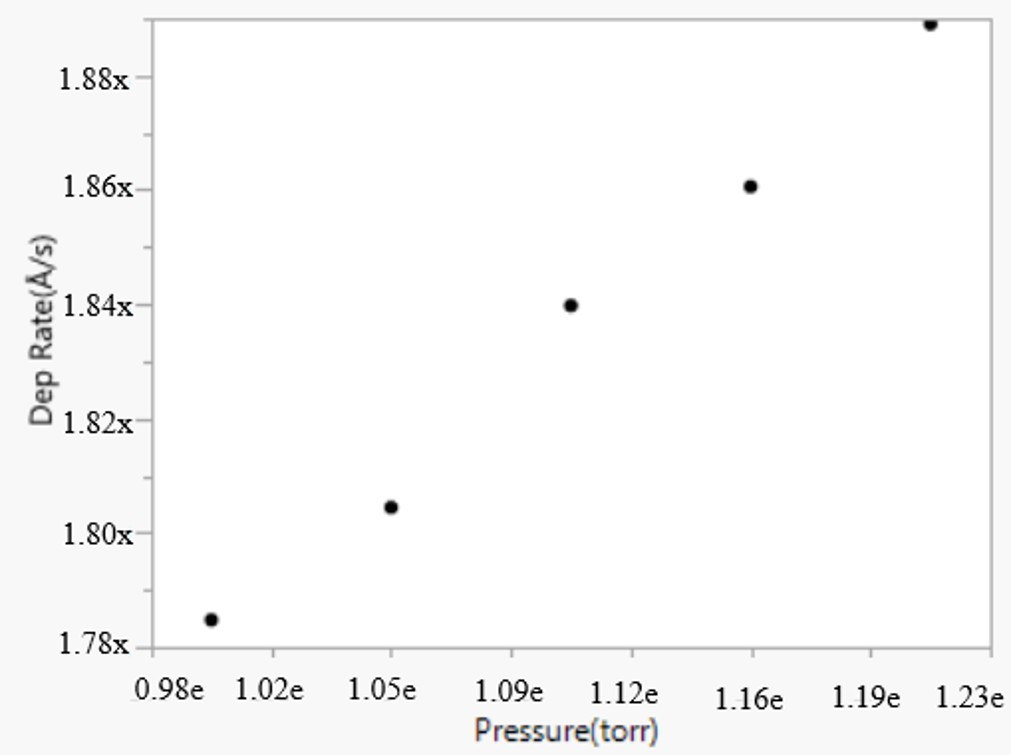

Fig. 9. Change in dep. rate according to change in pressure.

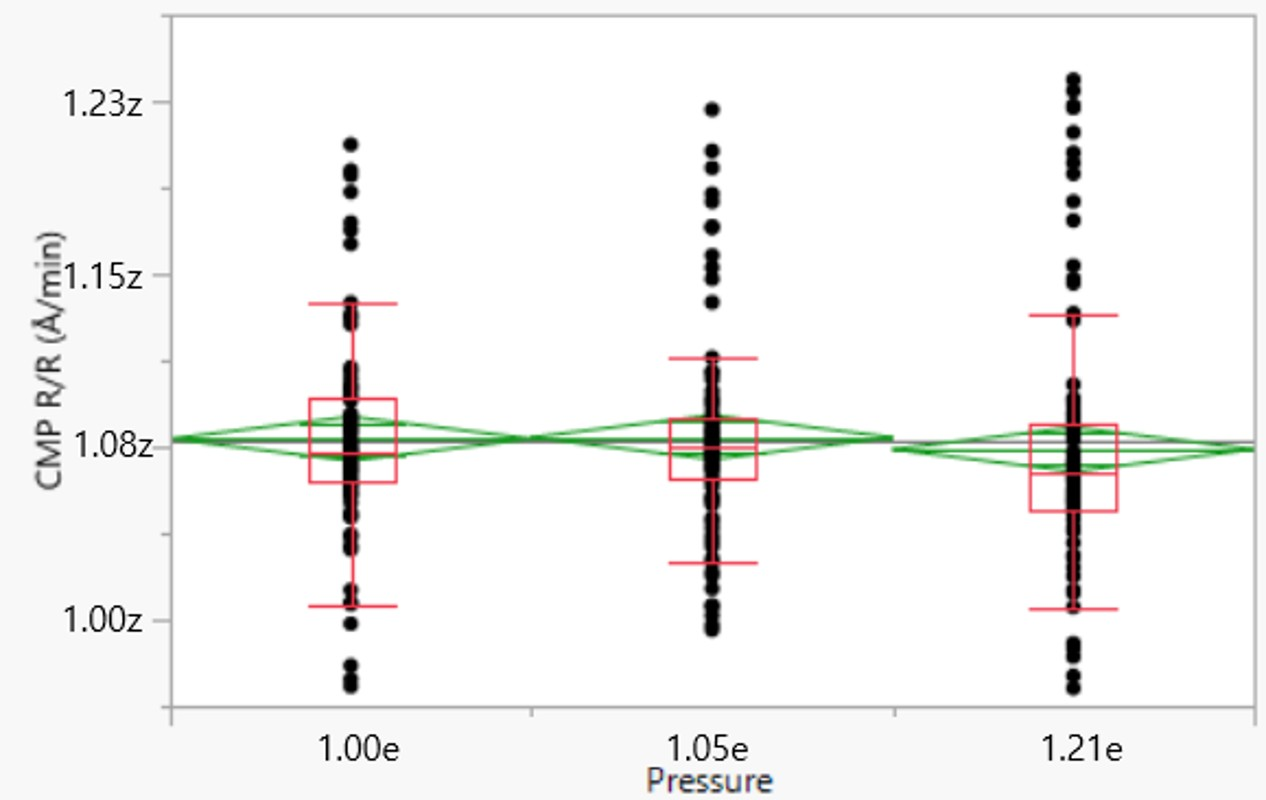

Fig. 10. CMP R/R comparison according to change in pressure.
Through this evaluation, we optimized the recipe to provide a certain level of O${}_{2}$
flow to secure sufficient strength of the SiO${}_{2}$ film, thereby helping to reduce
CMP R/R and further improving the deposition rate by increasing the pressure. As a
result of applying the recipe optimization, when compared to the existing recipe under
the conditions of increased O${}_{2}$ flow and increased pressure, there was an average
difference in R/R with p-value greater than 0.05, showing significant different from
original condition, but it was secured within the range of the dispersion, as shown
in Fig. 11.

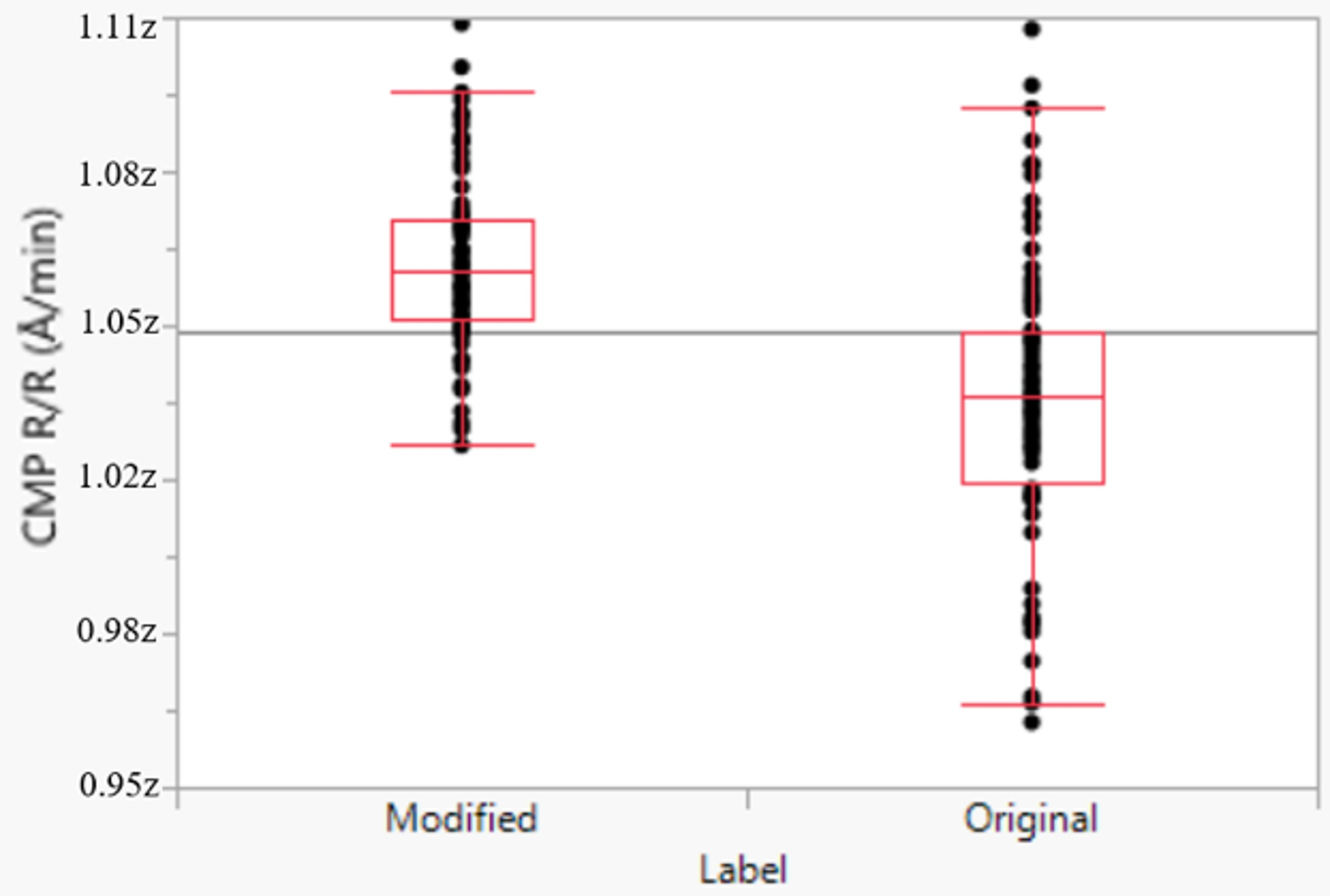

Fig. 11. CMP R/R comparison after O$_{2}$ flow optimization.
3. Additional Recipe Improvement for Yield Stabilization
After securing the improved conditions for O${}_{2}$ flow, He-carrier flow, and pressure
under the existing TEOS flow, the deposition rate was improved by about 78%, but there
was still a difference in CMP R/R, and a yield drop due to damage to the TSV in the
edge area was still confirmed. To improve this, additional evaluation of O${}_{2}$
flow was conducted as in the results of Experiment 2, but it was confirmed that the
CMP R/R saturated after a certain level even with the increase of the O${}_{2}$ flow
as shown in Fig. 12.

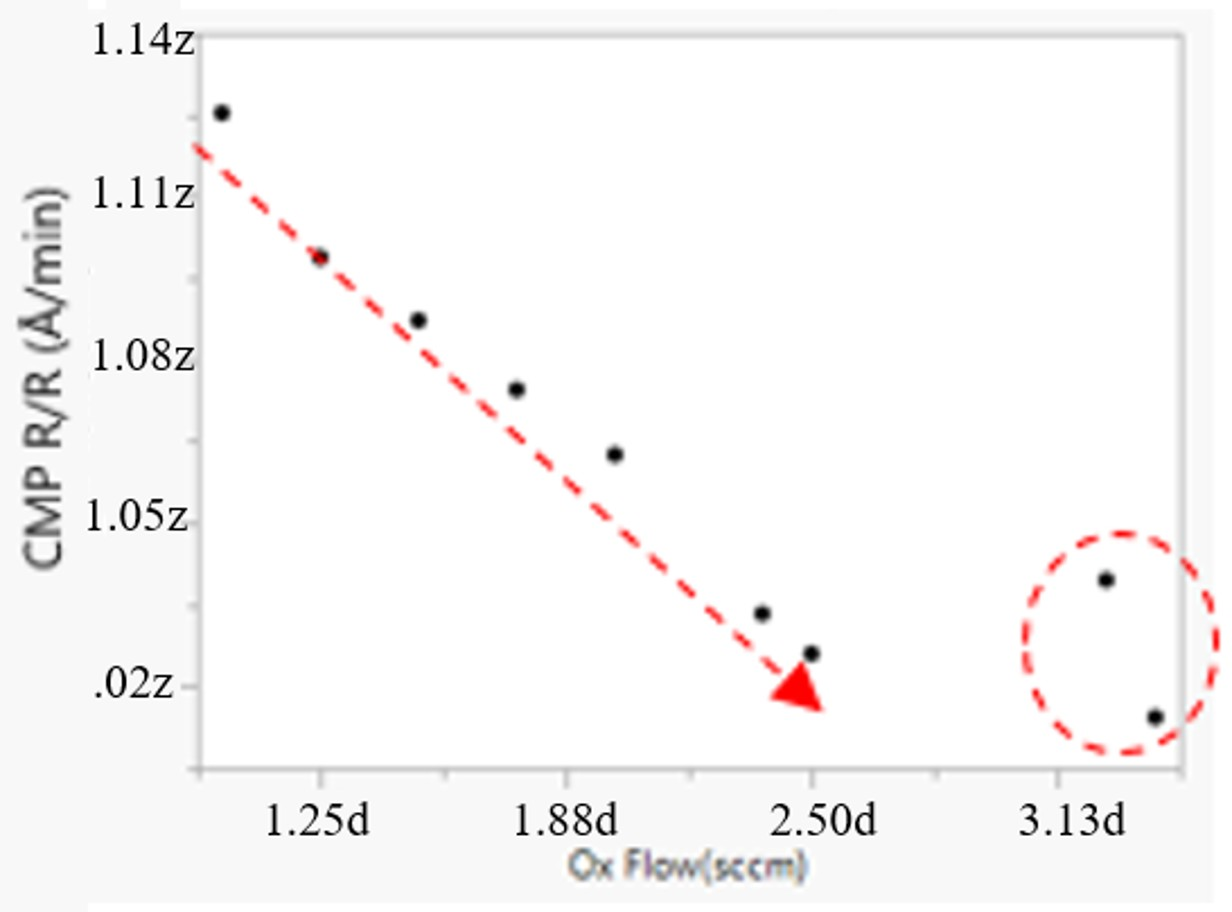

Fig. 12. Change in CMP R/R according to change in O$_{2}$ flow.
In order to secure the condition of no significant difference in CMP R/R while sacrificing
a certain level of deposition rate by lowering the TEOS flow, the TEOS flow level
was changed to the 1.5a level from 2a. After securing the corresponding condition,
the deposition rate slightly decreased from 78% to 46%, but when analyzing the significant
difference in CMP R/R, having p-value less than 0.05, it was possible to secure a
level of no significant difference from the existing mass-produced recipe as shown
in Fig. 13.

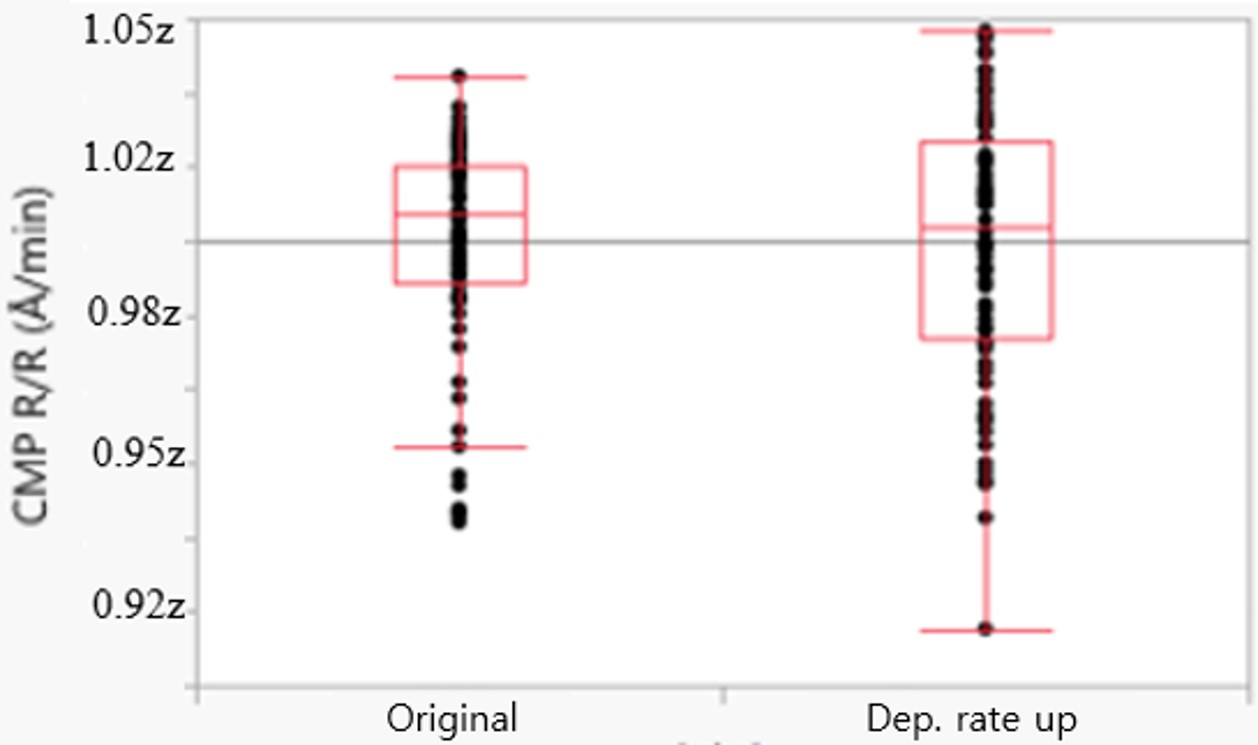

Fig. 13. CMP R/R comparison after final recipe.
As a result of applying the corresponding verification content to the HBM product,
it was improved to a level where there was no significant difference in yield, as
in Fig. 14., FIB cross-section inspection to compare step coverage of SiO${}_{2}$ Film by the
TSV results also confirmed that there was no difference.

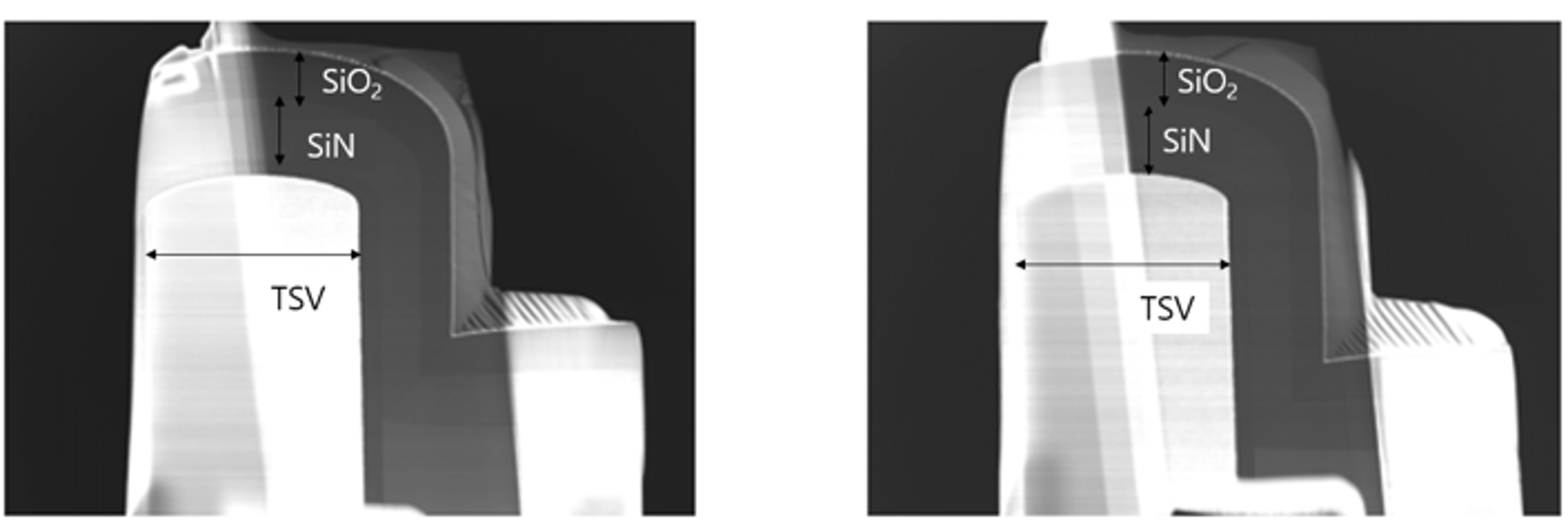

Fig. 14. FIB cross-sectional image comparison after dep rate incraesed.
III. CONCLUSIONS
This study focused on optimizing the TEOS-based SiO$_2$ film deposition process at
SK hynix's HBM mass production line, aiming to address production bottlenecks and
improve HBM manufacturing capacity. By increasing the TEOS flow, a 78% improvement
in deposition rate was achieved, resolving throughput limitations. Risks such as particle
contamination and fore-line clogging were mitigated by adjusting O$_2$ and He-carrier
gas flows. Although the initial optimization resulted in CMP R/R and TSV damage issues,
further adjustments to O$_2$ flow and chamber pressure enhanced film robustness, reducing
these problems. Ultimately, a 46% increase in deposition rate was achieved while maintaining
minimal impact on CMP R/R, ensuring process stability. The optimized recipe led to
a 25% increase in overall CVD process capacity, significantly improving production
efficiency. The optimized process was successfully applied in mass production, demonstrating
improved productivity and stable quality, with no significant differences in yield
or inspection results. This study highlights the importance of process optimization
for enhancing production capacity while maintaining quality in high-volume semiconductor
manufacturing.
References
A. M. Mahajan, L. S. Patil, J. P. Bange, and D. K. Gautam, ``Teos-PECVD system for
high growth rate deposition of SIO2 films,'' Vacuum, vol. 79, pp. 194-202, July 2005.
A. M. Mahajan, L. S. Patil, J. P. Bange, and D. K. Gautam, ``Growth of SiO$_2$ films
by TEOS-PECVD system for microelectronics applications,'' Surface and Coatings Technology,
vol. 183, pp. 295-300, 2004.
J. H. Lee, C. H. Jeong, J. T. Lim, N. G. Jo, S. J. Kyung, and G. Y. Yeom, ``Characteristic
of SiO$_2$ films deposited by using low-temperature PECVD with TEOS/N2/O2,'' Journal
of the Korean Physical Society, vol. 46, no. 4, pp. 890-894, Apr. 2005.
A. M. Mahajan, L. S. Patil, and D. K. Gautam, ``Influence of process parameters on
the properties of TEOS–PECVD-grown SiO$_2$ films,'' Surface and Coatings Technology,
vol. 188-189, pp. 314-318, , Dec. 2004.
Y. Liu, W. Ren, L. Zhang, and X. Yao, ``New method for making porous SiO$_2$ thin
films,'' Thin Solid Films, vol. 353, pp. 124-128, 1999
S. K. Ray, C. K. Maiti, S. K. Lahiri, and N. B. Chakrabarti, ``TEOS-based PECVD of
silicon dioxide for VLSI applications,'' Advanced Materials for Optics and Electronics,
vol. 6, pp. 73-82, , Mar. 1996
A. S. Bil and S. E. Alexandrov, ``The effect of the process parameters on the growth
rate and composition of the anti scratch films deposited from TEOS by AP-PECVD on
polycarbonate,'' Plasma Chemistry and Plasma Processing, vol. 43, pp. 901-920, 2023
G. Wei, S. Varghese, K. Beaman, I. Vasilyeva, T. Mendiola, and A. Carswell, ``A comprehensive
study on nanomechanical properties of various SiO$_2$-based dielectric films,'' Proc.
of IEEE Workshop on Microelectronics and Electron Devices, pp. 1-4, Apr. 2010
J. H. Chen, T. F. Lei, J.-H. Chen, and T. S. Chao, ``Characteristics of TEOS polysilicon
oxides: Improvement by CMP and high temperature RTA N$_2$/N$_2$O annealing,'' Journal
of The Electrochemical Society, vol. 147, no. 11, 4282, 2000
C.-W. Liu, B.-T.. Dai, and C.-F. Yeh, ``Characterization of the chemical-mechanical
polishing process based on nanoindentation measurement of dielectric films,'' Journal
of the Electrochemical Society, vol. 142, no. 9, 3098, 1995
Intae Whoang received his B.S degree in industrial engineering from Purdue University,
Indiana, United States of America in 2017. He joined SK hynix Inc., Icheon, Korea,
in 2018, where he has been working in wafer level packaging technology team. His research
interest is process optimization and development for thinfilm and dry etch process
to enhance productivity and to reduce cost of HBM products.
Byung Yoon Lim received his B.S degree in mechanical and material engineering from
The Australian National University, Canberra, Australia in 2014. He joined SK hynix
Inc., Icheon Korea, in 2018, where he has been working in wafer level packaging technology
team. His research interest is improving efficiency of dry etch equipment to enhance
productivity and reduce cost of HBM products.
Kijun Bang received his B.S degree in electronic control engineering from Kumoh
National Institute of Technology, Gumi, South Korea. He Joined SK hynix Inc., Icheon,
Korea, in 2006 and has been working in wafer level packaging technology team since
2009. He is currently research manager of the photo, dry etch, and thinfilm process.
Sang Un Lee received his B.S. degree in mechatronics engineering from Chungnam
National University, Daejeon, Republic of Korea, in 2005. He joined SK hynix Inc.,
Icheon, Korea, in the same year, where he worked in FAB manufacturing technology focusing
on etch process development. In 2023, he moved to the wafer level packaging team.
He is currently leading a team responsible for photo, dry etch, and thinfilm processes.
