I. INTRODUCTION

Simultaneous Localization and Mapping (SLAM) is widely utilized in robot and autonomous driving systems for seamless 3D map reconstruction tasks such as object recognition, path planning, and object tracking ^{[1- 3]}. SLAM has been researched using various sensors, including camera-based visual SLAM using RGB data, and LiDAR-based SLAM utilizing 3D point LiDAR data. Especially, LiDAR-based SLAM is highlighted for its ability to overcome the limitations of visual SLAM, such as narrow field-of-view (FOV) and challenges in scenarios with insufficient lighting conditions.

LiDAR odometry and mapping (LOAM) ^[4] is a LiDAR-based SLAM method that demonstrates high accuracy with low operation latency. With the outstanding performance that LOAM shows, various derivative LOAMs are proposed ^{[5- 7]}. In particular, LeGO-LOAM ^[5] demonstrates real-time operation with underground vehicle (UGV) system with its two-track keypoint extraction (KE) process.

The KE process in LeGO-LOAM extracts two types of feature points from the 3D point clouds: 1) edge features are designated to the points with high curvature values which indicates roughness in its local region. 2) plane features are extracted with the points having low curvature value.

Fig. 1 shows the KE process in LeGO-LOAM from range map to feature points. Range map consists of 3D point data captured from LiDAR sensor indicating the distance between the object and the sensor. The curvature map indicates how flattened or bulged the point is, calculated from the range map by calculating the difference between the reference point and adjacent points. After the curvature map is transformed from the range map, curvature map is sorted, for the extraction of keypoints from the Top-K sorted curvature data. Extracted keypoints are used for LiDAR odometry and mapping optimization process.

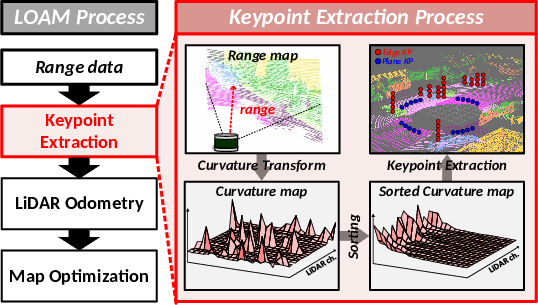

Fig. 1. Flow of LOAM process and keypoint extraction process in detail.

Fig. 2 illustrates the challenges of KE process. In LeGO-LOAM, keypoints are extracted from a curvature map with dimensions of 1800 $\times$ (# of LiDAR Channels). In case of VLP-16 LiDAR, which consists of 16 channels, sorts 28.8K of curvature points. Even though LeGO-LOAM divides each channel into small partitions, named sub-images, sorting remains as the main bottleneck of KE accounting for 85.9% of the total latency. Additionally, due to the dynamic surroundings of LiDAR, the number of valid points detected by LiDAR varies up to 31.9$\times$ in channel-wise, and up to 5.1$\times$ frame-wise, while the number of keypoints extracted per channel is constant. This results in a variance in the workload of the sorting process, which causes unnecessary power consumption.

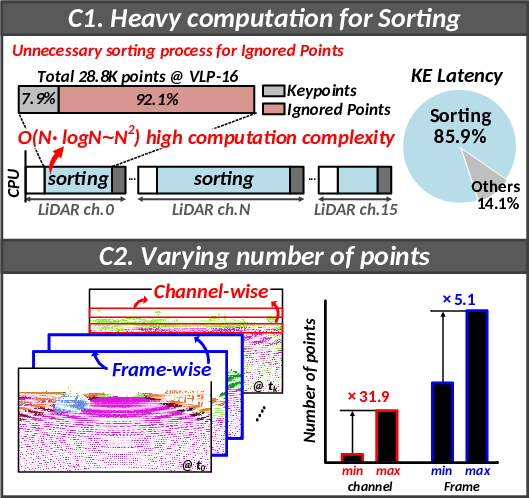

Fig. 2. Challenges of keypoint extraction process due to heavy computation, and workload variance.

This paper proposed a KE processor to achieve low-latency acceleration of KE with the following key features: 1) near-keypoint removal, which reduces the total number of points in the sorting process to alleviate the high computational burden, resulting in 43.0% reduction in latency, and 2) reconfigurable radix sorting (RRS) to resolve workload variance problem by selecting high-speed or low-power mode for the sorting process based on the volume of data to be sorted, enabling energy-efficient KE process.

The rest of this paper is organized as follows. In Section II, the proposed keypoint extraction core architecture is explained in detail with candidate filtering block and reconfigurable radix sorting. Implementation and evaluation results are explained in Section III, followed by a conclusion in Section IV.

II. ARCHITECTURE

Fig. 3 shows the overall architecture of the proposed energy-efficient keypoint extraction core (KEC). It consists of 8 keypoint extraction (KE) units, curvature transform circuit (CTC), 50 KB of Range memory (RMEM) for storing range map, 50 KB of Curvature Memory (CMEM) for storing curvature data which is used in sorting, and KE process.

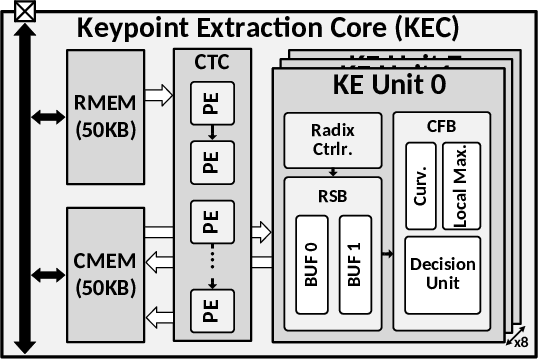

Fig. 3. Overall architecture of proposed Keypoint Extraction Core.

Curvature transform circuit (CTC) converts the range map into a curvature map. KE unit consists of two radix sorting buffers (RSB), curvature filtering block (CFB), and radix controller. RSB stores curvature data based on its value at the corresponding radix step. In the sorting process of curvature data, CFB excludes the curvature points that are not considered for extraction as keypoints, thereby reducing the time complexity of the process. The radix controller operates to determine the radix and radix step for the reconfigurable radix sorting process.

For keypoints extraction process, KEC stores range map data in the RMEM. The range data stored in RMEM is transformed into curvature map data through CTC which consists of shift-based MAC PE, and then the transformed data is stored in CMEM. After conversion, curvature data undergo a radix sorting process. A single chunk for sorting is stored in the radix buffer within the radix sorting block based on its digit, and is then determined to be written back into CMEM or discarded in CFB. Within each radix step, the number of curvature data is reduced by iterative filtering. After sorting, keypoints are extracted from the sorted curvature, and used for LiDAR odometry and mapping process.

1. Candidate Filtering for Near-Keypoint Removal

In Fig. 4, the conventional KE process is explained. In the conventional stage, near-keypoint data that are adjacent to the extracted keypoints are excluded from the feature candidate after a single keypoint is extracted. This is to prevent the extraction of redundant keypoints, causing a processing time bottleneck for the sorting process.

Fig. 4. Conventional stage for keypoint extraction process and proposed radix sorting based process.

Sorting accounts for 85.9% of total KE processing latency, and this latency proportionally increases with the number of data being sorted. However, only 7.9% of the total curvature is extracted as keypoints, which means sorting for redundant data that is not extracted as keypoints brings the main bottleneck for the total process.

In Fig. 4, a new KE process is proposed, which excludes near-keypoint curvature data during radix sorting step. Also, a candidate filtering block (CFB), to support this new KE process, is proposed.

In KEC, curvature data in CMEM is loaded into the radix sorting buffer (RSB), and stored in the buffer based on the digit in the corresponding radix step. After all data are stored in RSB, CFB determines whether curvature data are written back into CMEM or discarded. In CFB, input curvature is compared to keypoint candidate data stored in the local maximum register. The decision unit determines the update of the local max register and decides whether to write back or discard the curvature data, referencing the index monitor.

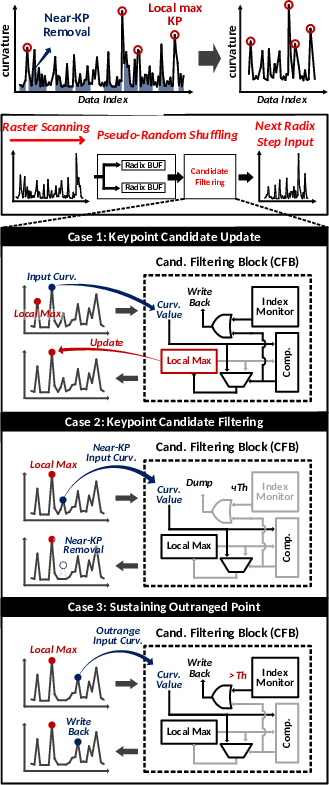

Fig. 5. Near-keypoint removal comparing with local max keypoints, and three cases for decision unit in candidate filtering block (CFB).

Fig. 5 shows three cases of operation of the decision unit in CFB while the curvature is being loaded to the block. 1) If the input curvature is larger than the stored local max data: the local max register is updated with the input curvature, considering it as a new keypoint candidate. 2) If the input curvature is smaller than the value stored in the local max register, the local max register is not updated, and the input curvature is monitored with its index to determine whether it is adjacent to keypoint candidate in the register. When two data are considered as adjacent data, the input curvature is regarded as near-keypoint and discarded. 3) If the input curvature is smaller than the local max and is monitored to be far from the local max data, the input curvature can still be considered as a keypoint candidate that is written back to CMEM and included in the next radix step.

2. Reconfigurable Radix Sorting for Workload Variance

Due to dynamic environmental changes near the LiDAR sensor, the number of points used for the KE process fluctuates frame-/channel-wise. However, the number of keypoints extracted from each channel is constant, resulting in a variance of workload for KEC. Proposed KEC, with radix sorting, accesses CMEM each radix step, requiring huge memory bandwidth resulting in large dynamic power consumption. With 2 radix-based sorting, 35.2 GB/s of memory bandwidth is required for a 16-channel LiDAR operating at 20 Hz. In this paper, reconfigurable radix sorting is proposed for reduction of power for sorting process to solve workload variance problem.

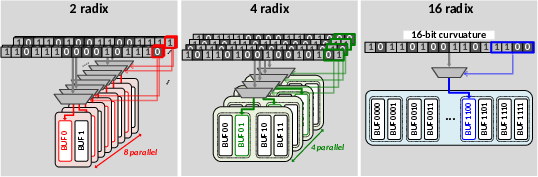

Fig. 6. Operation of 2, 4, and 16 radix-based sorting supported by reconfigurable radix sorting.

Proposed KEC consists of a total of 16 radix buffers. For 2 radix-based sorting, only 2 radix buffers are required, allowing 8 sets of data to be sorted in parallel. Single set of data is distributed across 2 buffers, which induces fine-grained candidate filtering. Through parallel processing with fine-grained removal of near-keypoint data, 2 radix-based sorting can achieve low latency achieving 63.0% data removal, and a 43.0% reduction in total latency.

Fig. 7. Near keypoint removal results at each radix step in three types of radix-based sorting by reconfigurable radix sorting, and total latency reduction of each radix sorting.

When valid curvature data is sparse in the channel, proposed KEC can operate in low power mode with 16 radix-based sorting. In case of 16 radix-based sorting, 16 sorting buffers are utilized operating as a single core. Through candidate filtering, 16 radix-based sorting can eliminate 42.8% of near-keypoint data, which can obtain 19.5% of total latency reduction. Compared to 2 radix-based sorting, which requires 281.6 GB/s of memory bandwidth for real-time operation, 16 radix-based sorting requires only 8.8 GB/s of memory bandwidth enabling low-power operation. The proposed KEC can support reconfigurable sorting of data using 2, 4, and 16 radix-based sorting based on the amount of data. This processor can switch between high-speed, and low-power modes depending on the workload.

III. IMPLEMENTATION RESULTS

Proposed KEC can achieve low-latency processing through candidate filtering, and it can also operate in low-power mode through reconfigurable radix sorting, resulting in reduced memory bandwidth. Fig. 8 illustrates a trade-off graph depicting the relationship between latency and memory bandwidth for the sorting process. With a large amounts of sorting data, operation with 2 radix-based sorting can achieve the greatest reduction in latency due to fine-grained candidate filtering and highly parallelized processing. However, 2 radix-based sorting requires 16 iterations of radix step, 13.18 MB/frame which results in high power consumption of the process.

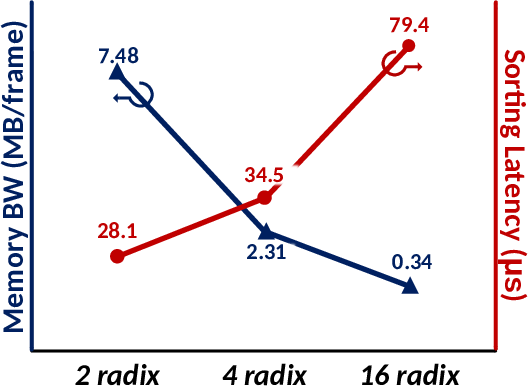

Fig. 8. Sorting latency and memory bandwidth of each radix sorting process.

For 4 and 16 radix-based sorting, the latency is 1.22$\times$, and 2.82$\times$ higher latency compared to 2 radix-based sorting adopting candidate filtering respectively. Even though 2 radix-based sorting requires a huge memory bandwidth, thanks to candidate filtering, the memory bandwidth is reduced from 13.18 MB/frame to 7.48 MB/frame, representing a reduction of 39.8%. For 4 radix-based sorting, the process requires 2.31 MB/frame of memory bandwidth, which is 3.24$\times$ lower than for 2 radix. With a memory bandwidth of 0.34 MB/frame, operating with 16 radix can achieve the lowest memory power consumption, which is 32.5 times lower than that of 2 radix.

Fig. 9 shows the chip layout of the proposed KEC processor. The processor is designed in 28 nm CMOS technology, occupying 1.9 mm $\times$ 0.3 mm. Total SRAM of the processor is 108 KB which consists of CMEM, RMEM, and sorting buffer. The processor operates under 250 MHz of clock frequency with 1.0 V supplying voltage. It shows 93.0 $\mu$s of processing time extracting keypoints from 28.8K points under 2 radix-based sorting achieving 675.2 nJ/frame of energy efficiency. With 4 radix-based and 16 radix-based sorting, the proposed KEC shows 99.4 $\mu$s and 144.3 $\mu$s of latency with 721.6 nJ/frame, and 1047.6 nJ/frame of energy efficiency, respectively.

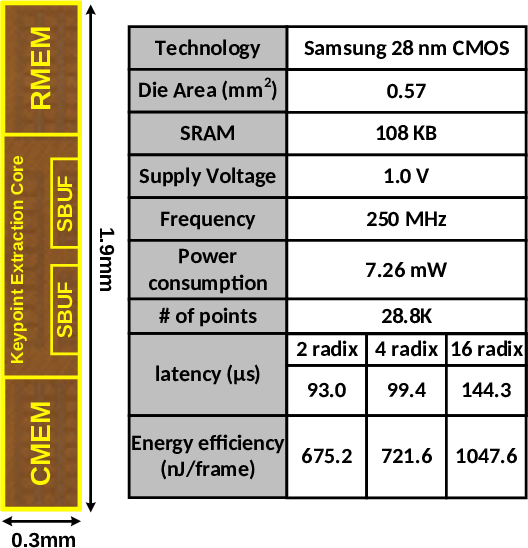

Fig. 9. Photograph of the chip layout and specification.

Proposed KEC shows 7.26 mW of power consumption with 675.2 nJ/frame of energy efficiency. It achieves ultra-low power operation, compared to NVIDIA Jetson TX2, consuming 15,000 mW, and i7 CPU requiring 47,000 mW. Proposed KEC shows 99.9% lower power consumption than Jetson TX2 and i7 CPU, achieving extremely higher energy efficiency than Jetson and CPU.

IV. CONCLUSIONS

A low-latency keypoint extraction process is proposed with near keypoint removal supported by a candidate filtering block, removing 42.8 to 63.0% of data for sorting, and resulting in a reduction of 19.5% to 43.0% in total latency. With the help of reconfigurable radix sorting, proposed KEC can select one of three different (2, 4, 16) radix-based sorting, to optimize processing time and power consumption due to memory bandwidth. The processor achieved low power consumption of 7.26 mW and 675.2 nJ/frame of high energy efficiency with real-time performance.
