I. INTRODUCTION

Nowadays, cryptographic primitives are ubiquitously used in hardware and software systems and continuously evolve through community efforts and standardization competitions. The National Institute of Standards and Technology (NIST) has initiated the standardization of Post-Quantum Cryptography (PQC) ^[1].

Hardware-software (HW/SW) co-design is a System-on-Chip (SoC) methodology involving both software design on microprocessors such as ARM or RISC-V, and hardware design on Field-Programmable Gate Arrays (FPGAs) ^[2-4] or Application-Specific Integrated Circuits (ASICs) ^[5]. HW/SW co-design leverages the advantages of both hardware and software platforms. Specifically, parallel and pipelined architectures can be utilized to accelerate the critical components in hardware, while the non-critical parts can be implemented in software with short development time. Therefore, HW/SW co-design offers a shorter time-to-market than pure hardware designs ^[6,7] and achieves better performance than pure software implementations ^[8].

In addition, the limited hardware resources of FPGAs make HW/SW co-design an effective approach for efficient system implementations and a timely emergency solution for hardware deployment. Systems that do not fit entirely within the desired FPGA can be implemented as HW/SW co-designs with reduced cost.

Some existing symmetric encryption systems (especially AES-GCM) and hash functions (particularly SHA-2 and SHA-3) are considered secure for PQC scenarios, although their effectiveness may be reduced ^[9,10]. Therefore, the development of public-key cryptographic systems that combine traditional cryptographic algorithms with PQC is becoming increasingly important. Moreover, the size of encryption keys plays a critical role in post-quantum security, as longer keys resist factorization and search algorithms more effectively ^[11].

High-Level Synthesis (HLS) is a design tool that accepts an algorithm written in C/C++ and generates a corresponding FPGA implementation. HLS offers a faster path to FPGA realization compared to traditional VHDL/Verilog-based approaches. It enables cost-effective exploration of the hardware design space and allows IP packages to be reused in other projects without re-synthesis or reconfiguration. As such, HLS is a useful tool in developing hardware accelerators. HLS has been widely used to implement NIST PQC competition candidates, including lattice-based KEMs ^[11], the Classic McEliece code-based KEM ^[12], and comprehensive implementations of both lattice-based KEMs and digital signature schemes ^[13]. HW/SW co-design approaches utilizing HLS for hardware accelerator design have also been successfully applied to Classic McEliece ^[12] and BIKE ^[14].

In 2024, a system combining three algorithms—classical, quantum, and PQC—was implemented on an FPGA. This system integrated a pre-quantum Key Exchange scheme (KEX), a post-quantum Key Encapsulation Mechanism (KEM), and a Quantum Key Distribution (QKD) algorithm ^[15].

ML-KEM is a promising protocol that has advanced to the final standardization round for NIST's key encapsulation mechanism schemes. Its security is based on the hardness of finding short vectors in lattices. ML-KEM is constructed based on the Module Learning With Errors (MLWE) problem. More details can be found in the official technical documentation ^[1].

The main contributions of this paper can be summarized as follows:

• We propose a HW/SW hybrid architecture and implement a fast architecture for a Post-Quantum Cryptography (PQC) system on the Xilinx Zynq UltraScale+ ZCU104 FPGA platform, enabling data encryption and decryption using the HLS tool. The proposed design supports efficient hardware resource reuse and can easily adapt to various data types (texts, images, and videos) for IoT applications.

• HLS source code (written in C++ languages) for AES-GCM-256 and ML-KEM is generated for simulation, synthesis, and IP block generation. The ML-KEM (formerly CRYSTALS-Kyber) IP core supports post-quantum key encapsulation operations, including key generation, encapsulation, and decapsulation for all Kyber variants, as shown in Table 1. This approach reduces pipeline-induced redundancy, resulting in high throughput and lower resource usage on the Xilinx Zynq UltraScale+ FPGA. The proposed system also presents an optimized hardware architecture for AES-GCM operations and the ML-KEM scheme, with parameter sets and sizes of encapsulation key (ek), decapsulation key (dk), and ciphertext (ct) illustrated in Table 1.

• Finally, we evaluate the proposed architecture on the UltraScale+ ZCU104 FPGA platform and compare it with state-of-the-art works. Experimental results show that the proposed design achieves comparable throughput while using fewer hardware resources than existing studies.

The remainder of this paper is organized as follows. Section II introduces the background and related work. Section III presents the system design and the HLS-based HW/SW co-design implementation of our PQC system. Section IV provides experimental results and a comparative analysis of performance to evaluate the effectiveness of our approach. Section V concludes the paper with a summary of our proposed PQC system.

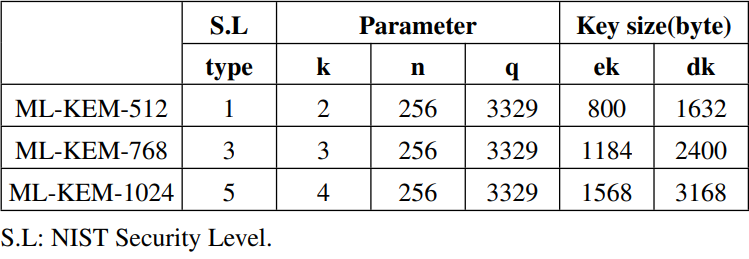

Table 1. Parameter set for ML-KEM.

II. BACKGROUND AND RELATED WORK

1. Module Lattice-based Key Encapsulation Mechanisms

NIST has been working on a public project to standardize quantum-safe algorithms, including key encapsulation and digital signatures. At the end of Round 3, NIST selected CRYSTALS-Kyber as the first Key Encapsulation Mechanism (KEM) for standardization ^[1]. CRYSTALS-Kyber was then standardized as the Module-Lattice-based Key Encapsulation Mechanism (ML-KEM) in the official reference document. ML-KEM was formally standardized in 2024 ^[1].

1.1 Polynomial multiplication using NTT

ML-KEM is derived from the Round 3 version of Kyber ^[7]. Polynomial multiplication over $Z_{3329}[x]/(x^{256} + 1)$ is a fundamental operation in ML-KEM. Utilizing the property $n \mid (q - 1)$, ML-KEM employs an incomplete Number Theoretic Transform (NTT) to accelerate this operation. NTT is a special form of the Discrete Fourier Transform (DFT) over finite fields. It is commonly employed to reduce the computational complexity of polynomial multiplications ^[16].

Polynomial multiplication involves convolving the coefficients of two polynomials, which can be computationally intensive, especially for larger parameters. NTT leverages the algebraic structure of the underlying finite field to enable more efficient polynomial multiplication. The results of the multiplication are computed modulo $Q$ using Montgomery and Barrett reductions in ML-KEM ^[18].

In mathematics, the general polynomials $a(x)$ and $b(x)$ in $ R_q = \mathbb{Z}_q/(x^N + 1) $ can be represented as follows:

(1)

$ a(x)=a_{0}x^0+a_{1}x^1+a_{2}x^2+\cdots +a_{N-1}x^{N-1}, $

(2)

$ b(x)=b_{0}x^0+b_{1}x^1+b_{2}x^2+\cdots +b_{N-1}x^{N-1}. $

We can express the result of the multiplication of $a(x)$ and $b(x)$ as $c(x)$, as follows:

(3)

$ c(x)=a(x)\cdot b(x)=\sum_{i=0}^{n-1}\sum_{j=0}^{n-1}a_{i}b_{j}x^{i+j} . $

The traditional schoolbook method for polynomial multiplication has a computational complexity of $O(n^2)$, but by utilizing the NTT, this can be reduced to $O(n \log n)$. Eq. ((4)) defines the NTT, and Eq. ((5)) defines the INTT.

(4)

$ A_k = \sum_{i=0}^{N-1} a_{i} \omega^{ik} \, \bmod \, q, $

(5)

$ a_i = N^{-1} \sum_{k=0}^{N-1} A_k \omega_N^{-ik} \, \bmod \, q, $

where $\omega$ is the twiddle factor (TF) and also the primitive $n$-th root of unity, and $q$ is the modulus.

By utilizing the NTT and INTT, Eq. ((3)) can be transformed into Eq. ((6)). In this context, the $\circ$ operator denotes point-wise multiplication.

(6)

$ c(x) = a(x) \cdot b(x) = NTT^{-1}(NTT(a(x)) \circ NTT(b(x))). $

ML-KEM uses four SHA-3 hash functions: SHA3-256, SHA3-512, SHAKE128, and SHAKE256. For more details, readers can refer to the FIPS 203 draft ^[1].

According to the FIPS 203 document, three primary algorithms are defined as KEM operations: key generation, encapsulation, and decapsulation.

1.2 Modular reduction for ML-KEM

The parameters of ML-KEM have already changed the prime number $Q$ from $7681$ to $3329$, which consequently affects the ciphertext and key sizes. In ^[18], two efficient modular reduction algorithms—Algorithms 1 and 2—were proposed, referred to as Montgomery Reduction and Barrett Reduction, for use in NTT and INTT, respectively.

Algorithm 1: Montgomery reduction for ML-KEM ^[18].

Algorithm 2: Barrett Reduction for ML-KEM ^[18].

1.3 Key generation (Key gen)

Fig. 1 illustrates the public key $ek$ and private key $dk$ generated by a probabilistic key generation algorithm. The encryption key ($ek$) is generated using the matrix $A$, the value $\hat{s}$, and the value $\hat{e}$, following the equation in ^[1]:

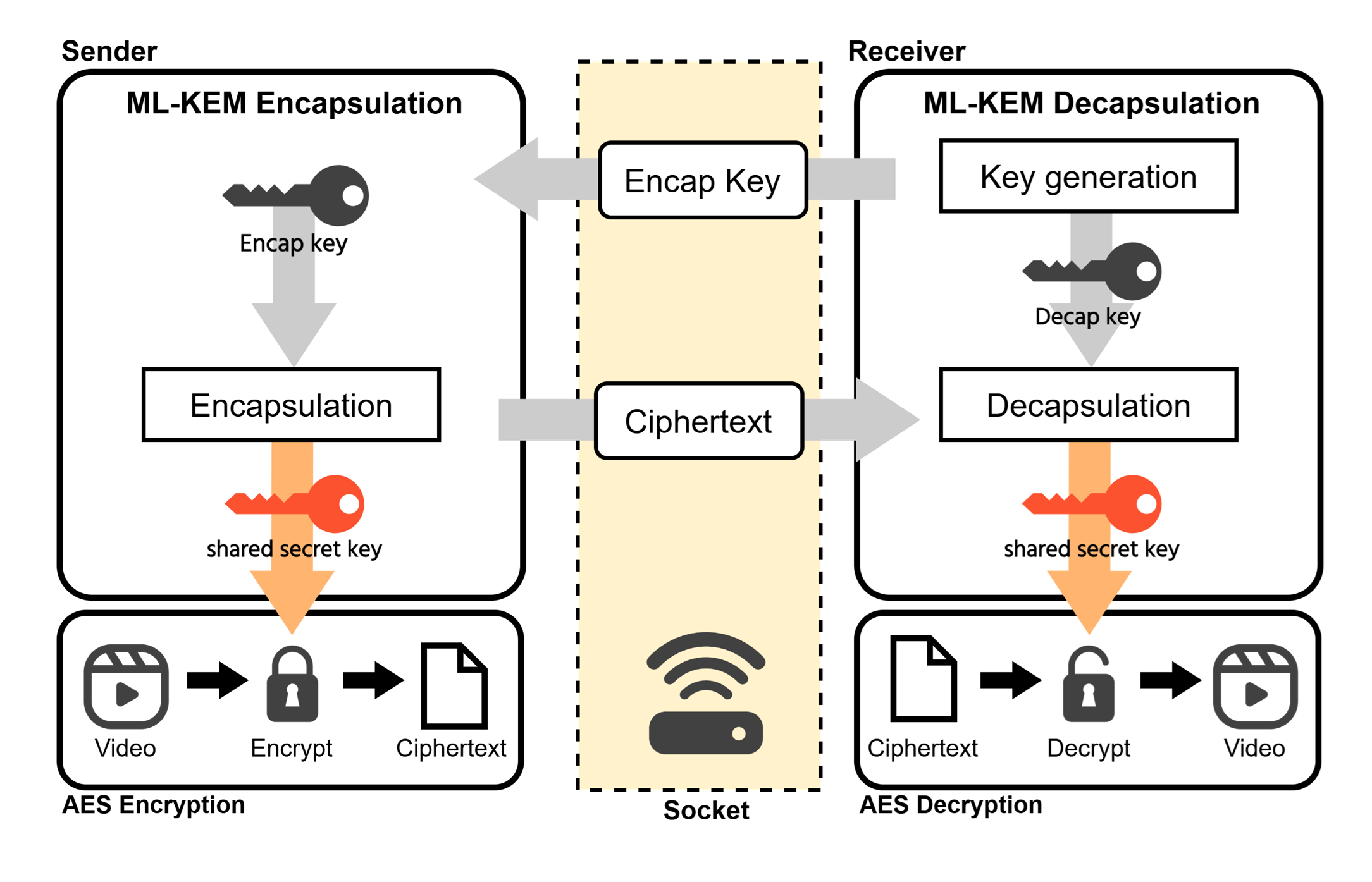

Fig. 1. A general view of a system using ML-KEM and AES-GCM for real-time video encryption and decryption. The Key Generation (Key Gen) algorithm in ML-KEM generates a key pair ($ek$, $dk$), where $ek$ (encapsulation key) and $dk$ (decapsulation key) are used in the Encapsulation and Decapsulation algorithms, respectively.

(7)

$ \hat{t} := \hat{A} \circ \hat{s} + \hat{e}, $

where $\hat{A} \in R_{q}^{k \times k}$ forms the matrix, $\hat{s} \in R_{k}^{q}$ and $\hat{e} \in R_{q}^{k}$ is the noise vector, and both $\hat{s}$ and $\hat{e}$ are short polynomials whose coefficients are sampled from the central binomial distribution $\beta_{\eta}$. The encoder sub-module is responsible for serializing the byte array into a polynomial.

The encapsulation key is simply the encryption key.

(8)

$ ek := ek_{pke} = Encode_{12}(((\hat{A} \circ \hat{s}+\hat{e})\,\bmod^+ q)\parallel p). $

Then, the transformed value $\hat{s}$ is used to generate the decryption key $dk$, as shown in ((9)).

(9)

$ dk_{pke} := Encode_{12}(\hat{s} \,\bmod^+ q). $

The decapsulation key comprises the decryption key, the encapsulation key, a hash of the encapsulation key, and a random 32-byte value $z$.

(10)

$ dk := (dk_{pke} || ek || sha3\text{-}256(ek) || z). $

1.4 Encapsulation (Encaps)

A probabilistic encapsulation algorithm takes as input an encapsulation key $ek$ and outputs a ciphertext $ct$ and a shared secret key $ss$.

First, random bytes $m$ and the encapsulation key $ek$ are used in a hash sampler sub-module to generate the shared secret key $ss$ and a sub-random value $r$.

(11)

$ (ss, r) := sha3\text{-}512(m || sha3\text{-}256(ek)). $

The decoder sub-module converts the byte arrays $ek$ and $m$ into polynomial representations and transforms them into the required format. Then, using the converted $ek$, the matrix $A^T$ is generated via the hash sampler and rejection sampler sub-modules. In this step, the internal padding order is applied in the reverse direction compared to the key generation process.

Next, the encryption randomness $r$ is used to generate noise values $y$, $e_1$ and $e_2$ using the hash sampler and binomial sampler sub-modules, as specified in Algorithm 16 of the FIPS-203 standard document ^[1].

The noise vector $y$ is transformed into the NTT domain as $\hat{y}$ through the NTT sub-module. This prepares the noise vector in the domain required for the encryption process.

Using the generated values, the intermediate ciphertext components $u$ and $v$ are computed as follows in Eqs. (12) and (13):

(12)

$ u := NTT^{-1}(\hat{A}^T \circ \hat{y}) + e_1, $

(13)

$ v := NTT^{-1}(\hat{t}^T \circ \hat{y}) + e_2 + decompress_q(m). $

The values $u$ and $v$, which comprise the ciphertext, are then compressed into $c_1$ and $c_2$ through a compression and encoding process using the corresponding compress and encode sub-modules.

1.5 Decapsulation (Decaps)

A decapsulation process takes as input a decapsulation key $dk$ and a ciphertext $ct$, and performs decryption. The ciphertext $ct$ is separated into $u$ and $v$ through the Decode and Decompress sub-module processes. Additionally, the decapsulation key $dk$ is restored as $\hat{s}$ using the Decode sub-module, as described in Algorithm 17 in FIPS 203 ^[1].

The restored $u$ value is transformed into the NTT domain through the NTT module, followed by point-wise multiplication with $\hat{s}$. The resulting value is then converted back to the base domain using the $NTT^{-1}$ sub-module. Subsequently, a similar operation to Eq. Eq. (15) is performed to obtain the message $m'$ ^[1].

(14)

$ w := v - NTT^{-1}(\hat{s}^T \circ NTT(u)) , $

(15)

$ m' := Encode_1\!(Compress_q\!(\!v \!-\! NTT^{-\!1}\!(\hat{s}^T \!\circ\! NTT(u)\!)\!)\!) . $

The decapsulation algorithm then computes a candidate shared secret key $ss'$ using $m'$ and a part of $dk$, following the same procedure used in the encapsulation process.

(16)

$ (ss', r') := sha3\text{-}512(m' || dk[768k+32:768k+64]). $

We briefly summarize the Crystals-Kyber public-private key cryptosystem. Crystals-Kyber is a PQC KEM published in ^[17] and has been standardized by NIST under the name Module Lattice-Based Key Encapsulation Mechanism (ML-KEM), as mentioned above. ML-KEM enables a sender and receiver to securely establish a shared secret key. ML-KEM consists of three algorithms: Key Generation (KeyGen), Encapsulation (Encaps), and Decapsulation (Decaps).

First, a sender executes the KeyGen algorithm to generate an encapsulation key ($ek$) and a decapsulation key ($dk$), and securely distributes $ek$ to the receiver. The receiver then uses this $ek$ in Encaps to generate a shared secret key ($ss$) and ciphertext ($ct$). The receiver sends this $ct$ to the sender. Finally, the sender uses Decaps with its own $dk$ to decrypt $ct$ and obtain the shared secret key $ss$.

From left to right in Fig. 1, which illustrates our case study for video encryption that combines symmetric and asymmetric encryption techniques for robust data security. In this approach, asymmetric encryption generates a pair of keys (called $ss$, $ss'$) to encrypt and decrypt the data, which is then secured using symmetric encryption. Since both the sender and receiver possess the shared secret key $ss$, they can use AES-GCM to Encrypt or Decrypt and exchange data securely.

In summary, ML-KEM is similar to Public Key Encryption (PKE) in that one party encrypts a message using the public key $ek$, and the other decrypts it using the private key $dk$.

4. Xilinx PYNQ Platform

PYNQ is an open-source Xilinx project that facilitates easy programming and interaction with Zynq FPGA devices through Python ^[21]. The Zynq architecture features a hard-core ARM Cortex-A53 processing system (PS) embedded in the FPGA programmable logic (PL).

By leveraging the Python language and its libraries, developers can write host code in Python to be executed in the PS domain. This allows collaborative design between the CPU (ARM processor on the FPGA board) in the Zynq FPGA's PS domain and the PL domain. This approach enables the implementation of various embedded systems on a single FPGA. Fig. 2 shows the PYNQ framework that runs on the CPU (ARM Cortex-A53) in the PS domain when the PYNQ boot image is loaded and the Ultrascale+ Zynq 104 (ZCU104) FPGA is booted in SD-card boot mode.

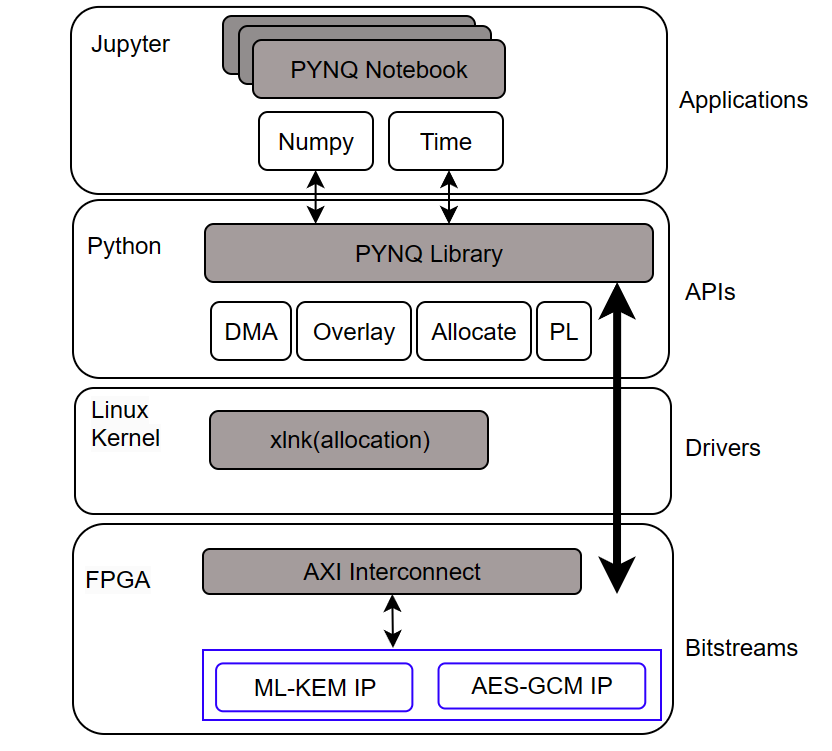

Fig. 2. Architecture of PYNQ framework.

The framework consists of a PYNQ overlay, which is a firmware design incorporating the blocks described in Section III and built using Vivado, and a Jupyter Notebook written entirely in Python. The notebook server runs on an Ubuntu-based Linux kernel in the PS domain and can be used to program and configure the PL, move data through the PL, and visualize the results.

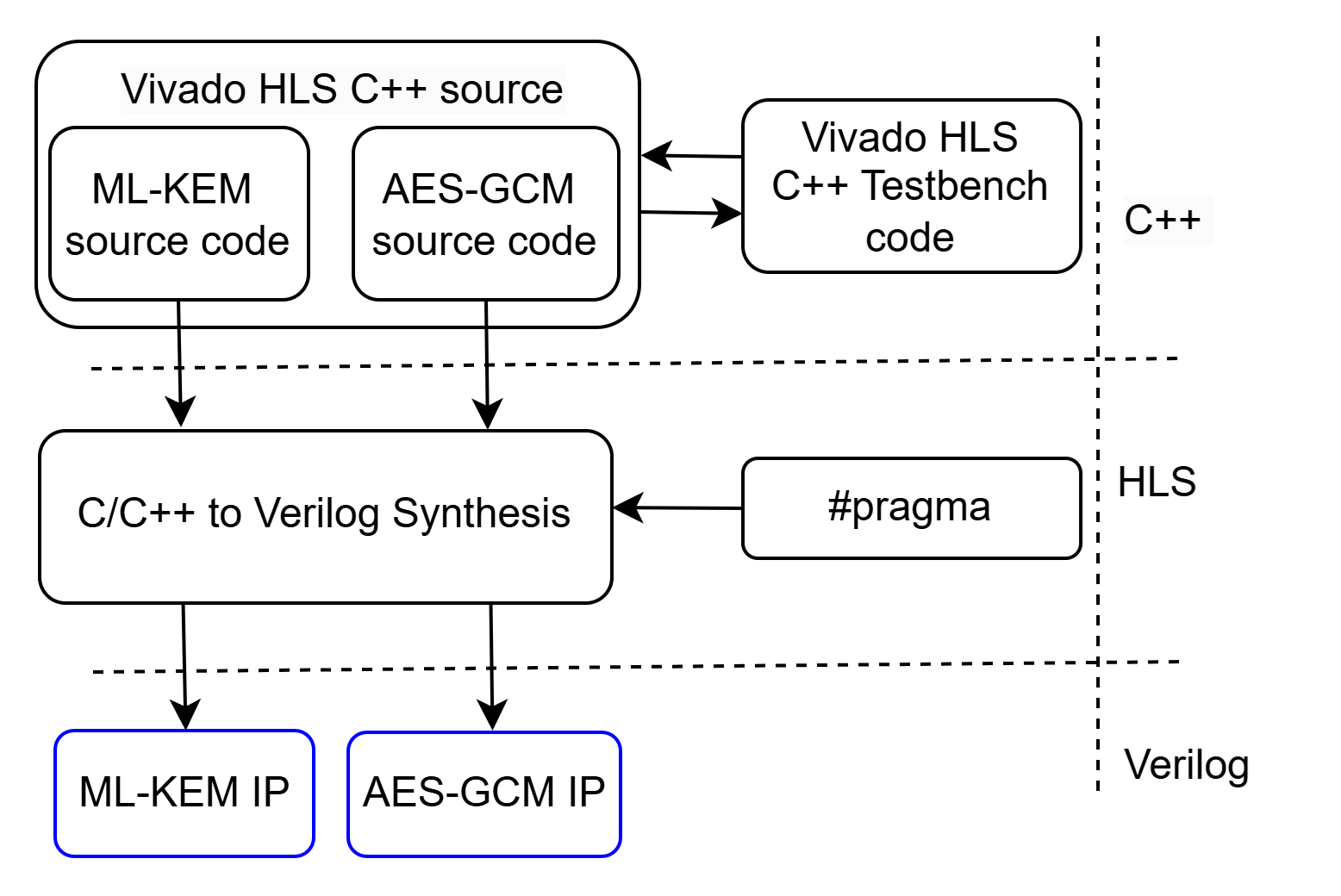

Fig. 3. High-level synthesis for ML-KEM and AES-GCM IPs.

III. HARDWARE/SOFTWARE CO-DESIGN

The internal hardware implementations of the ML-KEM (key generation, encapsulation, and decapsulation) processes are illustrated in Fig. 4. These diagrams present the modular dataflow and integration of arithmetic blocks such as NTT, INTT, samplers, and hash logic, all optimized for FPGA implementation. Each module was synthesized using Vivado HLS and designed to optimize the trade-off between throughput and resource utilization.

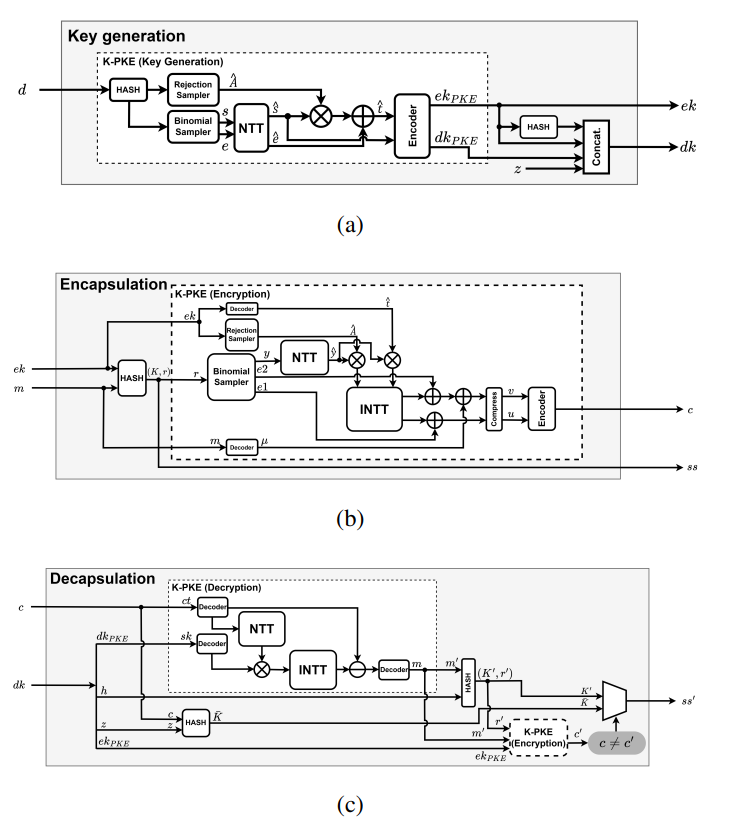

Fig. 4. HLS-based ML-KEM block diagrams for (a) key generation, (b) encapsulation, and (c) decapsulation.

As shown in Fig. 3, the design process began with C source-level simulation, where a testbench was developed to validate the functional correctness of the C logic and the AXI interface. As part of the high-level synthesis process, optimization directives such as PIPELINE and UNROLL were explicitly applied—particularly to loop-intensive operations such as the Number Theoretic Transform (NTT) and Inverse NTT (INTT)—to exploit parallelism and improve performance. Among the various modules, the NTT and INTT blocks were identified as primary performance bottlenecks, as they are used in all core operations of ML-KEM. To mitigate this issue, we manually applied loop unrolling to the outermost loop in the three-dimensional NTT/INTT structure to increase parallel execution. Additionally, the HASH module was optimized by applying the PIPELINE directive to its internal round function.

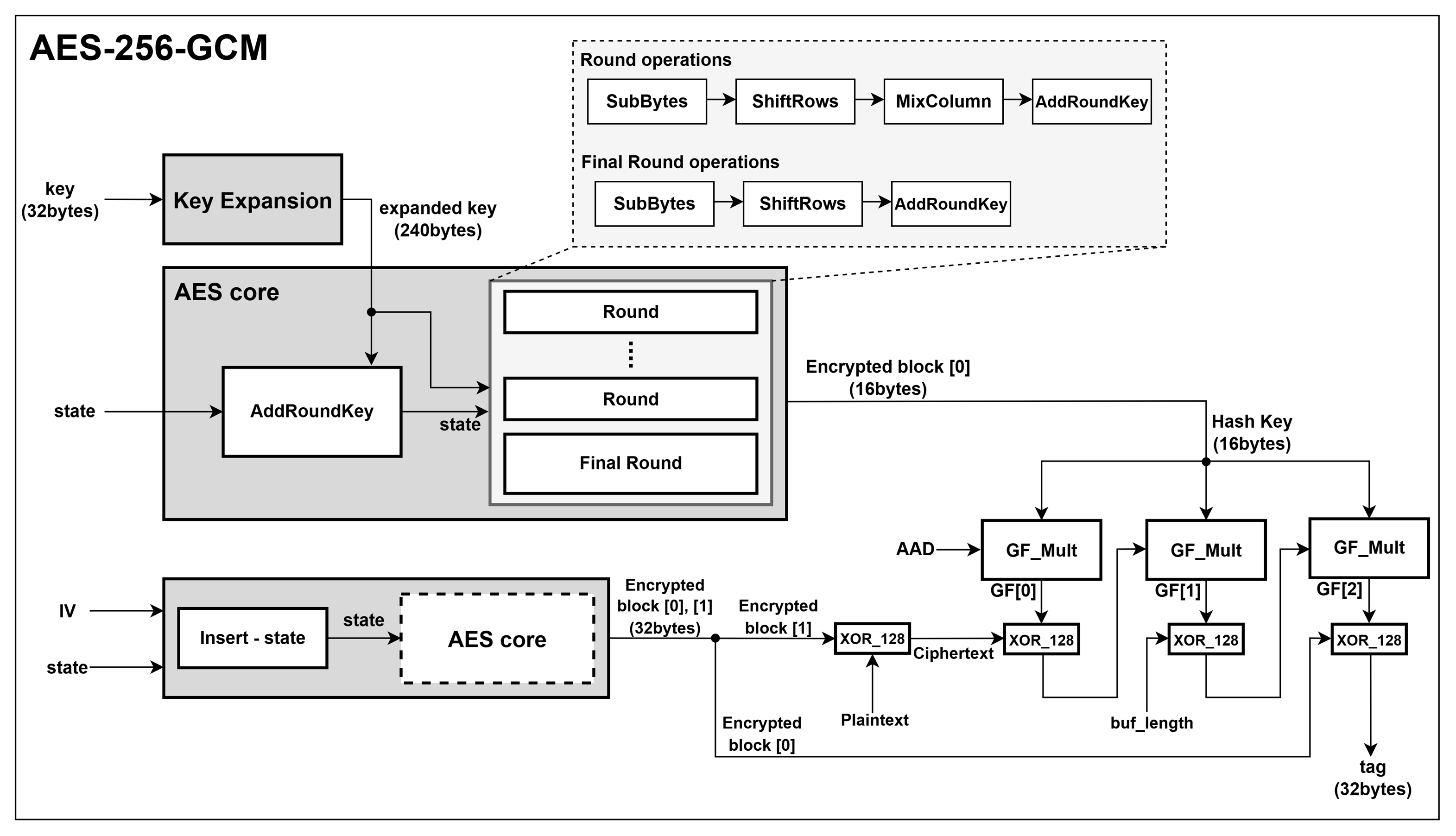

Fig. 5. HLS-based AES-256-GCM hardware block diagram.

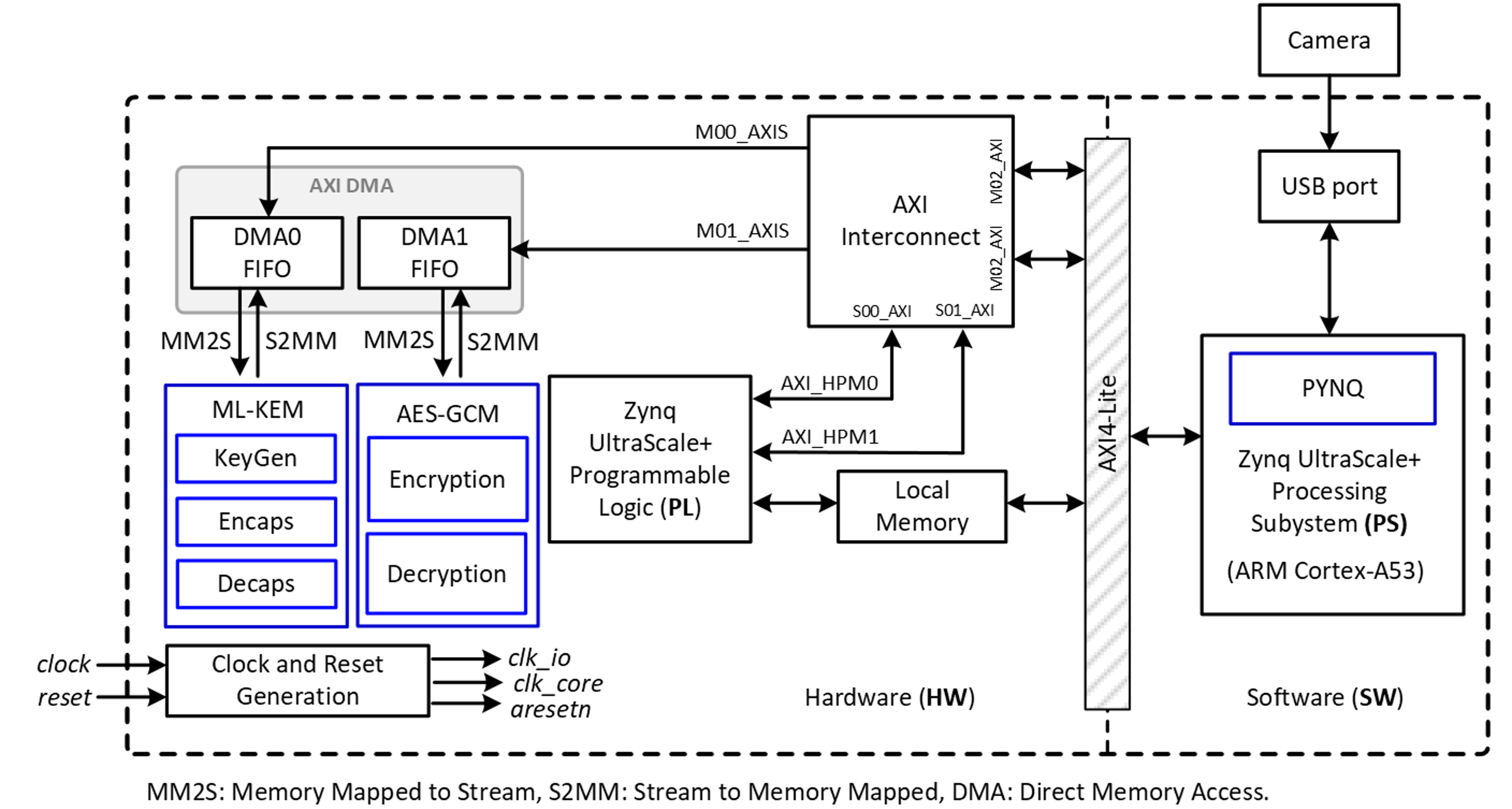

Fig. 6. Hardware/software co-design flow of the proposed ML-KEM and AES-GCM architecture in Vivado HLS.

As a result of these optimizations, the overall latency of the ML-KEM operation was reduced by approximately 80,000 clock cycles compared to the initial implementation, resulting in significant improvements in efficiency and execution time.

The hardware architecture of AES-256 encryption and decryption is depicted in Fig. 5. The diagrams illustrate the structured dataflow and composition of fundamental cryptographic components, including SubBytes, ShiftRows, MixColumns, and AddRoundKey, all tailored for efficient FPGA realization. The design flow is illustrated in Fig. 3, following the same methodology as that of ML-KEM. The ARRAY\_PARTITION directive was applied to two-dimensional arrays such as encrypt\_block, GF, state, and expanded key, allowing each array dimension to be mapped to individual registers for parallel processing. Furthermore, the internal KeyExpansion function was optimized through loop unrolling and pipelining of the shiftrow128, xor128, and GF\_mult128 operations. As a result of the applied optimizations, the overall latency of the AES-256 module was reduced by approximately 53,000 clock cycles compared to the baseline implementation, leading to substantial improvements in performance and processing efficiency.

The AXI-Stream interface was also integrated to generate the corresponding RTL code. The synthesized RTL was then verified through C/RTL co-simulation using waveform-based simulation in Vivado to ensure functional equivalence between the C and RTL implementations. The synthesized IP cores were mapped to the Programmable Logic (PL) region of the Zynq UltraScale+ FPGA, finalizing the hardware system implementation.

The top-level hardware/software co-design architecture is shown in Fig. 6. Our proposed system is implemented on the Xilinx ZCU104 FPGA board, which includes two parts: the PS and the PL. The Advanced eXtensible Interface (AXI) standard is used to interconnect the PS and PL. The PYNQ framework provides a software application interface that runs on the ARM processor in the PS, as mentioned above, while the designed hardware accelerators for ML-KEM and AES-GCM run on the reconfigurable logic in the PL.

The camera is used to generate video frames or capture videos with a resolution of 640×480. To interface with the user, the PYNQ framework is installed on the ARM Cortex-A53 CPU and is used to control the camera to record video data. The capture module converts native video to the AXI stream protocol. This module samples the incoming data at 200 MHz and generates appropriate AXI stream signals that integrate easily with other parts of the architecture using the same protocol.

In addition, each accelerator exposes an AXI stream interface that connects to dedicated DMA controllers (DMA0 for ML-KEM and DMA1 for AES-GCM), which provide high-bandwidth access to local memory. The DMA controllers are connected to memory via an AXI interface, while the CPU accesses their initialization, status, and management registers through AXI4-Lite. The details of the values in these registers are shown in Table 2.

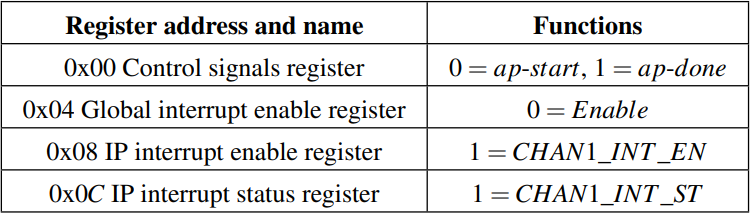

Table 2. HLS AXI-LITE register functions.

On the PS side, the processor accesses data in the DDR for computation. The processor includes a cache to store temporary data for acceleration. The HPM0 and HPM1 ports are high-performance interfaces that connect to the DDR controller through the AXI interconnect block. They can read and write large volumes of data in memory using the AXI protocol.

On the PL side, the DMA serves as the intermediary for data communication with the DDR and is connected to the HP port using the AXI stream protocol ^[22]. The DMA interacts with the hardware accelerator through input and output FIFOs. The read and write interrupt signals of the DMA pass to the IRQ port through the concat IP. The processor controls the DMA data transfer and passes configured parameters via the AXI HP ports using the AXI-Lite protocol. The AXI interconnect and AXI DMA act as intermediaries between the endpoint IPs and the PS. The AXI DMA controller supports memory copy (memcpy) and memory initialization (memset) functions, both of which can operate on byte, half-word, and word granularity. The AXI stream data transmission in this design uses a 64-bit bus, while the AXI-Lite control signal uses a 32-bit bus.

For operation, the ML-KEM block is executed first, and a pair of shared keys $ss$ and $ss'$ are generated by the Key Generation (KeyGen) sub-block, as shown in Fig. 6. The selected shared key $ss$ is then sent to the AES-GCM IP block, which is controlled by DMA0, while $ss'$ is used in the decryption algorithm.

Each IP module works independently. All modules interface with the same input and output FIFOs using the AXI DMA protocol. The module control logic is implemented as an arbiter designed to transmit control information between the PS and various acceleration modules. The system's configurability is achieved through control registers, which transmit control signals and design parameters. The four control registers are defined, as shown in Table 2. The register0 uses 3 bits to control the startup of four modules, while the remaining registers are used to convey parameter settings for the various modules.

Fig. 9 shows the basic operation of DMA0, which transfers the generated shared key to the AES-GCM IP block for re-encryption. The AXI stream handshake signals of the ML-KEM IP block—clock ($clk$), last ($kem\_TLAST$), keep ($kem\_TKEEP$), ready ($kem\_TREADY$), valid ($kem\_TVALID$), and data ($kem\_TDATA$)—are required for the IP block interface. Specifically, the $kem\_TLAST$ signal is required to indicate the end of a frame. In general, stream signals primarily facilitate handshake mechanisms. To clarify this, we categorize them into three groups: $kem\_TVALID$, $kem\_TREADY$, and all other signals grouped under $kem\_TDATA$.

After encryption/decryption, the result is transmitted via DMA1 using the PYNQ framework. The timing signals of the DMA1 protocol are depicted in Figs. 8 and 9.

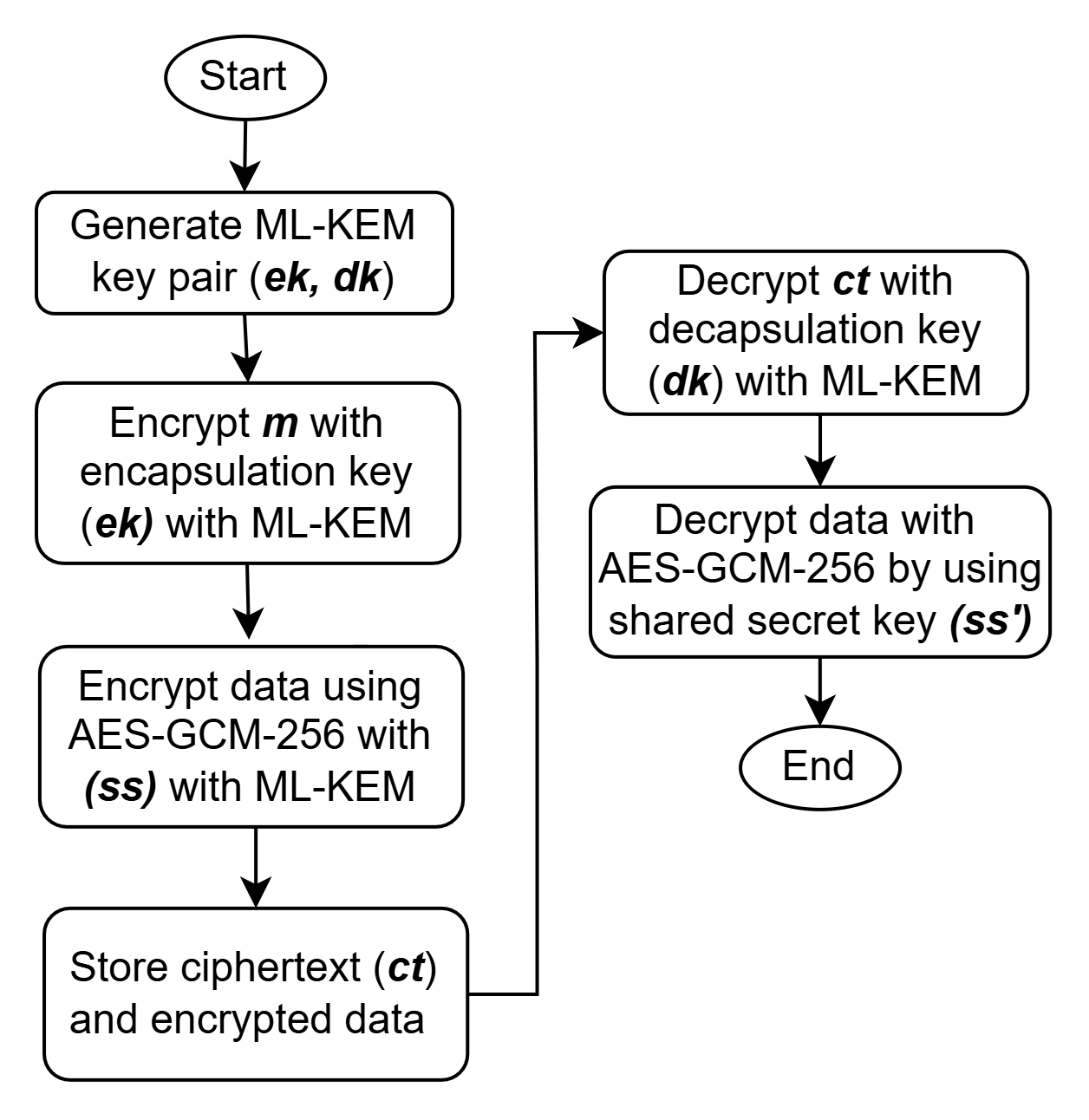

Fig. 7. Flow chart for hybrid mode of the proposed HW/SW co-design.

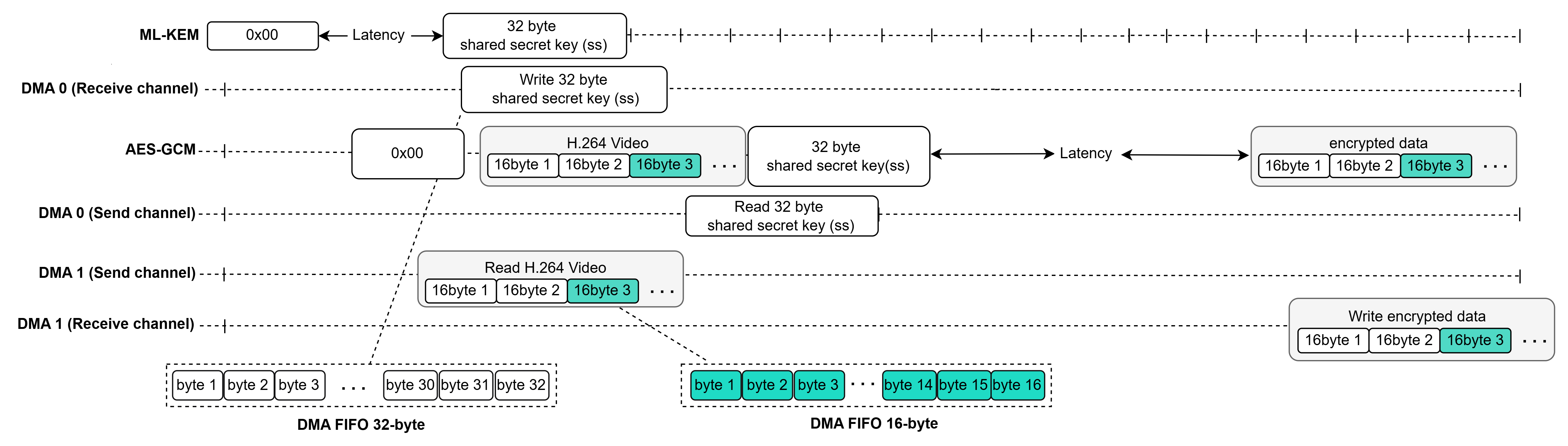

Fig. 8. Timing diagram of the signals involved in the encapsulation algorithm, with the shared key from ML-KEM block, and encrypted data from AES-GCM block.

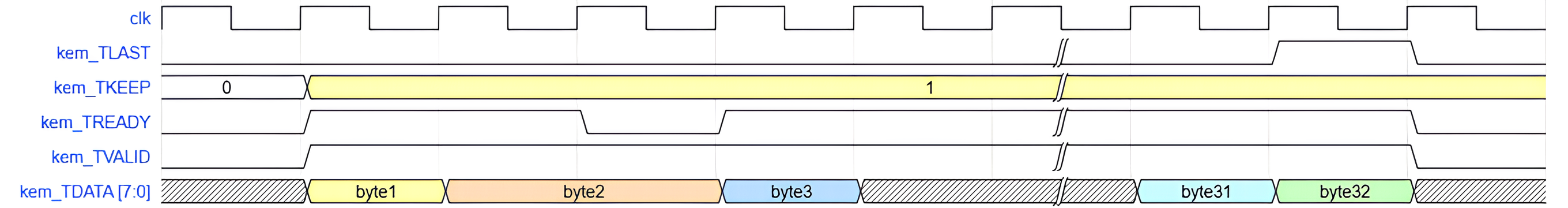

Fig. 9. Temporal trends of the signals involved in the encapsulation algorithm, encrypted data output occurs on each rising edge of the clock.

Fig. 10. ML-KEM based hybrid cryptosystem architecture on FPGA.

IV. EXPERIMENT RESULTS

Table 3 shows a comparison of FPGA resource utilization for the AES-GCM implementation, while Table 4 provides a comparison of hardware resource consumption for the ML-KEM and CRYSTALS-Kyber implementations. Additional results from our case studies, which were not previously included, are summarized in Table 5, showing the complete combination of ML-KEM and AES-GCM IP cores.

Table 3. Performance comparison for AES-GCM architecture, with latency (Cycle): Lat.(CC), frequency: Freq., and Encryption/Decryption: Enc/Dec.

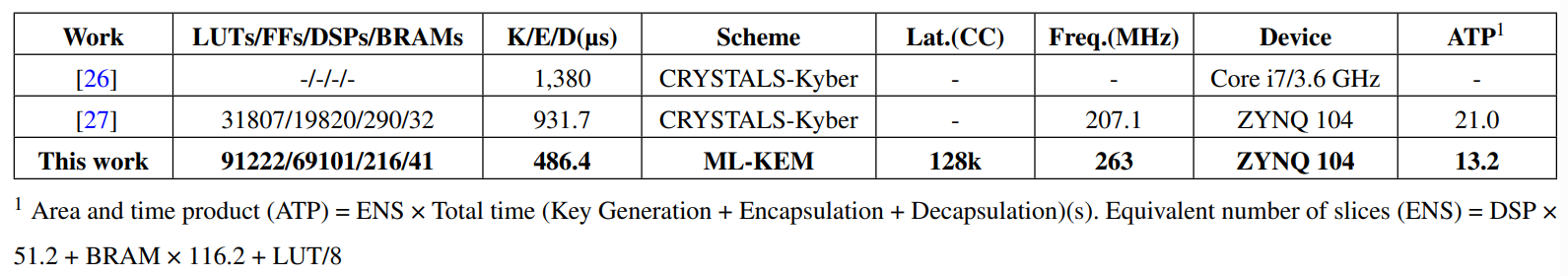

Table 4. Performance comparison for ML-KEM/CRYSTALS-Kyber architecture, with latency (Cycle): Lat.(CC), frequency: Freq., and Key generation/Encapsulation/Decapsulation: K/E/D.

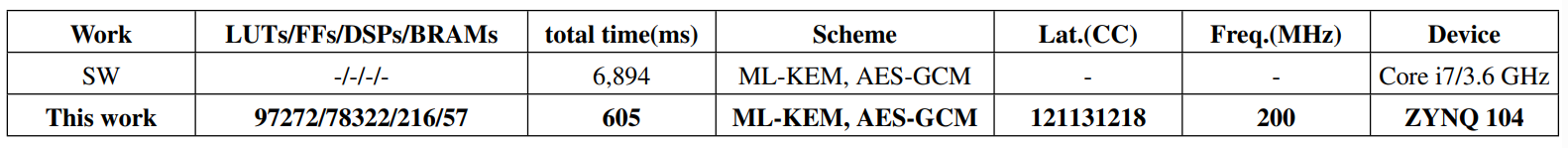

Table 5. Performance comparison for ML-KEM based hybrid cryptosystem architecture, with 320KB file, latency (Cycle): Lat.(CC), frequency: Freq.

We evaluated our design using Xilinx Vivado HLS on the Zynq UltraScale+ Evaluation Platform (ZCU104 board, xczu7ev-ffvc1156-2-e) with the open-source PYNQ framework ^[21]. For the ML-KEM hardware, we selected the parameter set specified in the ML-KEM standard with $n = 256$, $Q = 3329$, and $k = 2$. These parameters are summarized in Table 1.

As shown in Table 4, the proposed ML-KEM IP, which supports key generation, encapsulation, and decapsulation, reduces execution time by approximately $2.84\times$ compared to the software implementation in ^[26]. It also achieves higher throughput than the CRYSTALS-Kyber HLS design reported in ^[27], improving the area-time product (ATP) by approximately 37.1\%.

The hardware export file (.bit file) was synthesized in Vivado and loaded onto the FPGA using the PYNQ Overlay class. Input data streams are passed to the AES-GCM block in packets using the Xilinx DMA tool and the PYNQ DMA driver. The resulting data can then be processed and visualized in the Jupyter notebook using standard Python tools.

Throughput is defined as the number of bits processed per second for the whole operations (key generation, encapsulation, decapsulation). The hardware latency of ML-KEM is presented in Table 4.

The throughput, $T_p$, achieved by the proposed ML-KEM design can be calculated using the following equation:

Here, $T_p$ represents the throughput in kilobits per second (kbps). The throughput reported in ^[27] is approximately 8.6 kbps, whereas the proposed design achieves a throughput of approximately 16.4 kbps, representing an improvement of nearly $1.91\times$.

V. CONCLUSION

We implemented, compared, and analyzed the performance of HLS-based optimization and the design results of a proposed post-quantum cryptographic system. Xilinx tools, Vivado HLS (2022.2) and Vivado (2022.2), were utilized, with the Zynq FPGA (ZCU104 board) set as the target platform.

As shown in Fig. 6, the HLS design was implemented on the Zynq FPGA. The developed module, enhanced through directive-based optimizations in Vivado HLS, achieved reduced latency compared to both the original NIST reference source code and previous HLS design. Experimental results confirm improvements in performance and area-time product (ATP). In particular, for 320 KB files, the encryption/decryption time was reduced by approximately $11.3\times$ compared to the software implementation used in the reference source code. The implemented PQC design is promising and can be applied to a wide range of security-critical applications.
